Description

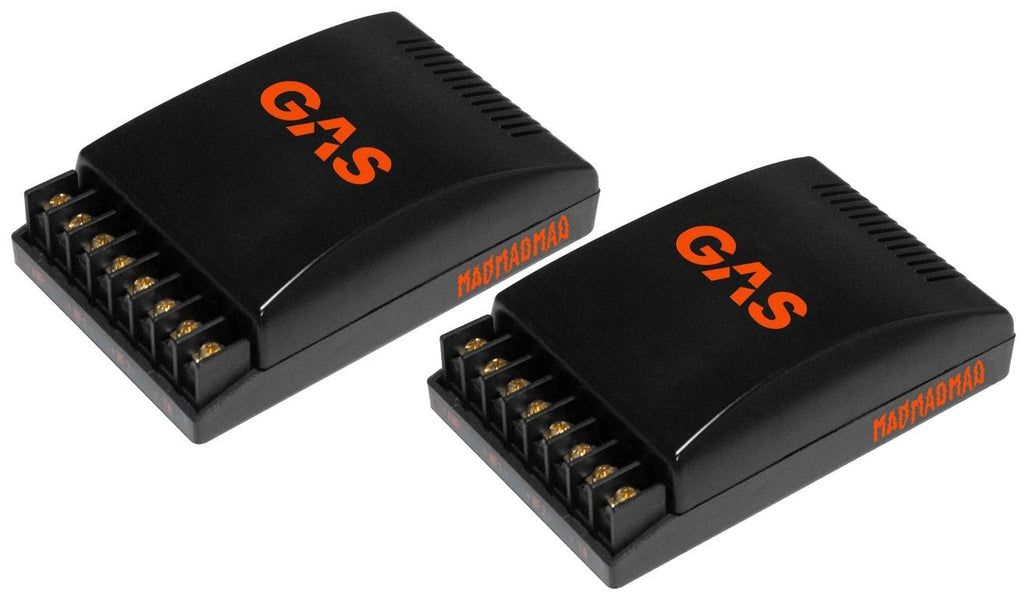

The GAS MAD PXO1-24 is a passive crossover filter from the MAD collection that can be used for one or two four-ohm mids and one treble.
- Power rating RMS/Max: 125W / 250W
- High pass 6kHz, 12dB/oct
- Low pass: 5kHz, 6dB/oct
- Outputs for one tweeter
- Outputs for two mids
- Gold plated connectors
- Treble level adjustment 0 / -6dB
- In the package: 1 pair
MAD PXO1-24 splitters are specially designed for use with GAS MAD1 and MAD2 loudspeakers.
When you connect one (4ohm) treble and one (4ohm) midbass to the filter, the load to the amplifier is four ohms/channel
When you connect one (4ohm) treble and two (4ohm) midbass to the filter, the load to the amplifier is two ohms/channel
These crossover filters are also used in all MAD1 and MAD2 separate sets, which are also available with double mids!
