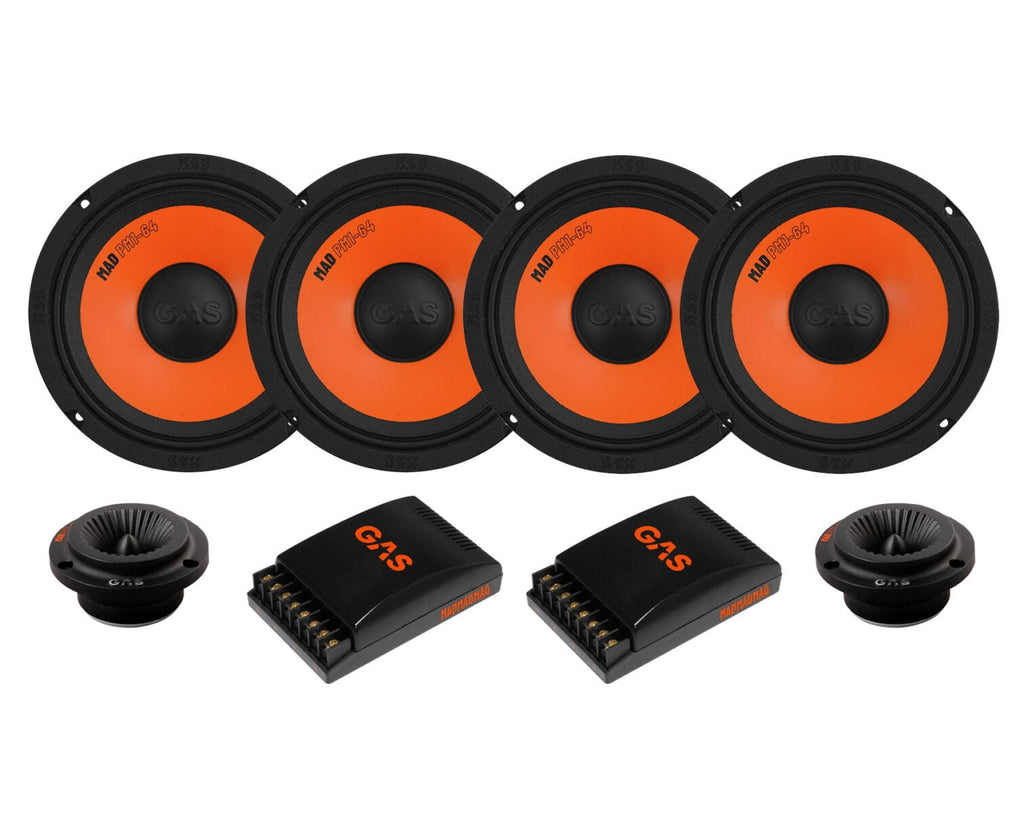

The GAS MAD1-88 is an affordable and powerful sounding stand-alone set
featuring the new GAS MAD1 series 8″ double midranges , GAS MAD tweeters and GAS MAD crossovers.
Insane sensitivity = Lots of noise
The MAD1-88 standalone mids have a respectable 93dB sensitivity, so you can get sound even with low amplifier power. The cone is made of compressed paper pulp, which has been reinforced, and the drivers are naturally metal-bodied.
Specifications:
- 8″ SPL midrange (2pr)
- Impedance: 4ohm
- 1″ voice coil
- Metal frame
- Cone of reinforced paper pulp
- Sensitivity: 93dB
- Frequency range: 90 – 10,000Hz
- Power duration (RMS / Max): 70W / 140W
- Outer diameter: 205mm
- Countersink hole: 185mm
- Immersion depth: 70mm
Robust trebles

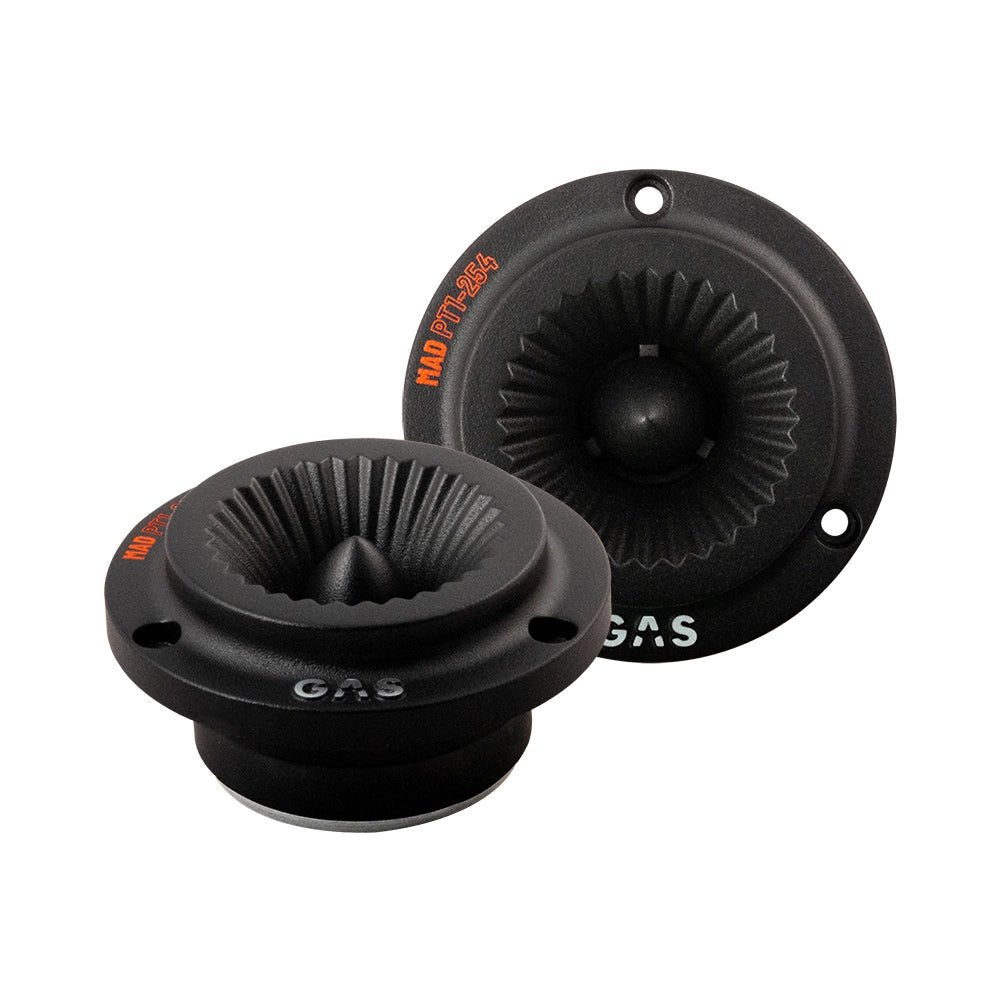

The MAD1-88 separate series tweeters feature a one-inch voice coil, a sturdy cast body, and a wave-patterned driver, which not only improves sound quality but also provides a wider sound field than before, meaning more sound over a wider area.
The speakers do not have separate terminals, as the wires now come directly from the voice coil, which means less installation space is required than normal.
Note: The speakers have a crossover filter integrated into the tweeter cable. This must be removed when using the crossover filters that come with the separate kit.
The filter integrated into the speaker cable is only used when PXO1-24 crossover filters are not used.
Specifications:
- SPL Treble
- Impedance: 4ohm
- 1″ voice coil
- Cast frame
- Wave-patterned deflector
- Sensitivity: 95dB
- Frequency range: 2000 – 20,000Hz
- Power duration (RMS / Max): 50W / 100W
- Outer diameter: 95mm
- Countersink hole: 70mm
- Immersion depth: 30mm
Crossover filters
The GAS MAD1-6 series features high-quality passive filters with separate treble level control. The crossover is also suitable for use with double mids.
- Passive filter (1pr)
- Power rating RMS/Max: 125W / 250W
- High pass 6kHz, 12dB/oct
- Low pass: 5kHz, 6dB/oct
- Outputs for single tweeters
- Outputs for two MIDIs
- Gold-plated connectors
- Treble level control 0 / -6dB
When you connect one (4ohm) tweeter and two (4ohm) midbasses to the filter, the load going to the amplifier is two ohms per channel.
If you want to expand your set even further, no problem. All MAD1 mids, tweeters and filters are also available separately!
