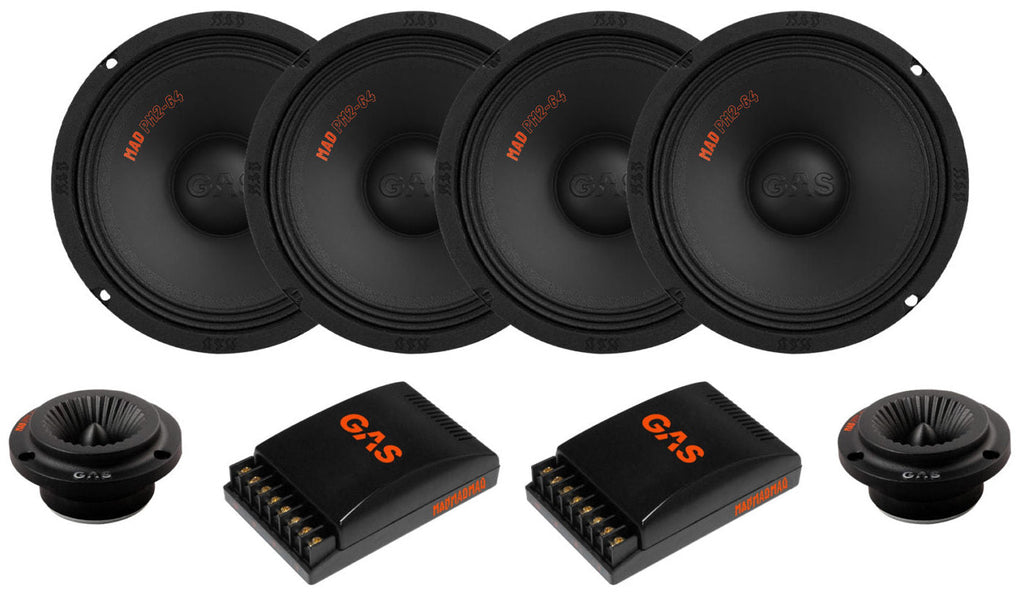

GAS MAD2
is a more robust and louder-sounding collection of MAD speakers , offering a better price-quality ratio than ever before!
Newly, MAD2 covers 6.5″ and 8″ elements, and for the first time also 10″ loose elements!
Stronger than ever
The GAS MAD2-88 dual-midrange separate series is not made for playing quiet background music, but the MAD "second" is made to play louder than ever.

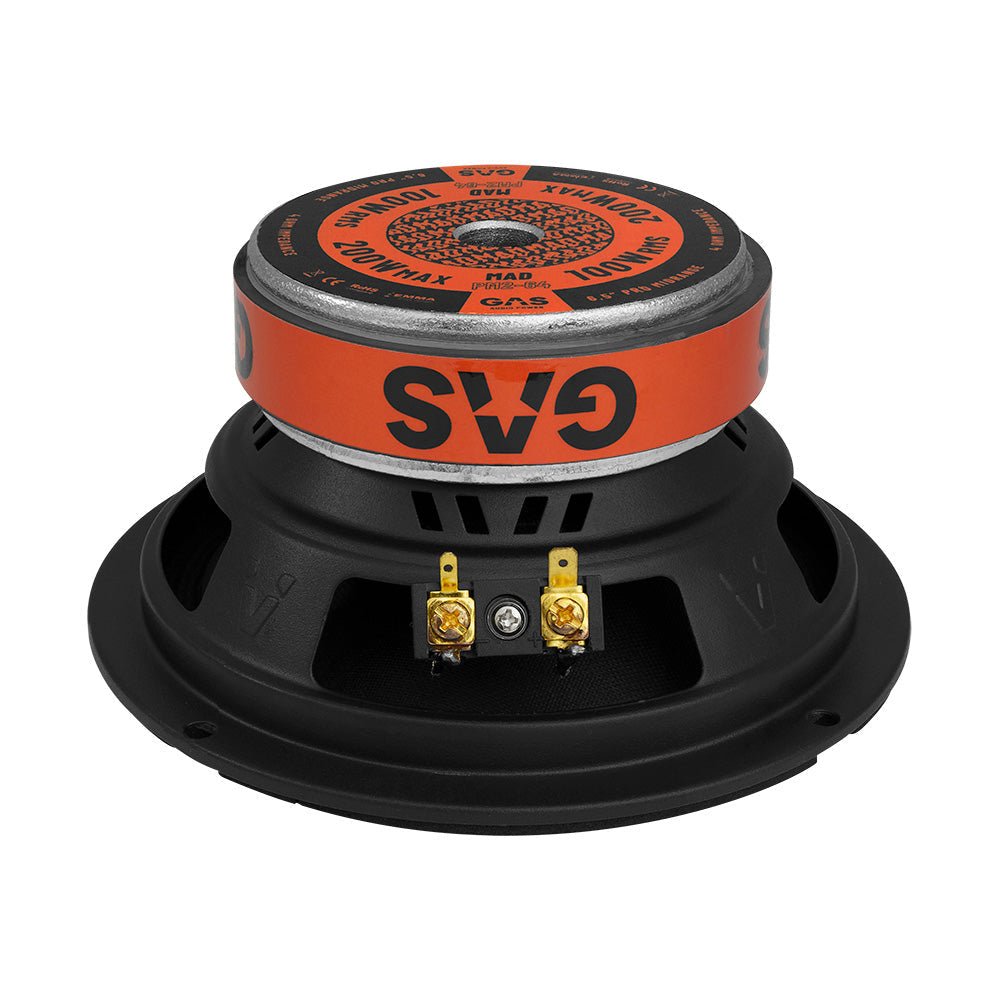

The mids feature a high sensitivity of 95dB, a reinforced, highly durable paper pulp cone, a stylish 3D patterned polypropylene dust cup, and a sturdy metal frame. The voice coil and magnet are larger than the MAD1 models.
The most significant innovation, however, is that the resonant frequency has been lowered to 70 hertz. This means a lot of sound for little money.
Specifications:
- 8″ SPL midrange (2pr)
- Impedance: 4ohm
- 1.5″ voice coil
- Metal frame
- Cone of reinforced paper pulp
- Sensitivity: 95dB
- Frequency range: 70 – 12,000Hz
- Power rating (RMS / Max): 125W / 250W
- Outer diameter: 204mm
- Countersink hole: 180mm
- Immersion depth: 82mm
Robust trebles

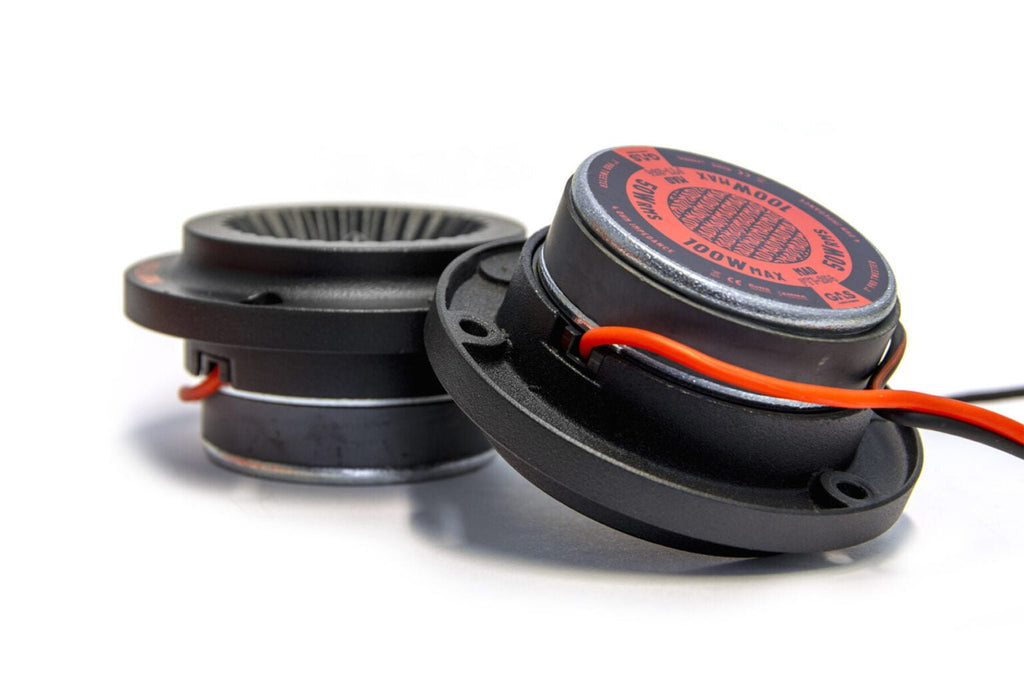

The MAD2-88 separate series tweeters feature a one-inch voice coil, a sturdy cast body, and a wave-patterned driver, which not only improves sound quality but also provides a wider sound field than before, meaning more sound over a wider area.
The speakers do not have separate terminals, as the wires now come directly from the voice coil, which means less installation space is required than normal.
Note: The speakers have a crossover filter integrated into the tweeter cable. This must be removed when using the crossover filters that come with the separate kit.
The filter integrated into the speaker cable is only used when PXO1-24 crossover filters are not used.
Specifications:
- SPL Treble (1pr)
- Impedance: 4ohm
- 1″ voice coil
- Cast frame
- Wave-patterned deflector
- Sensitivity: 95dB
- Frequency range: 2000 – 20,000Hz
- Power duration (RMS / Max): 50W / 100W
- Outer diameter: 95mm
- Countersink hole: 70mm
- Immersion depth: 30mm
Crossover filters
The GAS MAD2-88 series features high-quality passive filters with separate treble level control. The crossover is also suitable for use with double mids.
- Passive filter (1pr)
- Power rating RMS/Max: 125W / 250W
- High pass 6kHz, 12dB/oct
- Low pass: 5kHz, 6dB/oct
- Outputs for single tweeters
- Outputs for two MIDIs
- Gold-plated connectors
- Treble level control 0 / -6dB
If you want to expand your set even further, all MAD2 mids, tweeters and filters are also available separately!!!
