Ground Zero GZHW 10SPL-D2 FLAT

Name: Ground Zero GZHW 10SPL-D2 FLAT
Brand: Ground Zero
SKU: GZHW 10SPL-D2 FLAT
Price: 299.00 EUR
Availability: InStock

Ground Zero

Price:

€299,00

Stock:

In stock

Quantity:

Share this product

Ground Zero GZHW 10SPL-D2 FLAT

The NEW HYDROGEN series GZHW 10SPL-D2 FLAT subwoofer decides
the problems of tight installation space. An excellent choice for low installation space.
GZHW 10SPL-D2 FLAT sturdy element with a large voice coil.

10″ flat SPL subwoofer
Klippel® optimized
Aluminum frame
Reinforced pulp cone
HighRoll sandwich suspension
63 mm / 2.5″ voice coil
Printing terminals

Case recommendation:
Reflex: 17 liters (net)
Port: 1 x 70 mm / 1 x 2.76”
Gate length:* 300 mm / 11.81”
Tuning frequency: 39 Hz

NOTE! Works from 9l in a closed case!

Technical information:
Model
High-Quality Flat SPL Subwoofer

Diameter
25 cm / 10″

Power Handling (RMS/SPL.)
600 / 1000 Watts

Impedance
2x 2 Ohms

Efficiency
85 dB

Power Recommendation
400 – 1000 Watts

Voice Coil
63 mm / 2.5″ Copper

Max. Excursion (Xmax)
29 mm / 1.14″

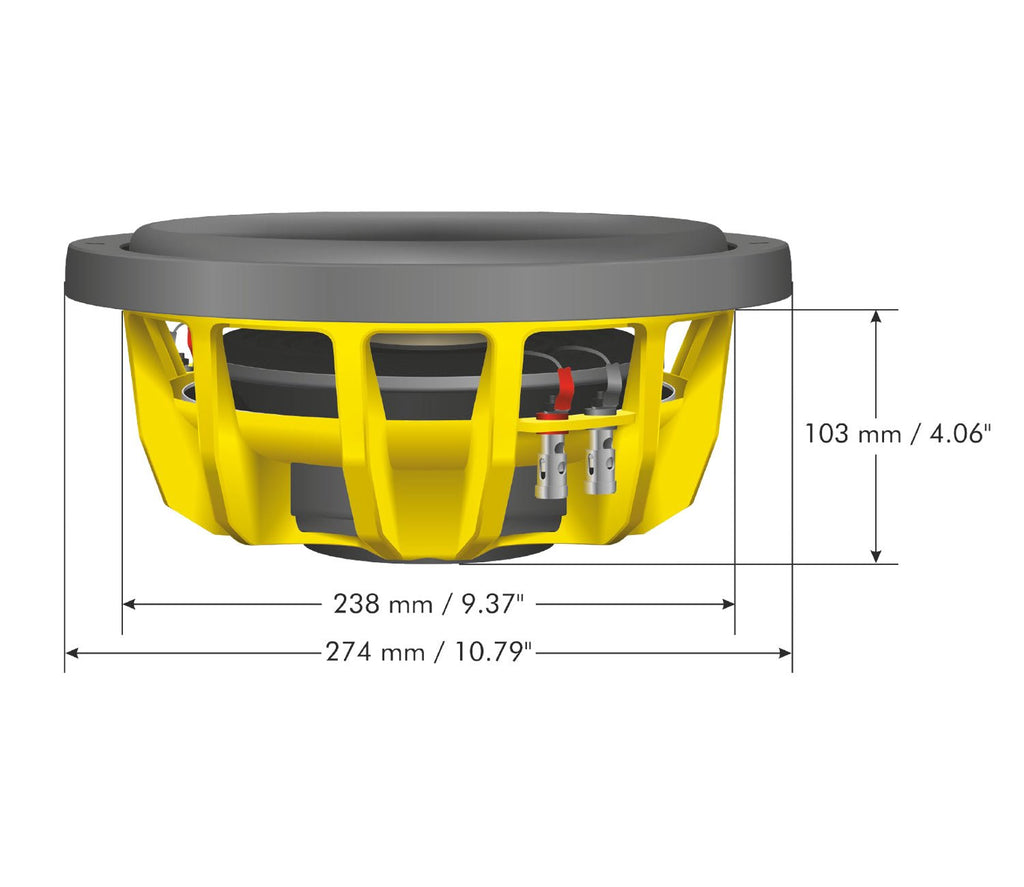

Mounting Ø
238mm / 9.37″

Mounting Depth
103mm / 4.06″

Resonance Frequency (Fs)
35.5 Hz

Overall Qaulity (Qts)
0.434

Equiv. Air Volume (Left)
19.7 L / 0.70 cu.ft..
