Klippel optimization has been used in the design of Hydrogen SPL elements. In the 10-hour testing, the behavior of the element is studied with numerous measurement results, and thus the weak points and problems that require improvement are found already in the early design phase.
The element is fired with up to four times the power compared to its power duration. The end result is an element with a very even impedance response, i.e. it receives power well at all frequencies, has good sensitivity and withstands power properly.
If you want to play LOUD, the Hydrogen SPL is an excellent choice as an element. A solid and well-breathable cast frame holds the element together and allows the subwoofer to breathe properly through the frame.
Functional voice coil ventilation and sufficiently robust voice coil keep the operating temperature of the coil correct even during heavy use.
The double lower suspension controls the movement of the cone, and the top suspension and cone attachment secured by stitching can withstand even the most violent trajectory.
Technical information: - High power 16 cm / 6.3” SPL subwoofer - Klippel® optimized - Double magnet - Stable aluminum cast basket - Reinforced paper cone - Double Spider - 50 mm / 2” Copper voice coil - High-roll sandwich surround - Speaker wire connection
Diameter: 177 mm / 6.97“ Mounting diameter: 153 mm / 6.02“ Mounting depth: 110 mm / 4.33“ Voice coil: 50 mm Kupfer / 2″ copper Cone: Reinforced paper Power Handling: 1000 W SPL Power Impedance: 2 x 2 Ohm SPL: 81dB Xmax: 30mm / 1.18” Fs: 51 Hz Qts: 0.46 Left: 2.8 L / 0.10 cu.ft..
/en/products/ground-zero-gzhw-16spl8437309243730Ground Zero GZHW 16SPL111,75//audiokauppa.fi/cdn/shop/products/GZHW-16SPL-2.jpg?v=1683222357//audiokauppa.fi/cdn/shop/products/GZHW-16SPL-2_large.jpg?v=1683222357EURInStock2681349079838" and smaller subwoofers268132221007Car stereo268134809679Car subwoofers268168593487Ground Zero

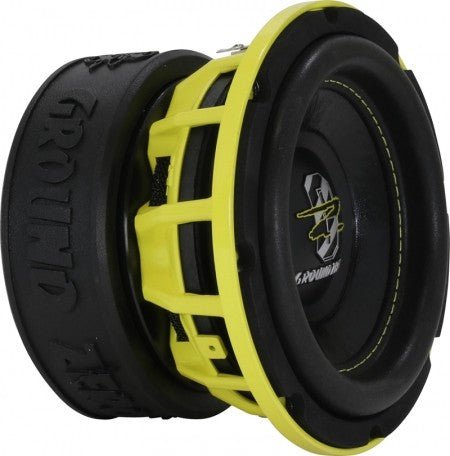

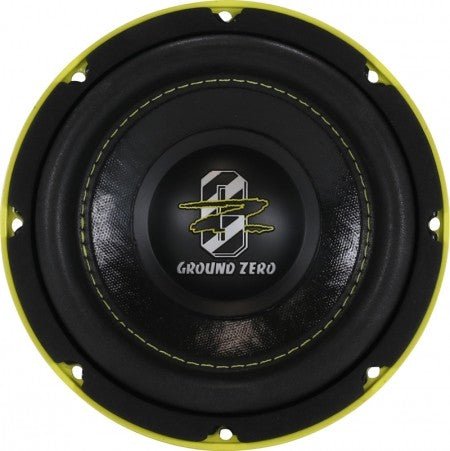

Ground Zero GZHW 16SPL
Klippel optimization has been used in the design of Hydrogen SPL elements. In the 10-hour testing, the behavior of the element is studied with numerous measurement results, and thus the weak points and problems that require improvement are found already in the early design phase.
The element is fired with up to four times the power compared to its power duration. The end result is an element with a very even impedance response, i.e. it receives power well at all frequencies, has good sensitivity and withstands power properly.
If you want to play LOUD, the Hydrogen SPL is an excellent choice as an element. A solid and well-breathable cast frame holds the element together and allows the subwoofer to breathe properly through the frame.
Functional voice coil ventilation and sufficiently robust voice coil keep the operating temperature of the coil correct even during heavy use.
The double lower suspension controls the movement of the cone, and the top suspension and cone attachment secured by stitching can withstand even the most violent trajectory.
Technical information: - High power 16 cm / 6.3” SPL subwoofer - Klippel® optimized - Double magnet - Stable aluminum cast basket - Reinforced paper cone - Double Spider - 50 mm / 2” Copper voice coil - High-roll sandwich surround - Speaker wire connection
Diameter: 177 mm / 6.97“ Mounting diameter: 153 mm / 6.02“ Mounting depth: 110 mm / 4.33“ Voice coil: 50 mm Kupfer / 2″ copper Cone: Reinforced paper Power Handling: 1000 W SPL Power Impedance: 2 x 2 Ohm SPL: 81dB Xmax: 30mm / 1.18” Fs: 51 Hz Qts: 0.46 Left: 2.8 L / 0.10 cu.ft..149,00Ground Zero8" ja pienemmät subwooferitAutohifiadd-to-cart//audiokauppa.fi/cdn/shop/products/GZHW-16SPL-3.jpg?v=1683222357//audiokauppa.fi/cdn/shop/products/GZHW-16SPL-4.jpg?v=1683222357//audiokauppa.fi/cdn/shop/products/GZHW-16SPL.jpg?v=168322235746574709997906Default Title111,75149,00//audiokauppa.fi/cdn/shopifycloud/shopify/assets/no-image-2048-5e88c1b20e087fb7bbe9a3771824e743c244f437e4f8ba93bbf7b11b53f7824c.gifhttps://audiokauppa.fi/en/products/ground-zero-gzhw-16spl?variant=46574709997906InStockDefault Title
