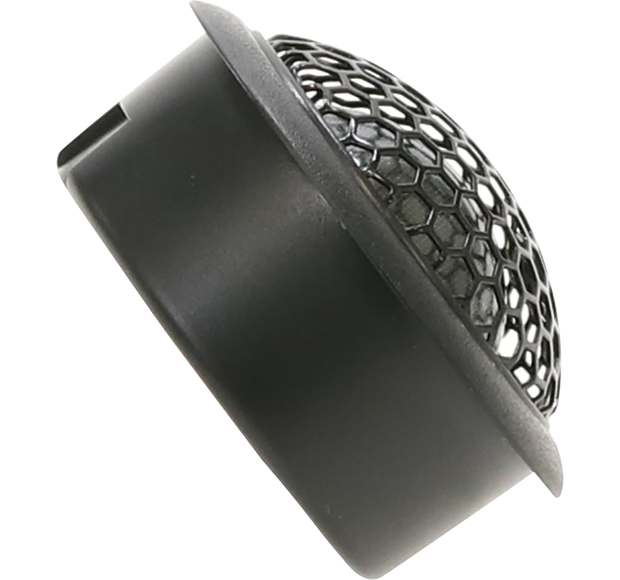

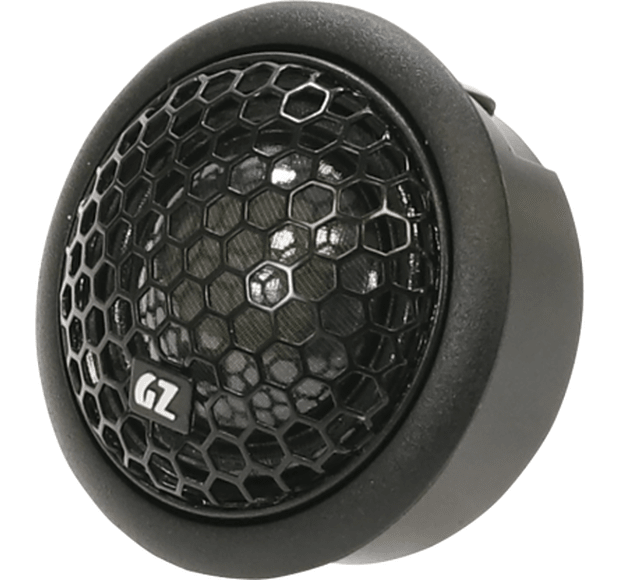

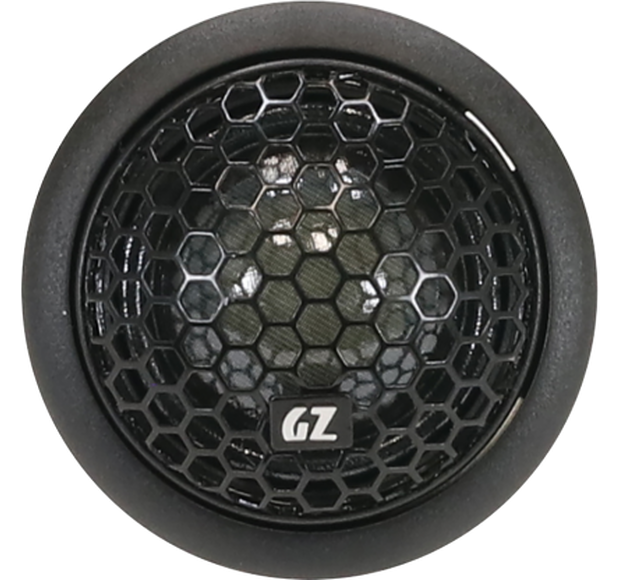

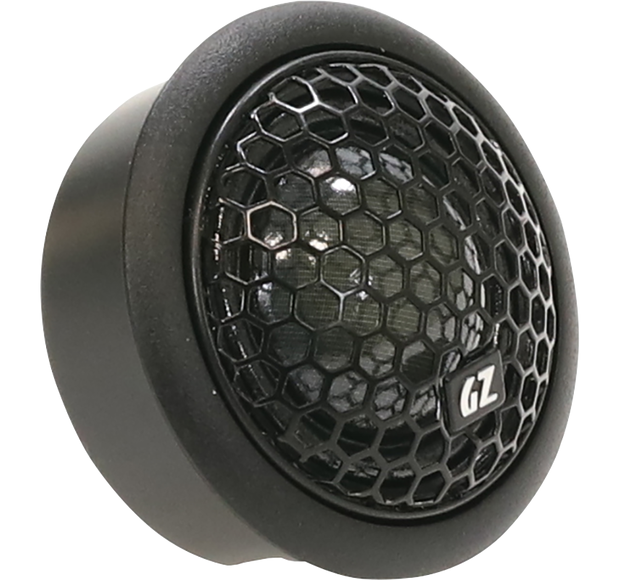

Ground Zero GZUT 28SQ

Ground Zero GZUT 28SQ

• 28 mm / 1.10″
• SQ silk dome tweeter
• 130W
• 4 Ohms

This high-quality silk dome tweeter is 28mm in size and has gold-plated connectors and a neodymium magnet.

The same tweeter is used in the GZUC 165.2SQ standalone series.

Specifications:
Model
Silk dome tweeter

Diameter
28mm / 1.10″

Power Handling (RMS/max.)
80 / 130 Watts

Impedance
4 Ohm

Efficiency
90dB

Frequency Response
2500Hz – 25kHz

Recommended high-pass filter
3000 Hz @ 12 dB/oct

Voice Coil
28mm / 1.1″

Membrane Layout
Coated silk dome

Mounting Ø
48mm / 1.89″

Mounting Depth
18mm / 0.71″

Resonance Frequency (Fs)
1300Hz

(Installation tip: The wire with a white stripe is the plus cable).
