GZ Pink Powerpacked 2x12 inc

GZ Pink Powerpacked 2x12 inc

GZ Pink Powerpacked 2x12 inc contains 2 pcs GZIW 12XSPL-D2 PINK subwoofer, 4-AI212SLOT box and SD1200.1-2 EVO5 amplifier.

GZIW 12XSPL-D2 PINK:

Ground Zero Iridium XSPL brings a new subwoofer element made for sound pressure use at an unprecedentedly affordable price range!

All new GZIW basses have a new updated lower suspension + voice coil, the IMPP cone is stiffened with spirals, which affects the resonance of the cone significantly, thus the renewed GZIW guarantees an even tighter kick.

Don't let the low price fool you. This element is excellent in performance for the price. More design work has been done than for most manufacturers' more expensive price categories. In Klippel optimization, 10-hour tests are carried out, in which the behavior of the element is measured in many ways and the weak points are dug out before production. This results in a very high-performance element.

4-AI212SLOT:

4-AI212SLOT is an ISO housing made of MDF board. A large port with rounded ends flows well.
The case is upholstered with black felt, and the front panel has carbon fiber-look tape. The case already has a connector terminal with a cable.

Case dimensions: width 930mm x height 380mm x depth 400mm

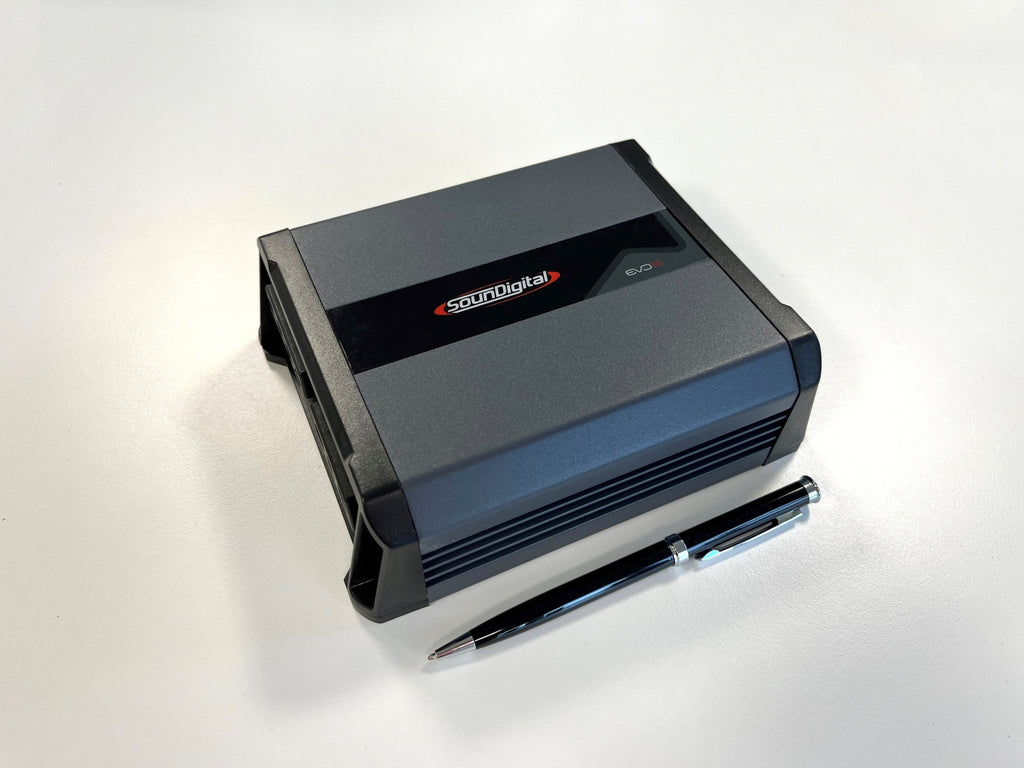

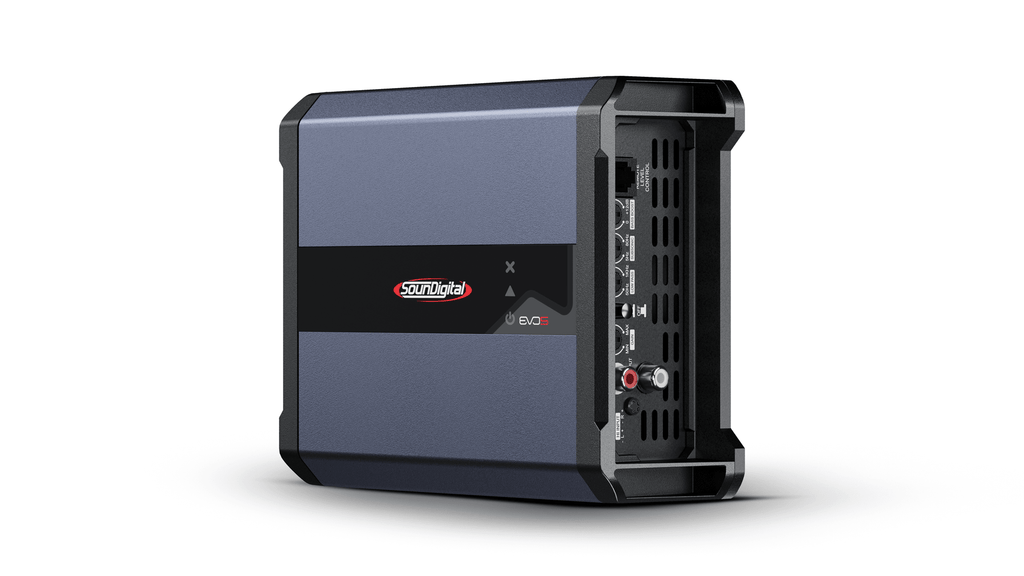

SD1200.1-2 EVO5:

Take sound reproduction to a new level with SounDigital EVO5 series amplifiers – compact size, lots of power and speaker-level input in the same package!

Never before have such small external dimensions been able to produce such great power. And at a very reasonable price!

All models have a damping factor of over 1000!

At high outputs, a lot of power is consumed and in many cars the problem is voltage drops at the peak of the music and when playing loudly.

Sounddigital's amplifiers have taken this practical situation into account so that the operating voltage of the amplifiers can be as low as 9 volts!

Technical information:
GZIW 12XSPL-D2 PINK:

- Pink 12″ XSPL Subwoofer
- Progressive 2-layer Spider
- Voice coil 63 mm / 2.5″
- Impedance 2 x 2 Ohm
- Re 4.33 Ohm
- Fs 32.5 Hz
- Qms 10.76
- Qes 0.79
- Qts 0.73
- Left 40.4 L
- Le 2.48 mH
- Including 231 gr
- Bl 15.9
- Xmax 34 mm / 1.34″
- Efficiency ( SPL 1w / 1m )
- Power handling (SPL) 1000 Watts
- Rec. amplifier power 500 - 1000 Watts
- Outer diameter 310 mm / 12.2″
- Mounting cut out 285 mm / 11.22″
- Mounting depth 162 mm / 6.38″

4-AI212SLOT:

Ported enclosure for 2x12″ subwoofer
Net volume: 2x40 liters.
Port area: 350 cm2
Port height: 350mm
Port width: 100mm
Tuning frequency: 38 Hz
Diameter of speaker hole: 285mm
Measurements ( W x H x D ): 930 x 380 x 400.

SD1200.1-2 EVO5:

Power @ 1Ω: N/A
Power @ 2Ω: 1 X 1200 WRMS
Power @ 4Ω: 1 X 792 WRMS

Frequency Response (-3dB):

5Hz~25kHz

Subsonic Filter:

5Hz~80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V
