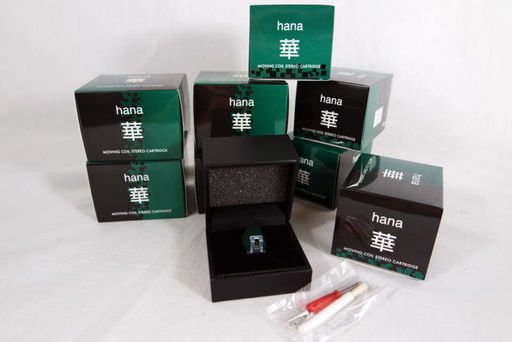

Hana EH

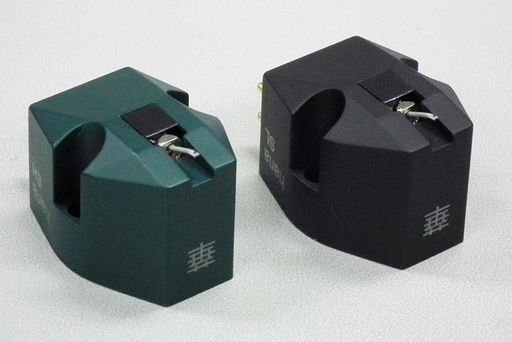

The Hana EH cartridge has a synthetic Elliptical diamond stylus fitted to a high rigidity aluminum Cantilever with cross-shaped armature, offering super transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in dark green.
This competitively priced High output moving coil cartridge offers great quality sound referenced against similar priced cartridges. The EH (Elliptical High output) offers 2mv/1kHz output.
- Stylus Profile: Elliptical
- Cantilever: Aluminum
- Output Level @ 1kHz: 2.0mV
- Output Balance @ 1kHz: Less Than 2dB
- Vertical Tracking Force: 2 grams
- Trackability: 60 um/2 grams
- Separation @ 1kHz: 22dB
- Frequency Response: 15-25,000 Hz
- Impedance @ 1 kHz: 130 Ω
- Suggested Load: 47 kΩ
- Cartridge Weight: 5 Grams
- Body Color: Moss Green
