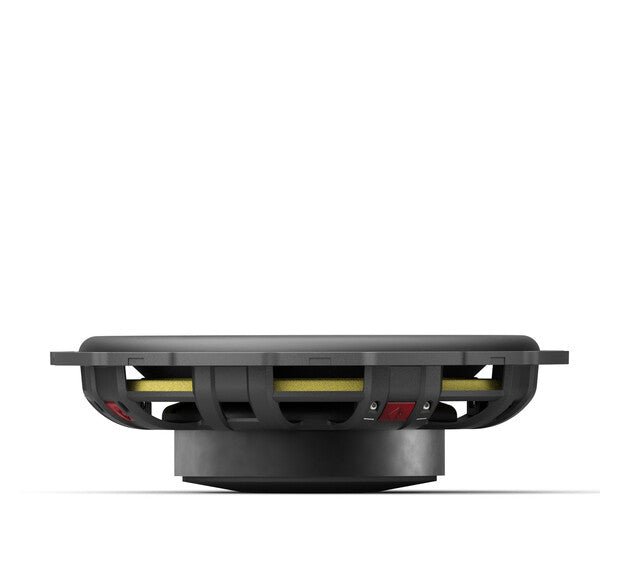

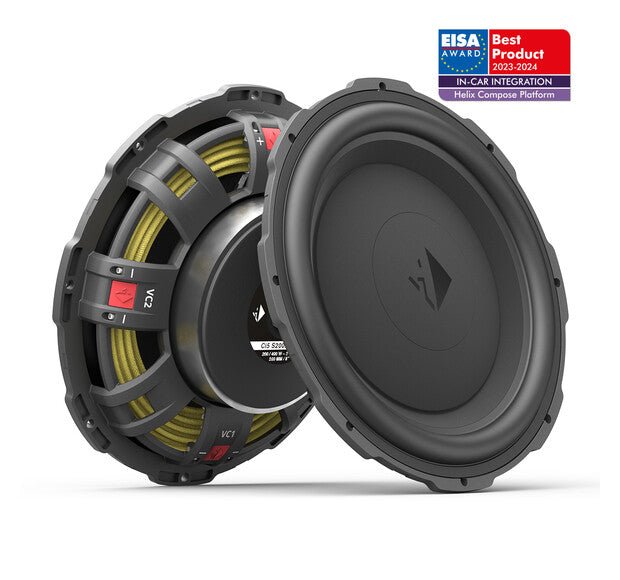

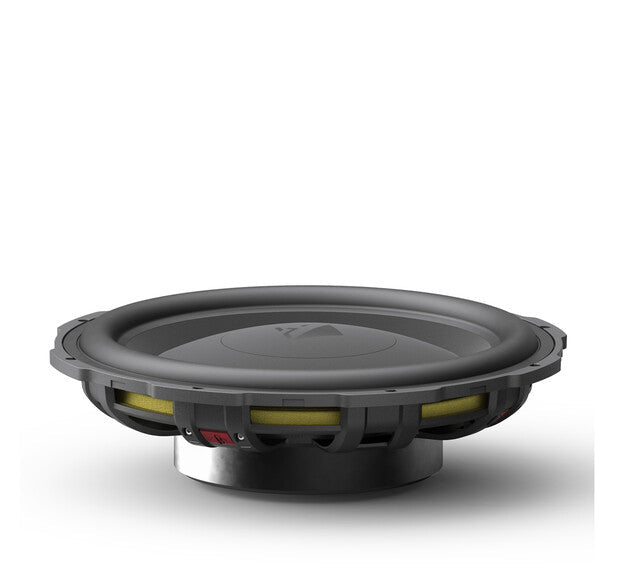

The HELIX Ci5 S200FM is an 8″ hybrid woofer (midbass/subwoofer) with an extremely shallow installation depth of 47mm. The Ci5 S200FM is available in 2 x2 and 1 x 2 Ohm versions.
Compatible with HELIX COMPOSE CFMK200 adapters.
This woofer is also suitable as a BMW bench sub with the CFMK200 BMW.1S adapter.
NOTE! not directly suitable for BMW Top Hifi (Harman/Kardon, Logic7, HiFi System Professional DSP and other names) systems with equipment codes S688A/S677A/S752A. The reason is that these amplifiers cannot withstand a 2 ohm load like the HiFi package S676A and S674A amplifiers and the player alone can.
Power handling RMS / Max. P
200 / 400 Watts
Impedance Z 1 x 2 Ω
DC resistance Re 3.6 Ω
Frequency response 25 Hz to 500 Hz
Resonance frequency Fs 55 Hz
Mechanical Q factor Qms 8.31
Electrical Q factor Qes 0.88
Total Q factor Qts 0.80
Compliance Cms 256 µm/N
Equivalent air volume Vas 13.5 L
Force factor B*I 6.7 Tm
Sensitivity SPL 90 dB @ 2.83 V / 1m
87 dB @ 1W / 1m
Cone area Sd 194 cm²
Moving mass MMS 32 g
Cone material Injected polypropylene
Mechanical resistance Rms 1.39 kg/s
Voice coil diameter ø 38 mm
Voice coil winding height 20 mm
Max. linear excursion Xmax +/- 7.5 mm
Outer diameter ø 195 mm / 7.68″
Installation diameter ø 173.5 mm / 6.83″
Installation depth 47.0 mm / 1.85″
Features FlexMount200
Compatibility
FlexMount200
Scope of delivery
2 x Ci5 S200FM-S2
2 x Mounting material
