Helix DSP.3S Helix DSP.3S is a new improved version of the popular Helix DSP.3 model. Helix DSP.3S is guaranteed to be one of the best DSP processors on the market in terms of price/quality ratio.
ACO Thanks to the ACO Platform (ACO = Advanced 32 Bit CoProcessor), the device is extremely fast and efficient.
ISA & InputEQ

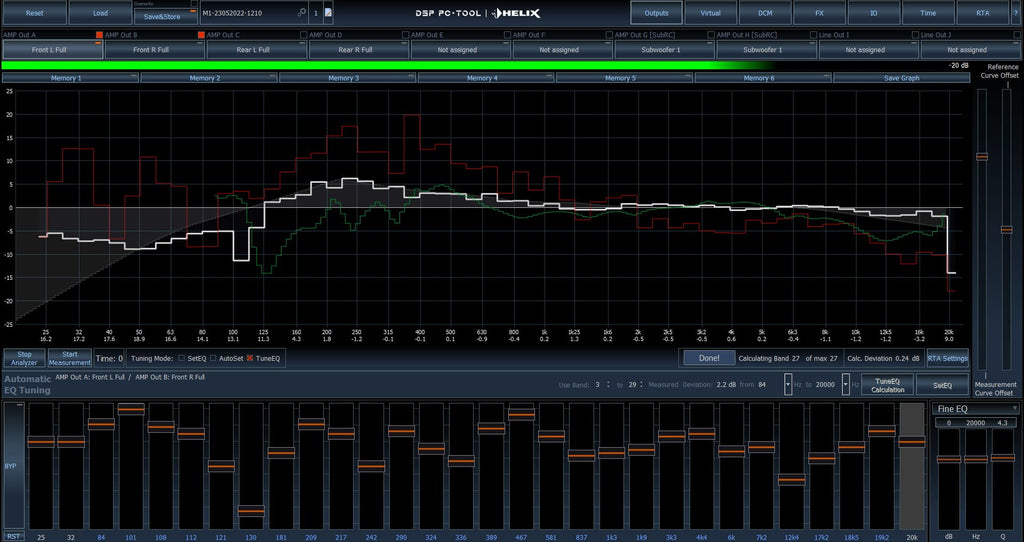

The Helix DSP.3S model has ISA (Input Signal Analyzer) and InputEQ, i.e. input signal measurement and equalizer. ISA measures the frequency response of the incoming signal and InputEQ is a channel-specific 5-channel parameter corrector that corrects possible distortions of the frequency response of the incoming signal. This provides a decent starting point for the best possible sound reproduction.

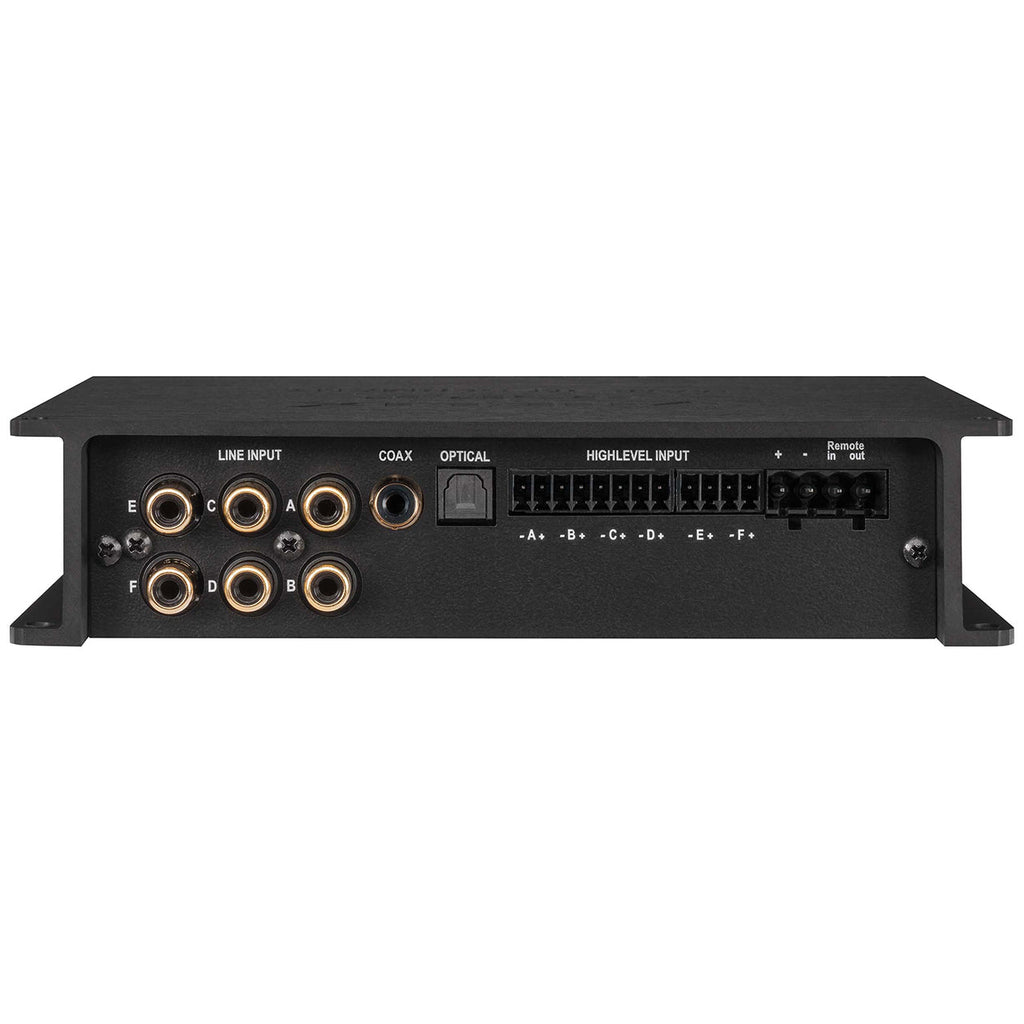

Signal Input The signal can be brought in as speaker level, line level, optical or with the help of the Helix HEC module sold as an accessory via Bluetooth or HD level with a USB cable.
Powerful processor The speed of the processor is a very important feature when adjusting the audio system. The slower the processor is, the more the dynamics slows down when adjusting the equalization or dividing slopes. This processor has the latest technology 64-bit 295Mhz processor with a speed of 1.2 billion calculations per second.
Autostart
High Level Input has the most advanced Autostart function on the market, with an adjustable switch-off delay of 10-300 seconds. The device starts up only after detecting the correct speaker signal, does not react to start-up bangs or other disturbances. Like Audiotec Fischer's other plug&play devices, an ideal product for radios implemented with a CAN bus, where the radio may be on for up to 40 minutes after the doors are locked.

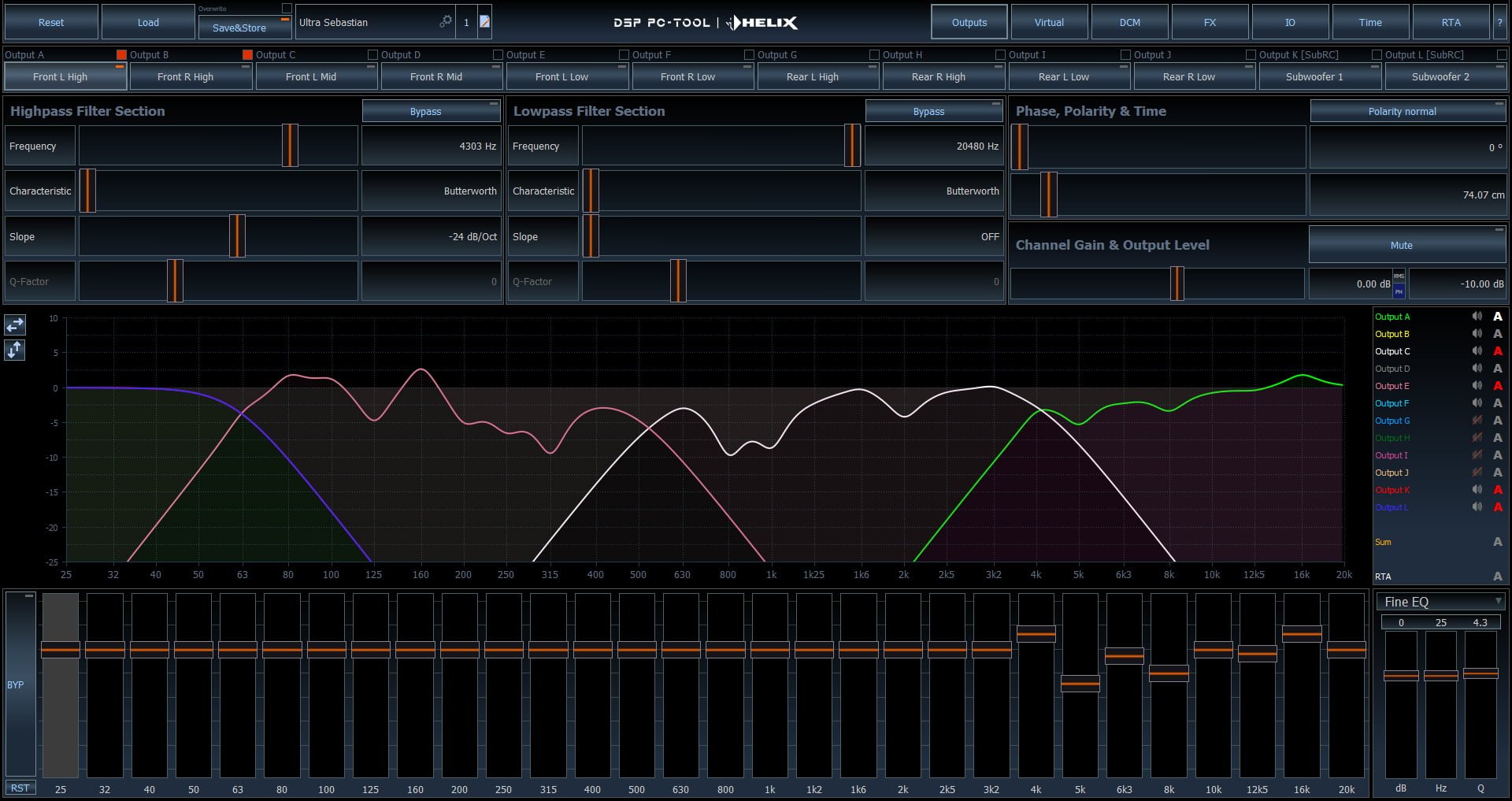

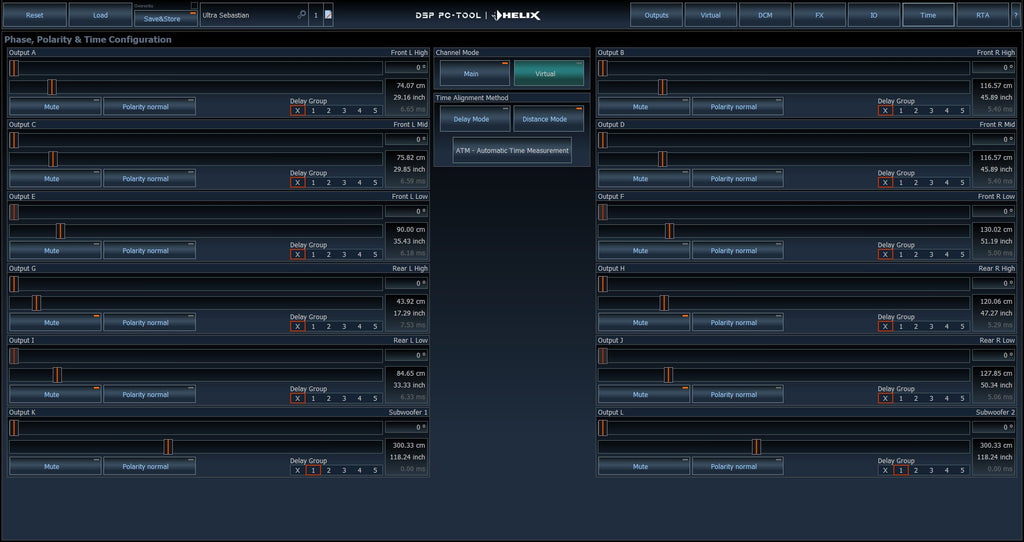

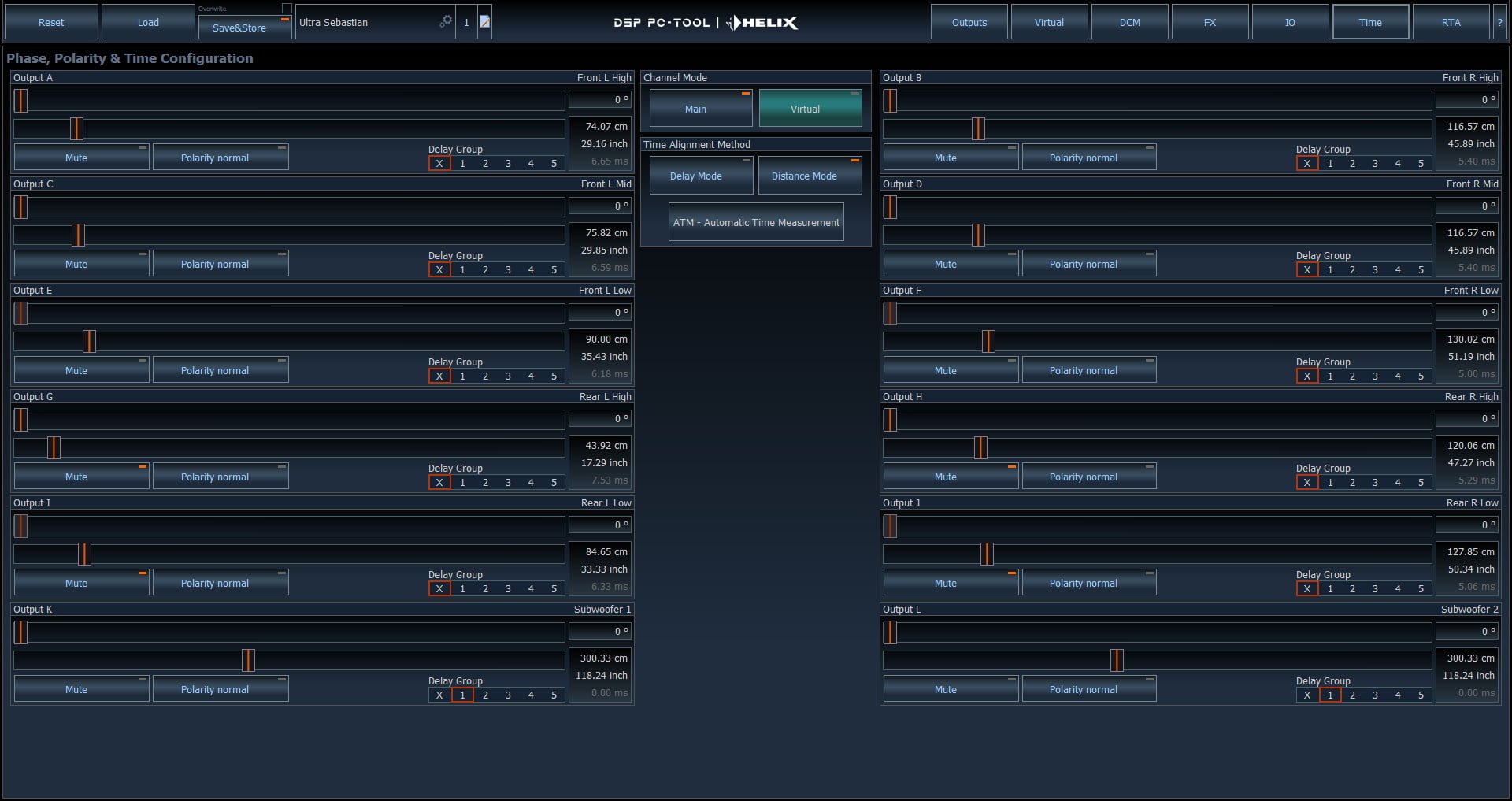

8 channels With this device you can make all the divisions of a 4-way system and the delays of each element. Or active 2-way front end, subwoofer and rear speakers. Or any combination. There are 8 channels in use, the characteristics of which can be defined for each channel yourself.
Helix HEC modules The Helix HEC Bluetooth, Helix HEC HD-Audio USB, Helix HEC AUX IN or Helix HEC OPTICAL IN module that can be installed inside the device is also available for this model.
NOTE! Helix DSP.3 accessories are not compatible with the new DSP.3S model!

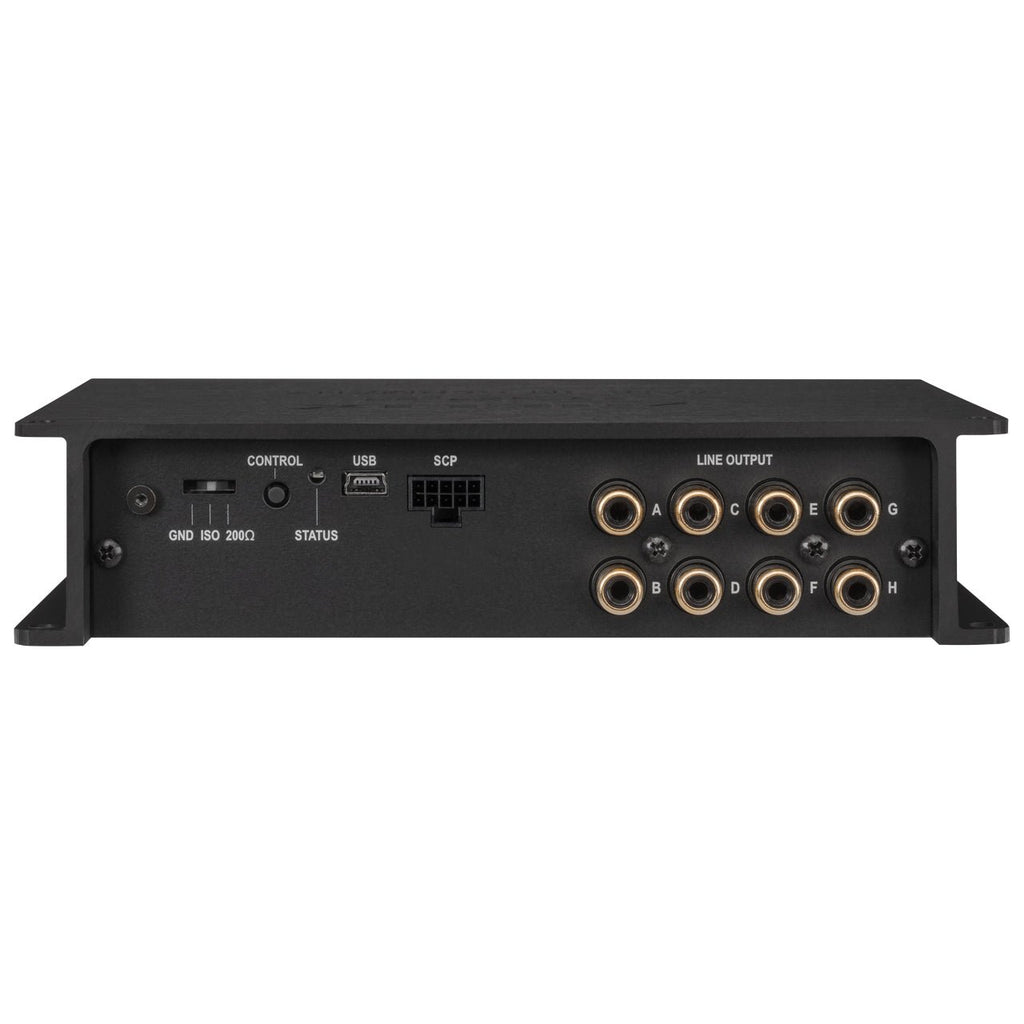

Technical information: Inputs 6 x RCA / RCA 6 x High level speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Coax SPDIF (12 - 192 kHz) 1 x Remote In Input sensitivityRCA / Cinch 2 - 4 Volts High level 5 - 11 Volts Outputs 8 x RCA / RCA 1 x Remote Out Output voltage 6 Volts Frequency response 10 Hz to 44,000 Hz DSP resolution64 Bit DSP power 295 MHz (1.2 billion MAC operations/second) Sampling rate 96 kHz DSP type Audio signal processor Signal converters A/D: BurrBrown D/A: BurrBrown Signal-to-noise ratio digital input 112 dB (A-weighted) Signal-to-noise ratio analog input 107 dB (A-weighted) Total harmonic distortion (THD+N) digital input 0.0008% Total harmonic distortion (THD+N) analog input 0.002 % IM distortion (IMD) digital input 0.003% IM distortion (IMD) analog input 0.005% Cross talk 90 dB Operating voltage9.6 - 17 Volts (max. 5 sec. down to 6 Volts) Power rating DC 12 V ⎓ 3 A max. Current draw 450 mA Max. remote output current 500 mA Additional featuresHEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch Dimensions (H x W x D)40 x 177 x 120 mm / 1.58 x 6.97 x 4.72”.
