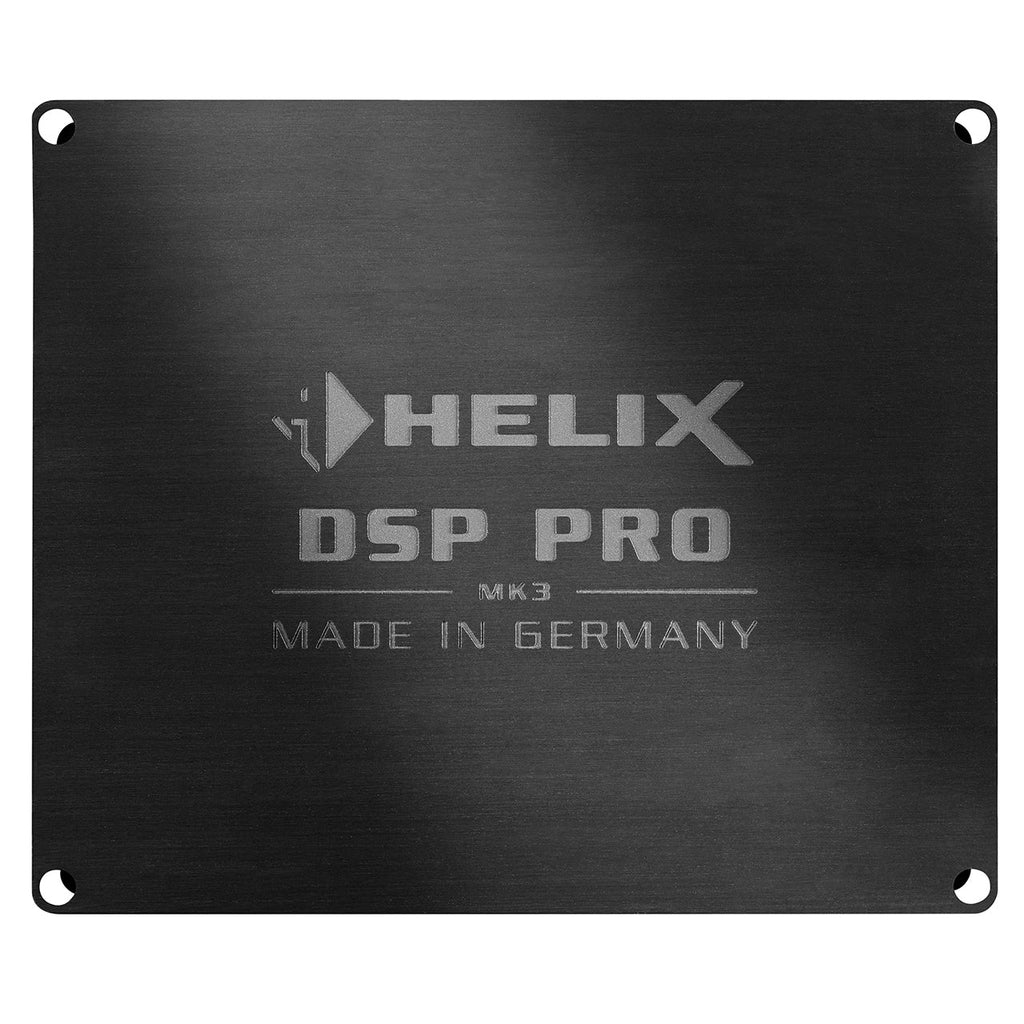

HELIX DSP PRO MK3
Helix DSP PRO MK3 is the new third generation version of the popular Helix DSP PRO model.
The computing power of a DSP processor can only be improved by increasing the computing power. The Helix DSP PRO MK3 model has two of the most powerful 64-bit audio signal processors that can be found in the Analog Devices range. An incredible 2.4 billion MAC operations per second enable processing of ten individual channels and a 96 kHz sampling rate.
The AKM Velvet Sound 32Bit A/D and D/A converters used in the Helix DSP PRO MK3 model guarantee top-class sound quality with High-Res quality.
The new ACO platform (ACO = Advanced 32 Bit CoProcessor) enables fast operation in everything, but it also does a lot more.

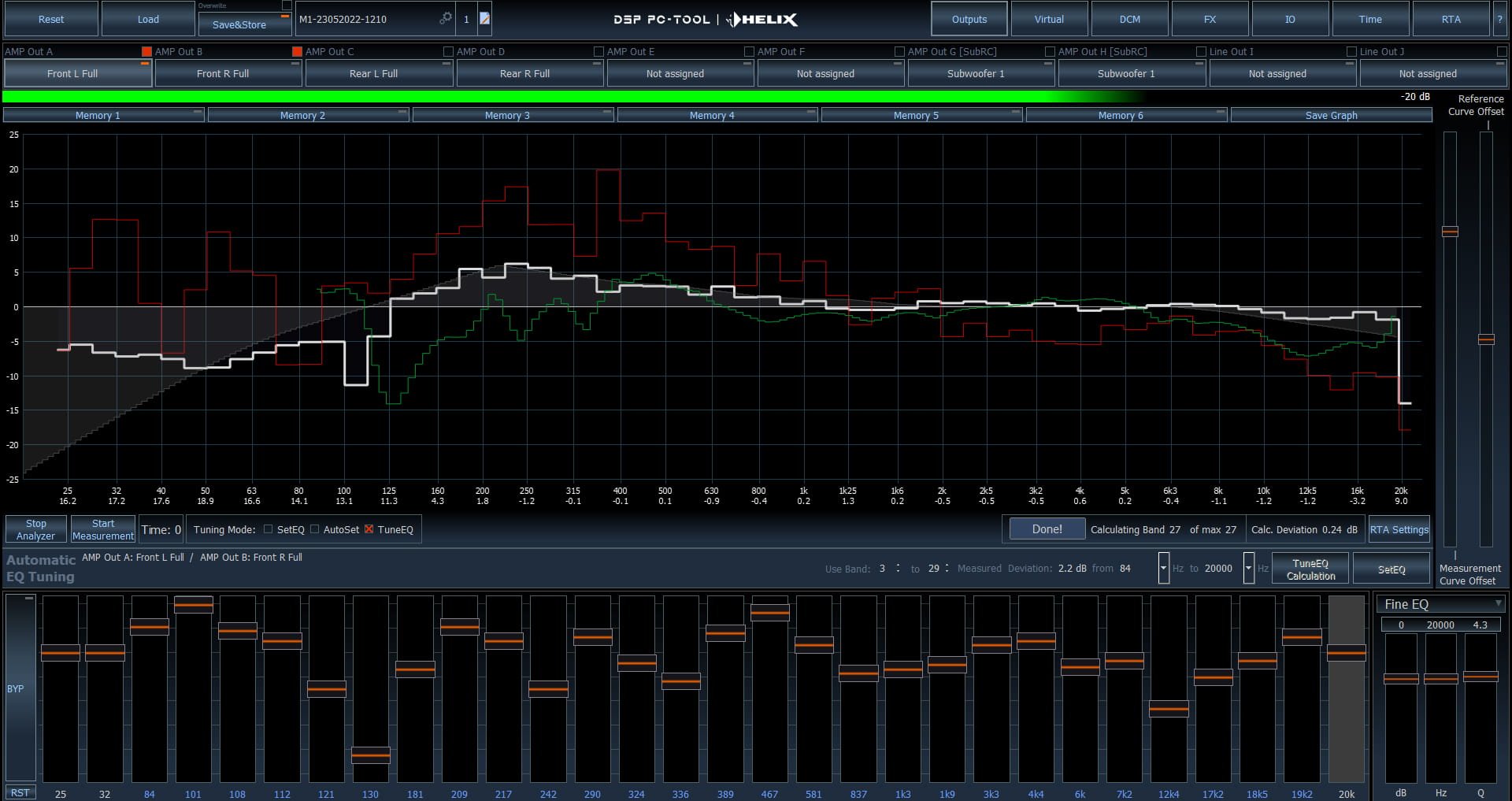

One of the most significant novelties of this new processor is ISA (Input Signal Analyzer) and InputEQ, i.e. input signal measurement and equalizer. ISA measures the frequency response of the incoming signal and InputEQ is a channel-specific 5-channel parameter corrector that corrects possible distortions of the frequency response of the incoming signal. This provides a decent starting point for the best possible sound reproduction.
The Helix DSP PRO MK3 fits seamlessly behind any OEM sound source thanks to the ADEP.3 circuit and incredibly wide input sensitivity. The input sensitivity of 4-32 Volts in the speaker-level input enables installation behind OEM amplifiers in those cars where it is impossible to remove it from behind the player.
The signal can be brought in as speaker level, line level, optical or with the Helix HEC module sold as an accessory via Bluetooth or HD level with a USB cable.
High Level Input has the most advanced Autostart function on the market, with an adjustable switch-off delay of 10-300 seconds. The device starts up only after detecting the correct speaker signal, does not react to start-up bangs or other disturbances. Like Audiotec Fischer's other plug&play devices, an ideal product for radios implemented with a CAN bus, where the radio may be on for up to 40 minutes after the doors are locked.

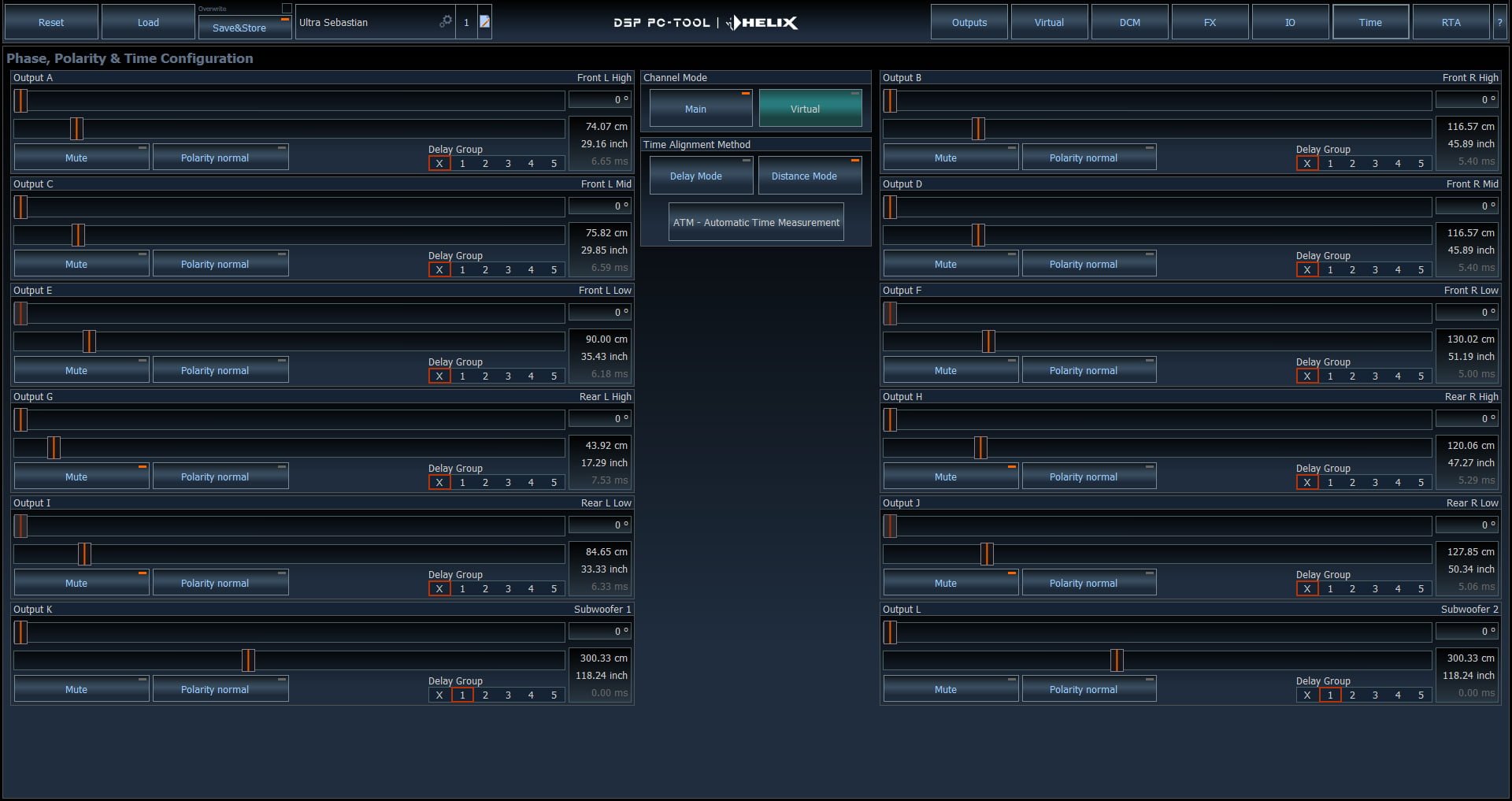

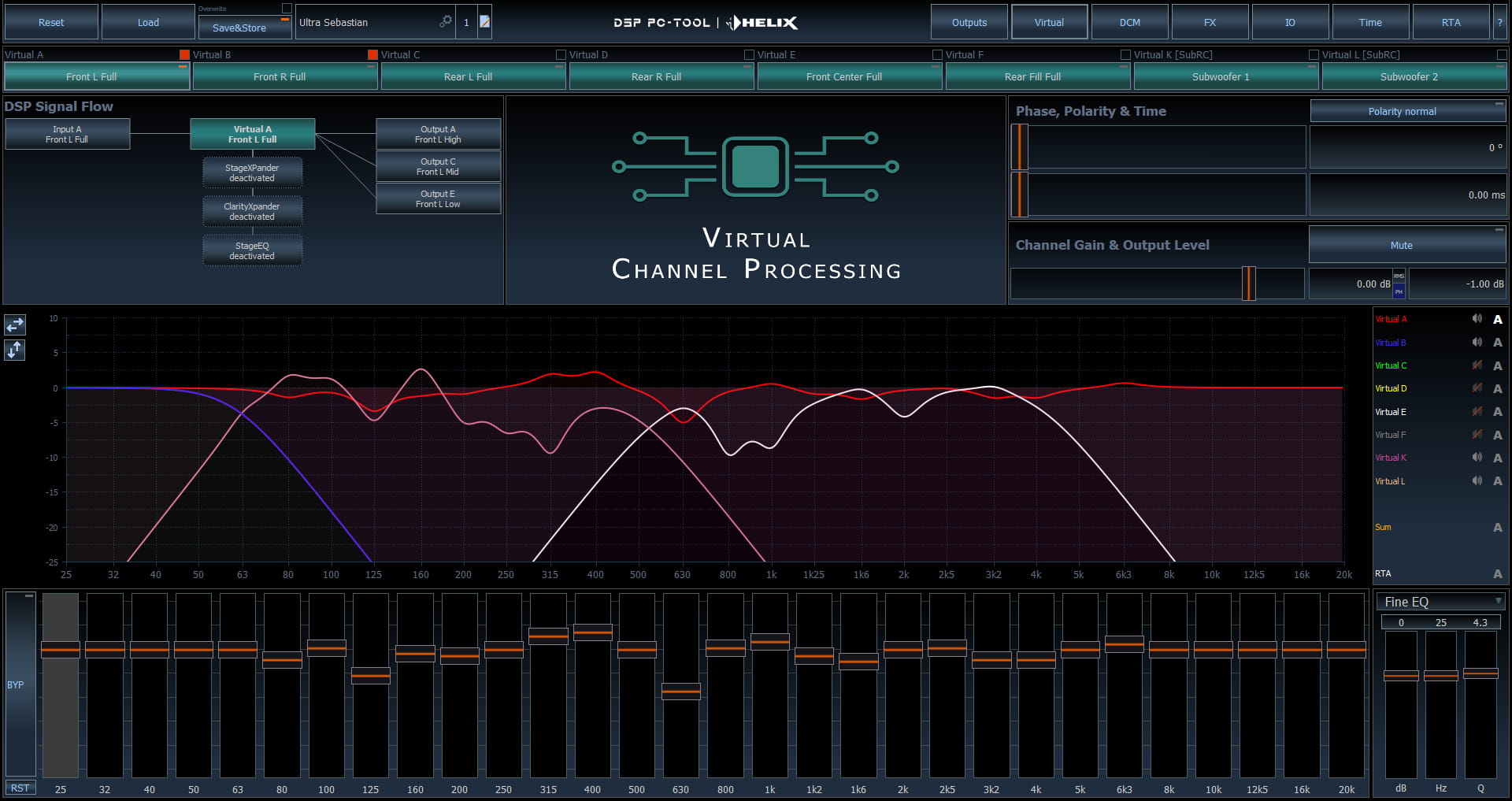

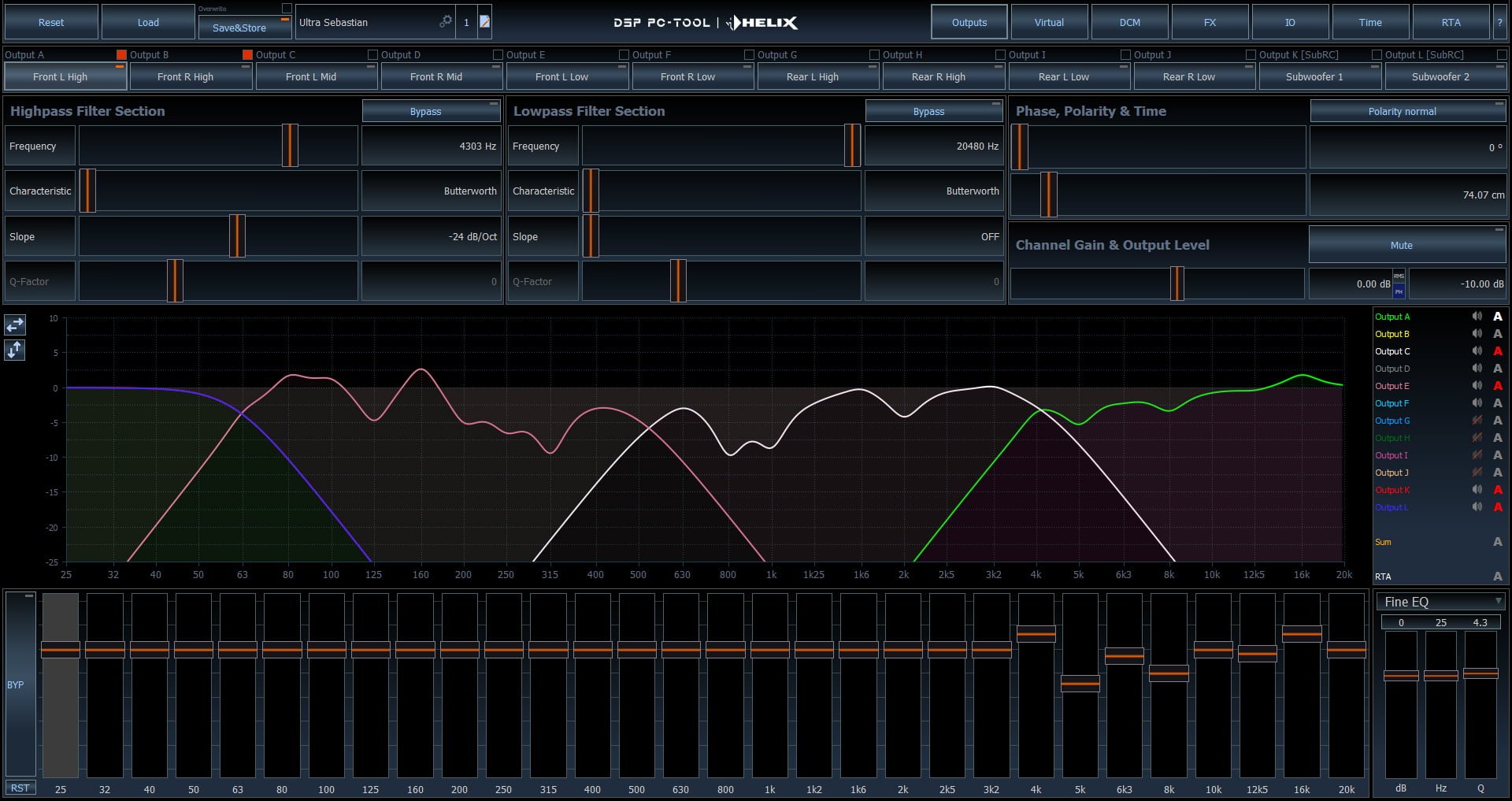

DSP PC-Tool 5
Helix DSP PRO MK3 is compatible with Audiotec Fischer's new DSP PC-Tool 5 version.
The future is taken into account in the software, with almost unlimited update possibilities. During adjustments, the DSP is connected to the computer's USB 2.0 connection.
64-Bit DSP for high sound quality
Signal converters:
A/D: AKM Velvet Sound 32 Bit
D/A: AKM Velvet Sound 32 Bit
Signal-to-noise ratio digital input 116 dB (A-weighted)
Signal-to-noise ratio analog input 111 dB (A-weighted)
Freely definable signal inputs and outputs
Entrance fees:

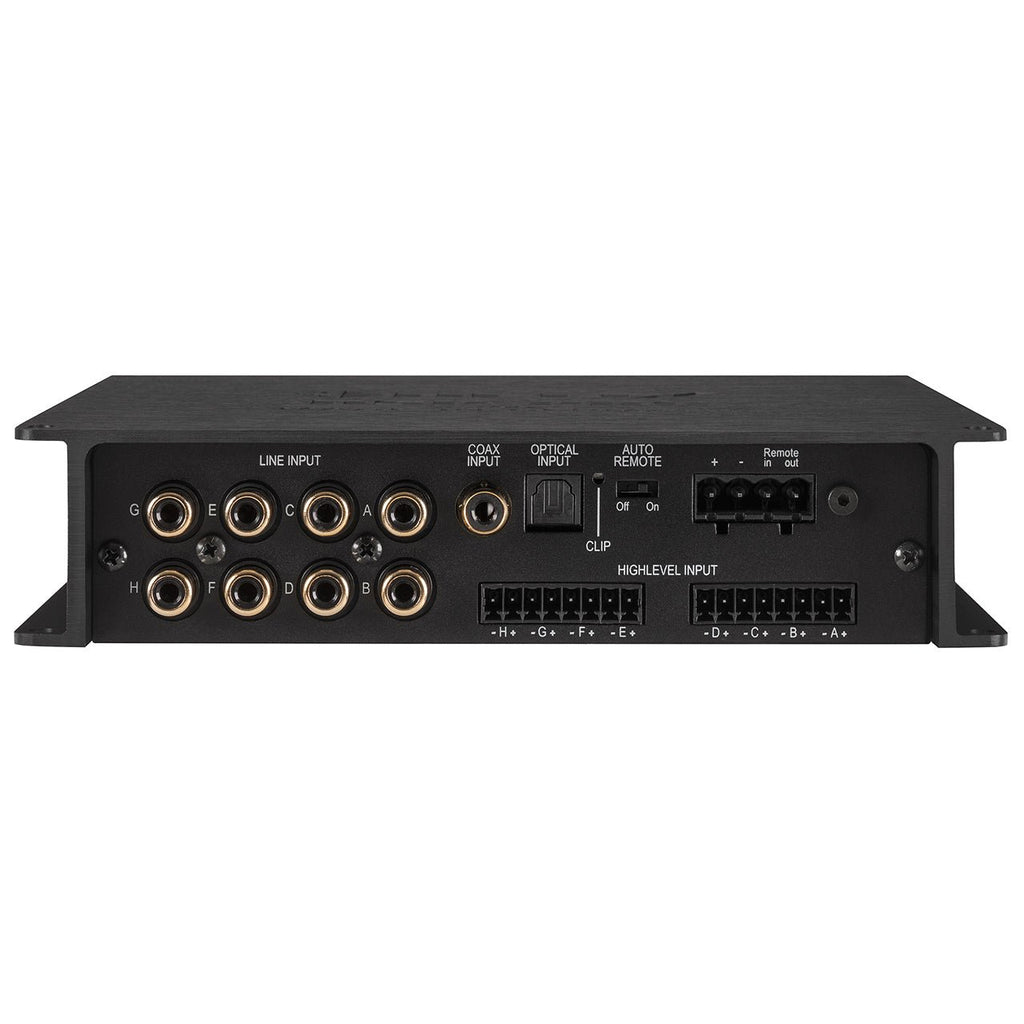

8-channel line-level input with RCA connectors
8-channel speaker-level input
1 x Optical SPDIF (12 – 96 kHz)
1 x Coax SPDIF (12 – 192 kHz)
1 x control input
Outputs:
10 x RCA line output (8V)
1 x Excitation output
HELIX Extension Card slot (HEC) for additional input/output modules sold as accessories:
HEC BT Bluetooth Audio Streaming module
HEC AUX IN (with 3.5mm stereo plug)
HEC Optical IN (toslink)
Like other Helix MATCH Plug&Play devices, an ideal product for radios implemented with a CAN bus, where the radio may be on for up to 40 minutes after the doors are locked.
Technical information:
Inputs 8 x RCA / RCA
8 x High level speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivityRCA / Cinch 2 / 3 / 4 Volts
High level 4 / 7 / 11 or 12 / 22 / 32 Volts

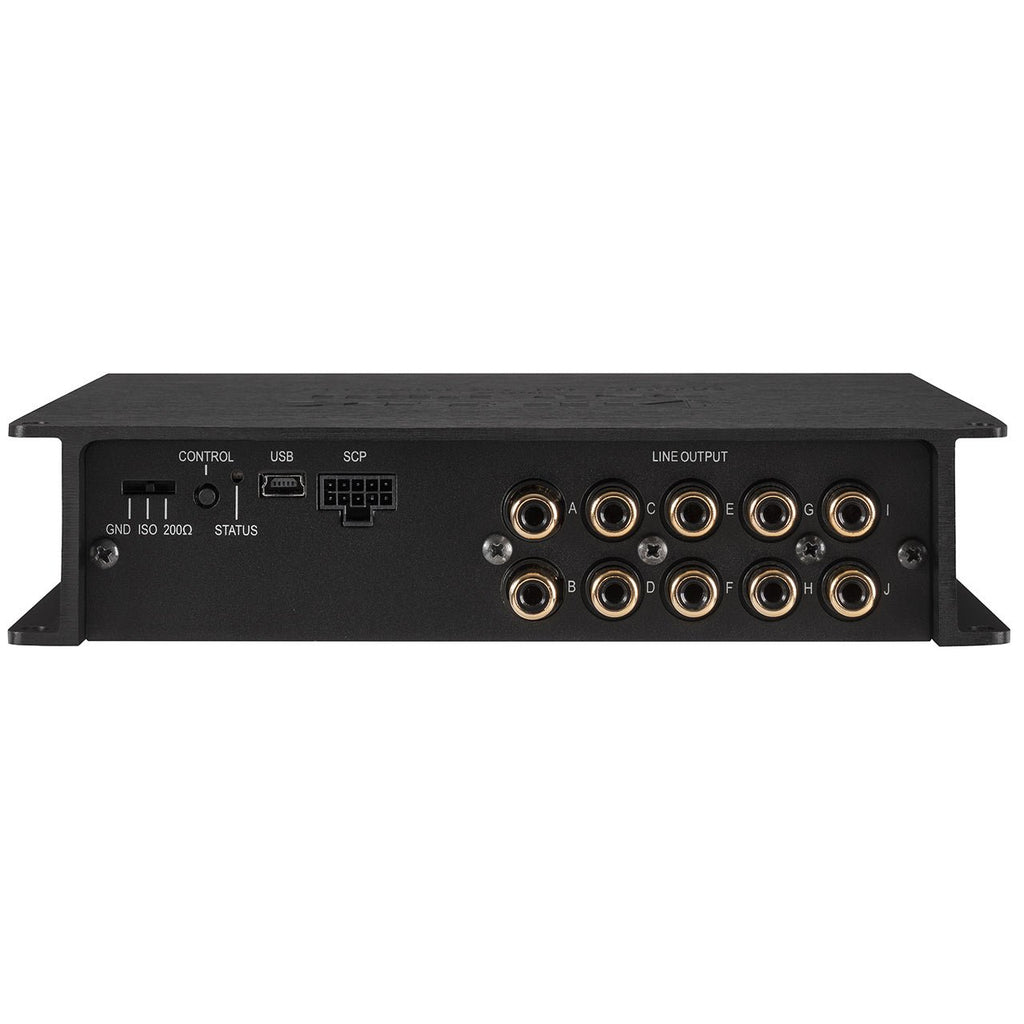

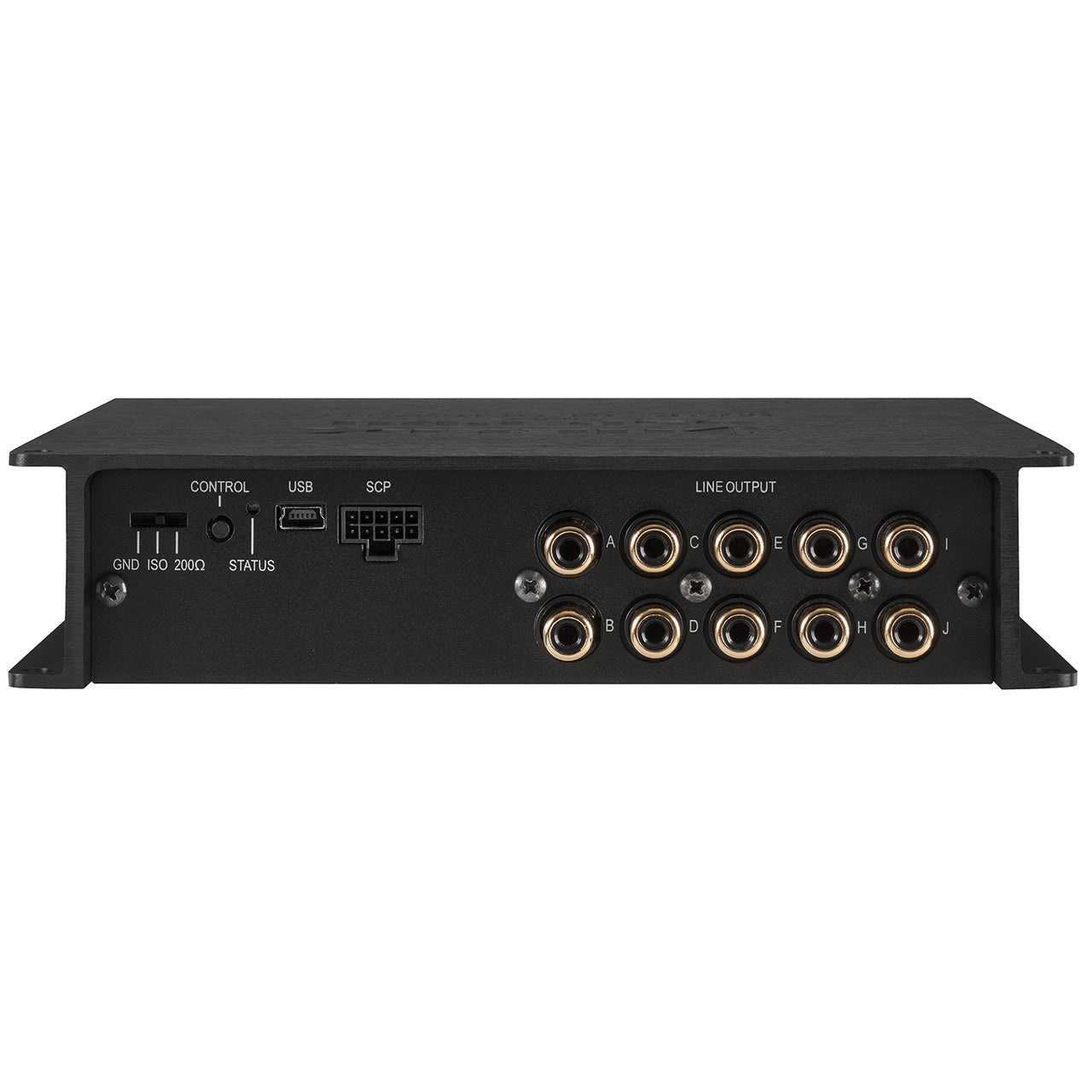

Outputs 10 x RCA / RCA
1 x Remote Out
Output voltage 8 Volts
Frequency response 10 Hz to 44,000 Hz
DSP resolution64 Bit
DSP power2 x 295 MHz (2.4 billion MAC operations/second)
Sampling rate 96 kHz
DSP type 2 x Audio signal processor
Signal converters A/D: AKM Velvet Sound 32 Bit
D/A: AKM Velvet Sound 32 Bit
Signal-to-noise ratio digital input 116 dB (A-weighted)
Signal-to-noise ratio analog input 111 dB (A-weighted)
Total harmonic distortion (THD+N) digital input 0.0005%
Total harmonic distortion (THD+N) analog input 0.001 %
IM distortion (IMD) digital input 0.002%
IM distortion (IMD) analog input 0.004%
Cross talk 90 dB
Operating voltage9.6 - 18 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 3 A max.
Current draw 650 mA
Max. remote output current 500 mA
Additional featuresHEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch
Dimensions (H x W x D)40 x 177 x 150 mm /
1.58 x 6.97 x 5.91“
Scope of delivery
1 x Signal processor HELIX DSP PRO MK3
1 x Control Input-to-SCP adapter
1 x USB cable
1 x Mounting material
1 x Instruction manual.
