The Helix P SIX DSP ULTIMATE is a highly efficient and extremely high-quality 6-channel Ultra HD Class D amplifier with a built-in 12-channel DSP processor.
Per channel output power up to 285 Watts continuous power into 2 Ohm load! (channels C - F)
Thanks to the ACO platform, the device is very fast and efficient.
Intelligent speaker-level inputs (6 pcs) equipped with ADEP (Advanced Diagnostics Error Protection) circuit developed by Audiotec-Fischer
The inputs also feature the most advanced Autostart function on the market, which means the device only turns on when it detects the correct speaker signal, and does not react to any pops or other noises that may be heard when the car starts.

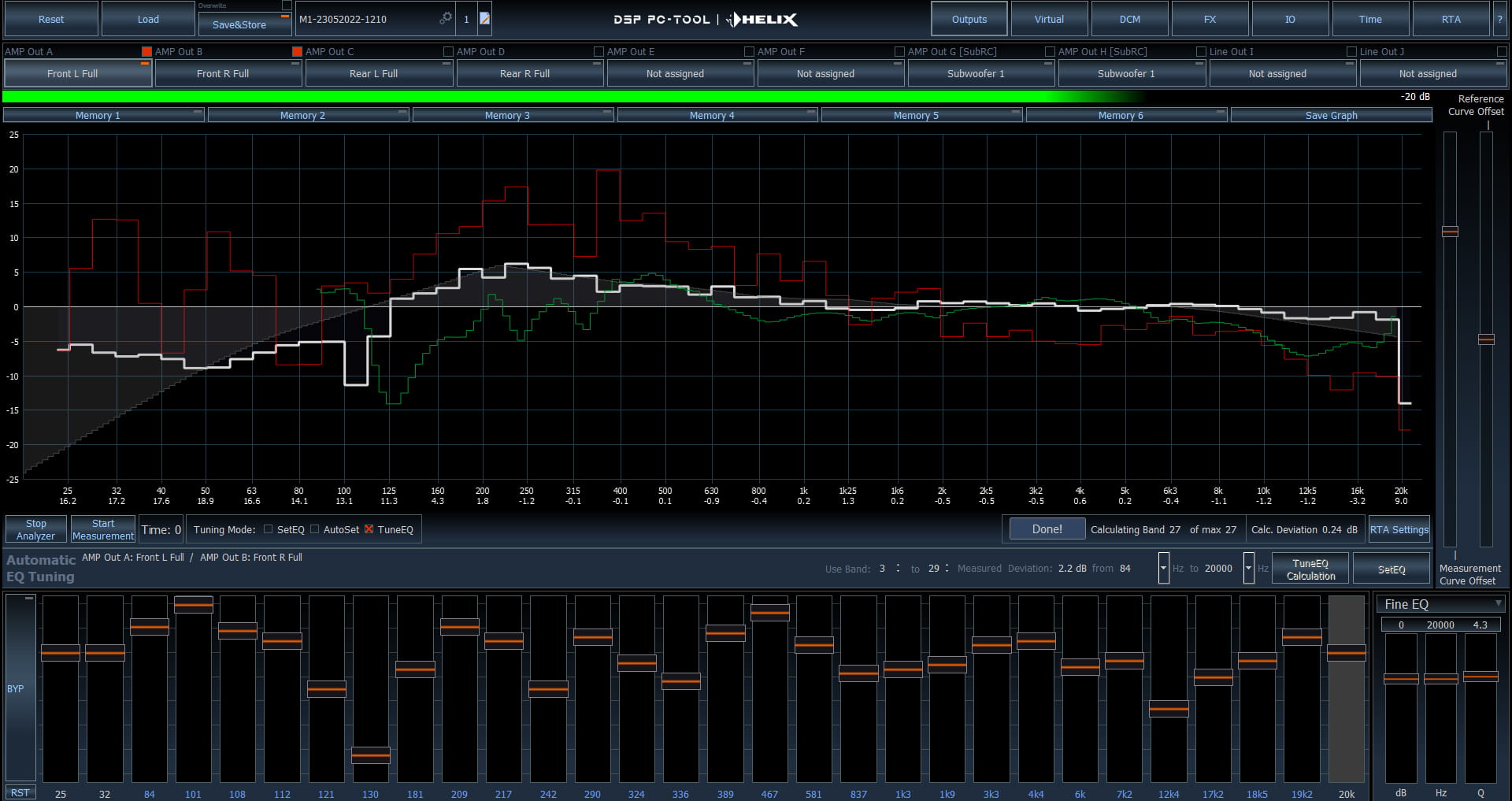

In addition, the device also features ISA (Input Signal Analyzer) and InputEQ, i.e. input signal measurement and equalizer.
The P SIX DSP ULTIMATE features two of the most powerful 64-bit audio signal processors in Analog Devices' portfolio. An incredible 2.4 billion MAC operations per second enable processing of ten individual channels and 96 kHz sampling rate (High-Res Audio).
This model also has a module card that can be installed inside the device: Bluetooth HD, HD-Audio USB and AUX IN modules.

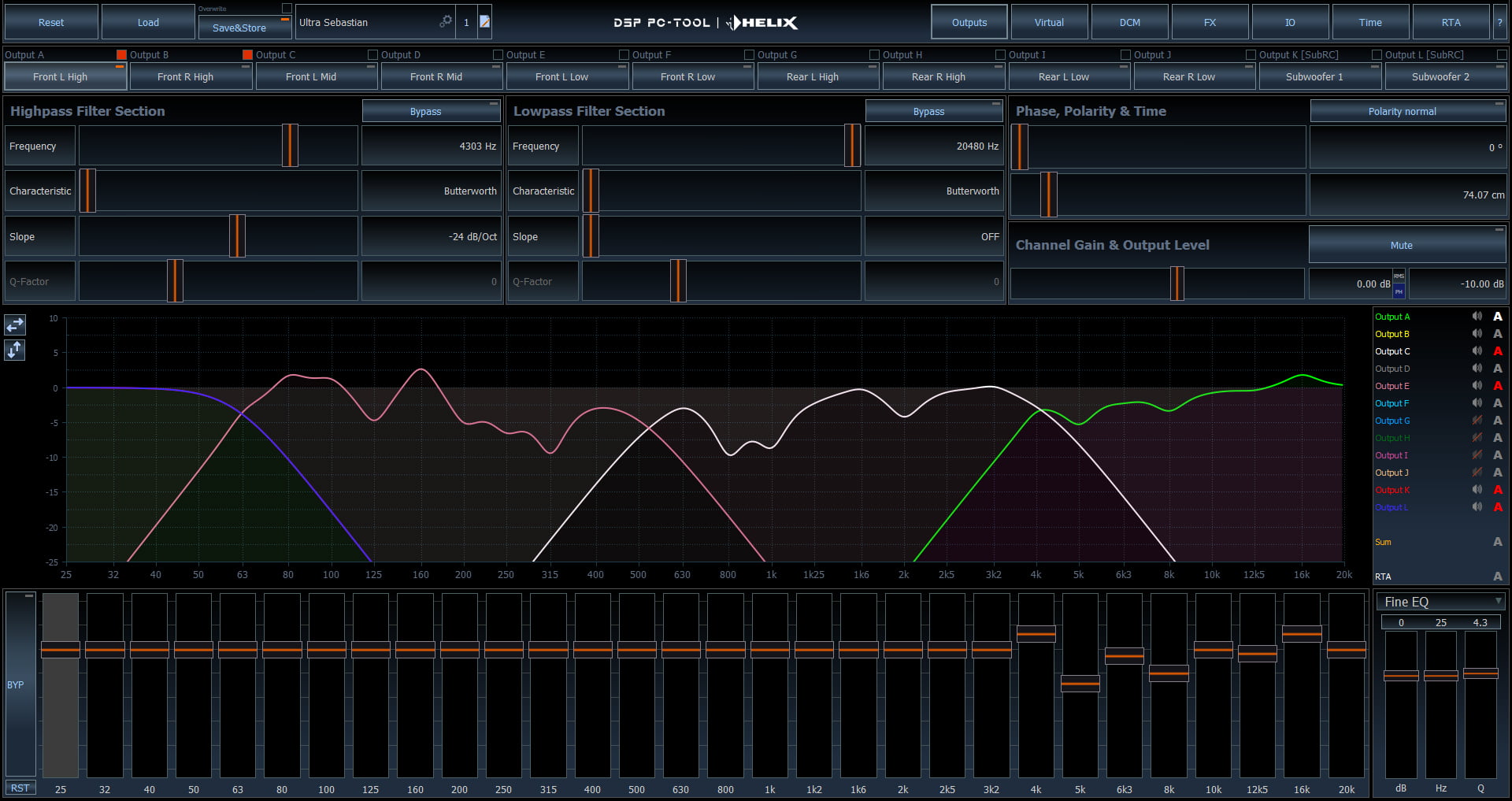

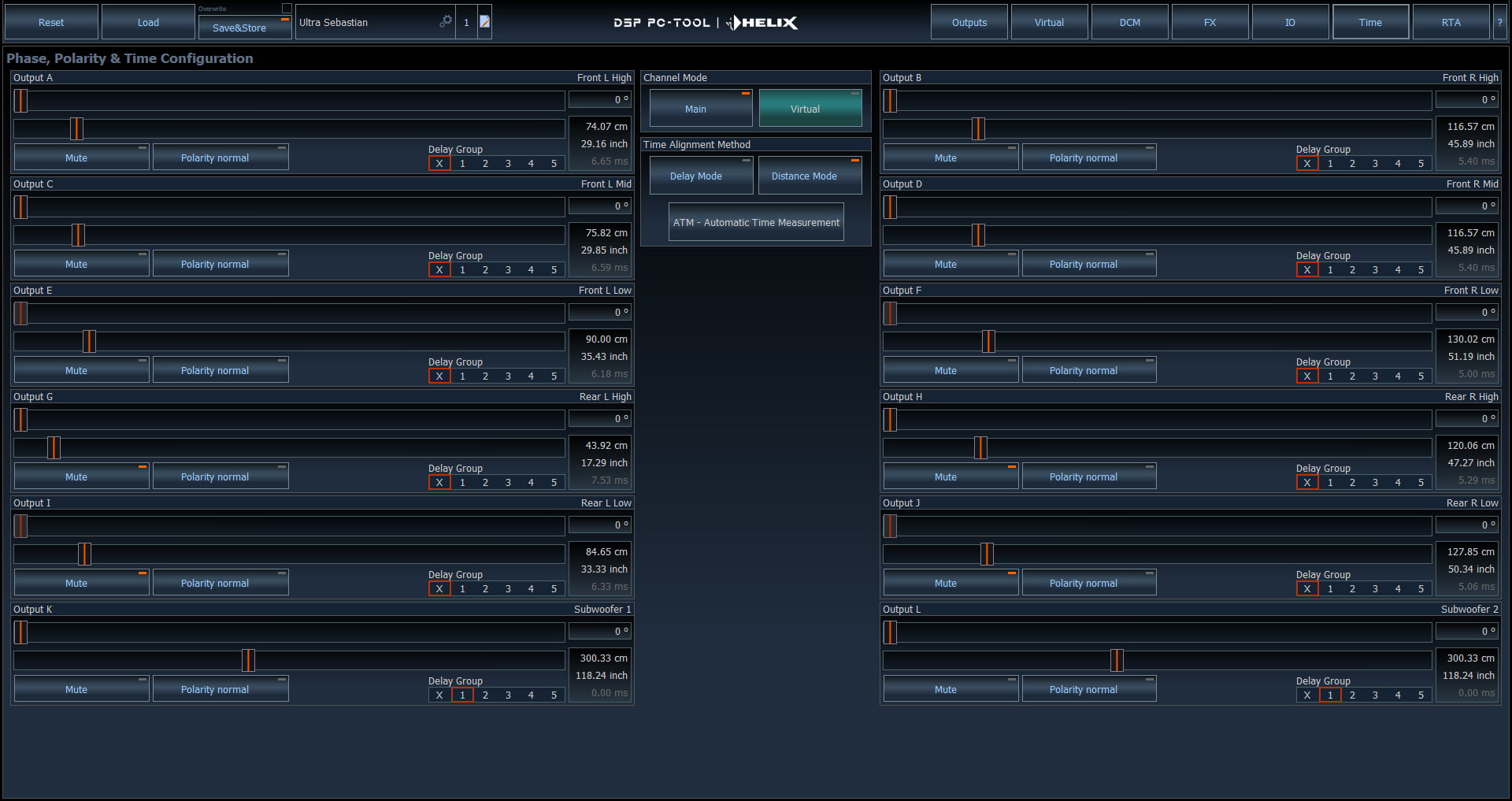

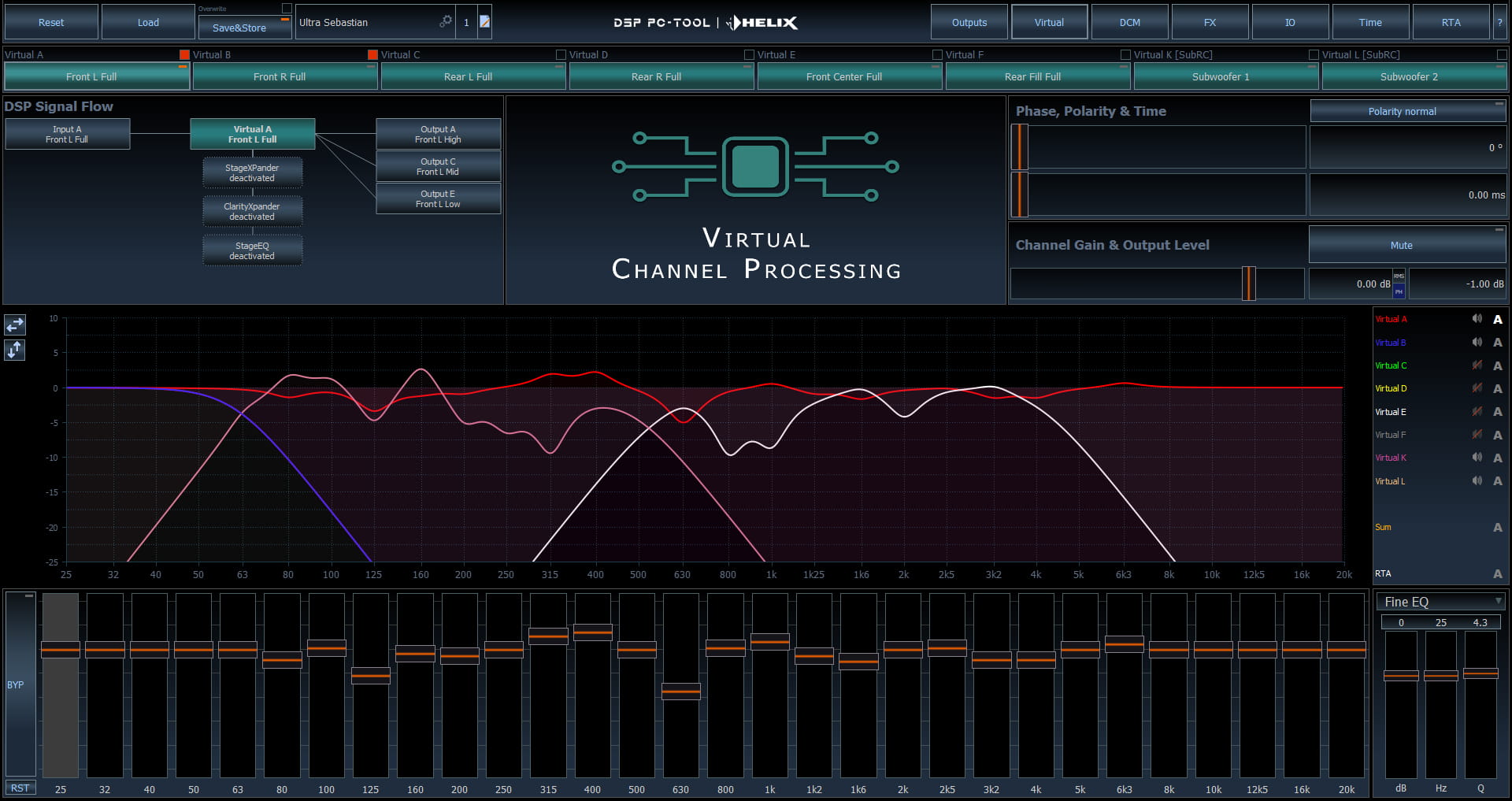

DSP processor adjustments are made on a computer using Audiotec Fischer's free DSP PC-Tool software
Specifications:
Power RMS ≤ 1% THD+N
- @ 4 OhmsChannel A - F: 6 x 120 Watts
- @ 2 OhmsChannel C - F: 4 x 230 Watts
Max. output power per channel*
Channel A - F: up to 145 Watts RMS @ 4 Ohms
Channel C - F: up to 285 Watts RMS @ 2 Ohms
Amplifier technologyUltra HD Class D

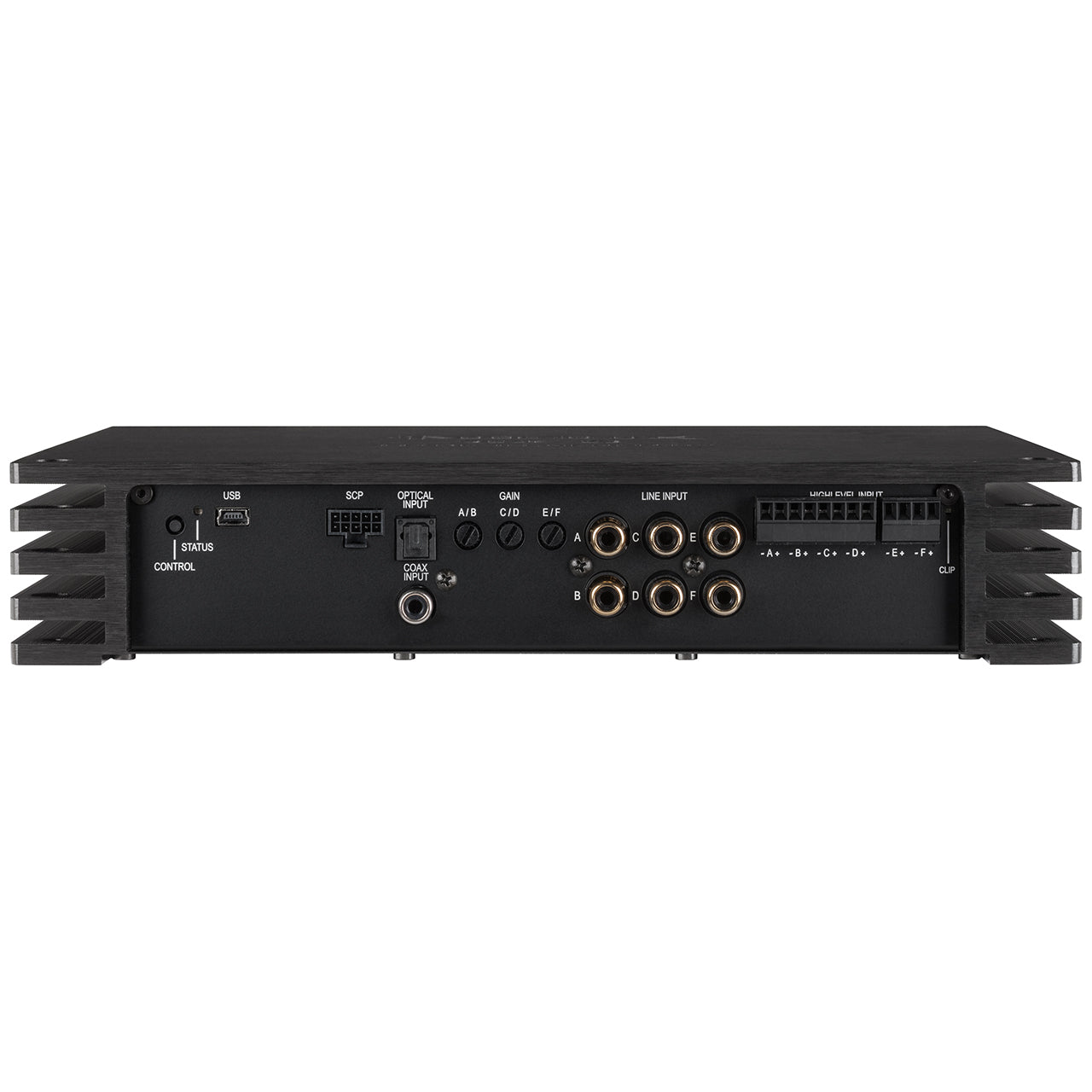

Inputs:
6 x RCA / Cinch
6 x High-level speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivityRCA / Cinch 1 - 4 Volts or 4 - 8 Volts
High level 4 - 16 Volts or 8 - 32 Volts
Input impedance RCA / Cinch 13 kOhms
Input impedance high level9 - 33 Ohms with ADEP.3

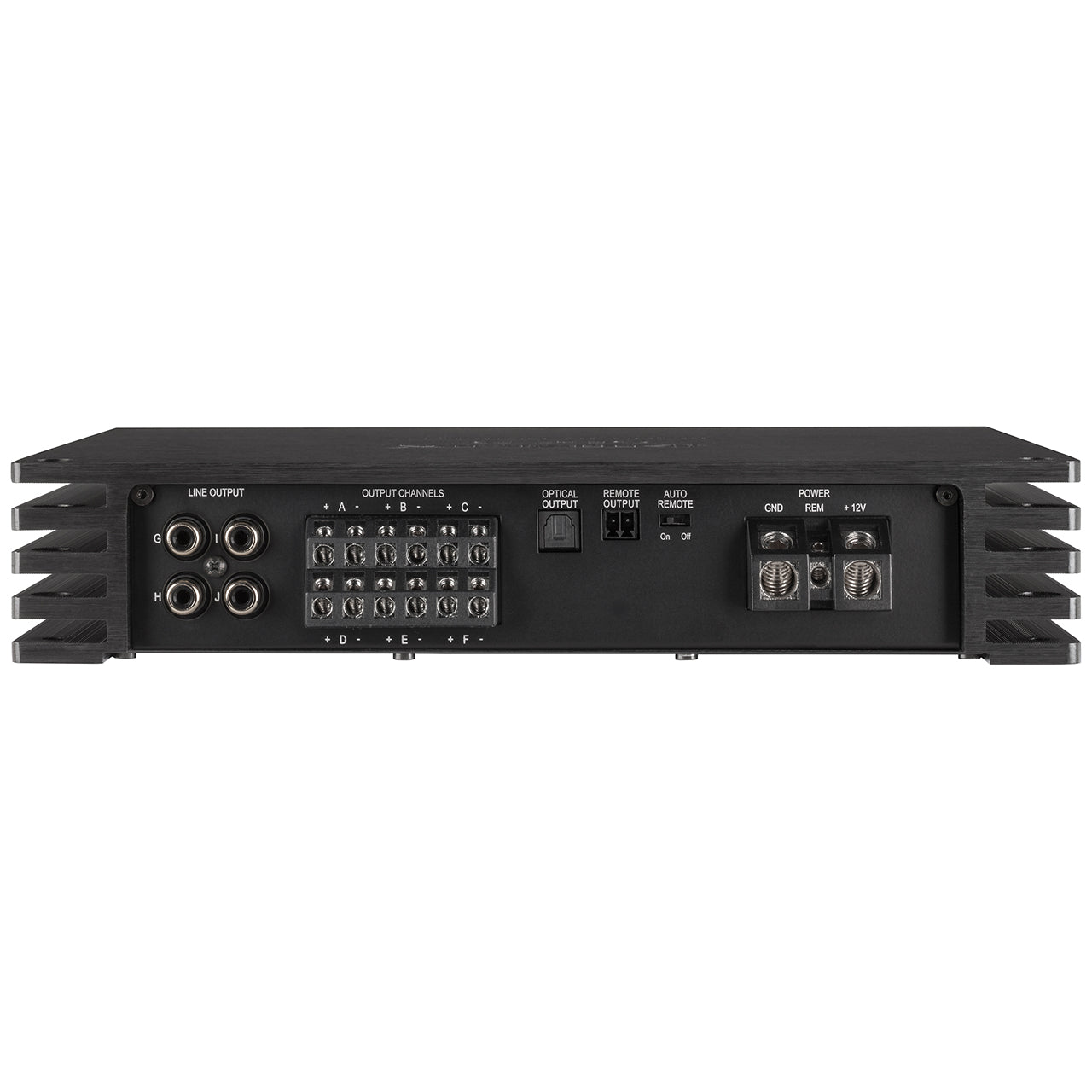

Outputs:
6 x Speaker outputs
4 x RCA / Cinch
1 x Optical SPDIF (96 kHz)
2 x Remote Out
Output voltage RCA / Cinch 3 Volts
Frequency response 10 Hz to 44,000 Hz
DSP resolution64 Bit
DSP power2 x 295 MHz (2.4 billion MAC operations/second)
Sampling rate96 kHz
DSP type 2 x Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 108 dB (A-weighted)
Signal-to-noise ratio analog input 102 dB (A-weighted)
Distortion (THD) 0.004%
Damping factor 100
Operating voltage10.5 - 32 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 / 24 V ⎓ 65 A max.
Idle current1350 mA
Max. remote output current 500 mA
Fuse3 x 20 A LP-Mini-fuse (APS)
Additional features 32 Bit CoProcessor, HEC slot, ADEP circuit, Auto Remote switch, Smart Control Port
Dimensions (H x W x D)50 x 260 x 190 mm /
1.97 x 10.24 x 7.48“
Scope of delivery
1 x Amplifier HELIX P SIX DSP ULTIMATE
1 x Control Input-to-SCP adapter
1 x USB cable
2 x Allen keys
1 x Mounting material
1 x Instruction manual.
