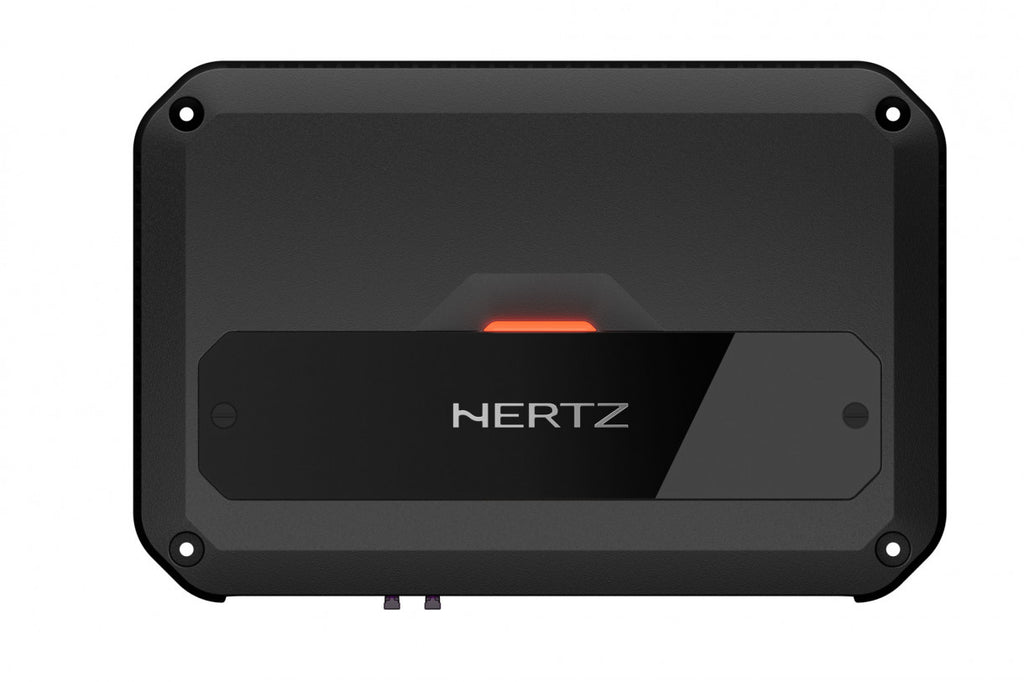

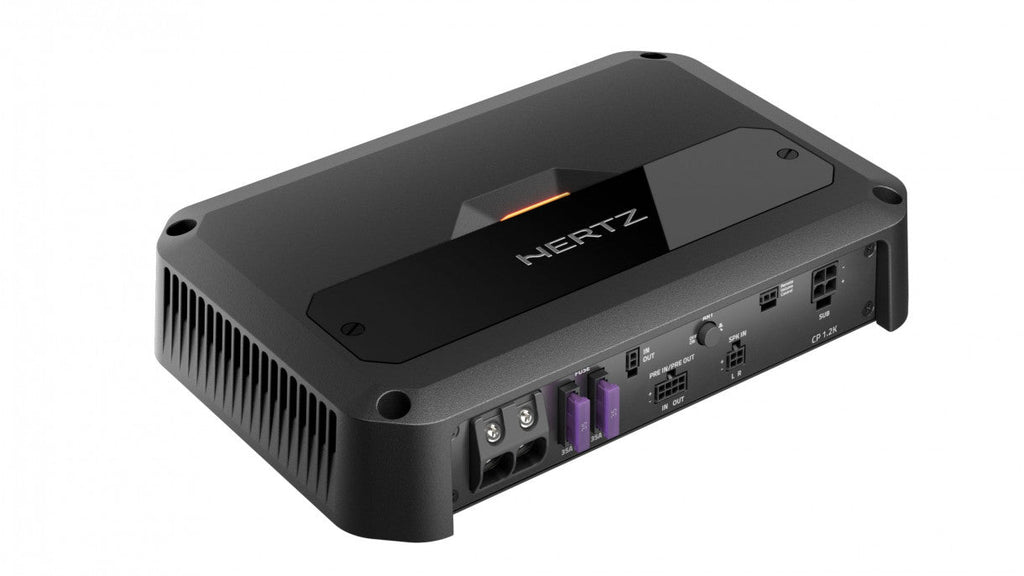

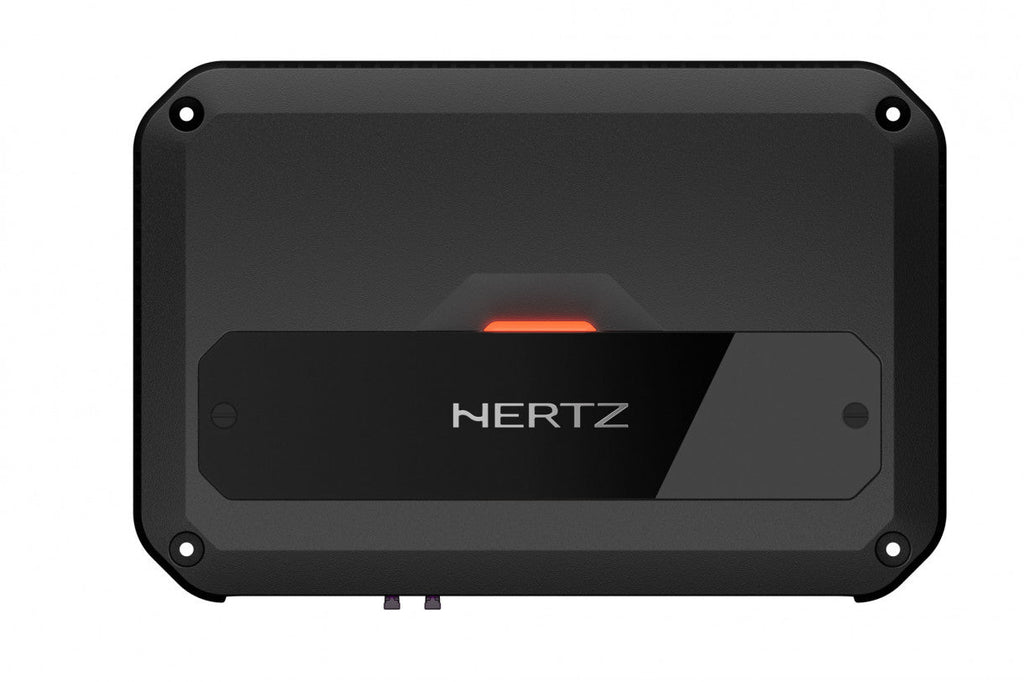

Hertz Cento CP 1.2K 1200W Mono amplifier
Take your sound to the next level with the Hertz CENTO POWER CP 1.2k subwoofer amplifier. This mono amplifier is designed to be highly efficient and has an efficiency of over 89%. This is why it is also housed in a compact die-cast aluminum housing. The CP 1.2K is designed to integrate seamlessly into both older and modern vehicles thanks to its versatile connections and wide operating voltage range suitable for electric vehicles. It features advanced interference suppression features that ensure crystal-clear sound quality. With adjustable input levels, a low-pass filter, bass boost and sub sonic, this amplifier allows you to fine-tune the sound to suit your needs. It is the ideal choice for those looking for powerful, immersive bass without compromise
State-of-the-art Class D technology
All Cento Power models feature Hertz's innovative Advanced D-Class (ADC) technology. This enables top-notch power output with over 89% efficiency, reducing heat and power consumption while maintaining exceptionally clear sound. The compact die-cast aluminum chassis offers both durability and stylish aesthetics, and fits perfectly into any car configuration

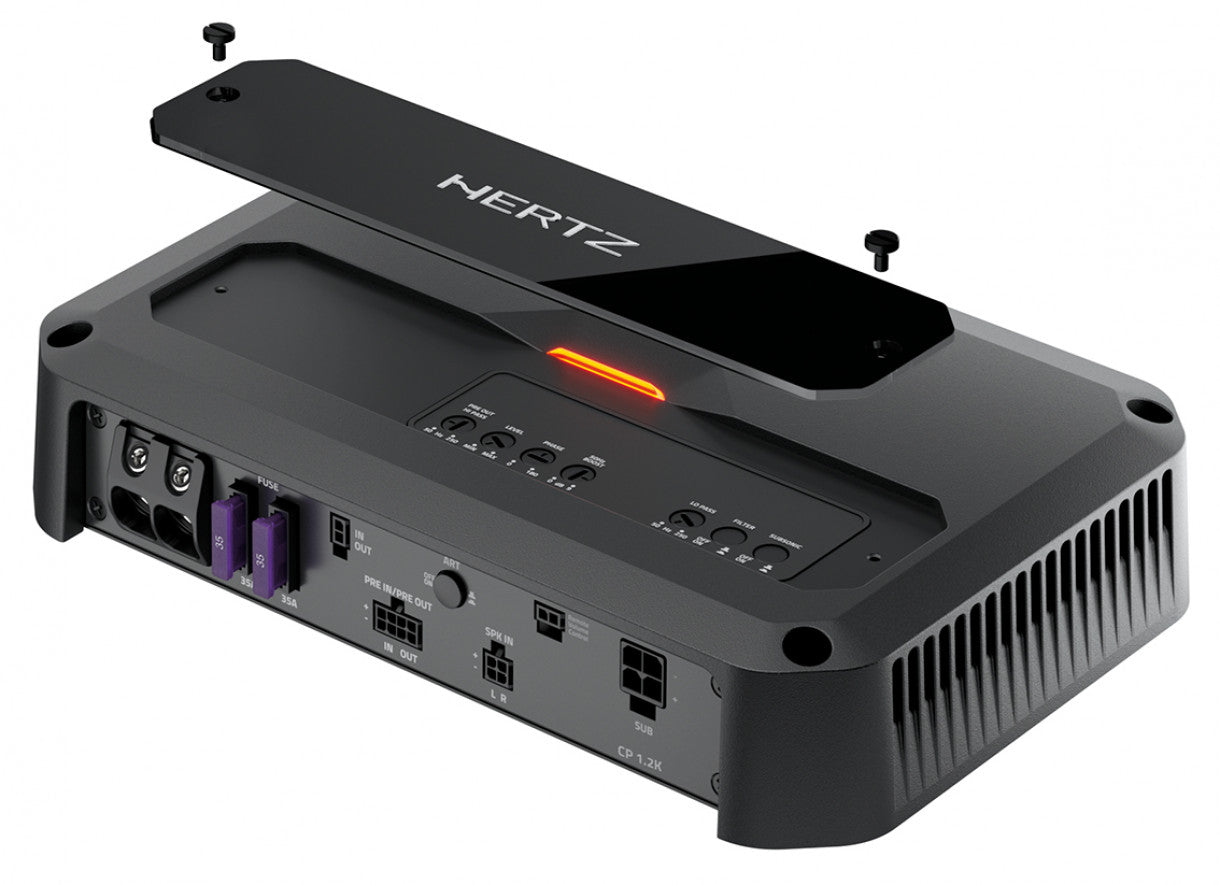

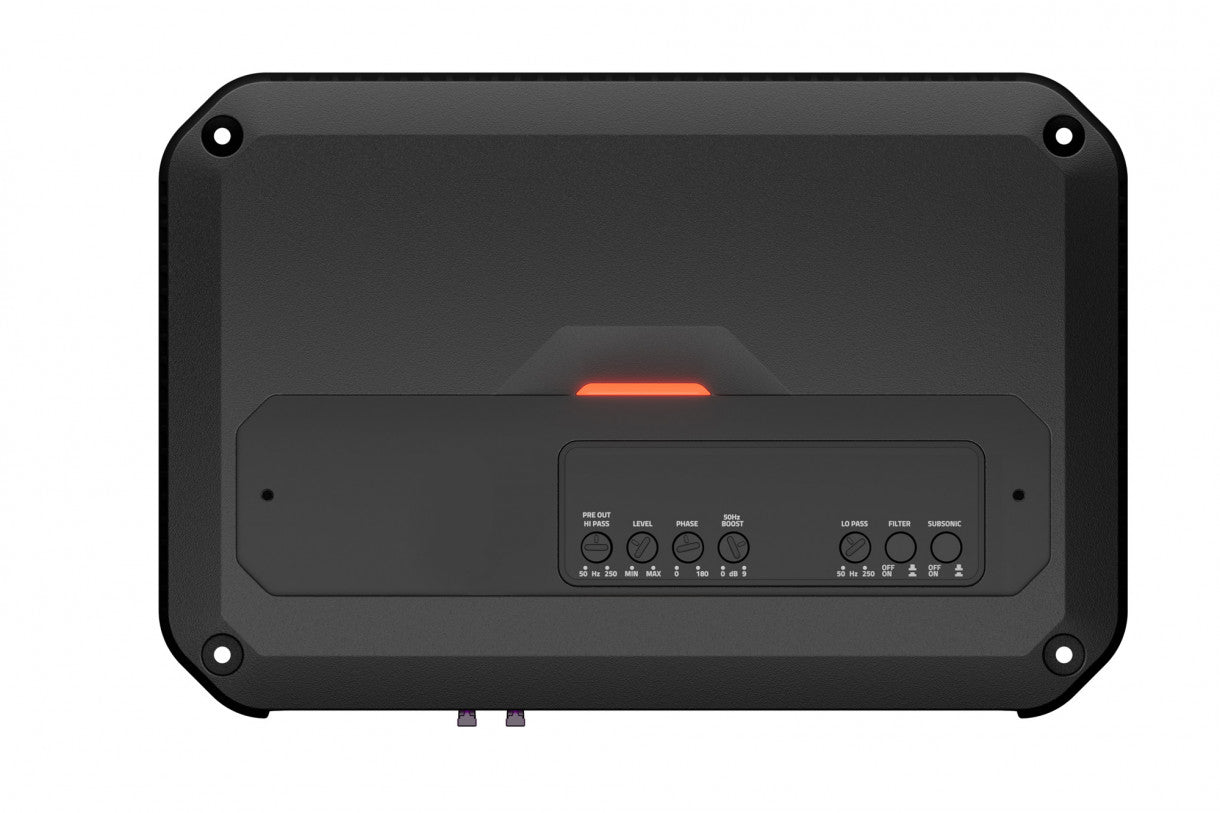

Easy-to-use controls
Ensures all controls are easily accessible even after installation. Adjustable input levels, low-pass filters, bass boost and sub sonic for fine-tuning the sound
Compatibility
The device has an integrated USS that adjusts input sensitivity between 1.6 and 40 Vrms and is compatible with the new SB-class player units. SPECIFICATIONS:
specifications
Channels: 1
Input voltage and fuses: 11 ÷ 15 VDC (2 x 35 A)
Operating voltage: 9 ÷ 18 VDC
No-load current: 0.85 A
Quiescent current: 4.5 uA
MAX current (Max Musical Power): 50 A
Excitation input: 4 ÷ 17 VDC (1.5 mA)
Speaker level signal auto-excitation: 1.5 VDC
Efficiency: 89%
Distortion - THD @ 100 Hz, 70% power: 0.03
Frequency response @ -3 dB: 10-500 Hz
S/N ratio (A-weighted @ 1 V Input): 102 dBA
Minimum impedance:
2 ohms
Adjustable crossovers: yes
Power:
(RMS) @ 1% THD
1Ch @ 4ohm 650W x 1
1Ch @ 2ohm 1200W x 1

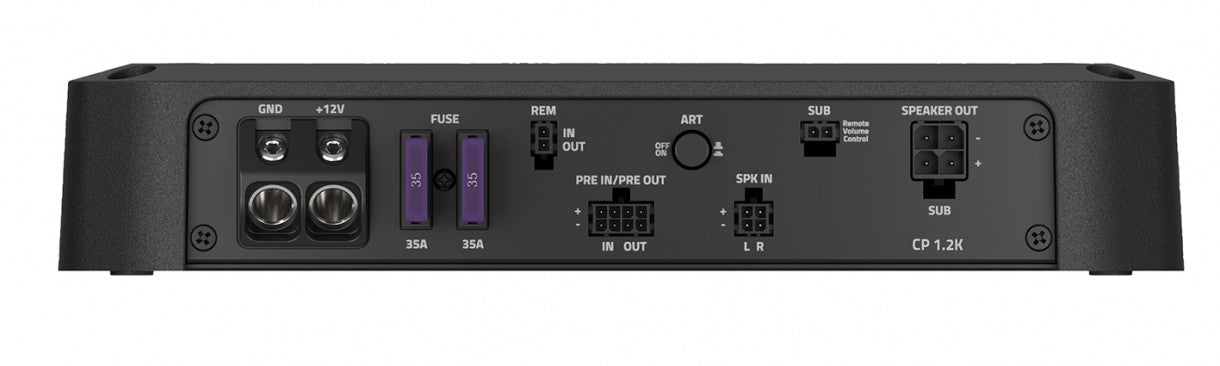

Inputs and filters:
Inputs: RCA and speaker level
Pre-Out: Hi-Pass 50 ÷ 250Hz @ 12 dB/Oct.
RCA input sensitivity: 0.32 ÷ 8 VRMS
Speaker level input sensitivity: 1.6 ÷ 40 VRMS
Low-pass filter: OFF / 50 ÷ 250 Hz @ 24 dB/Oct.
Bass Boost: 50Hz 0 ÷ 9 dB
Subsonic Hi-Pass OFF / 25 Hz @ 24 dB/Oct.
