Hertz Cento CP 1.700 700W 1-channel amplifier
State-of-the-art Class D technology
All Cento Power models feature Hertz’s innovative Advanced D-Class (ADC) technology. This enables top-notch power output with over 89% efficiency, reducing heat and power consumption while maintaining exceptionally clear sound. The compact die-cast aluminum chassis offers both durability and stylish aesthetics, and fits perfectly into any car configuration.
Easy-to-use controls
Ensures that all controls are easily accessible even after installation. Adjustable input levels, low-pass filters, bass boost and sub sonic for fine-tuning the sound.
Compatibility
The device has an integrated USS that adapts input sensitivity from 1.6 to 40 Vrms and is compatible with new SB-class player units
SPECIFICATIONS:
Channels: 1
Input voltage and fuses: 11 ÷ 15 VDC (2 x 25 A)
Operating voltage: 9 ÷ 18 VDC
No-load current: 1.10 A
Quiescent current: 4.5 uA
MAX current (Max Musical Power): 33 A
Excitation input: 4 ÷ 17 VDC (1.5 mA)
Speaker level signal auto-excitation: 1.5 VDC
Efficiency: 89%
Distortion - THD @ 100 Hz, 70% power: 0.01
Frequency response @ -3 dB: 10-500 Hz
S/N ratio (A-weighted @ 1 V Input): 113 dBA
Minimum impedance:
2 ohms
Adjustable crossovers: yes
Power:
(RMS) @ 1% THD
1Ch @ 4ohm 400W x 1
1Ch @ 2ohm 700W x 1

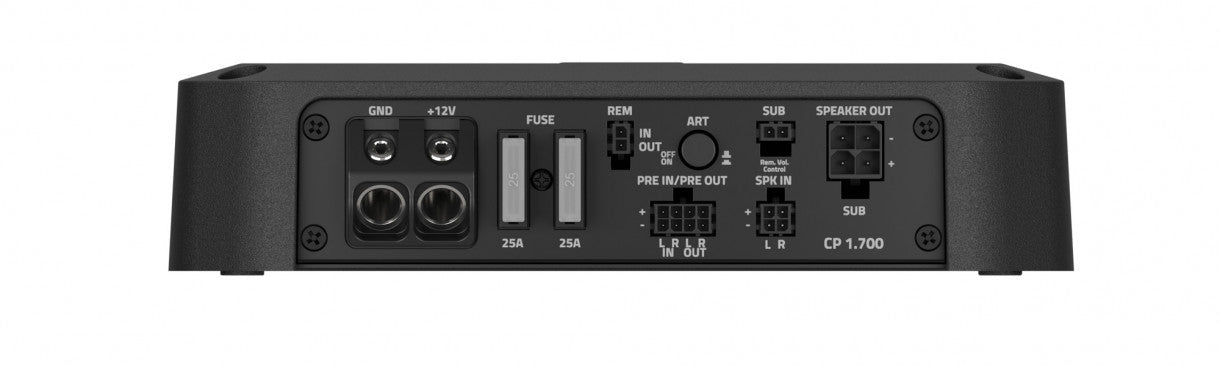

Inputs and filters:
Inputs: RCA and speaker level
Pre-Out: Hi-Pass 50 ÷ 250Hz @ 12 dB/Oct.
RCA input sensitivity: 0.32 ÷ 8 VRMS
Speaker level input sensitivity: 1.6 ÷ 40 VRMS
Low-pass filter: OFF / 50 ÷ 250 Hz @ 24 dB/Oct.
Bass Boost: 50Hz 0 ÷ 9 dB
Subsonic Hi-Pass OFF / 25 Hz @ 24 dB/Oct.
