Description

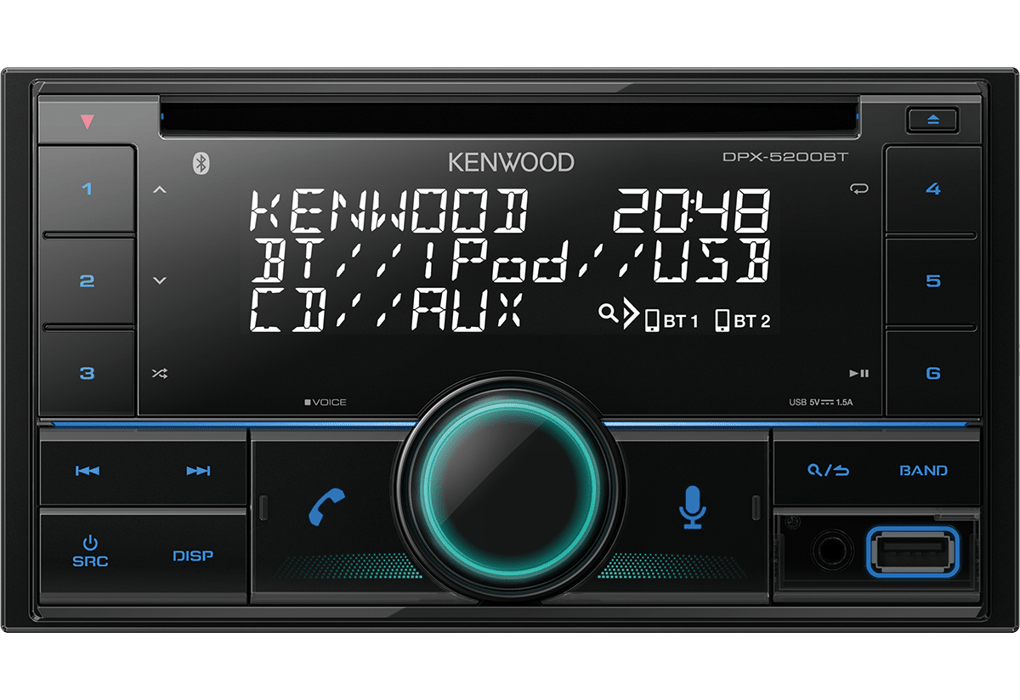

Kenwood DPX5200BT radio-cd-mp3 player
The most important qualities
|
Bluetooth hands-free and audio streaming |
|
MP3/WMA/AAC/WAV/FLAC playback |
|
DSP, DTA & 13-band EQ built-in |
|
KENWOOD Remote app ready |
|
Music Mix app ready |
|
Amazon Alexa ready |
|
3 Text Line (8/13/8) Wide LCD Display |
|
The color of the lighting can be changed |
|
English/Russian/Spanish/Frenh&German GUI language |
|
2 RCA (front+ rear/sub) Preouts (2.5V) |
General
|
Size |
2 DIN |
|
Button illumination color |
Variable LED |
|
Rotary Encoder & Control Knob |
Yes |
|
Accent key |
Handsfree & Voice Assistant |
|
Dual Accent Key |
Handsfree & Voice Assistant |
|
Memory protection |
Menu Settings |
|
Mute and restore sound gradually |
Yes |
|
Touch sound |
Yes |
|
Digital 24 h clock |
Yes |
|
All-off Select (20/40/60 minutes) |
Yes |
|
Built-in Connector |
Mitsumi, 16 pin |
|
Bluetooth unit built-in |
Yes |
|
The software can be updated |
Yes |
Display Features
|
Display Layout |
3 line text + custom icons |
|
Vertical Alignment Liquid Crystal Display |
Yes |
|
Display Illumination |
Variable by RGB LED |
|
Dimmer Control |
Manual / Set by Timer |
|
Brightness control |
0 to 31 steps |
|
Demo Mode |
Yes |
|
Menu languages |
English(default) / Spanish / French / German / Russian |
|
TAG Language Display |
English / Spanish / French / German / Russian / Greek |
Cosmetics features
|
Dress plate |
Black Injection |
|
Preset key finish |
Black Injection |
|
Escutcheon finish |
Black Injection |
|
Volume & operation Knob or wheel |
Transparent Lighting |
|
Triangle Illumination |
Red LED |
|
Button illumination color |
Variable by RGB LED |
|
Illuminated front USB port |
Variable by RGB LED |
|
Brightness Control (Key) |
0 to 31 steps |
|
Dimmer Control (Key) |
Manual / Set by Timer |
|
Variable color illumination |
Yes |
|
Color Zone Concept |
3 zone color control |
|
Chrome-finished accents |
faceplate |
Tuner
|
How stations are selected |
Manual / Preset |
|
ULA reception |
Yes |
|
Mono switch |
Yes |
|
AM reception (MW/LW) |
Yes |
|
Station search |
Yes |
|
Tuner Presets (FM/AM) |
24 Presets (18FM / 6AM) |
|
Mixed preset memory (FM & AM) |
6 presets |
|
AME - Automatic storage of stations in memory |
Yes |
|
Tuner Preset Back-up Memory |
Yes |
|
RDS |
Yes |
|
Radio Text Plus |
Yes |
|
Reception of traffic reports |
Yes |
|
Local radio search |
Yes |
|
Regional radio reception |
Selectable: AF/AF Reg/OFF |
|
Automatic traffic information station search |
Yes |
|
EON function |
Yes |
|
PTY - Selection of program type |
Yes |
Playable Audio File
|
AAC (*.m4a) files are playable |
USB |
|
AAC (*.aac) files are playable |
CD/USB |
|
MP3 files are playable |
CD/USB |
|
WMA (.wma) files are playable |
CD/USB |
|
WAV (.wav) files are playable |
USB |
|
FLAC files are playable |
USB |
CD Features
|
CD-R/RW playback |
Yes |
|
MP3, WMA and AAC playback |
Yes |
|
CD Text with special Character Support |
English, Spanish, Russian & Greek |
|
DAC processing |
24 bit |
|
0 bit Mute |
Yes |
|
Random Function |
DISC Random/Random OFF |
|
Repeat Function |
Track Repeat/All Repeat |
USB
|
USB terminal |
Yes, Front side with dust cover |
|
USB bus type |
2.0 High speed |
|
Drive Change |
Yes |
|
MP3, WMA, AAC, WAV, FLAC playback |
Yes |
|
Repeat/intro/shuffle |
Yes |
|
Repeat/Shuffle |
Yes |
|
Direct search |
Yes |
|
Resuming playback from where it last left off |
Yes |
|
Time display |
Yes |
|
1A power supply capacity |
Yes |
|
1.5A Smartphone Quick Charge |
Yes |
iPod features
|
Made for iPod & iPhone * |
Yes |
|
USB Direct Control (audio, 1 cable, Lightning connector) |
With the KCA-iP103 cable sold as an accessory |
|
Music playback |
Yes |
|
Alphabetical search |
Yes |
|
Skip search |
Yes |
|
Search for similar files |
Yes |
|
Direct search |
Yes |
|
iPod EQ Mode |
Yes |
|
iPod control by hand |
Yes |
|
App & iPod control |
Yes |
|
Spotify app link |
Yes |
|
Reverse browsing |
Yes |
|
Charging and power management |
Yes |
|
* Always use the latest version of Apple software |
|
Sound
|
Maximum Output Power |
50W x 4 |
|
MOSFET Power IC |
Yes |
|
Auxiliary Type |
Mini-jack, front panel |
|
Line output connection |
2 RCA |
|
Output level of the line output connection |
2.5V |
|
Preout Rear / Subwoofer Switchable |
Yes |
|
Subwoofer level |
Yes |
|
2-Way X'over network |
Yes |
|
3-Way x'over (bi-amp connection) |
Yes |
|
Tone Control / Easy EQ |
13 bands, 8 presets |
|
Balance/Fader/Loudness Control |
Yes |
|
Bass Boost Circuit |
Off/+1/+2/+3/+4/+5 |
|
Sound attenuation (-20dB) and gradual recovery |
Yes |
|
Equalizer built-in |
Yes |
|
Graphic Equalizer + Preset |
13-Bands Graphic Equalizer with 8 Presets. |
|
Digital Sound Processor (DSP) Built-in |
Yes |
|
Digital Time Alignment (DTA) |
Yes |
|
Low- & High-pass Filter |
Yes |
|
Speaker Size Control |
Yes, Off/10cm/13cm/16cm/6x9inch |
|
Kenwood Sound Reconstruction |
Yes |
|
Sound Reconstruction |
Yes |
|
Space Enhancer space sense expansion function |
Yes |
|
Realizer function |
Yes |
|
Stage EQ |
Yes |
|
Drive EQ - driving noise compensation |
Yes |
Bluetooth
|
Max no. of reg. phones for HFP & A2DP |
5 |
|
Hands Free Profile with High Sound Quality |
HFP V1.7.1 |
|
Maximum number of phones that can be connected |
5 |
|
2 phones full time connection |
Yes |
|
Audio Transfer Profile (A2DP) |
Yes |
|
High quality sound streaming |
SBC/AAC |
|
Max no. of reg. units for A2DP |
5 units |
|
Serial Port Profile (SPP) |
Yes |
|
Contact Information Access Profile (PBAP) |
Yes |
|
A/V Remote Control Profile (AVRCP) |
Yes, V1.6.1 |
|
Easy device pairing |
Yes |
|
iPhone & Android automatic pairing via USB |
Yes |
|
Voice control / Siri Eyes Free |
Yes |
|
|
|
|
KENWOOD Remote App Ready |
|
|
KENWOOD Music Mix Support |
Yes |
|
Amazon Alexa ready |
Yes |
|
Knock / Hold |
Yes |
|
Private mode |
Yes |
|
Alphabetical search (contact information) |
Yes |
|
Background noise compensation |
Yes |
|
Echo cancellation |
Yes |
|
Displaying the phone's status on the car radio screen |
Yes |
|
Displaying the status of the music device on the car radio screen |
Yes |
|
Mobile network strength display |
Yes |
|
Battery charge status display |
Yes |
|
Bluetooth Pairing Indicator |
Yes |
|
High-quality microphone with background noise suppression |
Rear Wired |
|
Bluetooth software updatable |
Yes |
|
*depending on the phone manufacturer and model |
& Kenwood device |

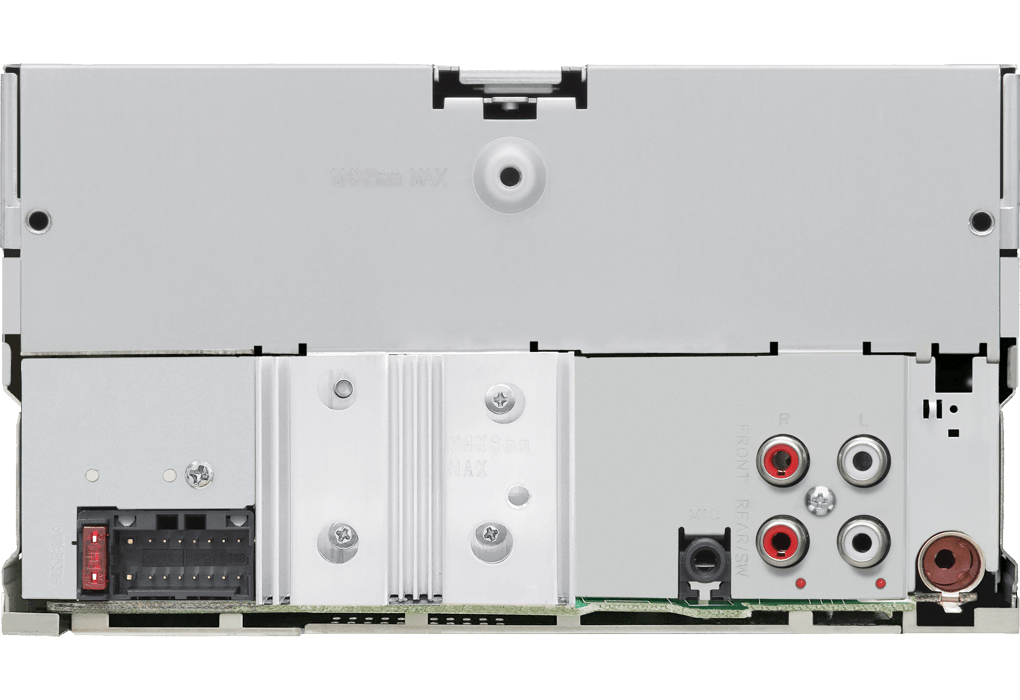

Connections
|
Front USB & AUX Input |
Yes |
|
Possibility of a retrofitted wired remote control |
Yes |
|
DC cord |
Mitsumi to ISO |
|
Excitation power cable (P.CON) |
Yes |
|
Audio line out connection |
RCA: front/rear/subwoofer |
|
ULA antenna connection |
JASO connector |
|
Microphone connection (mini jack) |
3.5mm mini-jack |
Radio
|
ULA: 87.5 MHz - 108 MHz (50 Khz steps) |
Yes |
|
Sensitivity (ULA) |
0.71μV/75ohm (S/N 30dBf) |
|
Attenuation Sensitivity (ULA) |
2μV/75ohm (S/N 46dBf) |
|
Frequency response (ULA) |
30Hz ~ 15kHz (± 3dB) |
|
Interference distance (mono, ULA) |
64dB |
|
Channel separation (1 kHz, ULA) |
40dB |
|
MW: 531 kHz to 1611 kHz (in 9 kHz steps) |
Yes |
|
Sensitivity (MW) |
28.2μV |
|
LW: 153 kHz to 279 kHz (in 9 kHz steps) |
Yes |
|
Sensitivity (LW) |
50μV |
Codec Specs
|
MP3 Format |
MPEG 1/2 Audio Layer 3-Files |
|
WMA Format |
in accordance with Windows Media Audio |
|
AAC Format |
AAC-LC “.aac”(CD&USB) and “.m4a”(USB) files |
|
WAV Format |
RIFF waveform Audio Format (only for LinearPCM) |
|
FLAC Format |
FLAC files (up to 96kHz/24bit) |
CD Specifications
|
Laser Diode |
GaAIAs |
|
Digital Filter(D/A) |
8 Times Over Sampling |
|
Digital/Analogue Converter |
24 Bit |
|
Oscillation and vibration |
Not measurable |
|
Frequency Response |
20Hz ~ 20kHz (±1dB) |
|
Total harmonic distortion |
0.01% (1kHz) |
|
Disturbance distance |
105dB (1kHz) |
|
Dynamics |
90dB |
|
Channel Separation |
85dB |
|
MP3 Decoder |
Compliant with MPEG-1/2 Audio Layer-3 |
|
WMA Decoder |
Compliant with Windows Media Audio |
|
AAC Decoder |
AAC-LC".aac" Files |
USB
|
USB version |
USB 2.0 High Speed |
|
File system |
FAT 32/16/12 |
|
Maximum current |
1500mA |
|
DA converter |
24 bit |
|
MP3 Decoder |
Compliant with MPEG-1/2 Audio Layer-3 |
|
WMA Decode |
Compliant with Windows Media Audio |
|
AAC Decode |
"m4a" & "aac" file encoded by AAC-LC format |
|
WAV Decode |
Linear - PCM Files |
|
flac Decode |
FLAC files up to 96kHz/24bit |
Audio Specifications
|
Maximum Power |
50W x 4 |
|
Output Power (DIN45324,+B=14.4v) |
22W x 4 |
|
Preout Level |
2500mV / 10kOhm, |
|
Preout Impedance |
≤ 600 Ohms |
|
Speaker Impedance |
4Ohm ~ 8Ohm |
|
AUX Frequency Response |
20Hz ~ 20kHz (±1dB) |
|
AUX Maximum Input Voltage |
1000mV |
|
AUX Input Impedance |
30 kOhm |
DSP Specifications
|
Frequency band - Front |
62.5Hz ~ 16kHz |
|
Equalizer Gain |
-9db ~ +9db |
|
Q Control |
0.25/ 0.50/ 1.00/ 2.00 |
|
High Pass Filter frequency |
Through/50 ~ 220 (Hz) |
|
High Pass Filter Slope |
-12/-18/-24 dB/Oct |
|
Low Pass Filter frequency |
50~120(Hz)/Through |
|
Low Pass Filter Slope |
-12/-18/-24 dB/Oct |
|
Time Alignment |
0 — 610cm (2 cm step) |
|
Choosing the type of car |
► OFF |
|
Equalizer Type |
Graphic |
|
Frequency band |
13 -regional |
Bluetooth
|
Version |
Bluetooth V4.2 |
|
Frequency |
2.402 to 2.48 GHz |
|
Power supply |
+4dBm(max), 0dBm (AVE) power class 2 |
|
Action trip |
Unobstructed about 10 m |
|
Handsfree (HFP) |
Yes |
|
Serial Port (SPP) |
Yes |
|
Audio distribution (A2DP) |
Yes |
|
Audio Codec |
SBC/AAC |
|
Video and audio control (AVRCP) |
Yes |
|
Contact Data Transfer (PBAP) |
Yes |
Supplies
|
Removal tools |
2 pieces |
|
Mounting collar |
Yes |
|
Mounting frame |
Yes |
|
DC cord (Mitsumi to ISO) |
15 cm |
|
Handsfree microphone |
with 3 m cable |
General
|
Operating voltage |
14.4V (10.5~16V Allowable) |
|
Maximum power consumption |
10A |
|
Dark Current Consumption |
Below 1mA |
|
Dimensions (W x H x D) |
182 x 111 x 158mm |
|
Weight |
1700 gr. |
|
Operating temperature |
-10°C ~ 60°C |
|
Instruction Manuals |
Multi-language quick guide |
