Marantz MODEL 40n

Marantz Model 40n - Integrated stereo amplifier with streaming capabilities

The Marantz Model 40n is a new high-quality stereo amplifier that meets today's requirements. The device has an HDMI ARC connector, network features, a MM record player connection, and a slew of connectors such as the power stage input.

A traditional class AB amplifier produces 70 watts per channel, but the power supply of the amplifier has been improved by adding a second pair of capacitors, so the power source produces more current and thus the amplifier can drive larger speakers and more demanding loads with better control.

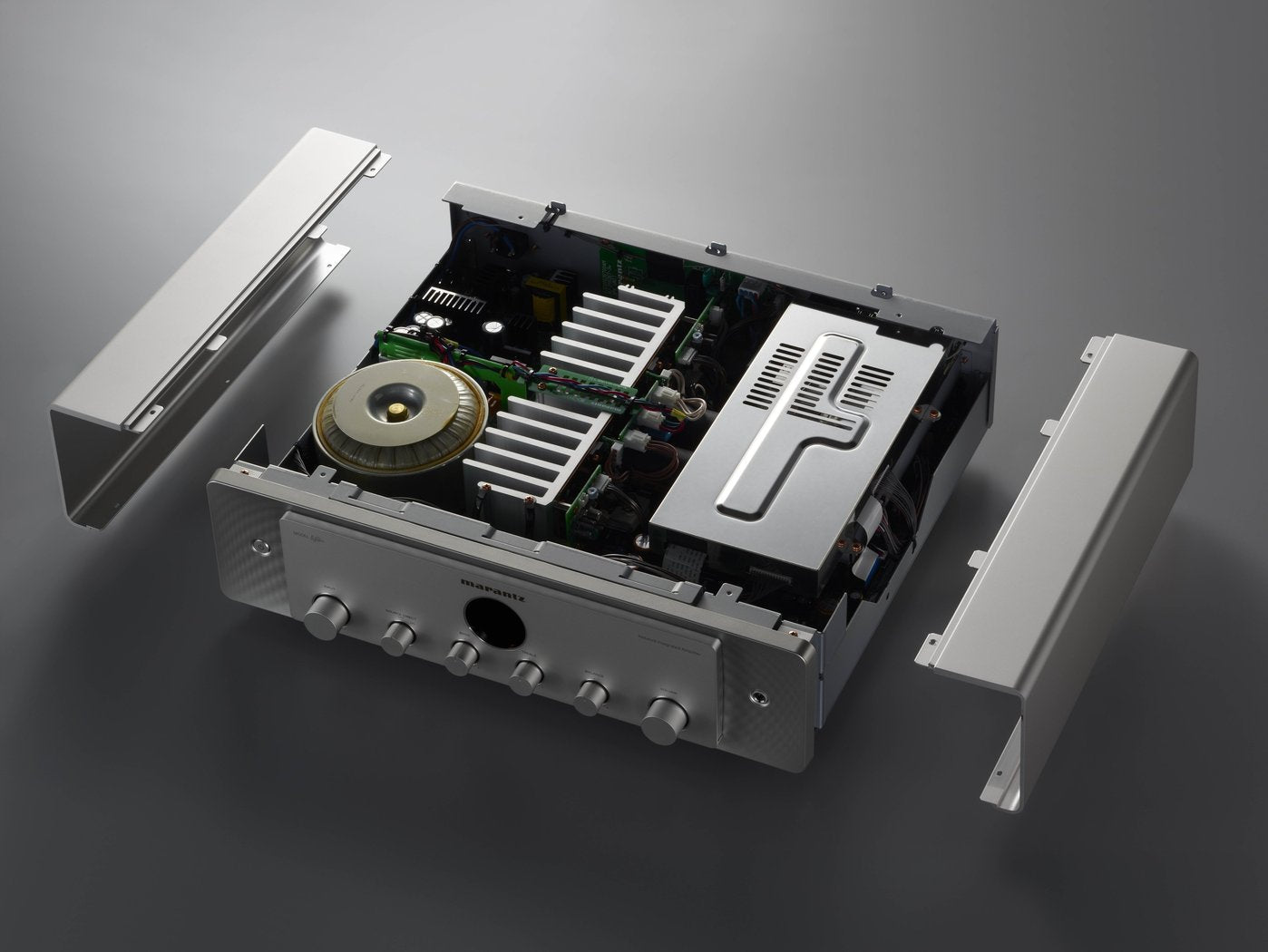

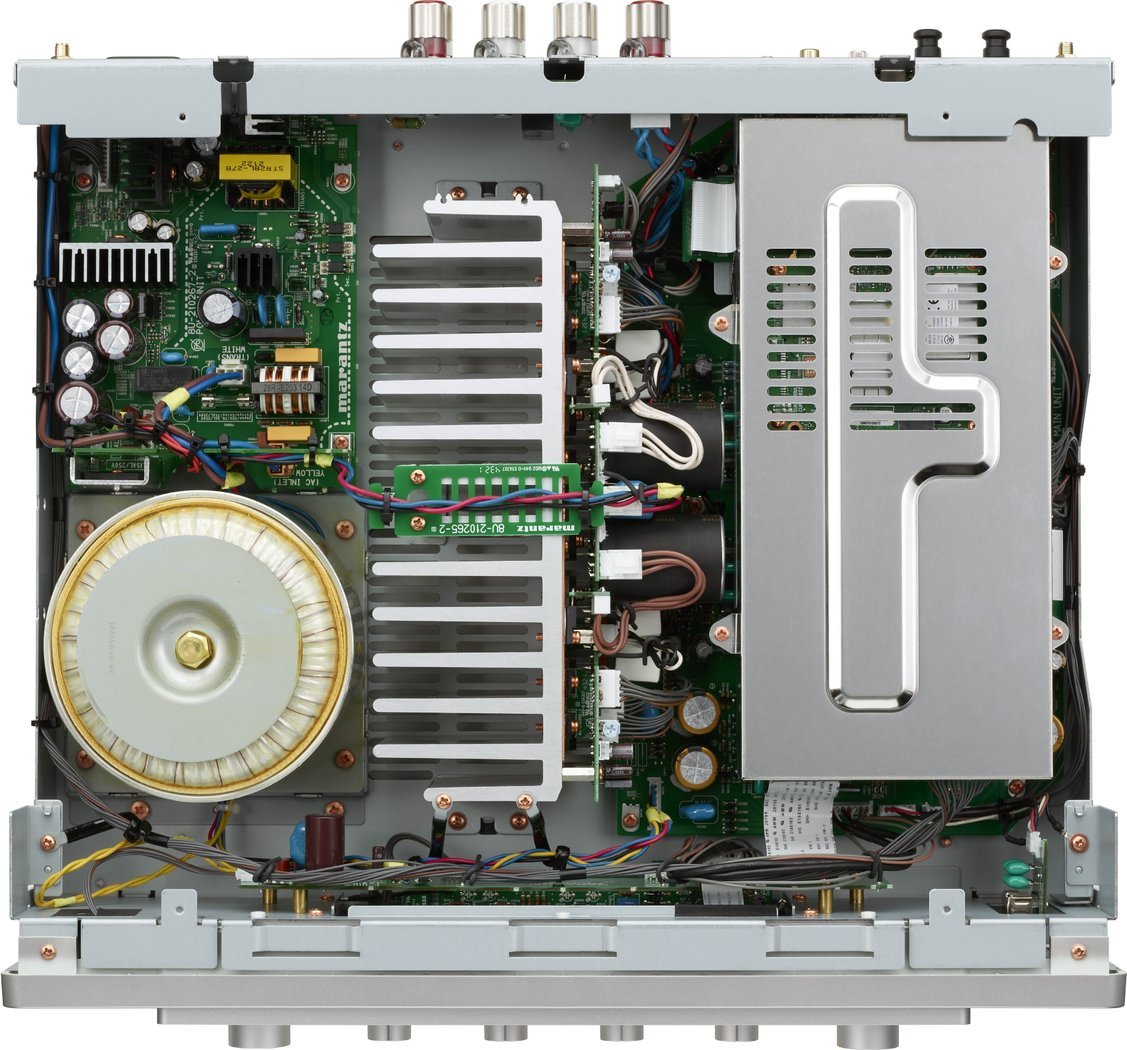

The sensitive line inputs are in a metal protective case, as are the DAC circuit and the HDMI card. Thus, both the digital and the analog signal, which is prone to interference, are processed as cleanly as possible.

The Marantz Model 40n is a really stylish and good-sounding amplifier where all of today's needs can be found in one device.

An integrated Marantz amplifier designed for the digital age while maintaining the valuable feel and sound quality of analog devices

The most musical sound, regardless of the source

• A comprehensive number of analog and digital inputs as well as built-in streaming and an HDMI connection make listening enjoyable and easy, regardless of the source.

Stream millions of Hi-Res recordings

• Play music from Spotify, Amazon Music HD, Tidal and other services or play music from your own music library. Works with Alexa, Google and Siri voice control

Whole home hi-fi

• The Marantz Model 40n acts as the heart of your home's multi-room system.

The HDMI input makes it easier to connect AV devices

• With the help of the HDMI ARC connector, the sound of the TV can be taken through the stereo equipment.

Technical information:

Delivery power

• Output power: 70W + 70W (8ohm), 100W + 100W (4ohm)

General

• Power amplifier circuit: HDAM-SA3
• Terminal transformer: Double protected
• Intensity control: Electronic
• Bass / Treble / Midrange / Balance controls: Yes/Yes/No/Yes
• Tone control override: Yes
• Frequency band reproduction: 5Hz - 50kHz
• Harmonic Distortion: 0.02% (20Hz - 20kHz, 8Ω)
• Damping factor: 100
• Line input sensitivity: Turntable connection: 2 mV / 47 kohm
• Line input sensitivity: CD/Line/Recorder: 220 mV / 20 kohm
• Line sensitivity: Power amplifier line input: 1.6 V / 15 kohm
• Signal interference distance: Turntable MM: 87dBCD: 106dB

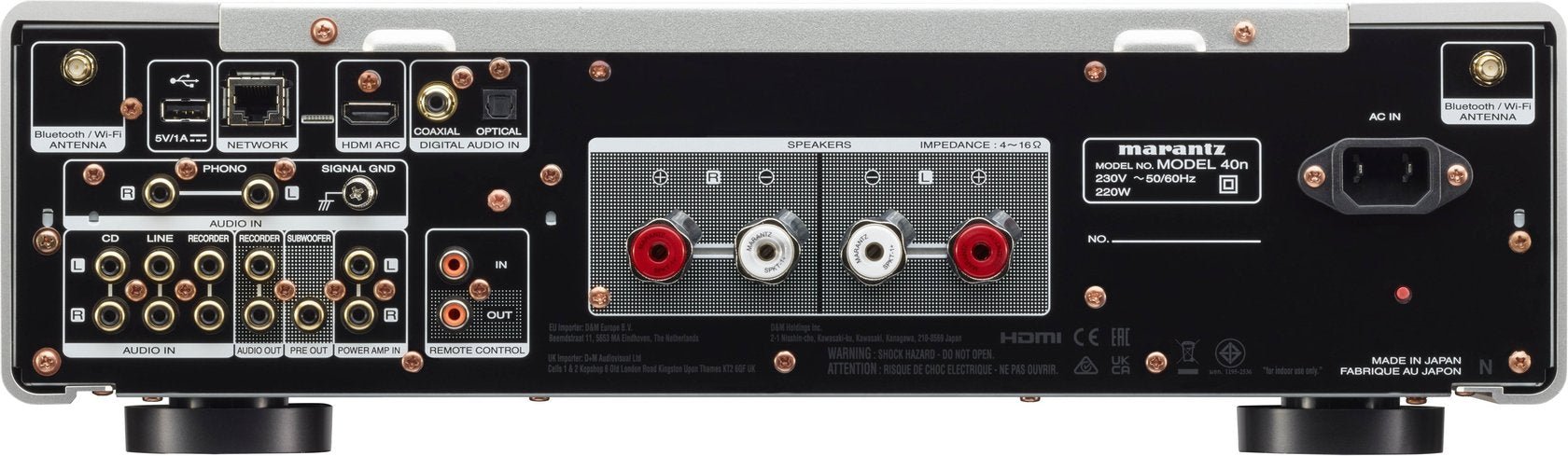

Connections

• Phono Input: Yes (MM)
• Marantz Musical Phono EQ
• Ext. Pre Input (Power Amp Direct): Yes
• Preout: well
• Analog Input (include Phono) / REC Out (RCA): 4 (PHONO, CD, LINE, RECORDER) / 1 (RECORDER)
• Optical input: 1
• Coaxial input: 1
• HDMI: 1 / 0 (ARC) PCM only
• USB A: 1 (Rear), Mass Storage Class 5V/1A
• Speaker Terminal: SPKT-1+
• Remote Control Bus Terminal: Yes (RC-5 In / Out)

Controller

• Application: HEOS application
• Remote control: System remote control
• Functions (amplifier and CD player control)

Other

• Product dimensions (W x H x D mm): 443 x 130 x 432mm
• Power consumption: 220W, 0.3W (Standby)
• Mains connector: Yes
• Quick guide: comes with the product

Cosmeticity

• Panel color: Silver-Gold/Black
• Front central panel: Aluminum
• Top cover: Steel
• Side lighting: Yes (with dimmer)
• Volume control: Aluminum
• Entry selector: Aluminum
• Bass / Treble / Midrange / Balance / Recorder Output Controls - Aluminum: Aluminum
• Power switch: Aluminum
• Case material: SECC
• Base layer: Thicker two-layer

More information: Manufacturer's pages

---

Marantz offers an extended 5-year warranty for its Premium and Premium+ products, as long as the consumer remembers to register ( https://www.marantz.com/fi-fi/ 5ywarranty ) of their product within 3 months from the date of purchase.
