First-class integrated stereo amplifier with 70 W and customized HDAM amplifier circuit.

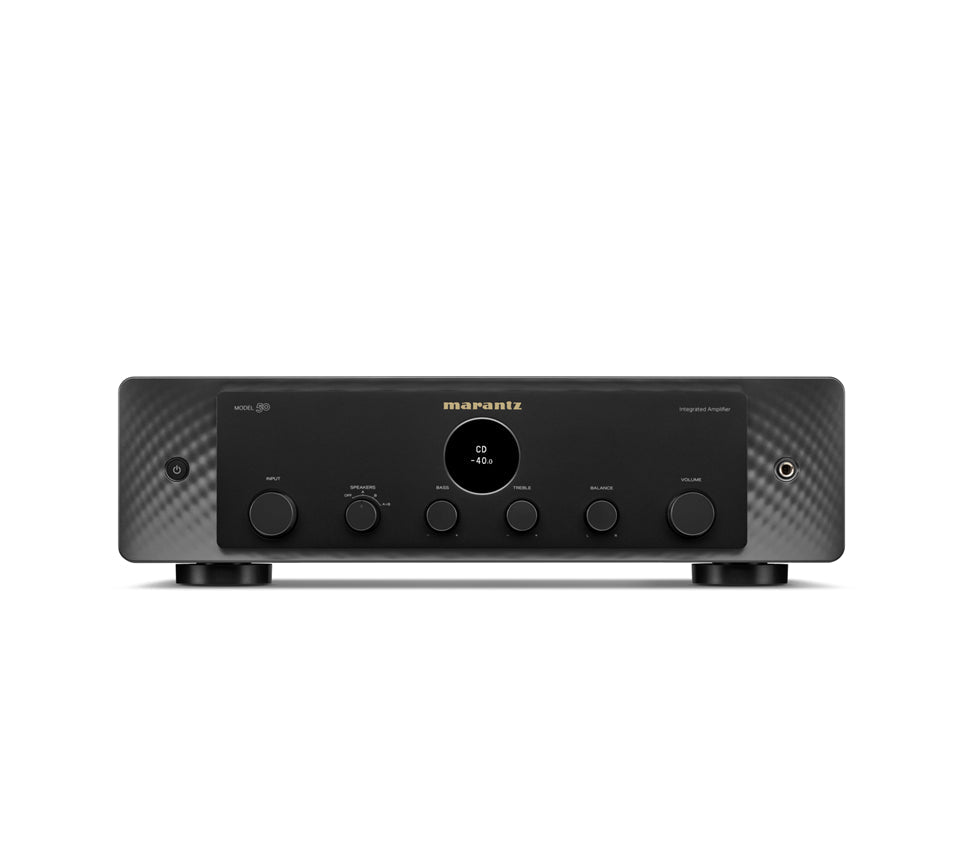

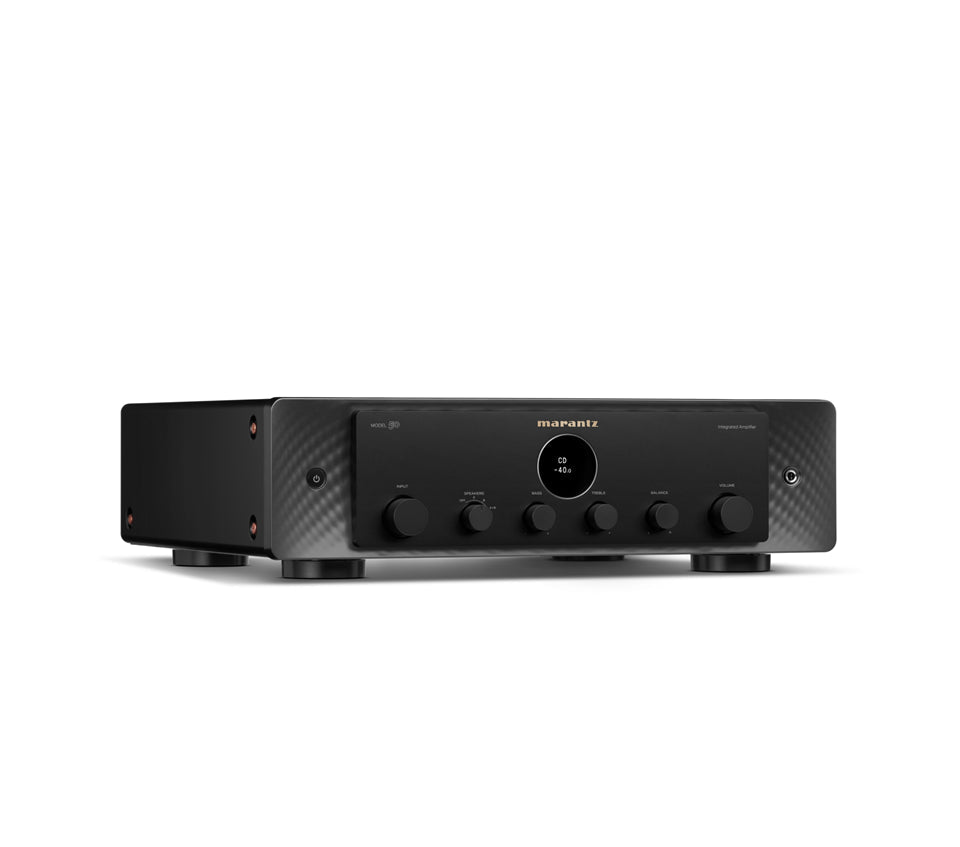

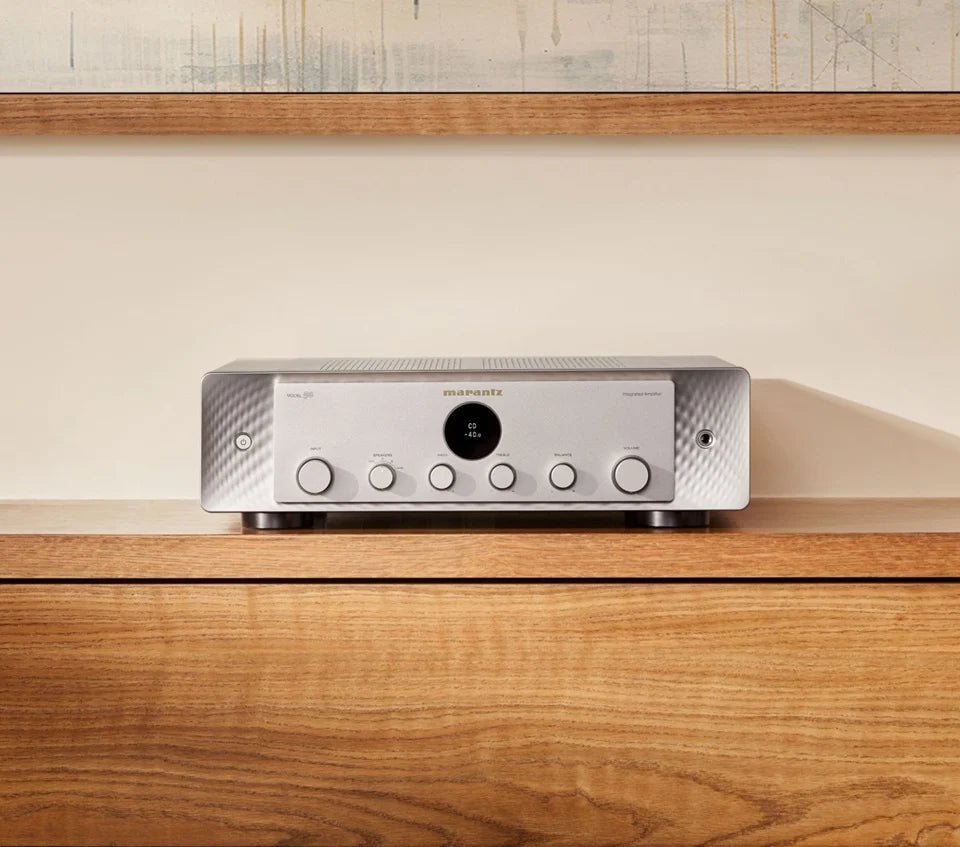

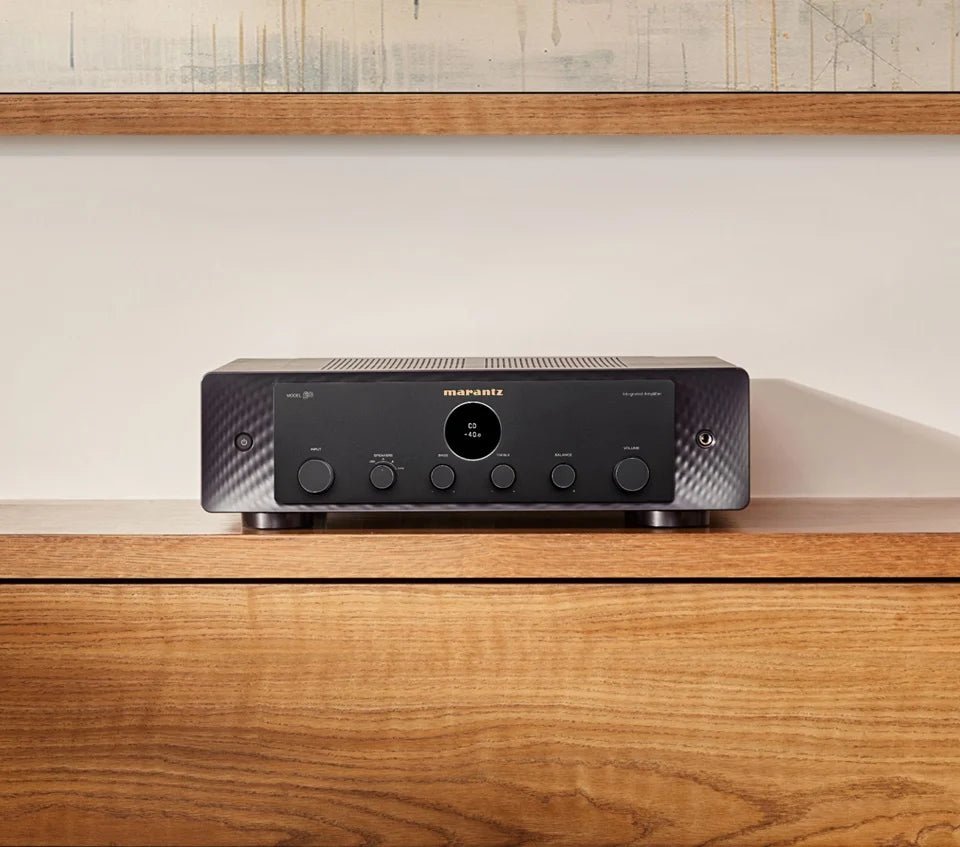

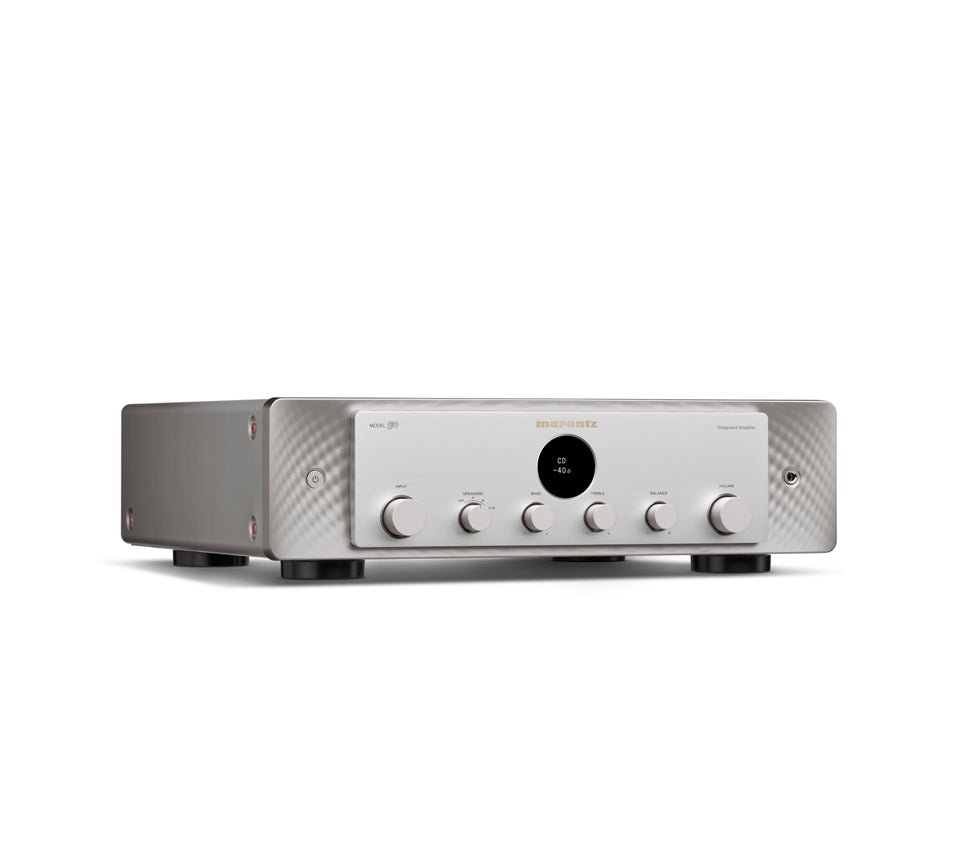

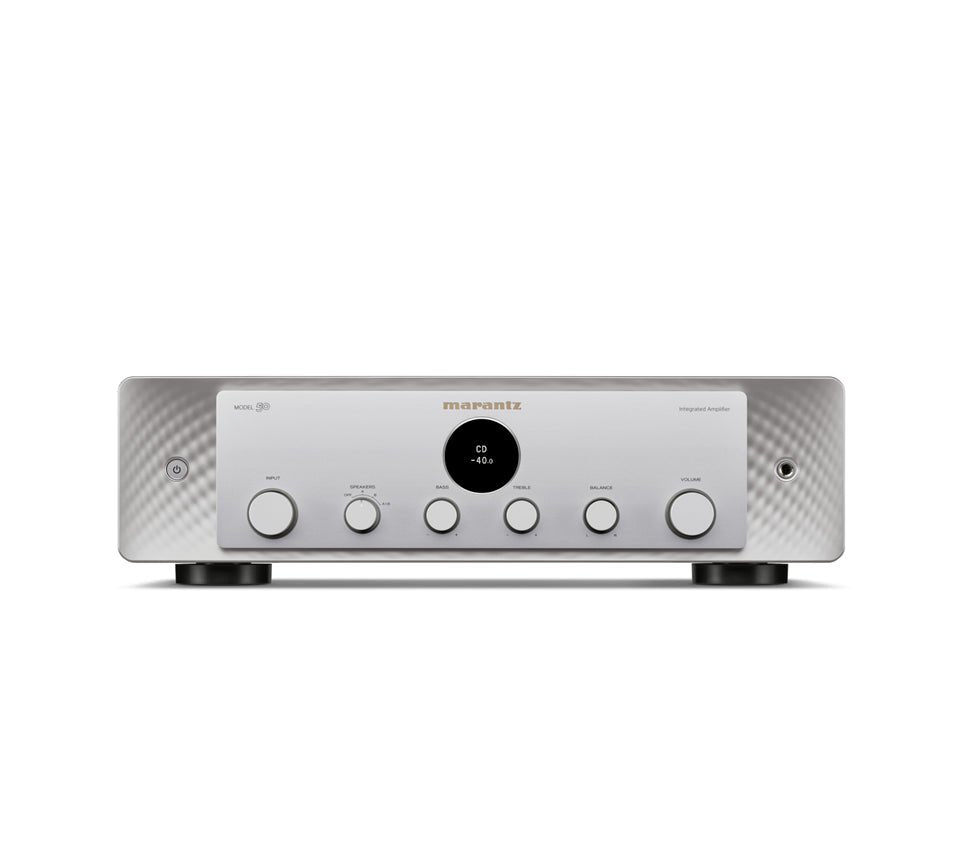

The MODEL 50 is the ideal integrated amplifier. With 70 watts per channel unique to Marantz current feedback power and the HDAM SA-3 circuit, this amplifier drives the speakers perfectly.

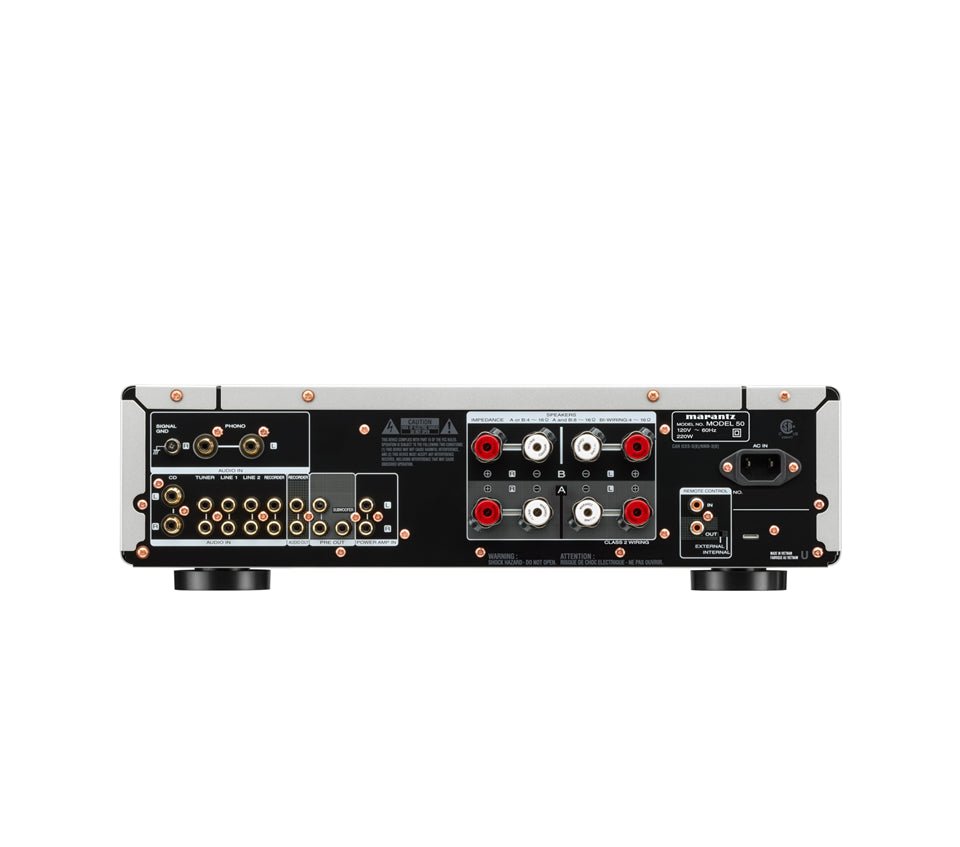

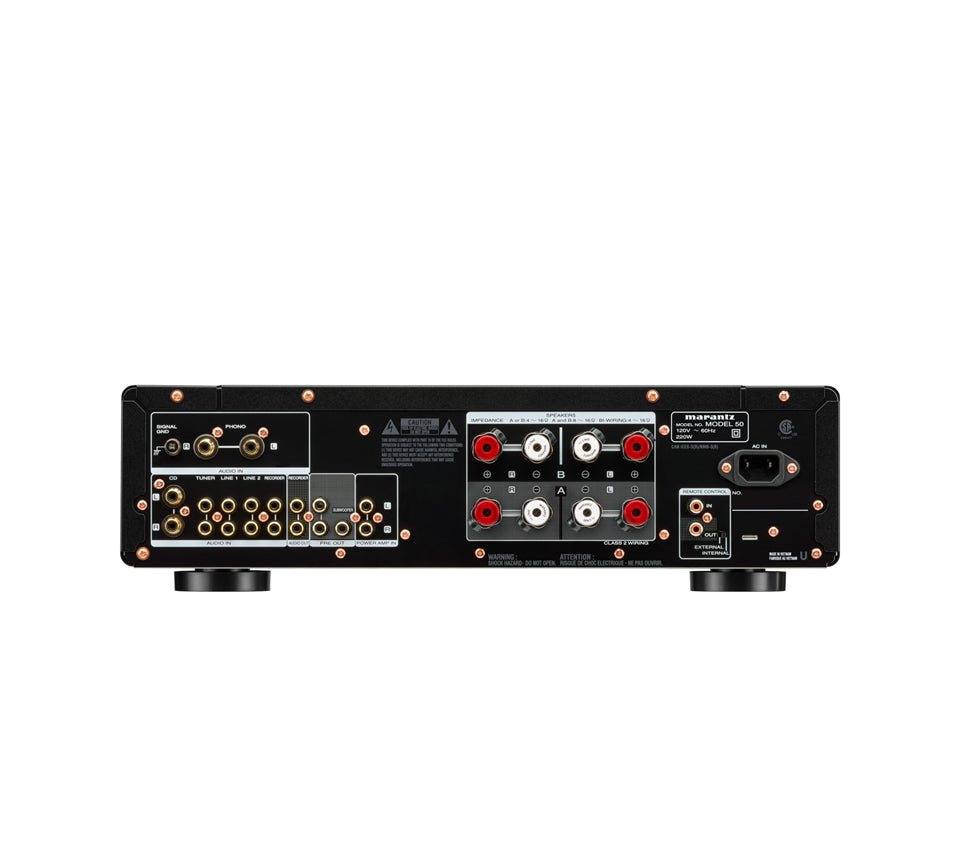

The Marantz MODEL 50 integrated amplifier handles the connection of up to six analog sources and the amplification tasks. With 70 watts per channel of high-current class A/B power, the MODEL 50 can drive a wide range of speakers to a room-filling level. The amplifier's High Current Output architecture is based on parallel push/pull output pairs connected to a strong toroidal power supply and a carefully designed internal signal path topography designed to minimize impedance losses. The MODEL 50 features the latest version of Marantz's HDAM (Hyper Dynamic Amplifier Module) technology, resulting in low distortion, effortless power and precision, transparency and musicality that are hallmarks of the Marantz brand.
Technical information:
- Output power (8/4 ohms RMS): 70 W / 100 W
- Frequency response: 5 Hz to 100 kHz
- Total Harmonic Distortion: 0.02%
- Damping factor: 100
- Input sensitivity: MM 1.4 mV / 47 kΩ
- Signal-to-noise ratio: MM/MC 87 dB / -
- Input sensitivity: High level 185 mV / 16 kΩ
- Signal-to-noise ratio: High level 116 dB (2 V input)
- Input sensitivity: Power Amp Direct IN 1.5 V / 15 kΩ
- Signal-to-noise ratio: Power Amp Direct IN 125 dB
- Treble adjustment ± 10 dB at a frequency of 15 kHz
- Bass adjustment ± 10 dB at 50 Hz
- Metal front panel: Yes
- Power consumption: W 220
- Standby consumption: W 0.3
- Automatic power off: Yes
- Detachable power cord: Yes
- Remote control: RC003PMND
- Maximum dimensions (W x D x H): mm 442 x 431 x 130
- Weight: kg 14.2
- Maximum dimensions of the cardboard box (L x W x H): mm 527 x 517 x 255
