The Hippo Series High-Performance Amplifiers are the perfect match to our Hippo Series Subwoofers!
Inside you will discover full MOSFET high-grade switching devices and you can be assured your investment will last as a result of our 5-way protection circuitry and LED Clipping Indicators for front & rear. Our built-in OEM Line Converter enables installation of this Amplifier in any system as a result of its input sensitivity adjustable up to 8V RMS with our Auto Turn On circuit and there's a 12 Volt remote output for external 12 Volt devices. Adding to its “street cred” is its compliance with the Consumer Technology Association's CTA 2006 Standards for Car Audio Amplifiers . Not only does it comply it outperforms these stringent standards All models are pretested and will outperform their published CTA 2006 rating. ICP (In Car Performance) is the main design goal.

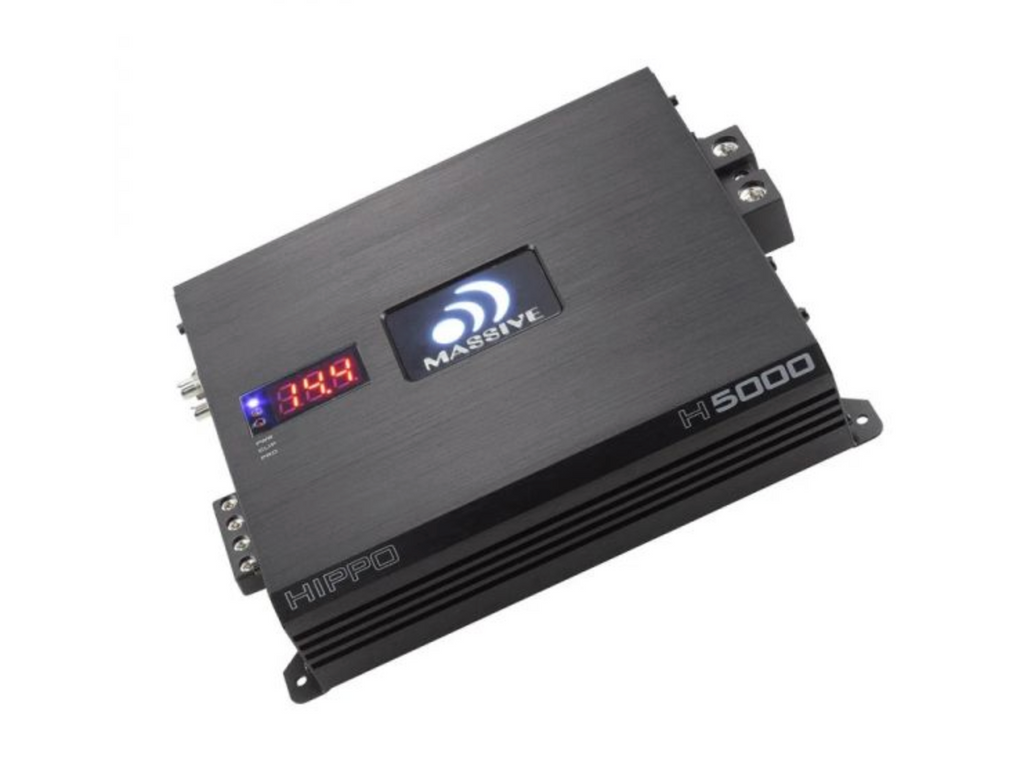

Outside you will be impressed by a smooth brushed black aluminum surface with our logo glowing radiantly in blue, announcing to the world you have MASSIVE equipment. The top of the unit includes a Digital Voltage LED Display with Power, Clipping & Protection Indicators allowing you to monitor your input power to help protect your investment. Furthermore, the built-in cooling fan will help keep your PCB cool during extended operating times and hot conditions.
Remote Gain control included
- Input Sensitivity Low Level: 400mV RMA ~ 8V RMS
- Built-In (ATO) Auto Sensing Turn-On Function (Hi-Low Converter)
- Digital Voltage LED Display with PWR, CLIP & PROTECT Indicators
- 12V Remote Output for External Devices (Hi-Inputs)

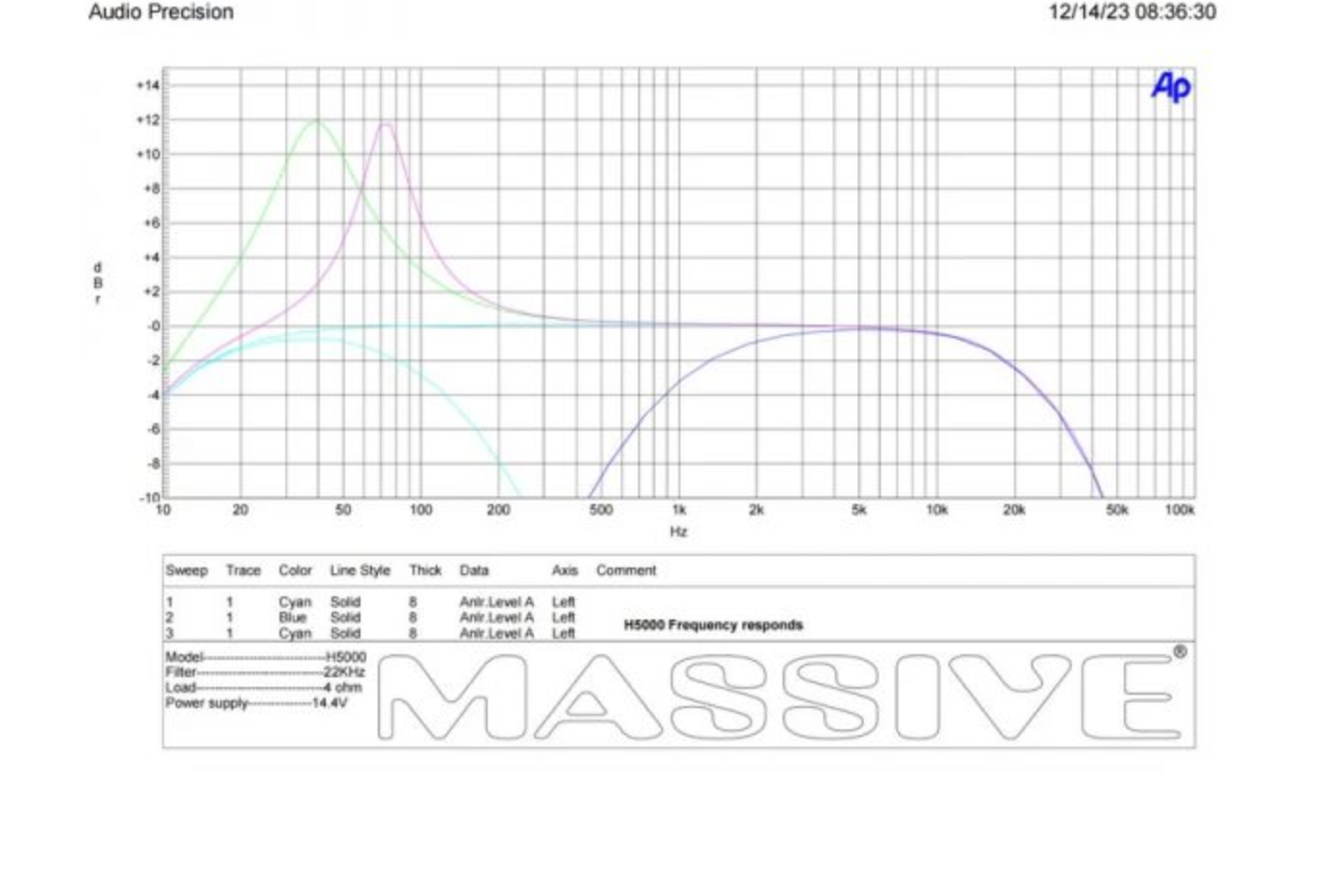

- Frequency Response: 10Hz ~ 20KHz
- 0~12dB Variable Bass Boost (Optional Remote)
- Bass Boost Frequency: 40Hz ~ 120Hz
- Subsonic Filter Control: 10Hz ~ 1KHz
- Clipping LED Indicator
- Heavy Duty Power Supply
- Illuminated Logo
- Heavy Duty Aluminum Heat Sink
- Designed and Engineered in the USA
- Proprietary "Bass Kompressor" Circuitry provides Low-Frequency Enhancement
- Low Distortion Full Band Width for Sound Quality Tuning
- Short Circuit, Thermal, Reverse Voltage and Over Voltage Protection
- Extreme Power in a Small Footprint
- CTA 2006 Standard Compliant
- Full Range High-Efficiency Digital Class Design
| RMS @ 1 Ohm |
5000w x 1 |
| PEAK Power |
10000w x 1 |
| RMS @ 2 Ohms |
3300w x 1 |
| Bridged RMS |
n/a |
| Min Impedance |
1 Ohm |
| Min Ohm Bridged |
as |

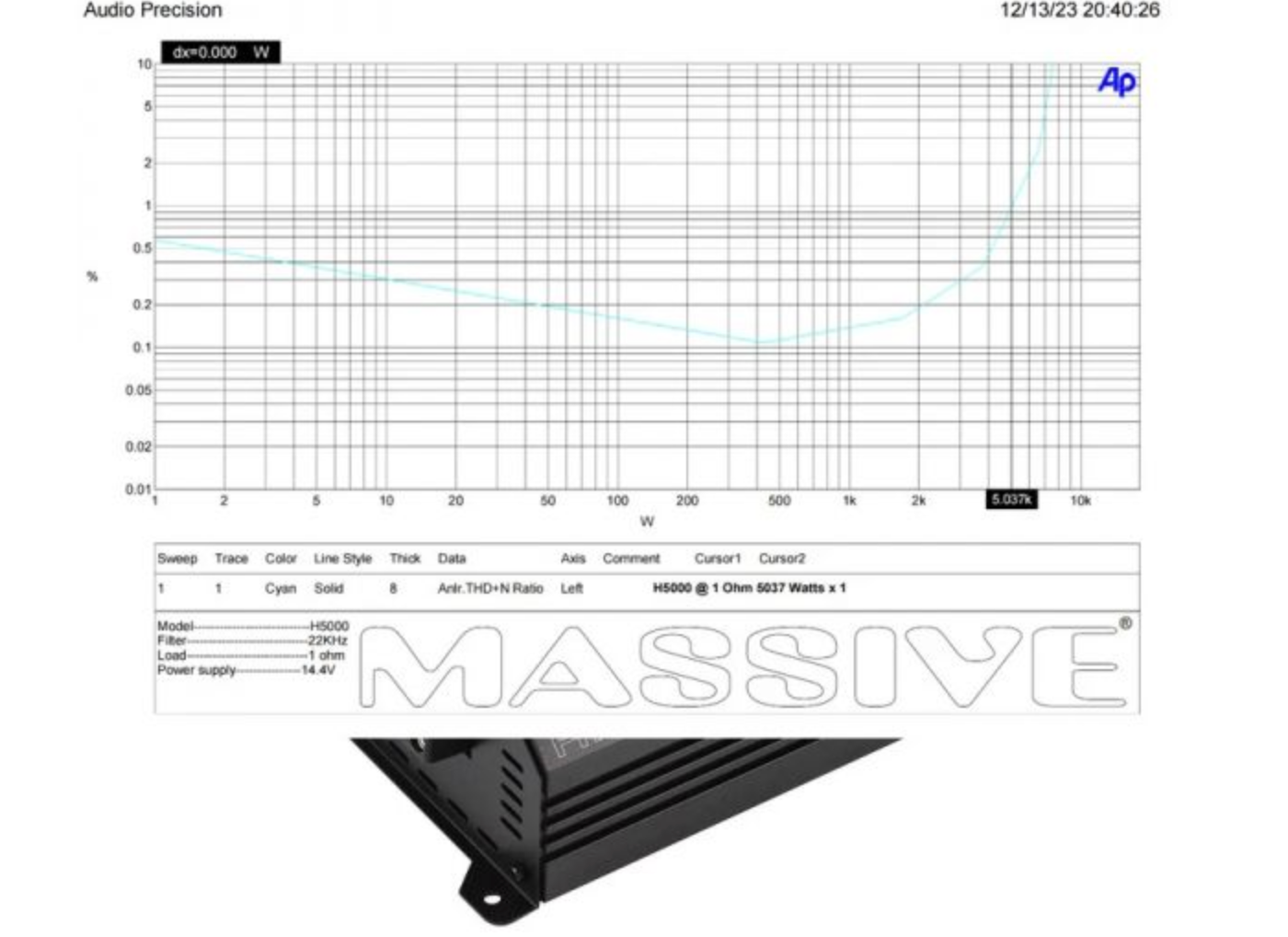

| THD @ 4 Ohms |
<0.5% |
| S/N |
95dB |
| Recommended Fuse |
400 Amps |
| Max RCA Voltage |
8 years |
| Frequency Response |
10Hz - 20KHz |
| Dimensions |
8.9 (in) x 7.95 (in) x 2.22 (in) |
|
|
