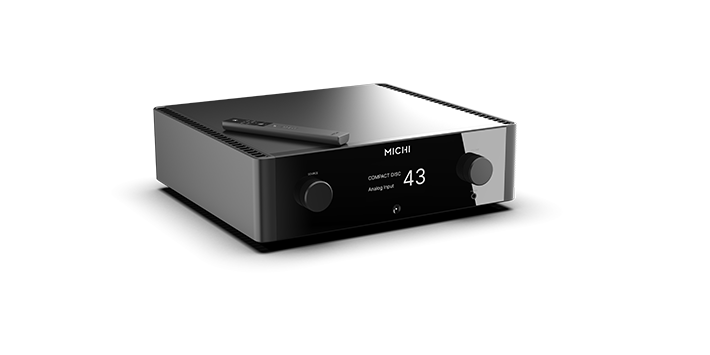

Michi P5 Series 2 preamplifier
The MICHI P5 Series 2 is an improved edition of the excellent P5 preamplifier. A truly stunning piece of hardware in sound, style and finish. The choice of the discerning music lover.
Plenty of connections, both analog and digital. Easy to use, really beautiful to the eye, and uncompromising in sound quality. Includes, among other things, an MM/MC phono stage, a premium-level ESS Sabre Premium 32-bit DAC with support for MQA sound. Fully balanced construction, connections with balanced XLR connectors or unbalanced RCA connectors.
Stylish and easy-to-use remote control.
TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.002%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz – 100kHz (±0.3dB)
Digital Inputs: 20Hz – 20kHz (±0.3dB)
Phono Input: 20Hz – 20kHz (±0.3dB)
S/N RATIO (IHF “A” Weighted)
Line Level Inputs: 116dB
Digital Inputs: 100dB
Phono Input: 80dB
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.002%
INPUT SENSITIVITY
Line Level Inputs (RCA): 160mV
Line Level Inputs (XLR): 250mV
Phono Input (MM): 2.5mV
Phono Input (MC): 250uV
Digital Inputs: 0dBFs
INPUT IMPEDANCE
Line Level Inputs (RCA): 47kΩ
Line Level Inputs (XLR): 100kΩ
Phono Input (MM): 47kΩ
Phono Input (MC): 100Ω
Digital Inputs: 75Ω
INPUT OVERLOAD
Line Level Inputs (RCA): 12V
Line Level Inputs (XLR): 12V
Phono Input (MM): 199mV
Phono Input (MC): 22mV
OUTPUT LEVEL
Unbalanced (RCA): 1V
Balanced (XLR): 2V
OUTPUT IMPEDANCE
Unbalanced (RCA): 470Ω
Balanced (XLR): 100Ω
CHANNEL SEPARATION
Line Level Inputs: >85dB
Phono Input: >55dB
TONE CONTROLS
±10dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver Installation Required
DSD and DoP Support
MQA and MQA Studio Support
Roon Tested
DIMENSIONS (W × H × D)
485 × 150 × 452mm
19″ × 6″ × 17.75″
FRONT PANEL HEIGHT
132mm (5.25″)
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
40W
STANDBY POWER CONSUMPTION
Normal: <0.5W
Network Wakeup: <2W
NET WEIGHT
22.9kg (50.5lbs.)
BTU RATING (4Ω, 1/8th power)
87 BTU/hr
