Musical Fidelity M3x Vinyl

Turntable preamplifier

Musical Fidelity M3x Vinyl is a high-performance and precise turntable preamplifier for MM and MC sound box types in a sensibly designed and implemented case. The M3x Vinyl is designed in such a way that the front stage cannot be overloaded or face any special limitations during normal playback. Like its big brother M6x Vinyl, M3x Vinyl utilizes the same high-end Fully Discrete discrete circuit technology.

• Excellent technical performance
• Short signal paths
• Top class interference distance

The M3x Vinyl is a phono stage designed to fit into any modern system. It is stylish in its layout and intuitive to use, while the inputs and outputs are designed to never be overloaded or limited, for absolute signal integrity. It can be set for either moving magnet or moving coil cartridges and adjusted for the exact loading requirements of each, and the internal circuitry is optimized for Sonic excellence.

Design Philosophy

The M3x Vinyl has drawn inspiration from the superior M6x Vinyl design and features an entirely discrete circuitry, which results in better technical measurements and better sound. Discrete circuits use individual electrical devices, like transistors, throughout the electrical circuit (discrete components), as opposed to integrated circuits, which feature devices such op-amps. This more traditional option of discrete circuitry perfectly suits the Musical Fidelity "sound", as it typically results in a more neutral, natural and dynamic Sonic signature.

Split Passive EQ

The M3x Vinyl also employs split-passive equalization in separate amplification stages for its RIAA curve. This is more costly than the typical single EQ network in a feedback loop design chosen by many others, but it ensures the most accurate reproduction of the ideal EQ curve. Split-passive equalization also allows for better impedance matching, further optimizing the electrical path the music flows through.

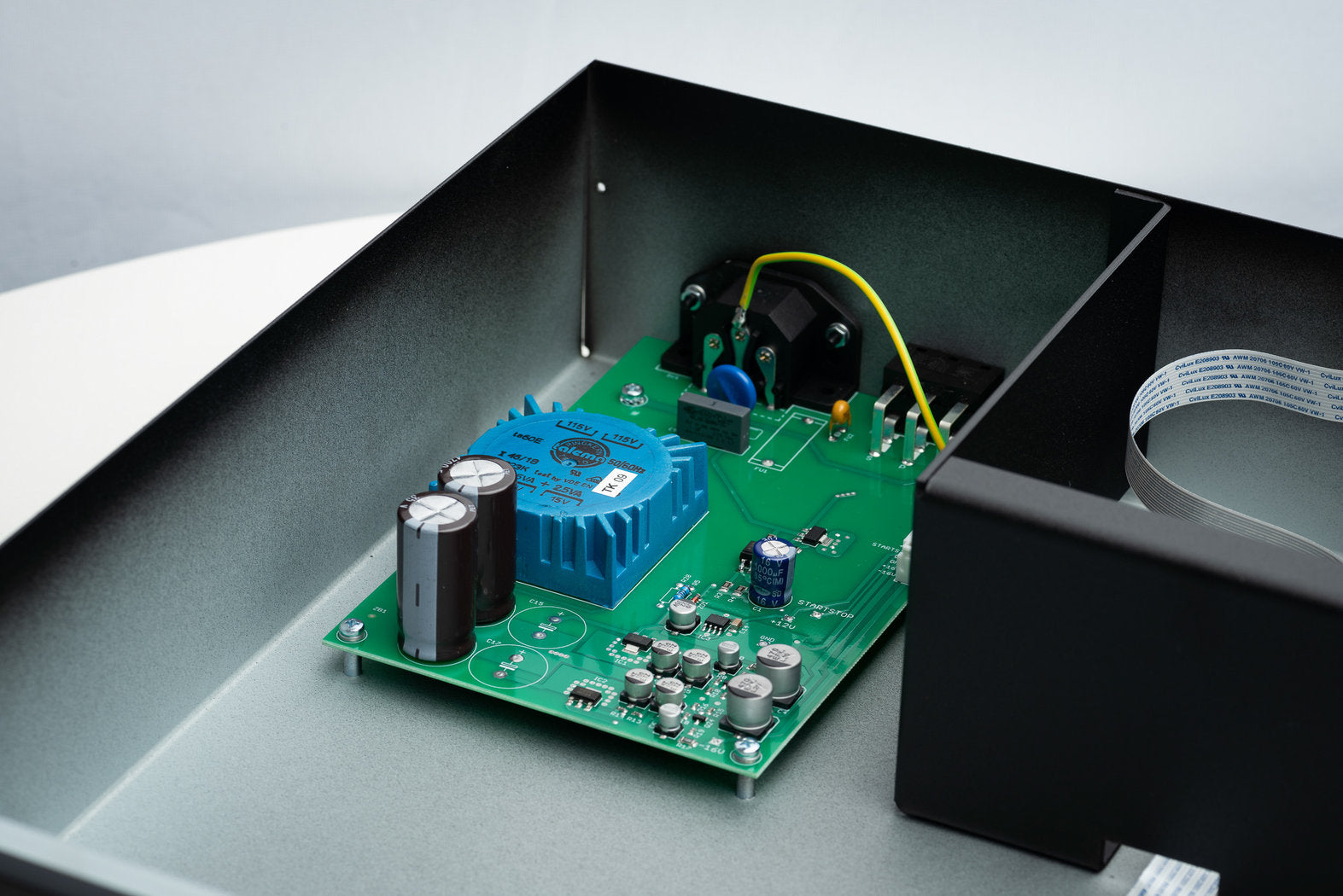

Toroidal Power Transformer

The special audio transformer with low core saturation used within the M3x Vinyl decreases the level of electromagnetic radiation, which is essential for proper operation. Internally, the M3x Vinyl affords space between the transformer and the amplification section inside the chassis, while also installing electromagnetic shielding for extra protection. The result is an incredibly high signal-to-noise ratio, for absolute clarity in sound.

The M3x Vinyl is also the first to feature a new proprietary power solution that has zero standby power consumption, recognizing the company's awareness of growing interest in more environmentally friendly products within the hi-fi industry.

High-Tech Mechanical and Electrical Engineering - Hand Made in the EU

The M3x Vinyl is housed in a steel chassis with a thick, heavy Aluminum fascia, which not only matches the whole M-Series aesthetic, but also brings rigidity to the product and isolation from outside interferences. It is assembled with great care and wired fully by hand within the EU to meet the highest production standards. Equipped with RCA inputs and outputs, adjustable impedance (MC) and Capacitance (MM) settings and a +6dB gain boost to help particularly quiet cartridges, it is effortlessly easy to integrate anywhere.

Although the M3x Vinyl is the lowest-priced phono stage in the M-Series range, it still fully embodies Musical Fidelity's Hallmark values ​​of uncoloured, stress-free sound, outstanding technical performance, and great value for money.

Key Features

• MM and MC input
• Exact loading options for any cartridge

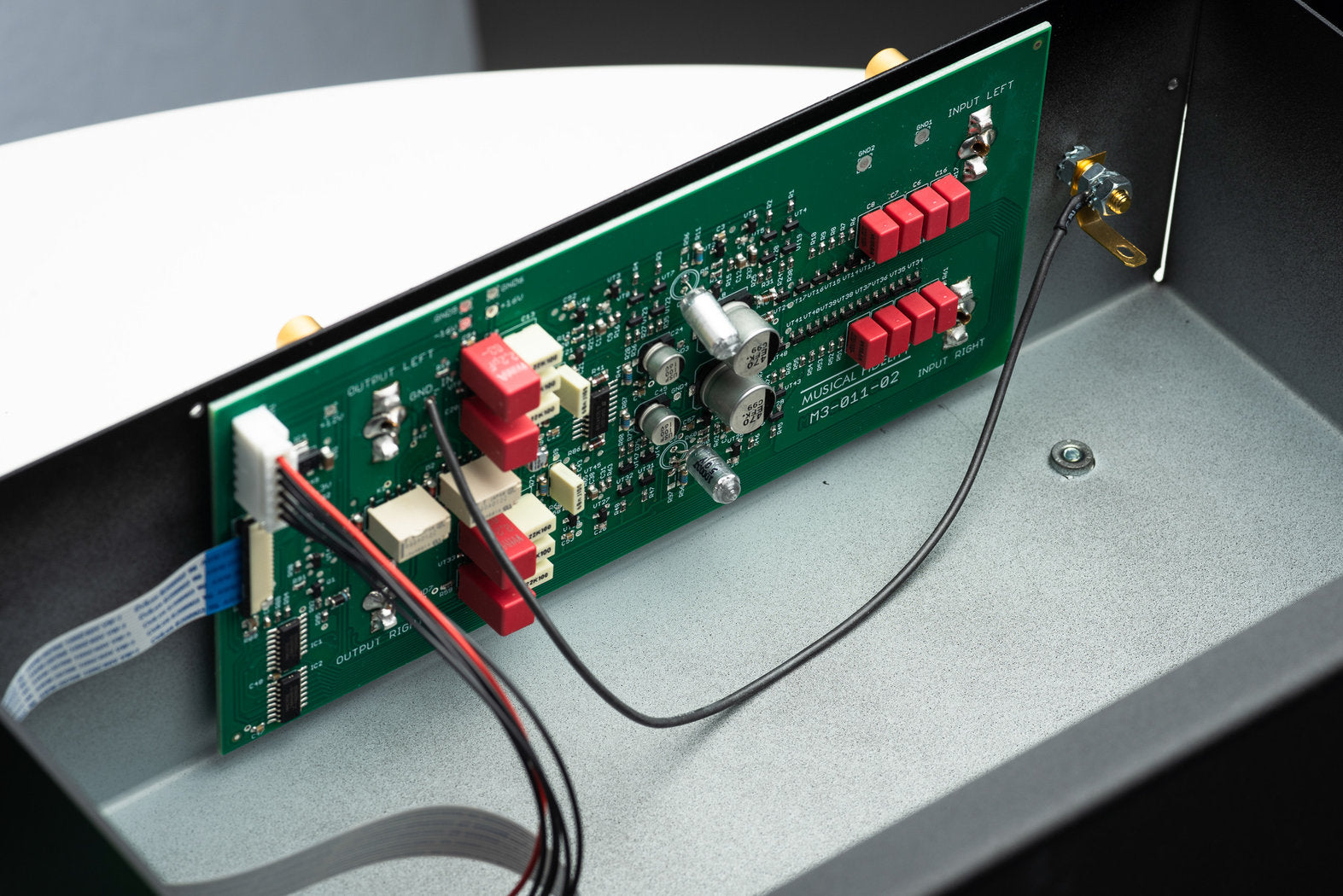

• Fully discrete circuit board design
• Special low core saturation Toroidal transformer custom designed for phono stage requirements
• Environmentally friendly - absolutely zero standby power consumption
• Split Passive RIAA and DECCA EQ
• Heavy Aluminum frontplate with steel chassis
• Minimal electromagnetic interference from power supply to phono preamp
• Big chassis design enables huge distance between power transformer and amplifier section
• Made in the EU

Specifications:

MM Input

• Frequency response: RIAA or RIAA/IEC ±0.2dB
• Input sensitivity: 5mV in for 500mV out (at 1 kHz)
• Input impedance: 47Kohm
• Input capacitance: 50-400pF selectable
• Gain: 40 or 46dB with +6dB function
• THD+N: <0.028%
• Signal to noise ratio: 95dB
• Crosstalk: better than 100dB

MC Input

• Frequency response: RIAA or RIAA/IEC ±0.3dB
• Input sensitivity: 500?V in for 500mV out (at 1 kHz)
• Input impedance: 25ohm to 1.2Kohm selectable
• Gain: 60 or 66dB with +6dB function
• THD+N: <0.28%
• Signal to noise ratio: 80dB
• Crosstalk: better than 90dB

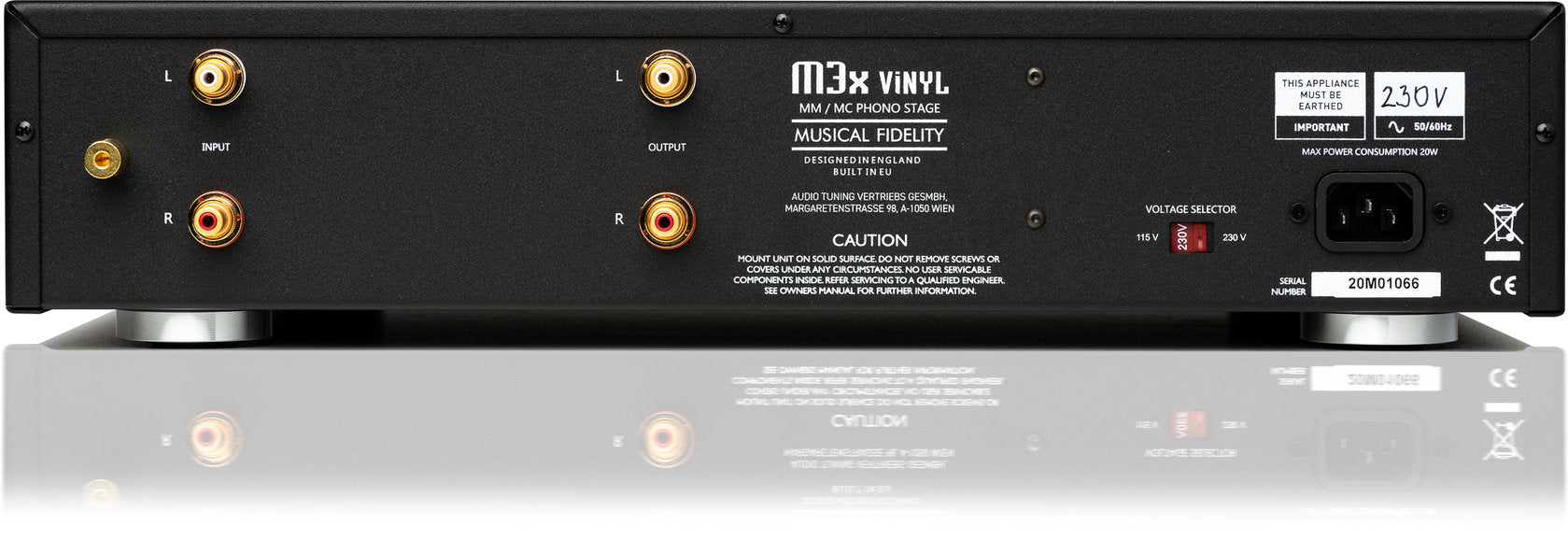

Output

• 1 pair RCA: left and right 500mV nom 10V max
• Input
• 1 pair RCA

Power requirement

• Mains voltages: 230V/115V; AC 50/60Hz
• Consumption: 20 Watts maximum. 0W in standby)
• Weight and Dimensions
• Unit only, unboxed: 6.59 kg
• In shipping carton & inc. accessories: 10.15 kg
• W x H(incl. feet) x D(incl. terminals): 440 x 105 x 390mm

Standard accessories

• Mains lead: 10 Amp IEC
