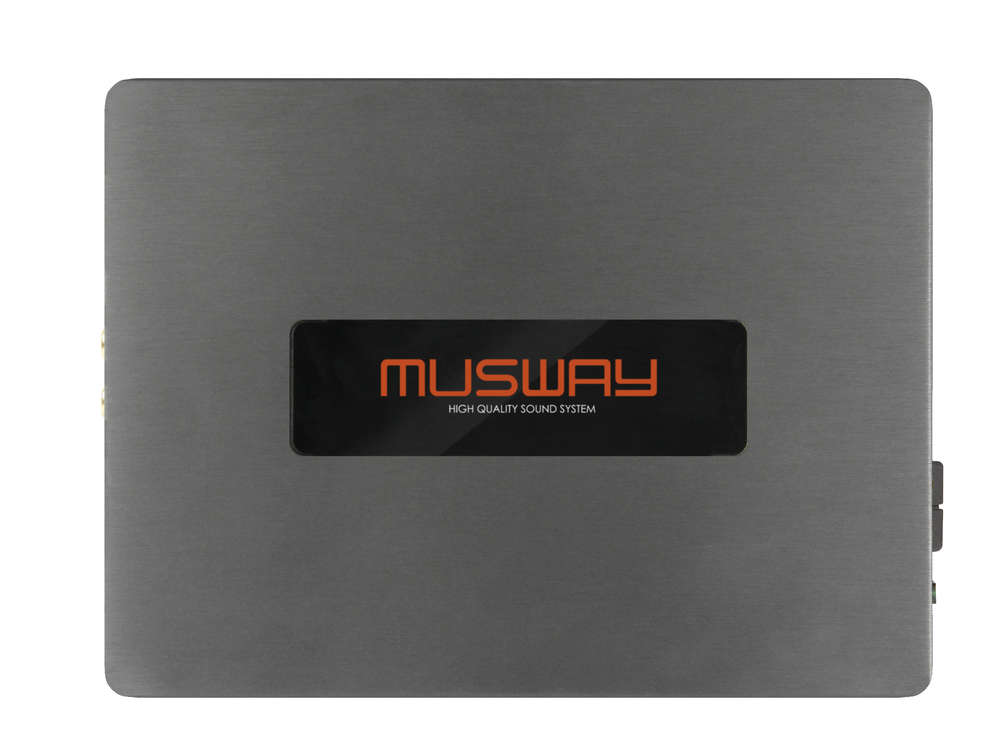

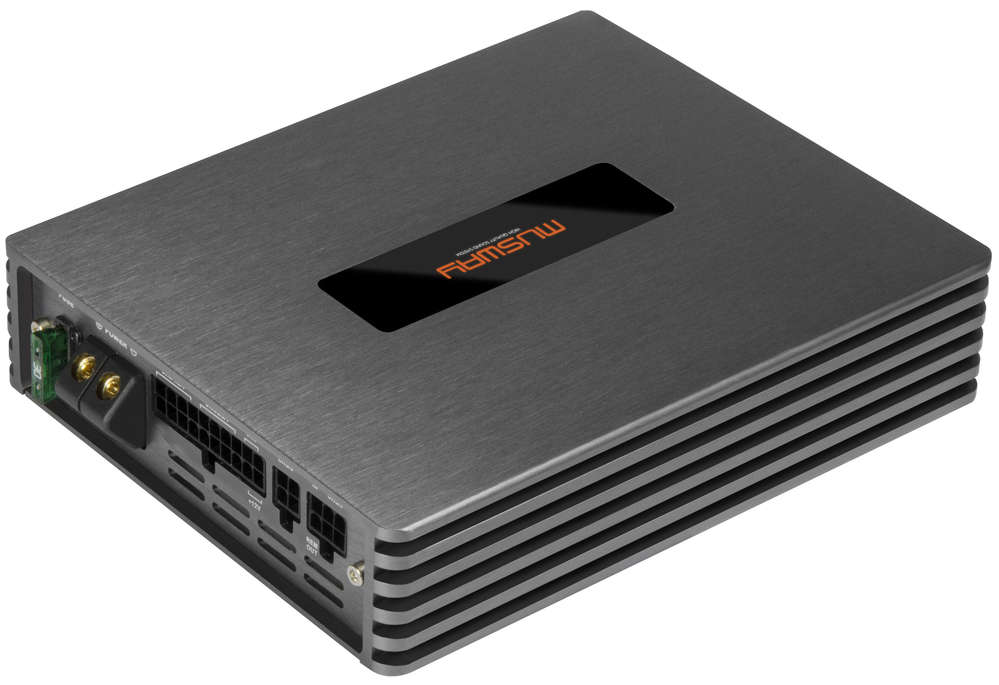

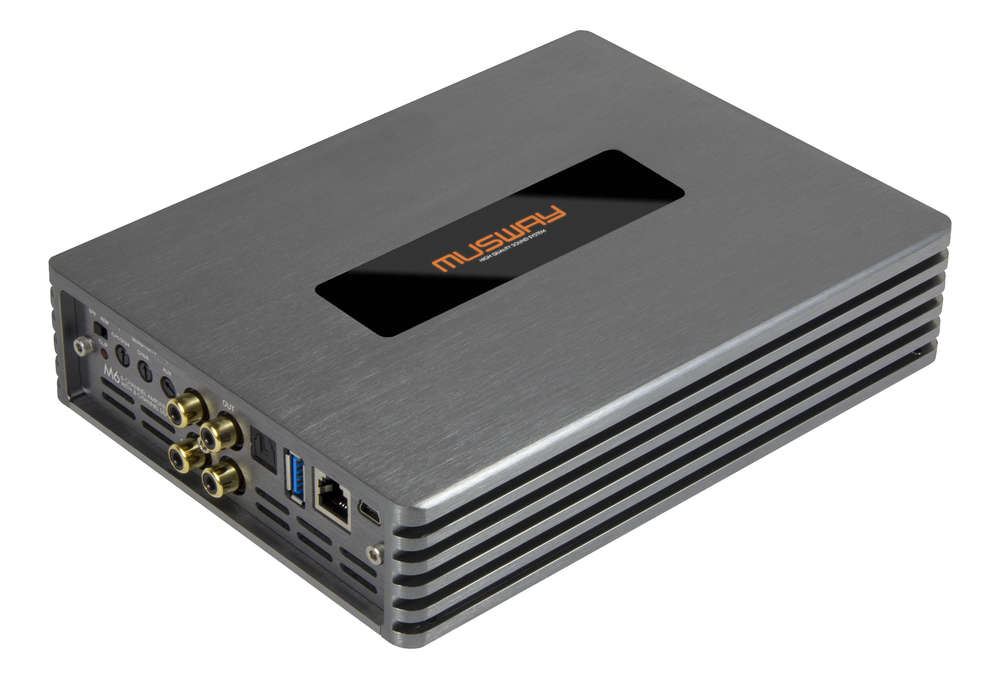

Musway M6v3 EVO - 6-channel DSP amplifier with amazing features that can be connected to the original system.
Class D amplifiers are very high-quality DSP-equipped Plug&Play devices for original systems. The device is connected directly to the car's ISO connector from where it receives and forwards all the necessary information down the stream. The installation is therefore very simple to implement. Ask about our sales for brand-specific ready-made wiring packages! If a separate subwoofer is also driven with the amplifier, the amplifier should be wired directly to the battery for better power supply.

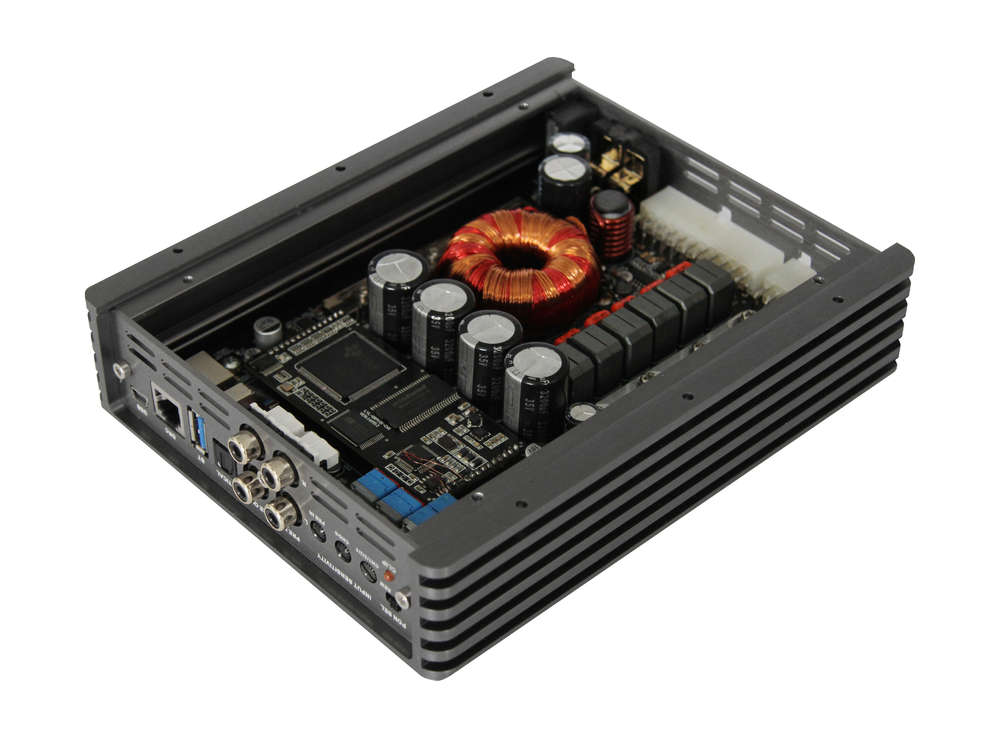

The new M6v3 also features extremely compact dimensions, achieved thanks to its intelligently designed 4-way circuit board. The newly designed Class D technology is particularly immune to EMC interference, which is almost essential in today's electronics-bulging vehicles.
The key is to enjoy uninterrupted music while driving. With six bridgeable power channels, each delivering 105 watts RMS per channel (2 Ω), the M6 delivers a remarkable output power totaling 630 watts RMS. Texas Instruments™ state-of-the-art DSP, which can be adjusted via software and APP, forms the core of the amplifier. With the included wiring harness, ISO plug and optional Plug + Play wiring harnesses, the M6 is perfect for tuning original 6-channel audio systems. Four additional DSP-adjustable preamplifier outputs allow the integration of additional amplifiers. Finally, the new M6 amplifier also features a speaker-level input with an error protection system that allows trouble-free connection to OEM factory radios.
Excerpt from the article in Autosound magazine (4/2021):
" it's a very interesting product family that seems really high-quality and flexible depending on the purpose of use. Whether it's an OEM update or a more substantial custom upgrade, the devices are suitable for both. Yes, based on this research and taking into account the reasonable price, I'd be happy to give them the ``Recommended'' stamp ! "
Product information:
• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 330 MHz DSP technology, controllable via new V3 PC software or V3 App
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0.1% (1 kHz, 4Ω, 90% Power)

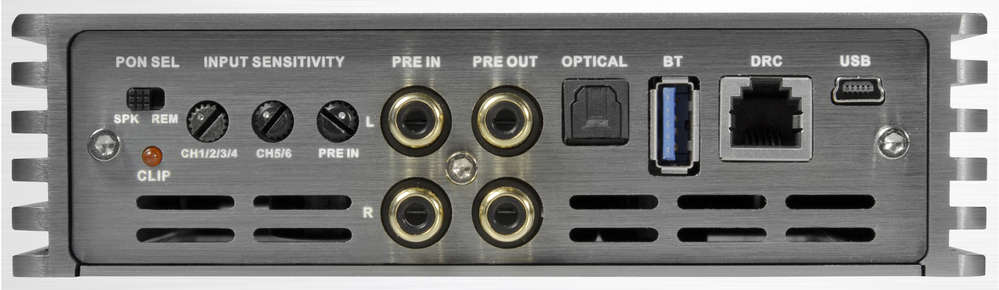

• Separately controllable input sensitivity (Channel 1-4, Channel 5-6), Clipping LEDs

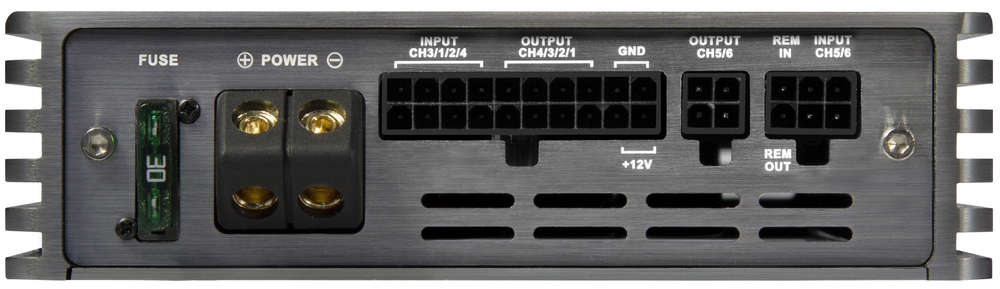

• Plug+Play with vehicle-specific cable sets
• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
• Quick Connect Terminal to connect MUSWAY Subwoofer Systems
Specifications:
* only with optional MPK-RCA6/MPK-RCA6-PP cable set
Downloads:
