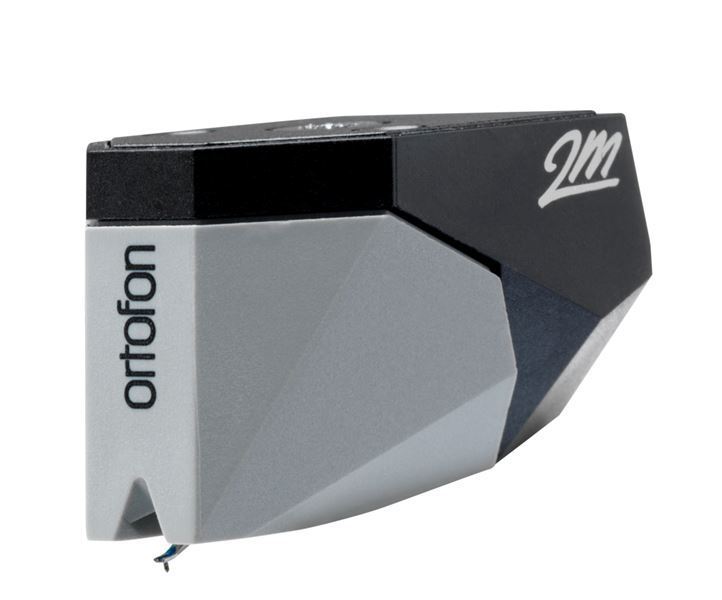

Ortofon 2M 78 sound box
The 2M Series of cartridges from Ortofon have been designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration.
The pre-existing range of 2M cartridges have rapidly been established as a reference point for all good moving magnet cartridges. From the introductory Red, through to the high-end Black; 2M is now a go-to name in moving magnet technology.
2012 sees Ortofon open up new markets within the same design principle of 2M. The 2M 78 and 2MMono offer users of older, rare vinyl a higher-quality playback medium than had previously been available.
The 2M 78 features an improved True Mono engine, which provides a high level of Sonic accuracy, as well as expertly cut Spherical diamond that is perfect for playback of 78 rpm records (which require a larger stylus profile).
Technical data:
-
Output voltage at 1000 Hz, 5 cm/sec.: 4 mV
-
Frequency range at - 3dB: 20 - 20,000 Hz
-
Frequency response: 20 - 20,000 Hz + 3 / - 1 dB
-
Tracking ability at 315Hz at recommended tracking force: 70 µm
-
Compliance, dynamic, lateral: 18 µm/mN
-
Stylus type: Spherical
-
Stylus tip radius: R 65 µm
-
Tracking force range: 1.6-2.0g (16-20 mN)
-
Tracking force, recommended: 1.8 g (18 mN)
-
Tracking angle: 20°
-
Internal impedance, DC resistance: 700 Ohm
-
Internal inductance: 300 mH
-
Recommended load resistance: 47 kOhm
-
Recommended load capacitance: 150-300 pF
-
Cartridge colour, body/stylus: Black/Grey
-
Cartridge weight without screws: 7.2 g
Accessories included in the package:
-
1 x Stylus brush
-
1 x Screwdriver
-
2 x Screw M2.5 x 5
-
2 x Screw M2.5 x 7
