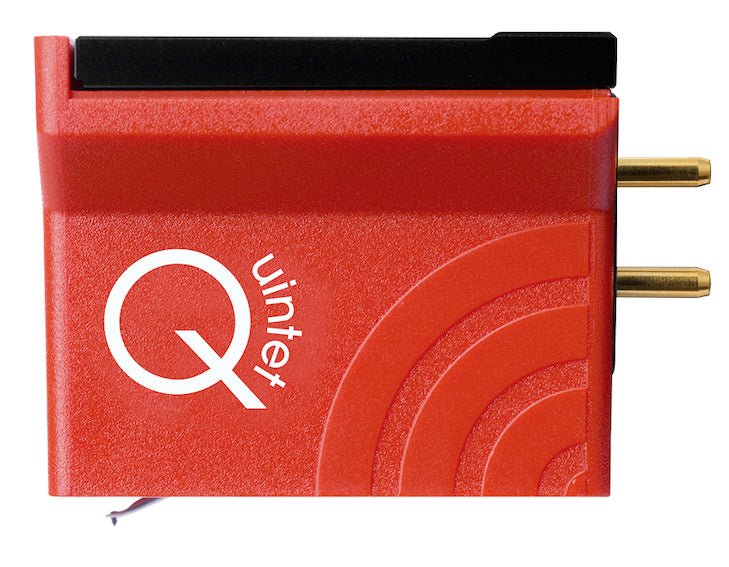

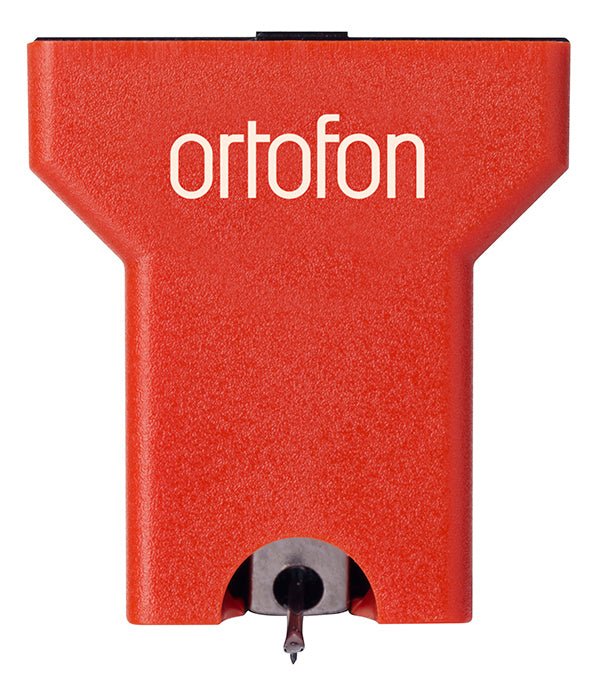

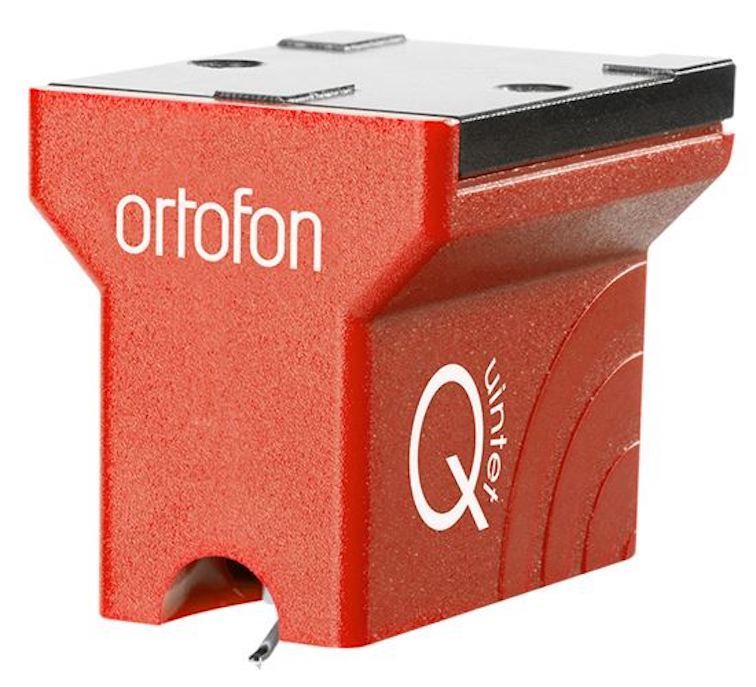

Ortofon MC Quintet Red cartridge
Enter the world of Ortofon sound with the Ortofon MC Quintet Red , an exclusive with Ortofon's famous tracking ability!
Product discontinued, replaced by Ortofon MC X10
The Quintet Red is the perfect introduction to the world of Ortofon's Moving Coil. It presents you with an elliptical diamond cut and polished to Ortofon's standard. This entry-level MC cartridge offers excellent value for money and is designed with all users in mind.
Amplifier connection
Only for amplifiers with MM input connections or turntable with MM preamplifier.
Anti-skipping
The Quintet stylus type has normal anti-skipping when using the recommended tracking force.
Needle protection
The stylus guard is included with all Quintet series cases and is easily replaceable and removable. To avoid damage to the stylus or console, always attach the stylus guard when not in use.
Please note
To avoid damage to the needle or component, keep the needle guard in place when installing or removing the cartridge.
Needle maintenance
Ortofon does not recommend using any cleaning agents on the stylus or the surface of the record. If necessary, records can be washed with lukewarm, demineralized water with a small amount of hand washing-up liquid. Remove dust from the surface of the record with an antistatic brush or cloth after each use. Using cleaning agents on the stylus and components may cause damage to the stylus cement or its internal parts. The cartridge may be seriously damaged if cleaning agents get inside the cartridge. In such cases, Ortofon's warranty will be void. A fiber brush should be used to clean the stylus, brushing in the direction of the stylus. Regular cleaning of records will extend the life of the stylus.
Specifications:
-
Output voltage at 1 kHz 5 cm/sec.: 0.5 mV
-
Channel balance: < 1.5 dB
-
Channel separation at 1 kHz: > 21 dB
-
Channel separation at 15 kHz: > 14 dB
-
Frequency range at -3 dB: 20 - 25.000Hz
-
Frequency response: 20 - 20,000 Hz, +/-2.5 dB
-
Tracking ability at 315 Hz at recommended tracking force *): 65 μm
-
Compliance, dynamic, lateral: 15 μm/mN
-
Stylus type: Elliptical
-
Stylus tip radius r/R: 8/18 μm
-
Tracking force range: 2.1 - 2.5 g (21 - 25 mN)
-
Tracking force recommended: 2.3 g (23 mN)
-
Tracking angle: 20º
-
Internal impedance, DC resistance: 7 Ohm
-
Recommended load impedance: >20 Ohm
-
Cartridge body material: ABS/Aluminium
-
Coil wire material: Copper
-
Cartridge color: Red
-
Cartridge weight: 9 g
*) Typical value
