Ortofon SPU #1 S sound box


Price:
Sale price€599,00
Stock:
In stock
Verkkokauppa In stock
,
Hyvinkää In stock
Helletorpankatu 39 Hyvinkää, 05840
+35819483160

Description

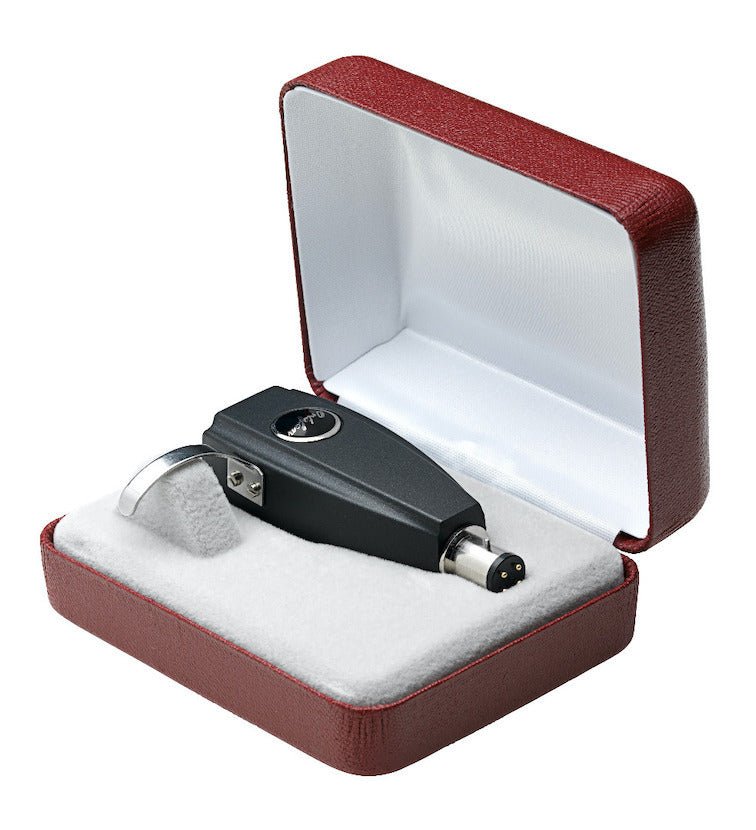

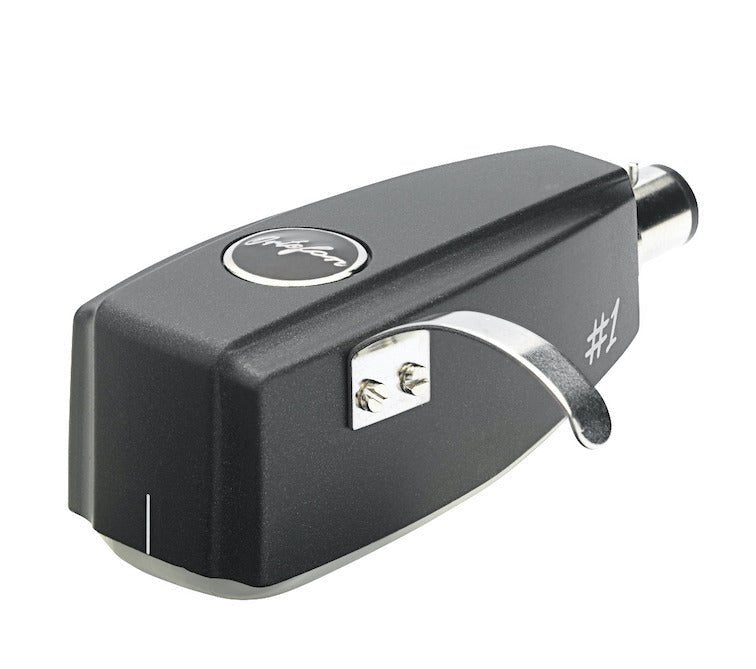

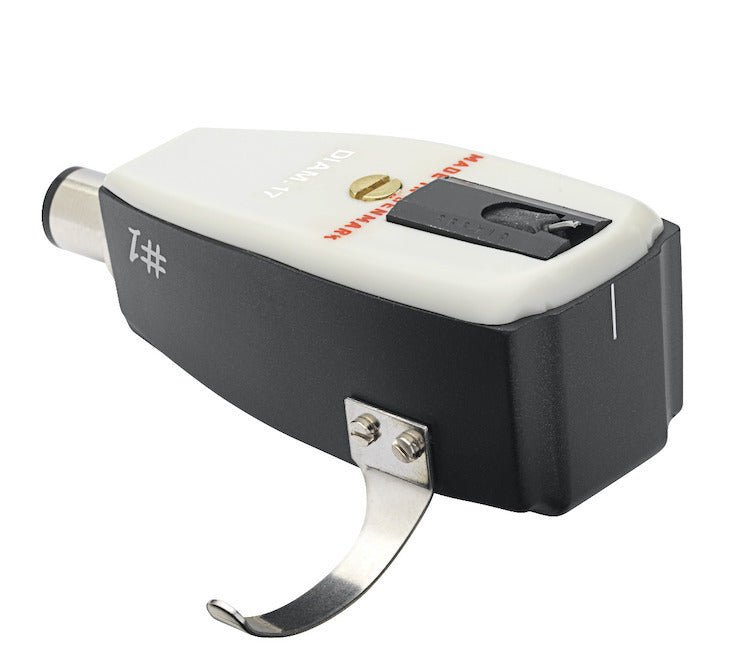

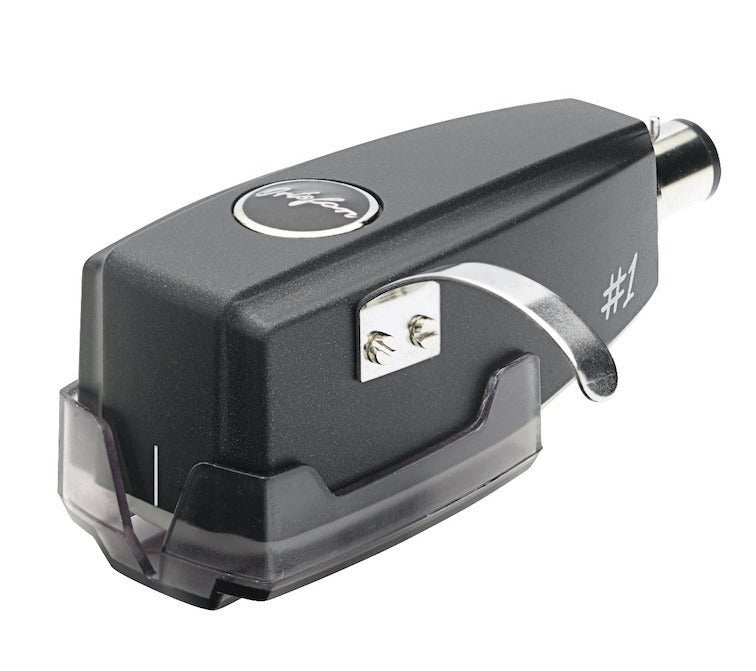

Ortofon SPU #1 Spherical loudspeaker

Ortofon new SPU #1 models are perfect all-rounders for the newcomers to the world of SPU

We are pleased to announce the launch of our new SPU #1 S and SPU #1 E cartridges.

The SPU #1 S and SPU #1 E feature:
  • Respectively Spherical and Elliptical stylus
  • High Purity Copper armature windings and terminal leads
  • Grinded wood and resin composite housing
NB: The SPU #1 E Elliptical stylus profile provides more detailed sound reproduction and expansive imaging.
These SPU cartridges models have a high price-to-performance ratio and are perfect all-rounders for the newcomers to the world of SPU.

Perfect solution for playback of stereo recordings

The SPU #1 models, with their universal connector, ensure the ability to mount the units in a wider range of tonearms with universal (SME) mount, eg Ortofon TA-110 and TA-210 tonearms . The combination of SPU #1, ST-7 Moving Coil transformer and TA-110/TA-210 tonearms gives a Supreme experience.
With their linearity and full bodies, the SPU #1 models are a perfect solution for the playback of stereo recordings.
Sonically, the SPU #1 models are genuine SPUs, known for their full-bodied and powerful music image, minimum of Intermodulation distortion and an impressive channel separation.
Technical data:
  • Output voltage at 1000 Hz, 5cm/sec.: 0.18 mV
  • Channel balance at 1 kHz: 1.5 dB
  • Channel separation at 1 kHz: 20 dB
  • Channel separation at 15 kHz: 10 dB
  • Frequency response: 20 - 25,000 Hz, ± 3 dB
  • Tracking ability at 315Hz at recommended tracking force *): 65 µm
  • Compliance, dynamic, lateral: 10 µm/mN
  • Stylus type: Spherical
  • Stylus tip radius: R 18 µm
  • Tracking force range: 3.0 - 5.0 g (30 - 50 mN)
  • Tracking force, recommended: 4.0 g (40 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 2 ohm
  • Recommended load impedance: > 10 ohm
  • Cartridge body material: Grinded wood and resin composite
  • Coilwire material: High Purity Copper (OFC)
  • Cartridge colour: Shiny black
  • Cartridge weight: 30 g

*) Typical value
