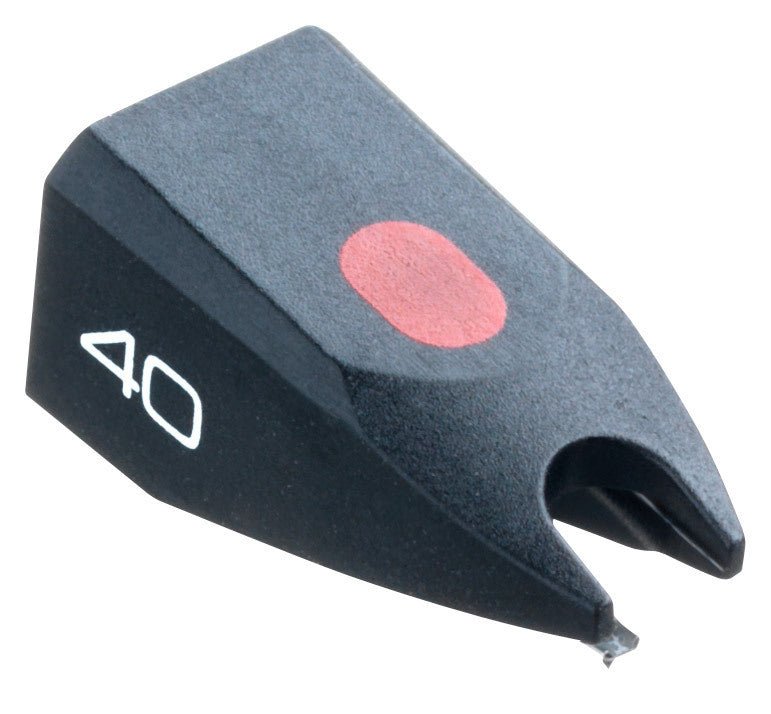

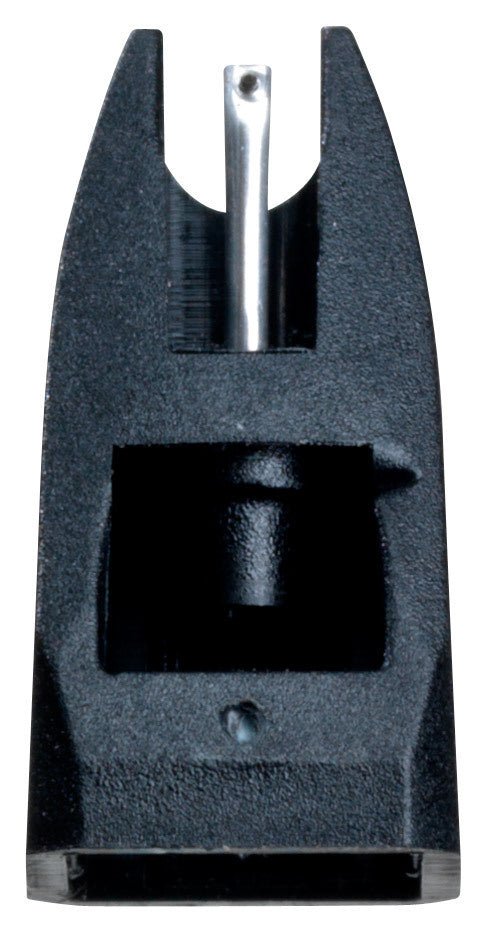

Ortofon Stylus 40
The top-of-the-line replacement needle Nude FG70 with needle sharpening for enjoyable moments. Can be installed on all OM series frames.
Replacement stylus, recommended for the following cartridge models: OM 40, OM 40 GOLD
Please note , all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Technical Data:
- Frequency Range: 20 - 30,000Hz
- Frequency Response 20 - 20,000Hz: +2 / -3 dB
- Tracking Ability at 315 Hz: Typically 90 µm
- Compliance, Dynamic, Lateral: 25 µm
- Stylus Type: Nude FG70
- Stylus Tip Radius r / R: 5 / 70 µm
- Equivalent Stylus Tip Mass: 0.3 mg
- Tracking Force Range: 1.25 - 1.75 g (12.5 - 17.5 mN)
- Recommended Tracking Force: 1.5 g (15 mN)
- Tracking Angle: 20º
- Stylus Color: Black
