Description

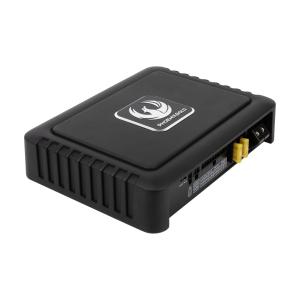

Phoenix Gold ZDAP-VOL6
Four-channel amplifier with eight-channel DSP processor.

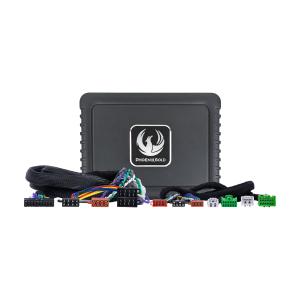

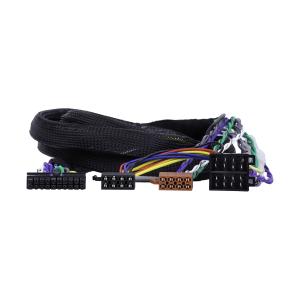

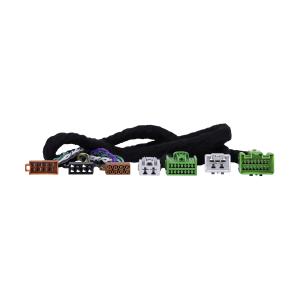

Consists of products: ZDA4.8 + ZDT-VOL2 + ZDC-ISO2
NOTE: Only for cars with original amplifier (not Dynaudio)
| Quid | Make | Model year | Fit |
|---|---|---|---|
| ZDAP-VOL6 | Volvo C30 | 2006–2010 (I) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo C30 | 2010–2013 (I, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo C70 | 2006–2010 (II) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo C70 | 2010–2013 (II, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo S40 | 2004–2007 (II) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo S40 | 2007–2012 (II, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo V50 | 2004–2008 (I) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo V50 | 2007–2012 (I, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo S60 | 2011–2013 (II) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo S60 | 2014–2018 (II, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo S80 | 2006–2009 (II) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo S80 | 2010–2014 (II, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo S80 | 2014–2018 (II, second facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo V40 | 2012–2016 (III) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo V40 | 2016–2019 (III, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo V60 | 2010–2015 (I) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo V60 | 2015–2017 (I, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo V70 | 2008–2012 (III) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo V70 | 2012–2016 (III, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo XC60 | 2009–2013 (I) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo XC60 | 2014–2017 (I, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo XC70 | 2008–2012 (III) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo XC70 | 2012–2016 (III, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
| ZDAP-VOL6 | Volvo XC90 | 2007–2014 (I, facelift) | Cars with factory-installed amplifier (non-Dynaudio) |
4 x 30W + 2 x 70W amplifier, with an eight-channel signal processor, offering excellent sound quality and adjustability via easy-to-use software.
The amplifier operates in Class A/B, which produces an exceptionally warm and natural sound for your vehicle.
Plug & Play installation on over ten different Volvo models.
The ZDAP-VOL6 revolutionizes your car's audio experience in this price range, outperforming all factory-installed amplifiers.
Unlike most similar products that use Class D technology, the ZDAP-VOL6 utilizes Class A/B technology, producing a warmer and more natural sound that brings your music to life. Even without DSP adjustments, the sound quality is significantly improved, and the built-in DSP takes the sound even further, allowing you to fine-tune your car's sound system to your exact preferences - regardless of your musical taste.
Input Priority
Input Priority ensures seamless integration with your car's original head unit. You can use RCA input or digital sources such as optical S/PDIF input, coaxial input or built-in Bluetooth (Bluetooth 5.0) without losing important sounds from the original equipment, such as parking sensors, alarms and radio signals.
For example, if your vehicle's head unit has a high-pass filter that limits bass, you can bypass this limitation by streaming the audio directly to the amplifier via Bluetooth – while retaining all the functionality of the OEM system.
DSP outputs
The ZDAP-VOL6 not only upgrades your system, but also allows you to expand it. Thanks to two freely configurable RCA DSP outputs (channels 7-8), you can connect, for example, a subwoofer amplifier and control it completely freely via DSP. Delay settings, crossover filters and equalizer options ensure top-class performance for additional components.
Software
You control the processor with free and easy-to-use PC software (compatible with Windows 10 and 11). Connect to your computer with the included USB-B cable and you have the following control options:
-
31-band parametric equalizer (PEQ) for all channels
-
Selectable filter types (Bessel, Butterworth, Linkwitz-Riley) and adjustable slopes from -6 dB to -48 dB
-
Time delay adjustments for all channels
-
Fully customizable channel routing
-
Custom Channel Links (Copy or Link)
These advanced features allow you to adjust your sound system perfectly to your own preferences.
Main features
-
Burr Brown OPs – The same cutting-edge technology as in Phoenix Gold's High End ZQ series, bringing the ultimate in sound precision.
-
Burr DAC PCM1681 – Premium digital-to-analog conversion ensures the best possible conversion.
-
Bluetooth 5.0 – Stable and high-performance wireless connection.
-
Toshiba TDA transistor package – The perfect balance of power and precision.
-
Molded heat sink – Advanced cooling design ensures performance even under heavy use.
-
48 kHz DSP sampling rate – Incredible clarity and processing precision.
-
Gold-plated PCB – Phoenix Gold's commitment to quality and durability.
-
Molex Connectors – Reliable connections for easy installation.
-
8-channel DSP (all models) – Unlimited possibilities for system customization.
-
Class A/B design – Natural, distortion-free sound without noisy fans.
Phoenix Gold ZDAP-VOL6
Specifications:
-
Amplifier class: A/B
-
Confirmed channels: 4
-
DSP channels: 8
-
Frequency response (-3dB): 15 Hz – 23 kHz
-
Maximum power: 520 W
-
RMS power (4 Ω): 4 × 70 W
-
RCA output voltage: 4 V
-
DA converter: Burr Brown PCM1681
-
DSP resolution: 24 bits
-
Sampling frequency: 48 kHz
-
S/N ratio (analog/digital input): -90 dB
-
Total Harmonic Distortion (THD): 0.1%
-
Channel leakage: -60 dB
-
Damping factor: 120
Connections and functions:
-
Speaker level input: Yes
-
Auto start: Yes
-
Input sensitivity (speaker level): 0.2 V – 20 V
-
Input sensitivity (line level): 0.2 V – 5 V
-
Analog inputs: 6 × speaker level / 2 × line level
-
Digital inputs: Bluetooth / Coaxial / USB / SPDIF
-
Line-level outputs (RCA): 8
-
Alarm input and output: Yes
-
Computer connection: USB-B (PC software, Windows 10/11 compatible)
-
Phone app: Coming soon...
Power consumption and installation:
-
Operating voltage: 9 V – 16 V
-
Start-Stop compatibility: Yes
-
Quiescent current: 1.5 A
-
Maximum current consumption: 30 A
-
Overall efficiency (4 Ω): 60%
-
Power connector: 10 mm²
Accessories:
-
Remote control (optional): ZDAWCT
Additional information:
| Feature | Information |
|---|---|

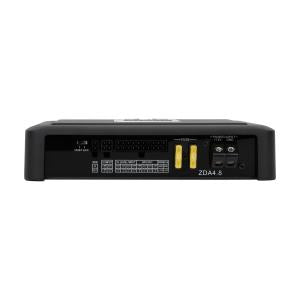

| Product | ZDA4.8 |
| PC software | Yes (Windows 10, Windows 11) |
| Phone application (APP) | Pending... |
| Equalizer (EQ) | 31-area |
| Phase reversal | 0° or 180° |
| Filters | High-pass and low-pass filters |
| Filter types | Bessel, Butterworth, Linkwitz-Riley |
| Split slopes (Bessel/Butterworth) | Off, -6dB, -12dB, -18dB, -24dB, -36dB, -42dB, -48dB |
| Splitting slopes (Linkwitz-Riley) | Off, -12dB, -24dB, -48dB |
| Time delay adjustment | 0–48 ms (0–1632 cm) |
| Equalizer bypass | Yes (for individual and all channels) |
| Mute | Yes (for individual and all channels) |
| Income prioritization | Yes (2 sources) |
| Start delay | Yes (5-30 seconds) |
| Custom signal routing | Yes |
| EQ settings | Graphic EQ / Parametric EQ |
| Delay calculator | Yes (cm and inches) |
| Delay units | Centimeters / Inches / Milliseconds |
| Custom Linking Settings | Copy & Merge (Delay / EQ / Filters / Volume) |
| Input sensitivity settings | -6dB, -3dB, 0dB, +3dB, +6dB |
| Password protection for presets | Yes |
| Full screen mode | Yes |
| EQ band gain | Each band: -12dB – +12dB |
| Adjustable Q-value | 0.1 – 12 |
| Languages | English, German, Spanish, Chinese |
| Adjustable EQ frequency range | 20Hz – 20kHz |
| Single channel amplification | 0dB – -59dB |
| Global volume control | 0dB – -28dB |
| Channel naming | Yes (for each channel) |
