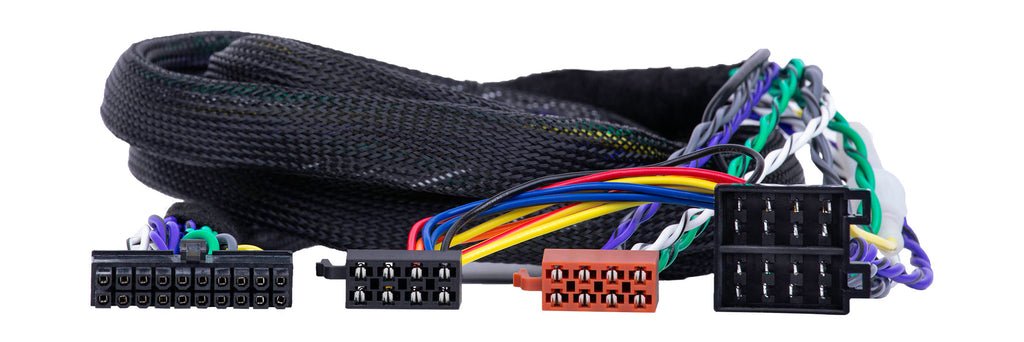

Phoenix Gold ZDC-ISO2
allows the ZDA4.8 / ZDA6.8 / ZDA8.8 amplifier to be connected to the car's ISO connectors or a car-specific T-harness.
Installation when using the car-specific ZDT T-harness:
-
Disconnect the car's original wiring harness from the player.
-
Connect the ZDT T-harness between the car's original harness and the car's original player.
-
Connect the ZDT harness to the ZDC-ISO2 harness.
-
Connect the 20-pin Molex connector of the ZDC-ISO2 wiring harness to the ZDA4.8 / ZDA6.8 / ZDA8.8 amplifier.
Installation when the car has ISO connectors and a T-harness is not used:
-
Disconnect the car's original wiring harness from the player.
-
Connect the ISO connectors of the ZDC-ISO2 wiring harness between the player and the car's original wiring harness
-
Connect the 20-pin molex connector ZDA4.8 / ZDA6.8 / ZDA8.8 to the amplifier
Main features
-
Plug & Play installation, no modification to the car's wiring harness or connectors required.
-
Works with all ZDT T-harnesses, allowing for easy integration.
-
Effortless installation: Takes power, ground, and speaker-level signal directly to the amplifier.
Connectors
• 1 x 20-pin female Molex connector
• 1 x ISO female connector (black)
• 1 x ISO female connector (brown)
• 1 x dual ISO male connector (black)
