Description

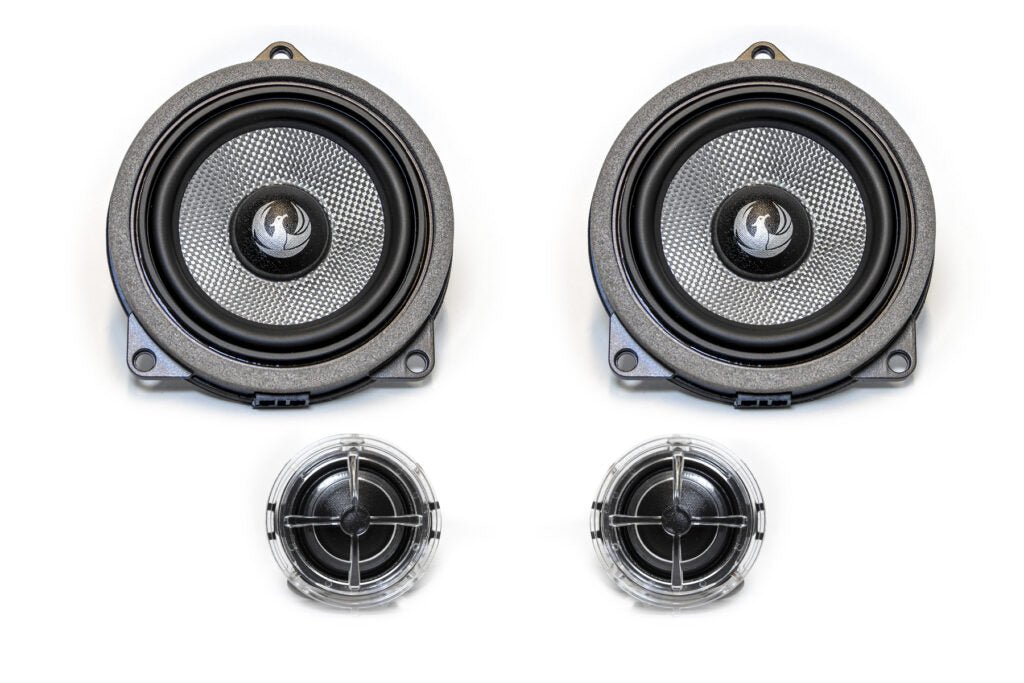

The Phoenix Gold ZDSB100CS is a high-quality stand-alone kit made to fit the original speaker locations of many different BMWs.

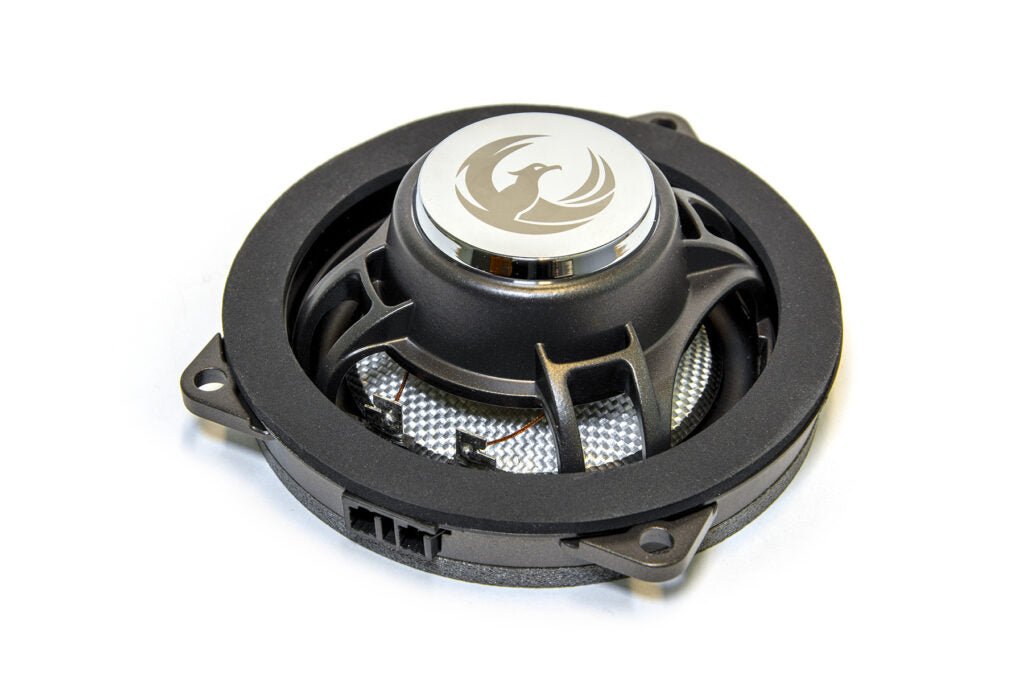

Middle tones

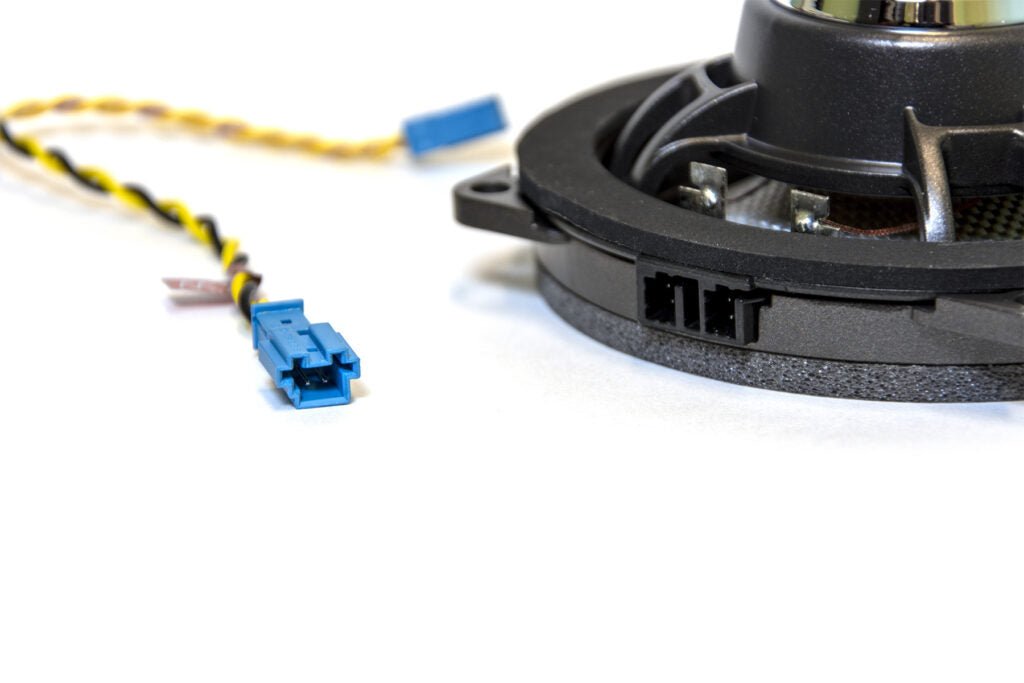

The midranges have sturdy elements with a cast aluminum frame, with a Sandwich composite cone. The speaker fits perfectly in BMW's original speaker location and the top and bottom of the element have integrated sealing rings, to ensure a proper fit in the car. The connectors correspond to the original BMW connectors, so the original speaker wires fit directly into the elements.

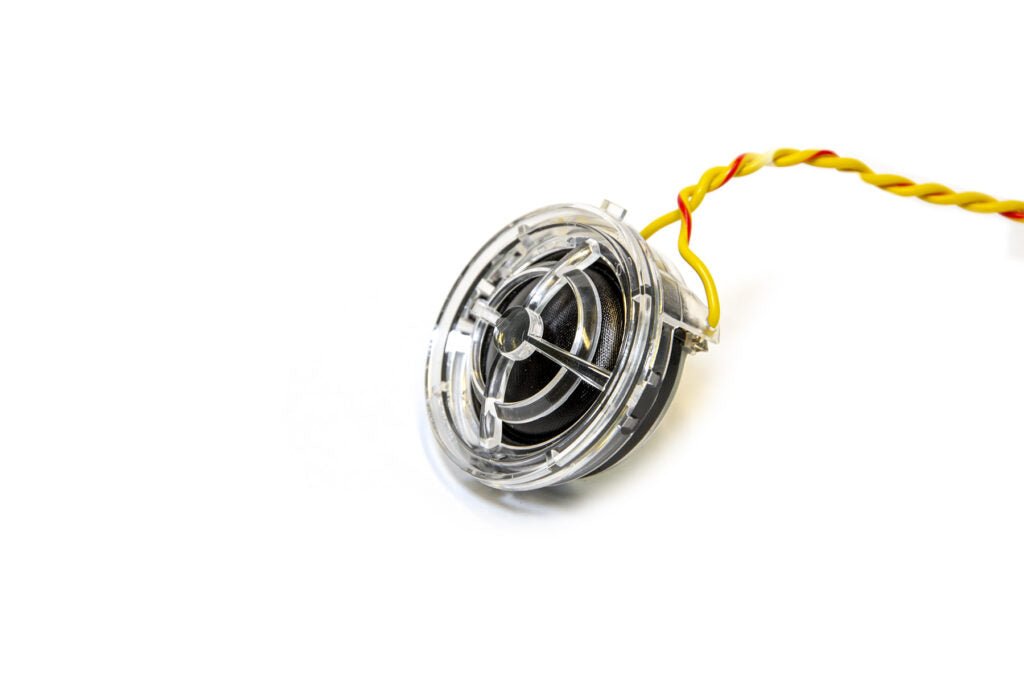

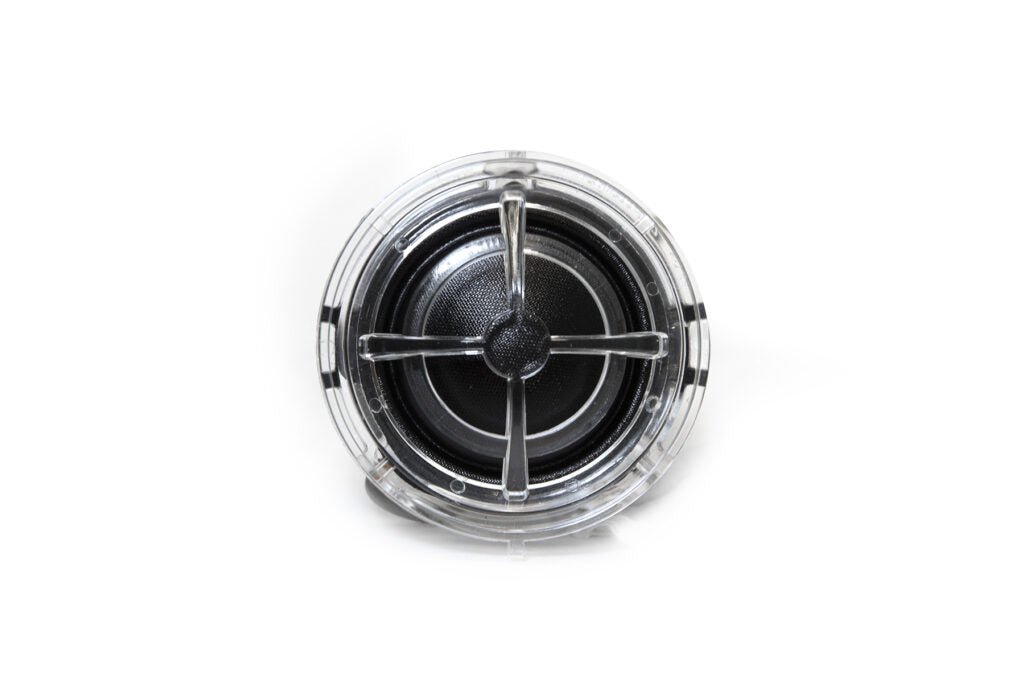

Trebles

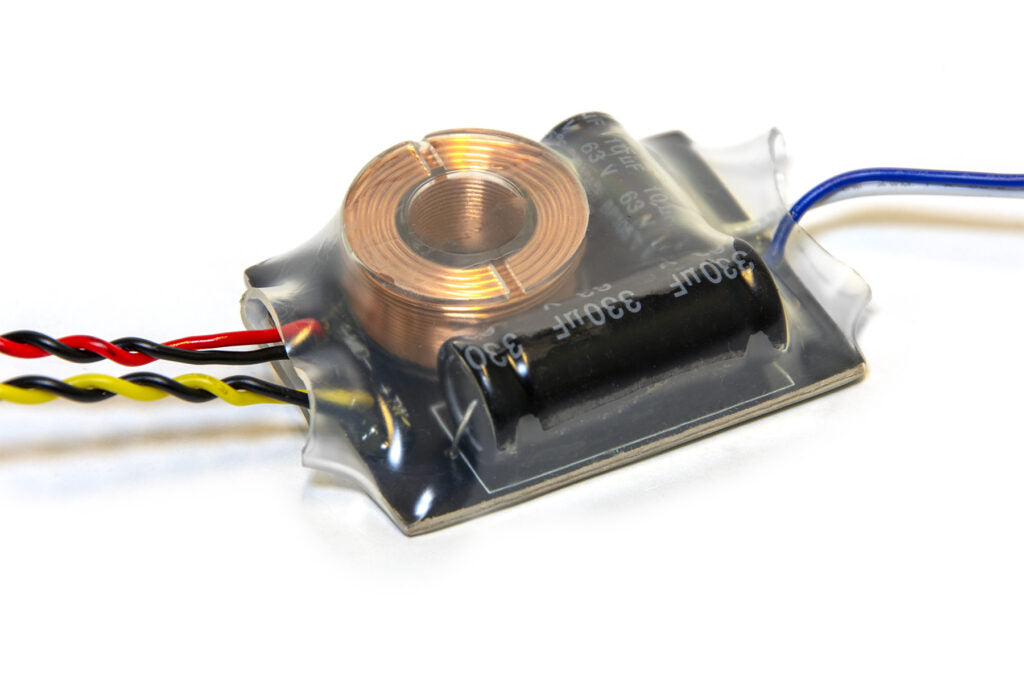

The tweeters of the ZDSB100CS stand-alone series can be installed Plug & Play like the midbass. To facilitate installation, the crossover filter is integrated into the tweeter cable.
The tweeter is a cloth cap, which has a very pleasant sound and is unstressed.
Connectors and splitters
The set can be installed in two different ways.
You can bring your car's original mid-range speaker cable to the Phoenix Gold mid-range, and the mid-range leads to the Phoenix Gold's treble. In this case, the series must be installed 100% plug & play.
However, we recommend using the splitters that come with the separate kit, and in this case the car's original speaker wire is brought to the splitter input and separate wires for the Phoenix Gold midrange and treble come from the splitter.
This is a sonically better option and as "extra work" it only requires attaching the distribution filter to the inner door panel with e.g. cable ties.
Technical information
- 4″ separate set
- Cast body mids
- Cloth helmet tweeters
- 12dB/oct. splitters
- Plug & Play installability
- Impedance: 4ohm
- In the midbass, a sandwich composite cone
- Neodymium magnet
- 1″ (25mm) voice coil
- Power consumption RMS/Max: 120W / 60W
- Playback range: 100Hz – 20kHz
Compatibility:
(The speakers are designed to be installed as front speakers and rear speakers, installation may require modifications to e.g. car speaker locations or sealing rings)
BMW 1-Series (F20) 2011 -> Front door
BMW 1-Series (F21) 2012 -> Front door
BMW 1-Series (F40) 2019 -> Front door
BMW 1-Series (F52) 2019 -> Front door
BMW 2-Series (F22) 2015 -> Front door
BMW 2-Series (F23) 2015 -> Front door + Side panel rear
BMW 2-Series (F44) 2020 -> Front door + Rear door
BMW 2-Series (F45) 2014 -> Front door + Side panel rear
BMW 2-Series (F46) 2015 -> Front door + Side panel rear
BMW 2-Series (F87) 2015 -> Front door
BMW 3-Series (F30) 2011 -> Front door + Rear door
BMW 3-Series (F31) 2012 -> Front door + Rear door
BMW 3-Series (F34) 2013 -> Front door + Rear door
BMW 3-Series (F80) 2014 – 2018 Front door + Rear door
BMW 3-Series (G20) 2019 -> Front door + Rear door
BMW 3-Series (G21) 2019 -> Front door + Rear door
BMW 4-Series (F32) 2014 -> Front door + Side panel rear
BMW 4-Series (F33) 2014 -> Front door + Side panel rear
BMW 4-Series (F36) 2014 -> Front door + Rear door
BMW 4-Series (F82) 2014 -> Front door + Side panel rear
BMW 4-Series (F83) 2014 -> Front door + Side panel rear
BMW 4-Series (G22) 2020 -> Front door + Side panel rear
BMW 5-Series (G30) 2017 -> Front door + Rear door
BMW 5-Series (G31) 2017 -> Front door + Rear door
BMW 5-Series (G38) 2017 -> Front door + Rear door
BMW 6-Series (F06) 2012 -> Front door + Rear door
BMW 6-Series (F12) 2011 -> Front door
BMW 6-Series (F13) 2011 -> Front door
BMW 6-Series (G32) 2017 -> Front door + Rear door
BMW 7-Series (G11) 2015 -> Front door + Rear door
BMW 7-Series (G12) 2015 -> Front door + Rear door
BMW i3 2013 -> Front door + Rear door
BMW i4 (G26) 2022 -> Front door + Rear door
BMW i8 (L15) 2013 -> Front door
BMW X1 (F48) 2015 -> Front door + Rear door
BMW X1 (F49) 2015 -> Front door + Rear door
BMW X2 (F39) 2018 -> Front door + Rear door
BMW X3 (F25) 2010 – 2017 Front door + Rear door
BMW X3 (G01) 2017 -> Front door + Rear door
BMW X4 (F26) 2014 – 2018 Front door + Rear door + Headliner / Pillar
BMW X4 (G02) 2018 -> Front door + Rear door
BMW X4 (G02FL) 2018 -> Front door + Rear door
BMW Z4 (G29) 2018 -> Front door + Rear door
BMW MINI (F54) 2016 -> Front door + Rear door
BMW MINI (F55) 2014 -> Front door + Rear door
BMW MINI (F56) 2014 -> Front door + Rear door
BMW MINI (F57) 2016 -> Front door + Rear door
Rolls-Royce Coupe 2011-2016
Rolls-Royce Cullinan 2017+
Rolls-Royce Dawn 2015+
Rolls-Royce Drophead 2011-2016
Rolls-Royce Ghost 2008+
Rolls-Royce Phantom 2011+
Rolls-Royce Wraith 2012+
Toyota Supra 2019+
