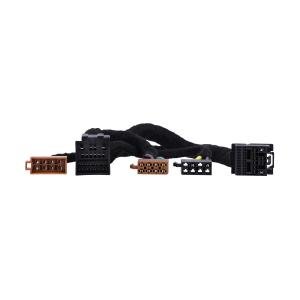

Phoenix Gold ZDT-FORD1

To install the amplifier, in addition to this T-wire set, you will need:

• ISO wiring harness (available in two different lengths):
  • 2.2 meters
  • 5.2 meters

• ---

  Phoenix Gold DSP amplifier (available in three different models):
  • ZDA4.8
  • ZDA6.8
  • ZDA8.8

Installation instructions:

1. Disconnect the car's original OEM wiring harness from the player.

2. Connect the T-harness to the car's OEM harness and then the other end to the car's stereo.

3. Connect the T-harness to the ISO-harness. (Available in 2.2m and 5.2m )

4. Connect the whole thing to the ZDA4.8 / ZDA6.8 / ZDA8.8 amplifier – and the installation is complete!

Why choose ZDT wiring harness?

• Maximum power and ground capacity: Manufactured with the largest possible power and ground cables to ensure your amplifier receives a consistent and reliable power supply.

• Improved signal transmission and interference rejection: Twisted high-level signal cables and larger speaker outputs ensure excellent signal transmission and minimize interference – resulting in clear and precise sound reproduction.

• Easy installation: Long high-level cables prevent cable clutter behind the OEM player, making installation simpler.

• Protected and finished construction: All wires are taped for protection and neater handling – no loose or unnecessary wires or connectors to complicate installation.
