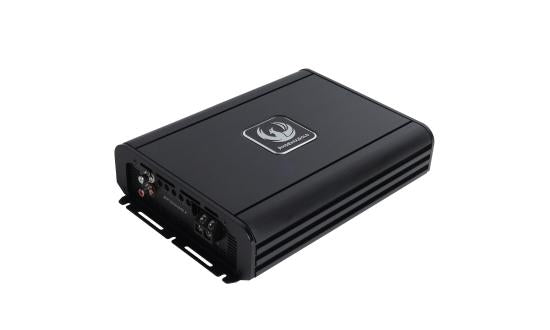

The ZP5000.1 is a five kilowatt monster amplifier designed specifically for SPL use.
This 5000W full-range amplifier delivers exceptional performance for subwoofers, mid-bass and midrange speakers. Whether pushing your system to the limit or competing in SPL, the ZP5000.1 ensures unwavering stability and uninterrupted playback, making it a reliable choice for demanding audio applications.
2 x 50 mm² power cable and earth terminals
Includes bass level control
Adjustable high- and low-pass filters
Class D amplifier technology
Full Bridge technology
Full range amplifier, 5000W RMS @ 1 Ohm
Integrated Clip LED for easy gain adjustment
Extensive protection circuits
High-current PCBs with improved stability
High-quality Tiffany RCA connectors
Superior stability: High-quality SMPS transformers and a very robust capacitor bank ensure smooth operation even at high peak powers.
High-quality components: Tiffany RCA connectors ensure a more reliable connection, while sealed potentiometers are protected from moisture, oxidation, and corrosion for long-lasting performance.
Durability: High-current circuit boards with additional support ensure stability, and an integrated Clip LED makes it easy to adjust gain, ensuring distortion-free sound.
Advanced Filtering: Adjustable high- and low-pass filters provide the flexibility to fine-tune subwoofers, midbass or midrange speakers to their optimal frequency ranges.
Control the sound with the included level control. Equipped with a five-meter cable, the control allows you to effortlessly adjust the bass level from the driver's seat - complete control always at your fingertips.
Category: D
Channels: 1
Frequency response: 12 Hz – 14 kHz
Maximum power: 10,000 W
RMS power (1Ω): 1 x 5000 W
RMS power (2Ω): 1 x 3200 W
RMS power (4Ω): 1 x 1700 W
Signal-to-noise ratio (SNR, full power): -85 dB
Total Harmonic Distortion (THD): <1%
Low Pass Filter (LPF): 50 Hz - 15 kHz (12 dB/Oct)
High Pass Filter (HPF): 15 Hz – 1 kHz (12 dB/Oct)
Bass boost: 0 – +18 dB
Bass boost frequency range: 35 Hz – 100 Hz
Input sensitivity: 0.35 V – 3 V
Wired level control: Yes
Speaker level input: Yes
Auto-start at speaker level: No
Operating voltage: 7.8 V – 18 V
Quiescent current: 1.7 A
Current consumption (max): 427 A
Overall efficiency (4Ω): 89%
Power terminals: 2 x 50 mm²
Speaker connector: 20 mm²
Dimensions (L x W x H): 293.4 x 206.4 x 63.3 mm
Weight: 3.38 kg
Package contents
1 x ZP5000.1 amplifier
1 x Level control
1 x 5 m Level controller cable
4 x Amplifier mounting screws
2 x Leveling controller mounting screws
3 x Allen keys
1 x User manual
1 x Warranty card
