Phoenix Gold ZR12005

The Phoenix Gold ZR12005 is a solid class D five-channel amplifier that you can use to control the entire equipment.

Correct power for the entire equipment!

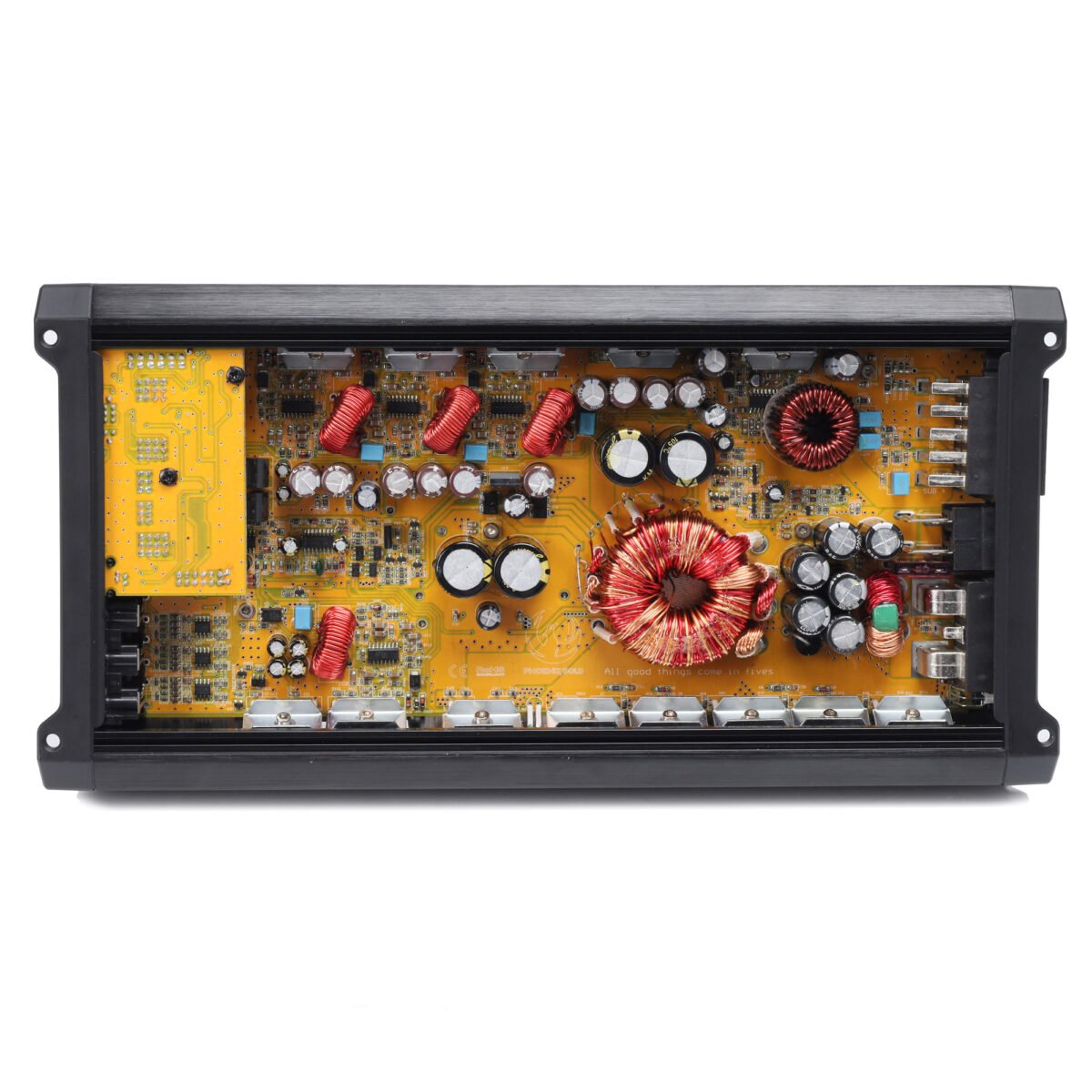

The ZR12005 is a really powerful D-class terminal, with Phoenix Gold's "signature gold design" circuit board inside the stylish black outer shell, decorated with high-quality components.

Automatic start
The signal can be brought to the amplifier traditionally with RCA cables, but if the player does not have RCA outputs (e.g. the car's factory-installed player), the amplifier also understands a speaker-level signal (requires an X12Line adapter). With a speaker-level signal, the amplifier does not require a separate exciter, but starts automatically when it receives the signal.

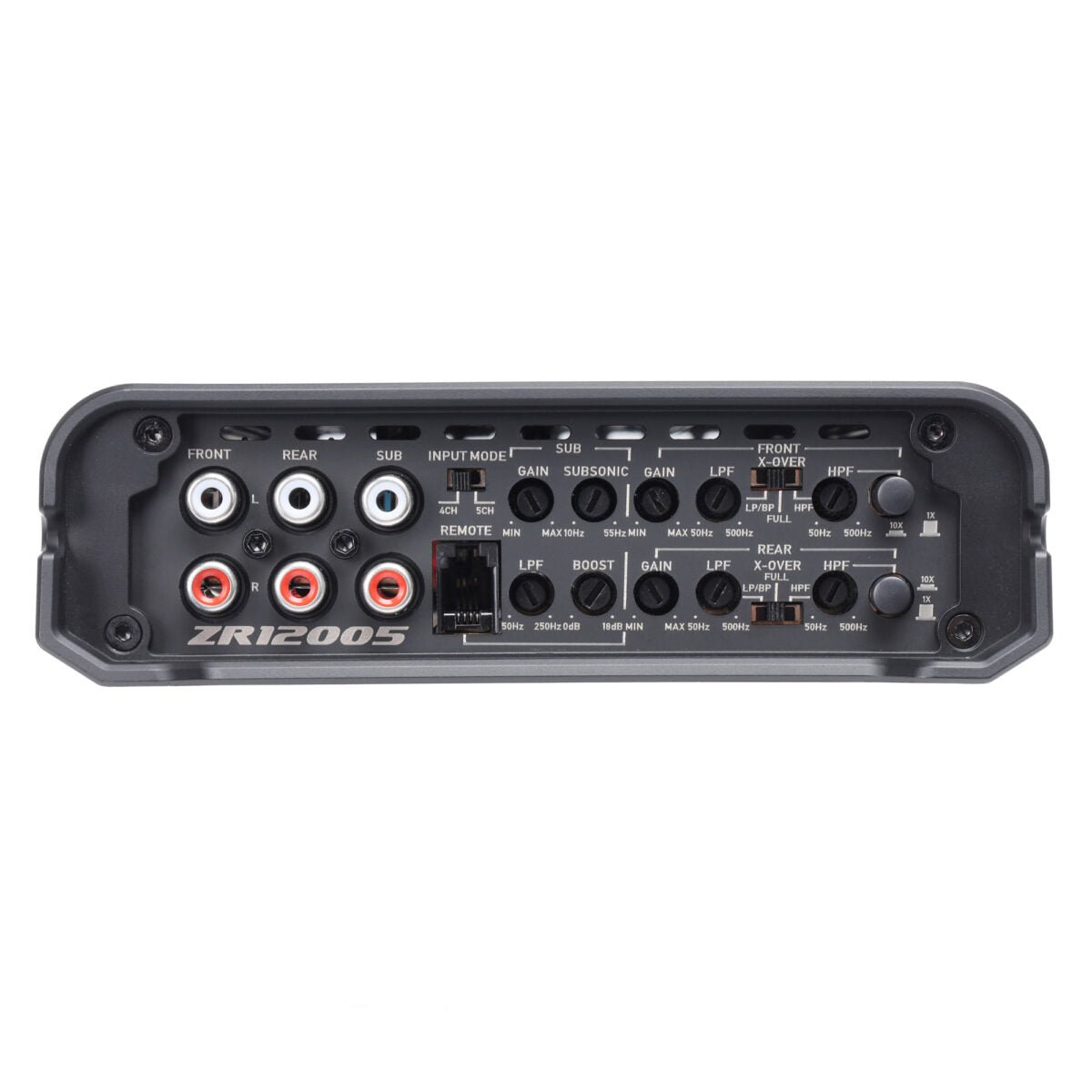

Versatile adjustments
The ZR12005 includes versatile adjustment options.
The Front and Rear outputs have their own low/high pass filters, which you can also use as bandpass filters. The sub channel has a low-pass filter, BassBoost and Subsonic.
The front, rear and sub outputs have their own input sensitivities.

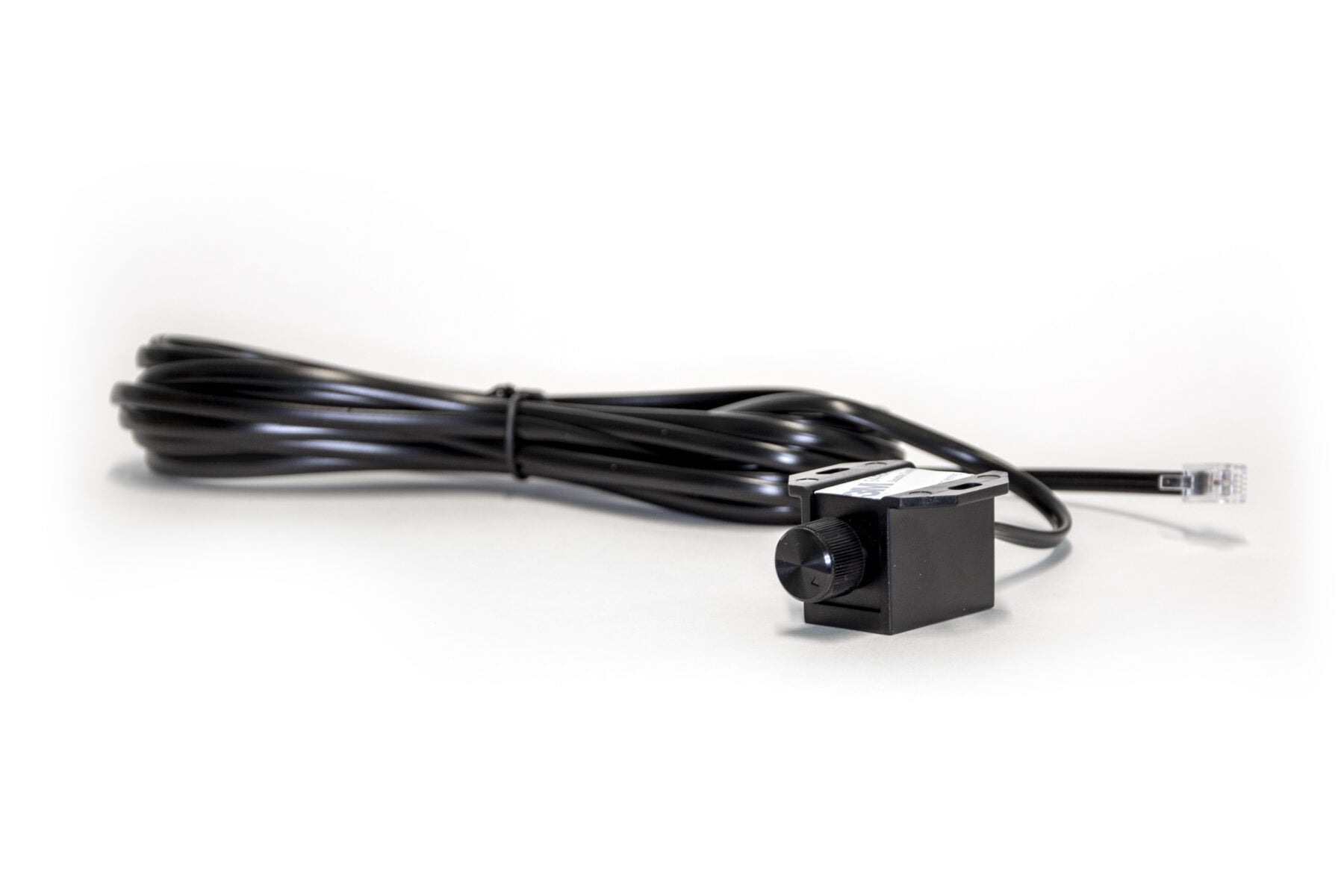

There is also a wired level control for adjusting the sub channel from the front seats.

Specifications

• 4 x 100W (4 ohms)
• 1 x 275W (4 ohms)
• 4 x 175W (2 ohms)
• 1 x 500W (2ohm)
• RCA and speaker level input: Yes
• Autostart at speaker level: Yes
• Low-pass filter for front channels: 50 – 5000Hz (12dB / oct.)
• Low-pass filter for rear channels: 50 – 5000Hz (12dB / oct.)
• High-pass filter for front channels: 50 – 5000Hz (12dB / oct.)
• Low-pass filter for rear channels: 50 – 5000Hz (12dB / oct.)
• Low pass filter for sub channel: 50 – 250Hz (24dB / oct.)
• Subchannel subsonic: 10 – 55Hz (24dB / oct.)
• BassBoost: 0 – +18dB
• Signal to noise ratio: >87dB (front/rear), 92dB (sub)
• Playback range: 10 – 25,000Hz
• Wired level control: Yes
• Dimensions: 323 x 160 x 48mm
