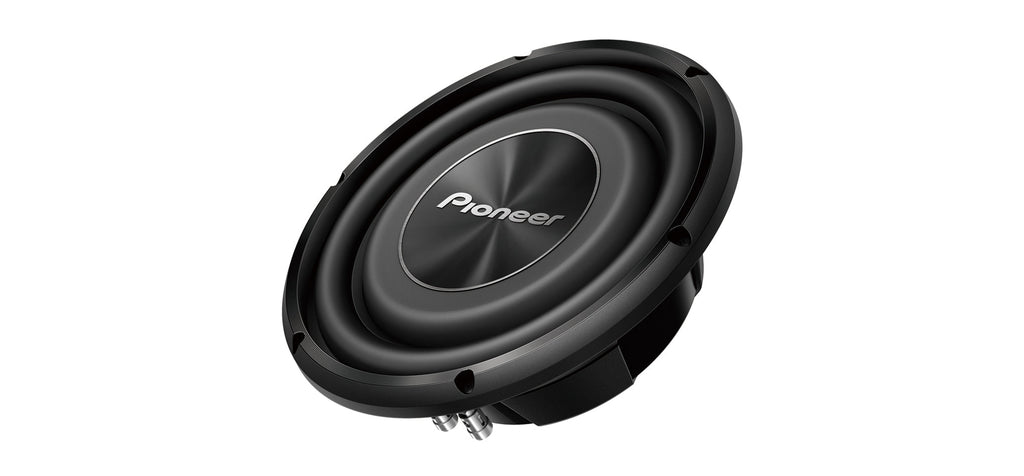

Pioneer 10″ SUBWOOFER TS-A2500LS4
The Pioneer TS-A2500LS4 is a low-profile 10″ subwoofer that works in a small closed case.
The immersion depth of the element is only 87mm!
The TS-A2500LS4 element is designed in a closed case.
Technical information:
Characteristics
Size: 250mm (10″)
Impedance: 4 Ohms
Cone material: IMPP with aramid fiber
Upper suspension material: Butyl
Continuous power: 300 W
Instantaneous power consumption: 1200 W
Frequency response: 20 Hz to 900 kHz
Closed optimal case recommendation: 17 liters
Installation depth: 87 mm
Installation opening diameter: 230 mm
Magnet Ferrite
Weight: 3.45 kg
Dimensions 318 (diameter) x 109 mm
Qts 0.83
Fs [Hz] 38
Left [ft3] 0.63
Left [l] 17.9
Xmax [mm] 8.3.
