Pioneer DEQ-S1000A2

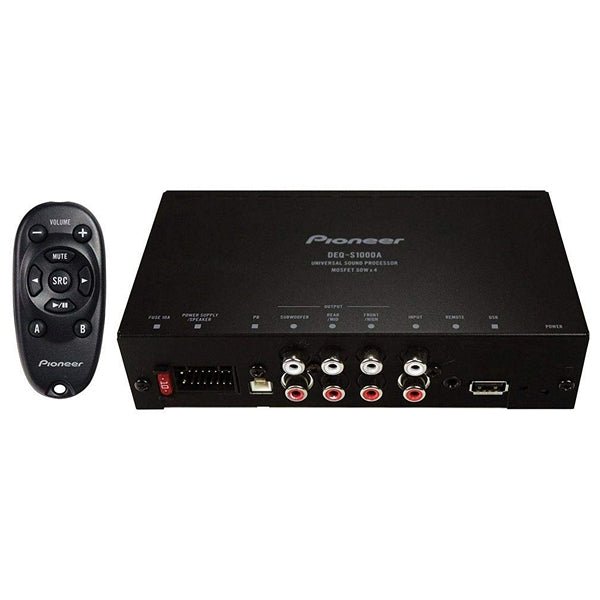

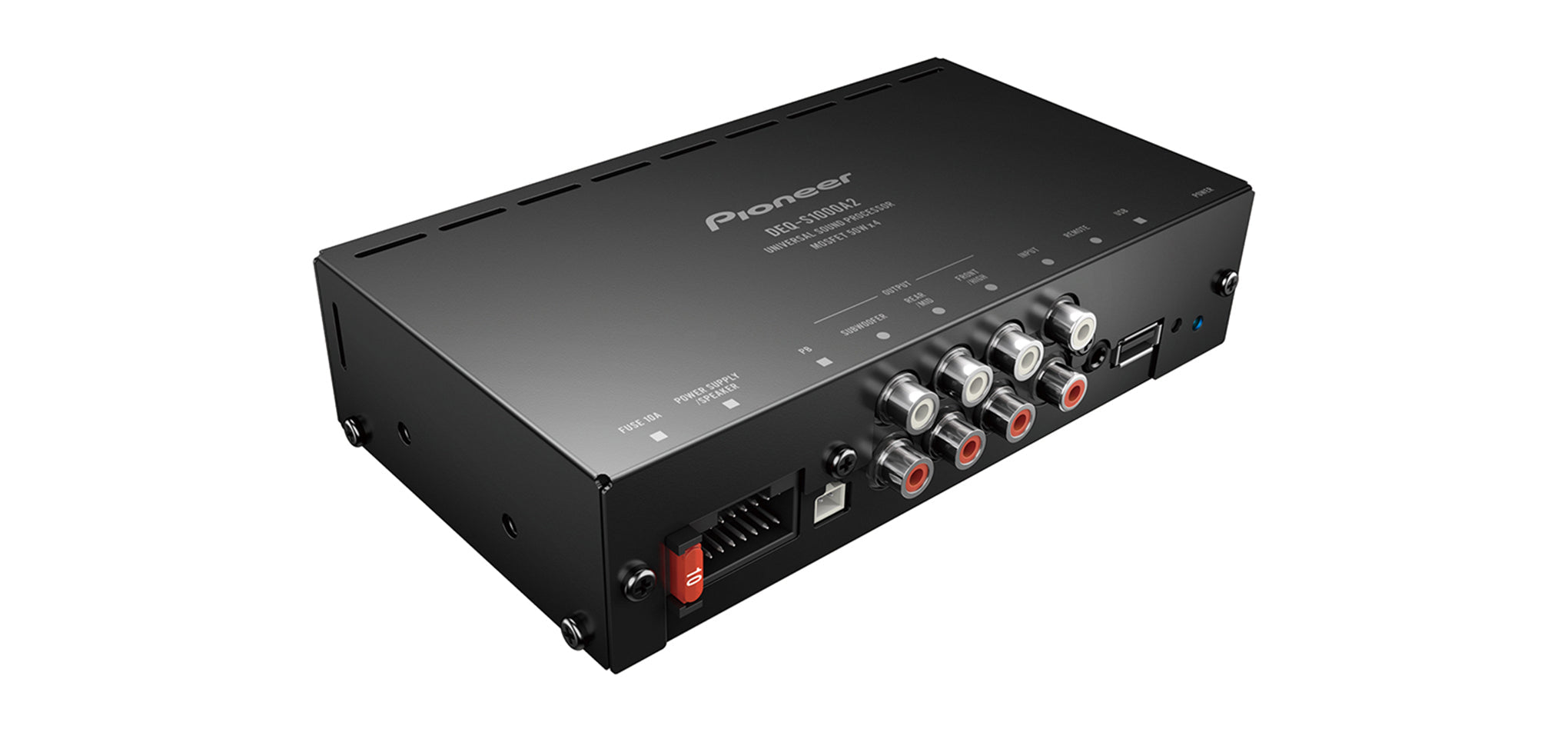

The DEQ-S1000A2 is a 4-channel ″plug-and-play″ DSP amplifier. The Pioneer DEQ-S1000A2 is installed between the car's original player and the speakers.
-2/3- way splitters
- Frequency corrector
- Time delay controls
- The amplifier can also be used as a line converter for a subwoofer amplifier.
1 x USB connection
3 x line output (4V)
Standard Mode = Subwoofer + Front + Rear outputs
Network Mode = Subwoofer + Middle + Treble outputs
1 x USB connection
Standard Mode:
High-pass filter (HPF) for the main speakers on the front and rear outputs
50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
High pass pitch 0 / 6 / 12 / 18 / 24 dB/oct
Subwoofer output low pass filter (LPF) for subwoofer
50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
Low pass pitch 0 / 6 / 12 / 18 / 24 dB/oct
Subwoofer level control -24dB – +10dB (1dB steps)
Subwoofer Phase: Normal / Inverted
Network Mode:
Low-pass filter for the subwoofer, band-pass filters for the midrange and high-pass filter for the treble
Front outputs = Treble outputs
Rear outputs = Mid sound outputs
Subwoofer
Low LPF: 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 Hz
Low LPF Slope: 12 / 18 / 24 / 30 / 36 dB/oct
Low Level: -24db – +10dB
Subwoofer Phase: Normal / Inverted
Middle tones
Mid HPF: 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 Hz
Mid HPF Slope: 0 / 6 / 12 / 18 / 24 dB/oct
Mid LPF: 1.25 / 1.6 / 2 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz
Mid LPF Slope: 0 / 6 / 12 / 18 / 24 dB/oct
Mid Level: -24db – 0dB
Trebles
High HPF: 1.25 / 1.6 / 2 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz
High HPF Slope: 6 / 12 / 18 / 24 dB/oct
High Level: -24db – 0dB
NOTE!!!
The treble overpass cannot be bypassed, but the minimum crossover frequency is 1.25kHz and the minimum crossover pitch is 6dB/oct. In NW mode, there are no outputs for the rear speakers at all, but only for the active 2-way front end + subwoofer.
Channel-specific time delay
0 – 350cm (in 2.5cm steps)
13-band graphic EQ
50Hz / 80Hz / 125Hz / 200Hz / 315Hz / 500Hz / 800Hz / 1.25kHz / 2kHz / 3.15kHz / 5kHz / 8kHz / 12.5kHz
Correction range: ± 12dB
The settings of the device are made with the Pioneer Sound Tune application, which can be downloaded to Android and Apple devices from app stores. The phone must be connected to the device with a USB cable while making adjustments.
The iPhone is connected to the USB connection with the USB cable that came with the Apple device
The Android device is connected to the USB connection with the USB cable that came with the Android device
Includes an infrared eye and an infrared remote control
Dimensions (mm) 170 x 40 x 95
Technical information:
Pioneer Sound Tune App
USB Input1
Accessories1 Remote Control
Maximum power 4 x 50 W
2 x 50 W (4Ω) for subwoofer
1 x 70 W (2Ω) for subwoofer
Frequency response 10Hz to 20kHz
S/N ratio 105 dB
Max. current consumption 10 A
Chassis size (W x H x D) 170 x 40 x 95
Unit weight0.59
Compact size
RCA terminalsYes
Speaker line input sensorYes
Apple Compatibility
Made for iPhone
Compatible Generations• iPhone X / iPhone 8 / iPhone 8 Plus
• iPhone 7 / iPhone 7 Plus / iPhone SE
• iPhone 6s / iPhone 6s Plus / iPhone 6 / iPhone 6 Plus
• iPhone 5s / iPhone 5c / iPhone 5
Supported Functions • Battery Charging
• Music playback
Android Compatibility
Compatible with Android
Quick Charge for Android
Audio
13-band Graphical EQ
MOSFET 50 W x 4 Amplifier
Network Mode3-Way Network Mode
Listening Position Selector
Manual TA (Time Alignment)
High Pass Filter
Low Pass Filter
Subwoofer Control
RCA Pre-Outs3. (Front, rear and subwoofer)
High Voltage Output (4Volt)
Advanced Audio Features Exclusively Designed Audio Parts.
Source Calibration, (Factory Time Alignment and EQ Cancel).
31-Band Graphic EQ When Used With Pioneer Sound Tune App.
Live Simulation When Used With Pioneer Sound Tune App.
FLAC
Connections
Hand Held Remote Control Included
POWER SOURCE 14.4V DC
(10.8-15.1V allowable)
GROUNDING SYSTEM Negative type
MAX. CURRENT CONSUMPTION 9.2A
DIMENSIONS 170(W) x 40(H) x 95(D)mm
FUSE 10A
WEIGHT 0.59kg
MAX POWER 50W x 4
50Wx2ch/4Ω + 70Wx1ch/2Ω (for SUB-WOOFER)
CONTINUOUS POWER 22W x 4
(50Hz to 15kHz, 5%THD, 4Ω LOAD, Both Channels Driven)
LOAD IMPEDANCE 4Ω
(4 - 8Ω(2Ω for 1ch) allowable)
PREOUT OUTPUT LEVEL (MAX) 4.0V
IMPEDANCE 250Ω
FREQUENCY RESPONSE 10Hz to 20kHz (+0dB , -1dB)
S/N RATIO 105dB
THD 0.01%
EQUALIZER (13BAND GRAPHIC EQUALIZER)
FREQUENCY 50Hz, 80Hz, 125Hz, 200Hz, 315Hz, 500Hz
800Hz, 1.25kHz, 2kHz, 3.15kHz, 5kHz, 8kHz, 12.5kHz
GAIN ±12dB(0.1dB step)
SPEAKER SETTING
STANDARD MODE
FRONT/REAR (HPF)
FREQUENCY
50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz
SLOPE
0dB(Pass), -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
SUBWOOFER (LPF)
FREQUENCY
50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz
SLOPE
0dB(Pass), -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
GAIN -24 to +10dB (1dB/Step)
PHASE NORMAL/REVERSE
SPEAKER LEVEL -24 - +10dB (1dB/Step)
TIME ALIGNMENT 0cm - 350cm (2.5cm/step)
NETWORK MODE
HIGH (HPF) FREQUENCY 1.25kHz, 1.6kHz, 2kHz, 2.5kHz, 3.15kHz
4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
SLOPE -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
MID (LPF) FREQUENCY 1.25kHz, 1.6kHz, 2kHz, 2.5kHz, 3.15kHz
4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
SLOPE
0dB(Pass), -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
MID (HPF) FREQUENCY 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz
100Hz, 125Hz, 160Hz, 200Hz, 250Hz
SLOPE
0dB(Pass), -6dB/oct, -12dB/oct, -18dB/oct, -24dB/oct
SUBWOOFER (LPF)
FREQUENCY 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz
100Hz, 125Hz, 160Hz, 200Hz, 250Hz
SLOPE 0dB(Pass), -12dB/oct, -18dB/oct
-24dB/oct, -30dB/oct, -36dB/oct
GAIN -24 to +10dB (1dB/Step)
PHASE NORMAL/REVERSE
SPEAKER LEVEL -24 - +10dB (1dB/Step)
TIME ALIGNMENT 0cm - 350cm (2.5cm/step).
