Description

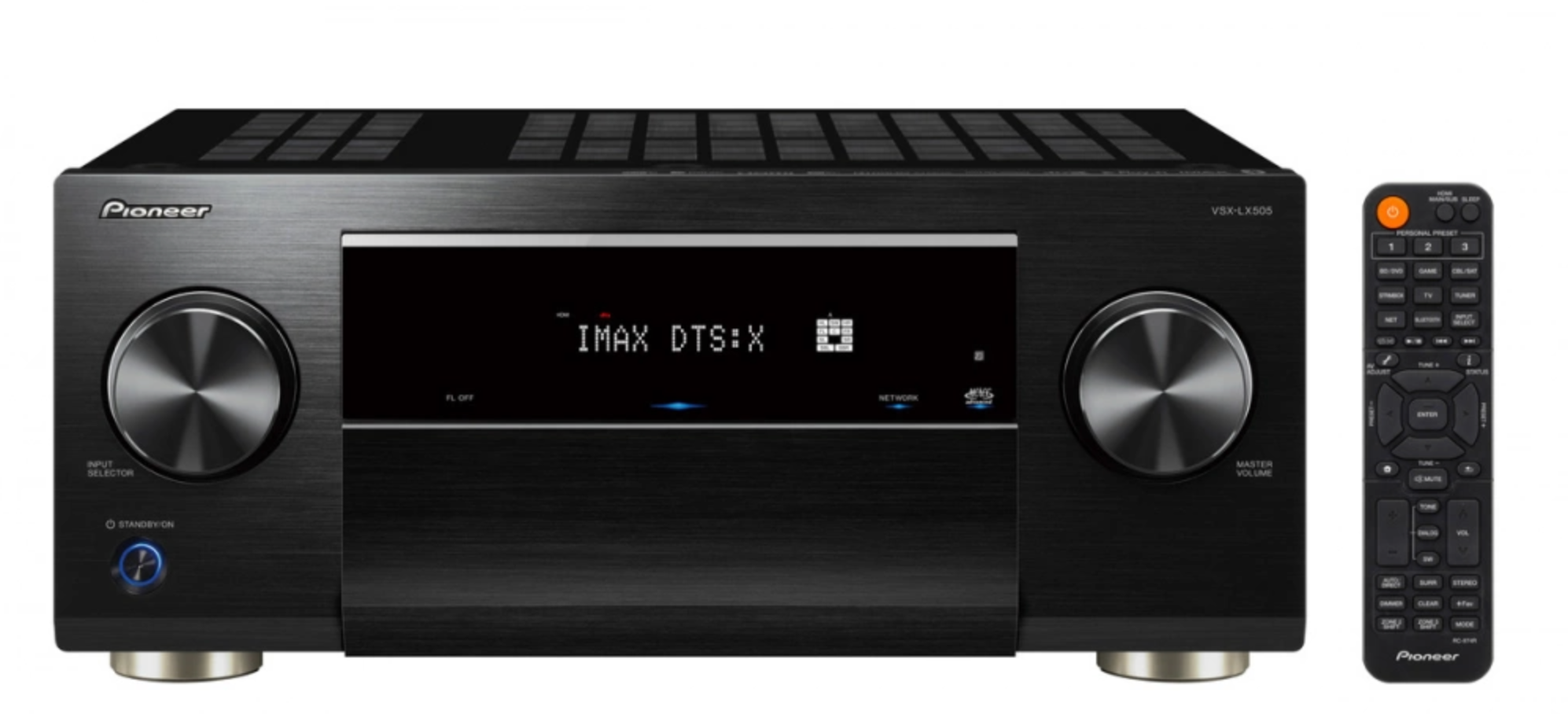

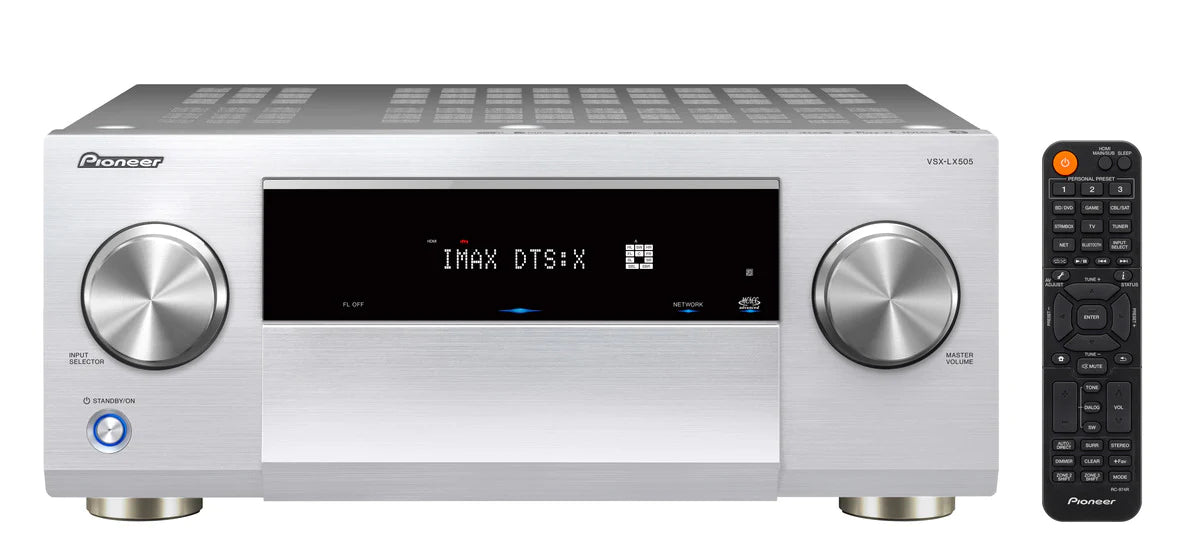

The Pioneer VSX-LX505 9.2-channel AV receiver offers up to 11.2 channels and 120 watts of power per channel, IMAX® Enhanced Audio and Dirac Live® Room Correction.
Equipped with Dirac Live® Room Correction, the VSX-LX505 adjusts the sound according to the room and speakers, while offering improved music reproduction, dialogue and deeper bass.
Go beyond a single-room experience - the Pioneer Elite VSX-LX505 AV receiver brings cinema-quality sound and picture to multiple rooms.
Dirac Live Room correction
State-of-the-art digital room correction technology improves overall sound performance across the entire frequency band without additional upgrades. Dirac Live automatically calibrates the sound in your room using either a smartphone and the included wired microphone, or virtually wirelessly with the Dirac Live PC or MacOS* app and a third-party USB microphone (not included). Dirac Live unleashes the full potential of your speakers in any listening environment and offers a unique, pristine listening experience. Now you get a more precise measurement of the locations of your Surround Sound system to make it more accurate and balanced and you get a better result when the upper limit of the delay time has been increased from 20 milliseconds to 50 milliseconds. *The device must be connected to the Internet and to the same network as the AVR.
HDMI® 2.1 and 8K
HDMI® 2.1 is the latest update to the HDMI® specification and supports several higher video resolutions and refresh rates, including 8K60 and 4K120, as well as dynamic HDR formats. 8K offers a highly immersive viewing experience with 2x 4K horizontal and vertical resolution and 4x more pixels; and combined with a refresh rate of 60 Hz enable smooth and sharp content viewing with fast operation. HDMI 2.1 with 8K ensures your system is ready for the clearest and cleanest picture available, now and in the future.
4K gaming experience
4K/120 enables ultra-fast motion UHD images to be sharp and razor-sharp; and sports, action movies and high-performance games benefit significantly. This receiver supports better performance from streaming devices such as the latest Apple TV.
IMAX® Enhanced MODE
IMAX's digitally remastered content for the home environment has been created to deliver the same sharp 4K HDR images and powerful sound, just as the filmmaker intended. Pioneer Elite's IMAX space has been carefully optimized to reproduce digitally remastered content to provide the best viewing and listening experience in the country.
Built-in streaming music services and faster Wi-Fi
Spotify®, TIDAL, Deezer, TuneIn and Pandora® are built into the system.
Two-way wireless Bluetooth® technology
This AVR can send and receive audio via Bluetooth wireless technology. The Bluetooth connection between your streaming device and Pioneer's AV receiver is now even better, so you can connect and control your device wirelessly with ease.
Built-in multi-zone streaming and voice control
This AV receiver easily integrates with your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps and more. You get a highly capable and compatible network player that can stream your favorites anywhere in your home with up to 8K60 resolution.**
*A third-party artificial intelligence device is required for voice commands - sold separately
***8K60 only Zone 1/Zone 2 only produces 4K120 resolution when using two separate HDMI sources
MCACC Auto Room Tuning with Auto Phase Control Plus
MCACC adjusts the sound according to the listening room and speakers and also creates a clearer sound by suppressing standing waves that occur between the walls or the ceiling and the floor. The measurement of up to nine places can be saved in a wide listening area. Auto Phase Control Plus* analyzes the phase difference in real time and automatically compensates for the difference between the LFE and the main signals, providing strong bass and clear high-frequency sound.
Roon-tested
Roon plays on thousands of USB, Airplay and Chromecast devices, but the Roon team profiles the devices Roon tests to ensure simple setup and effortless daily use. If you own a Roon-tested device, you can be confident that you will get the best possible experience with it.
Ready for DTS Play-Fi® multi-room audio
With DTS Play-Fi, you can enjoy high-quality music from connected online services, online media servers and your device library via Wi-Fi® connection to any compatible products using the Onkyo Music Control app for iPad, iPhone and Android smartphones. /tablets. DTS Play-Fi can sync music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. With DTS Play-Fi, you can build a comprehensive multi-room ecosystem that meets virtually every need.
Technical information:
- Audio output channels: 9.2 channels
- Bluetooth: Yes
- Integrated RIAA amplifier: No
- Dolby Atmos: Yes
- Dolby True HD: Yes
- DTS: Yes
- Number of HDMI ports: 8
- WIFI: Yes
- Dimensions: 185 x 435 x 386 mm
- Weight: 13 kg
- Manufacturer's warranty (Months): 24
