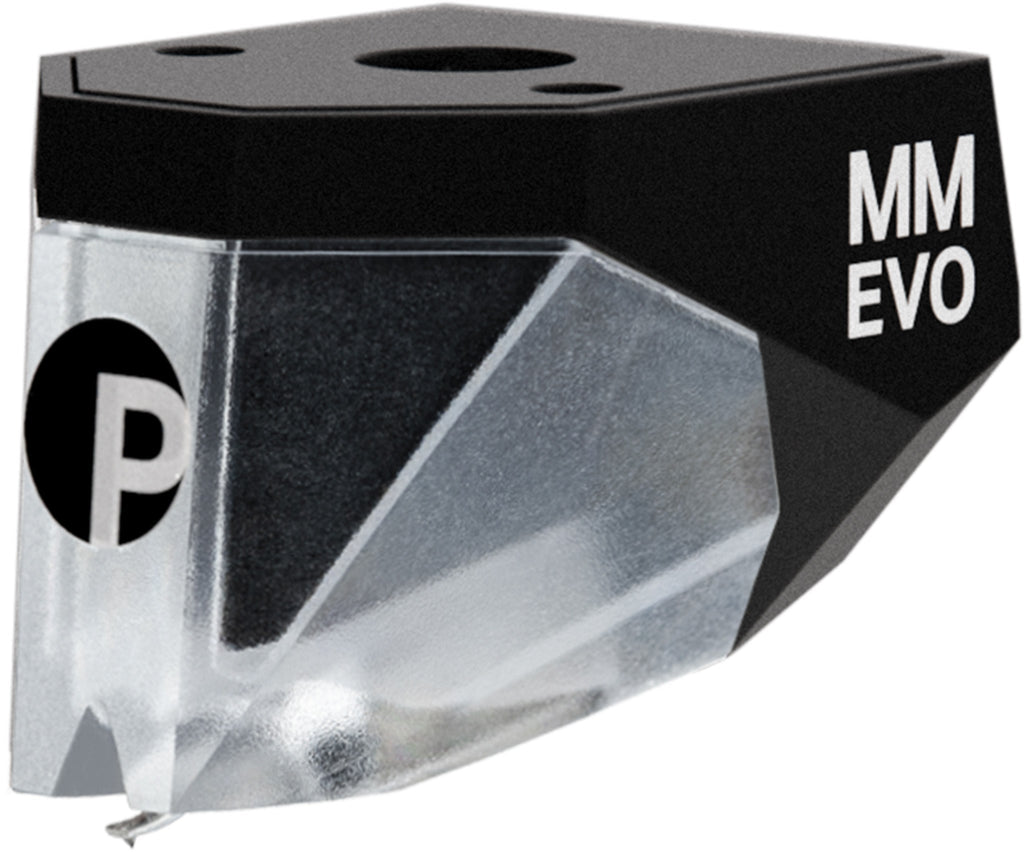

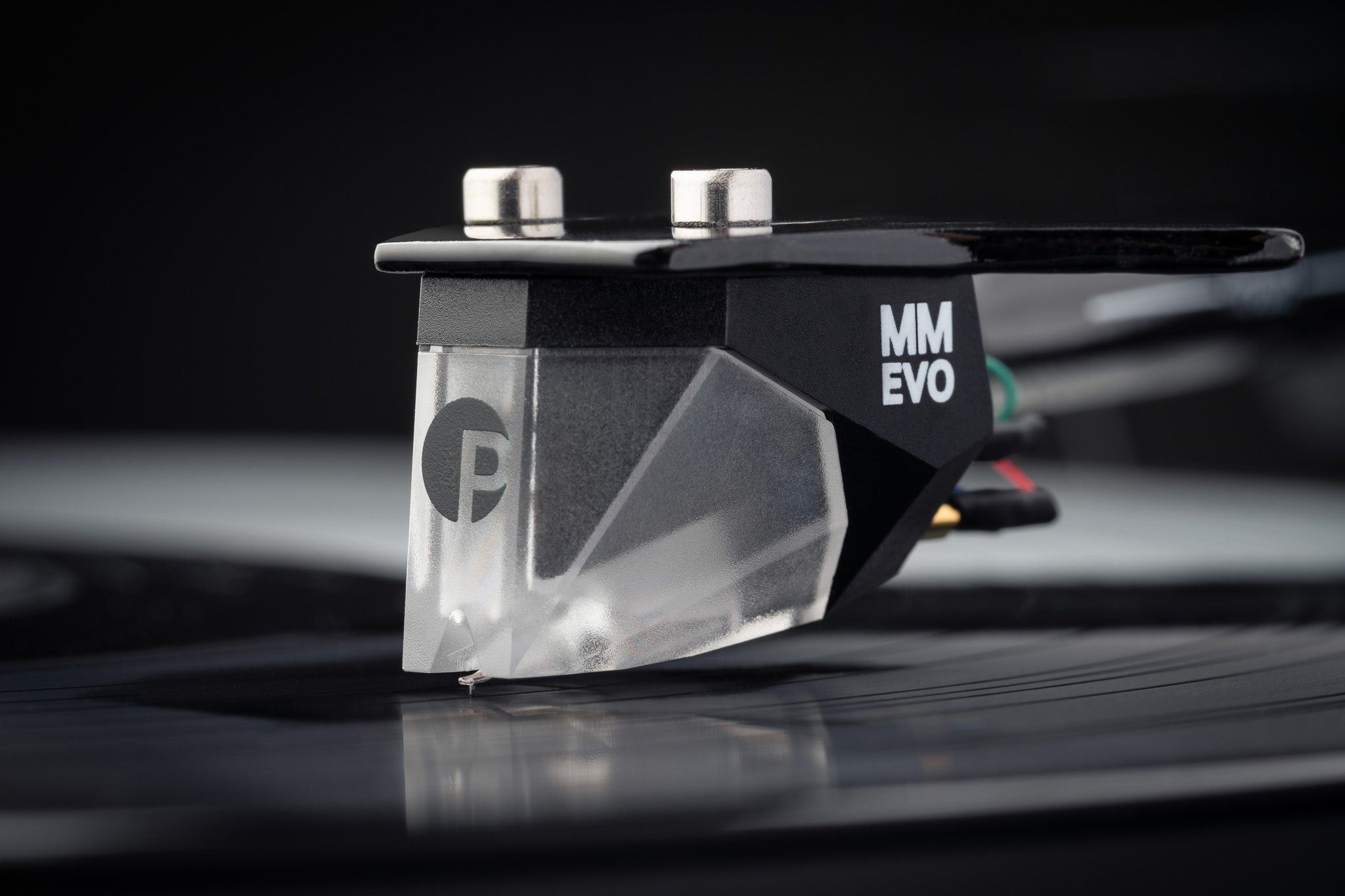

MM cartridge, 7 mV output voltage, elliptical stylus grinding
New generation MM cartridge, high 7 mV output voltage. Elliptical needle-free, extra strong stylus arm.
The sound box for the first production batch is not yet in the official sales packaging.
Download the sound box datasheet here
The new superior high dynamic 7mV output Pick it MM EVO cartridge is manufactured by the phono cartridge experts at Ortofon and carefully voiced by the design team at Pro-Ject Audio Systems.
It is equipped with a special Elliptical stylus tip. It provides detailed sound reproduction and expansive imaging. It is a no-nonsense performer with fascinating musical resources. Attached to a strong cantilever, used in DJ cartridges, this cartridge will not just sound great, it is also very strong.
The cartridge is made from a unique combination of technologies. One of which is Ortofon's well known split pole pins. This enables it to have a flat frequency response, which is comparable to MC cartridges.
Cartridge principle: MM (Moving-Magnet)
Output voltage at 1 kHz: 7 mV
Channel separation at 1 kHz: 22dB
Tracking ability at 315Hz: 70 um
Frequency response: 20 - 20,000 Hz (+3 /-1 dB)
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 um
Tracking force, range: 1.6 - 2 g (mN)
Tracking force, recommended: 1.8 g (mN)
Tracking angle: 20°
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300pF
Cartridge weight: 7.2 g
