Linear auxiliary power supply for Pro-Ject Amp Box RS2 power amplifier
Purest power
The power supply is a very important part of audio reproduction and has a significant impact on the sound quality of the product. You can connect this power supply to the Pro-Ject Amp Box RS2 power amplifier and benefit from perfect sound quality and power.
Switchable 35V and 45V outputs give you the choice of how you want to use the Amp Box RS2: We recommend 35V – especially for 4 ohm speakers – for more energy-efficient use of the Amp Box RS2. This results in lower power consumption and less heat build-up. This is also ideal if you are placing the Amp Box RS2 in a closed rack with little airflow or ventilation.
Selecting 45V will increase the power of the Amp Box RS2 by up to 25%. However, make sure that the Amp Box RS2 and Power Box RS2 Amp are placed in a well-ventilated area with good airflow to enjoy all the extra power.
The Amp Box RS2 has built-in safety measures, so if you are unsure about the airflow, remember that the Amp Box RS2 will automatically shut down to prevent heat damage.

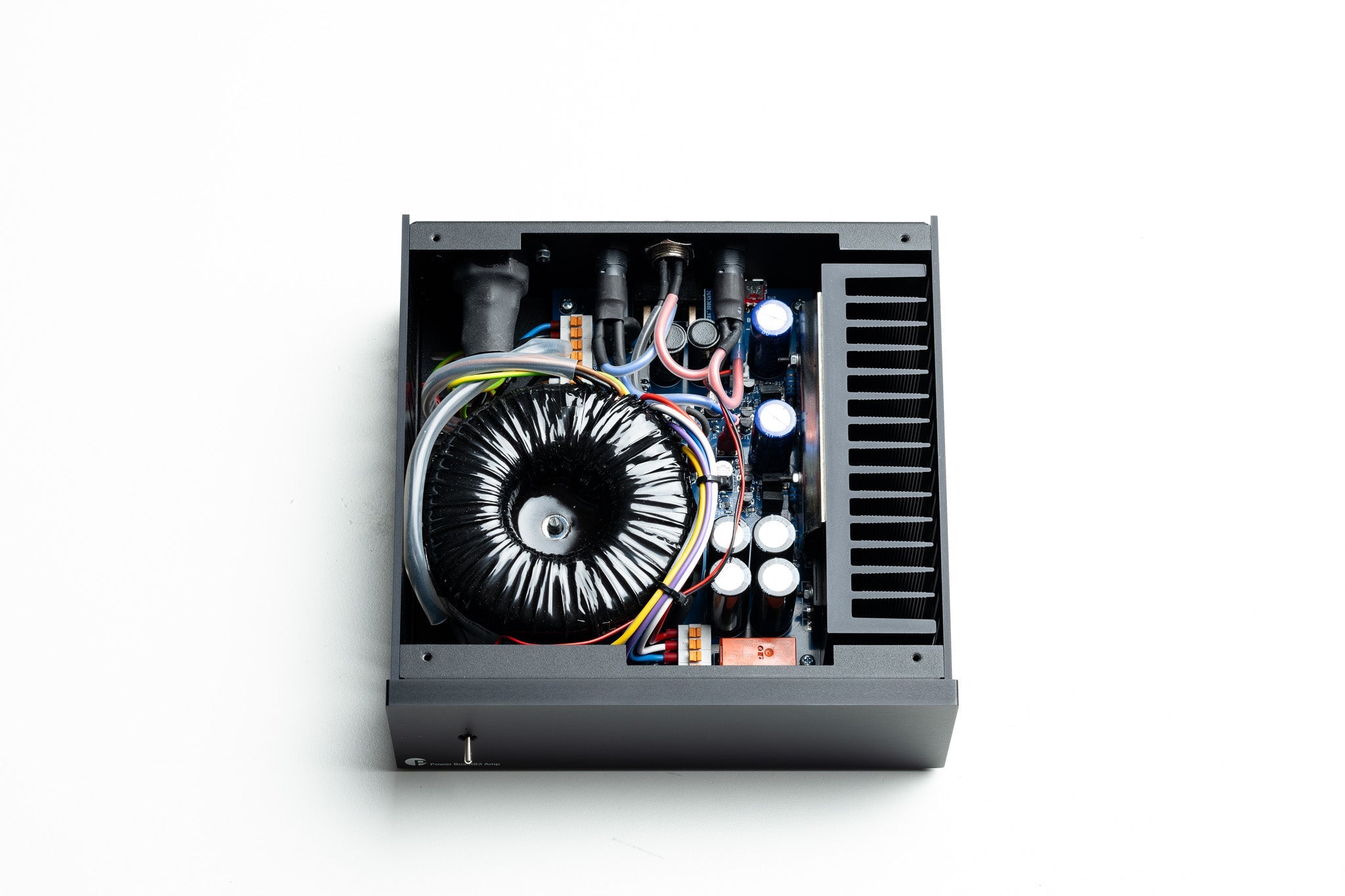

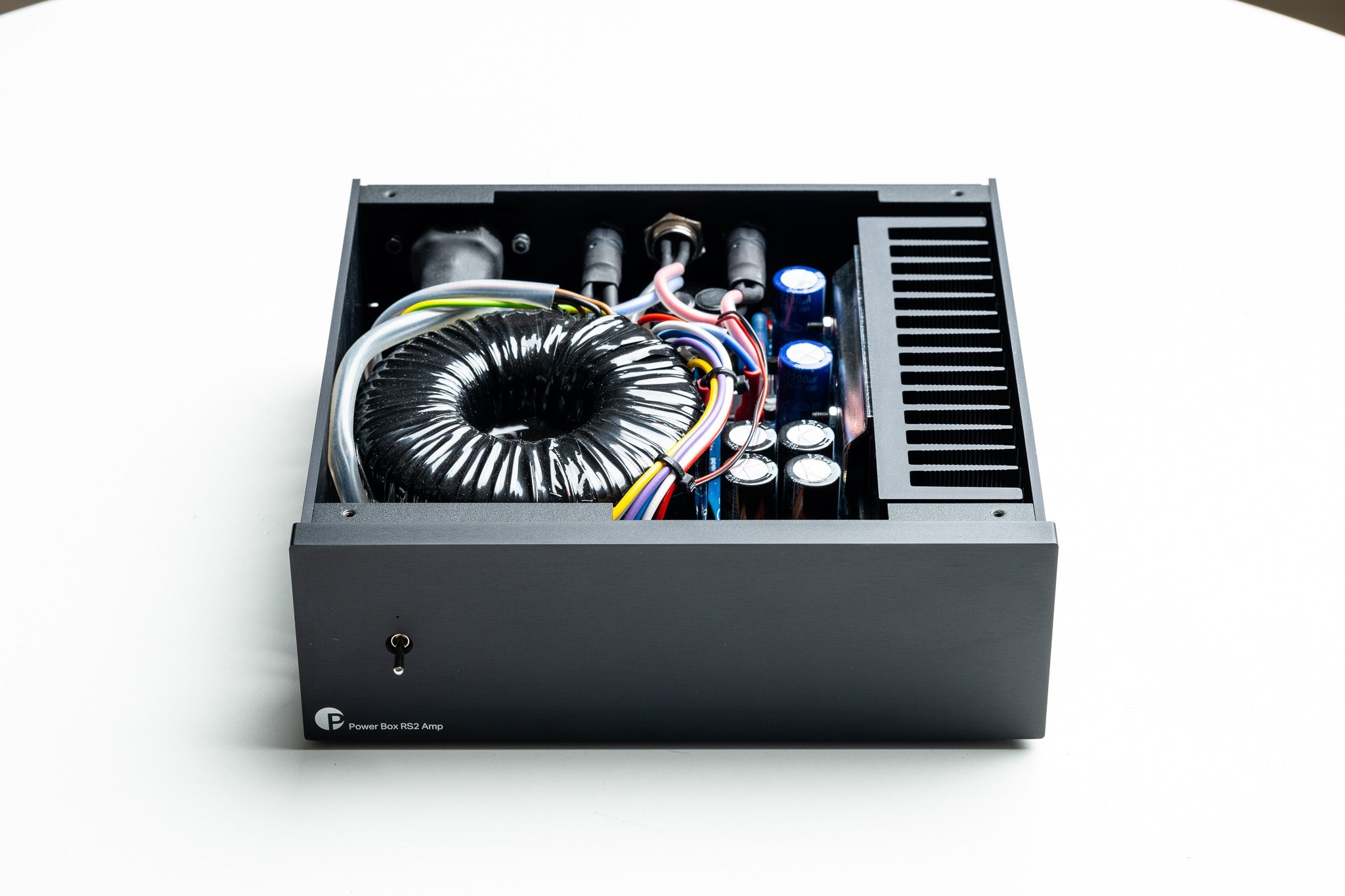

The linear power supply consists of a massive toroidal transformer that prevents interference from the mains from penetrating the audio component. The built-in transformer has a much larger power reserve compared to a standard power supply. It has a very low output impedance and, together with a large filtering capacity, can easily handle all power requirements. The sound image and the accuracy of small details are greatly improved and contribute to a significantly better overall performance of each component.

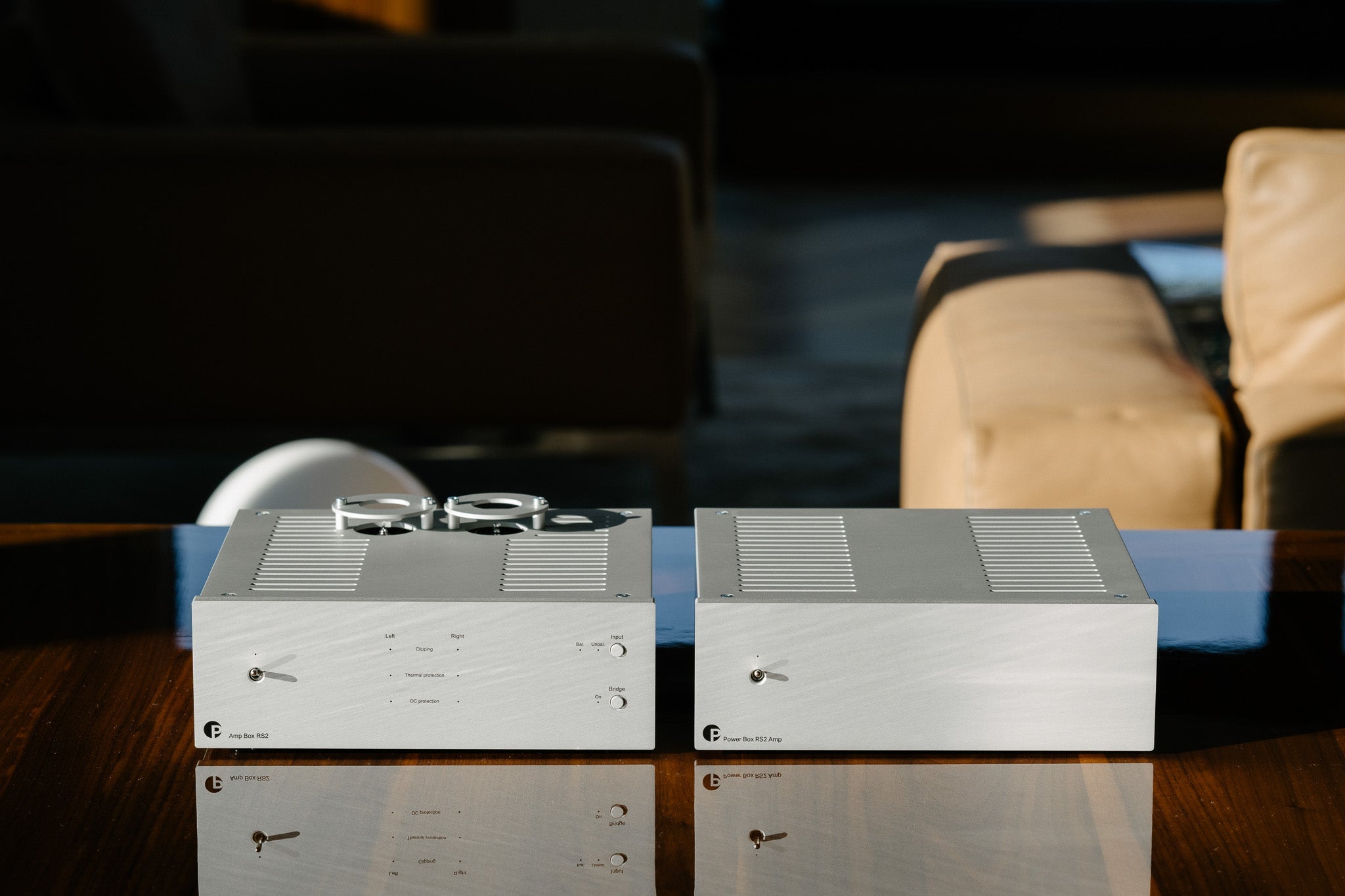

The Power Box RS2 Amp is made in Europe and available in a black or silver all-aluminum housing.
FEATURES:
• Power supply for Amp Box RS2
• Audio type Toroidal transformer
• Mega robust - mega heavy: 4.7 kg
• Replaces original "switching" power supplies
• Significant sound improvement
• 25% power improvement for Amp Box RS2
• 35V or 45V selectable: energy/heat efficiency with 35V and maximum power output with 45V
• Improved sound stage and detail resolution
• Cleanest power using non-switching power supply
• Soft start system avoids current inrush
• Main isolating transformer with copper foil shielding
• Secondary voltage rectification with precise regulation
• High filtration capacity (40,000 µF)
• Low ESR capacitors
• Low noise components with surge protection
• Rigid Aluminum casing protects against interference
• Available in silver or black
• Made in Europe
SPECIFICATIONS:
- Input Power supply: 115V/230V AC
- Output voltage - switchable: ±35 V / ±45 V
- Output current: 4A
- Filtration capacity: 40,000 uF
- incl. accessories: connection cable to Amp Box RS2
- Dimensions W x H x D: 206 x 71 x 209 mm
- Weight: 4700 g
