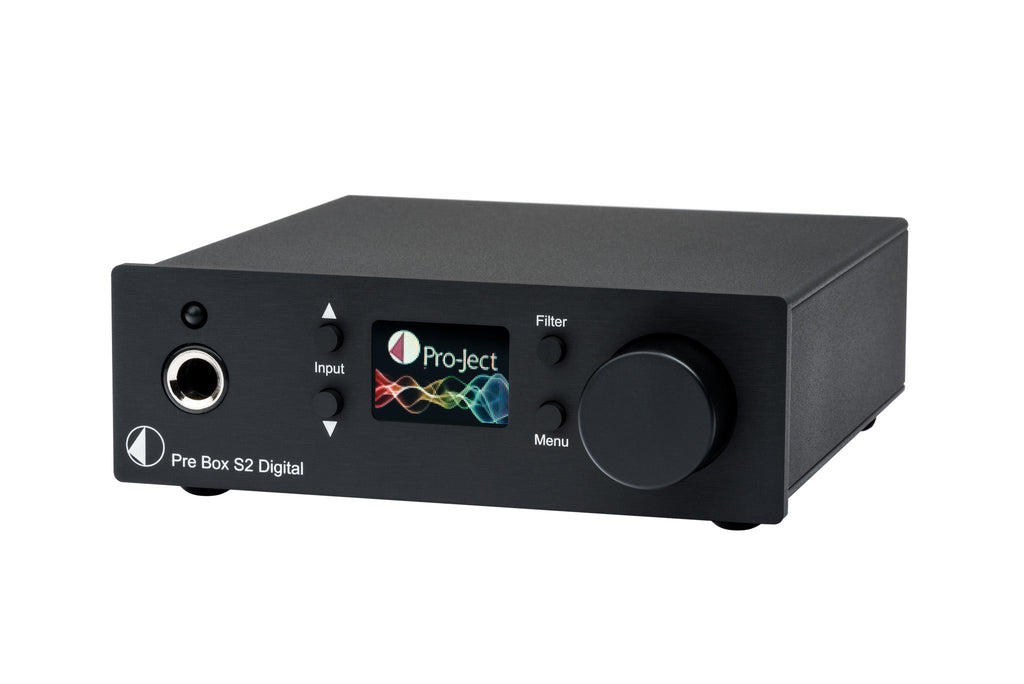

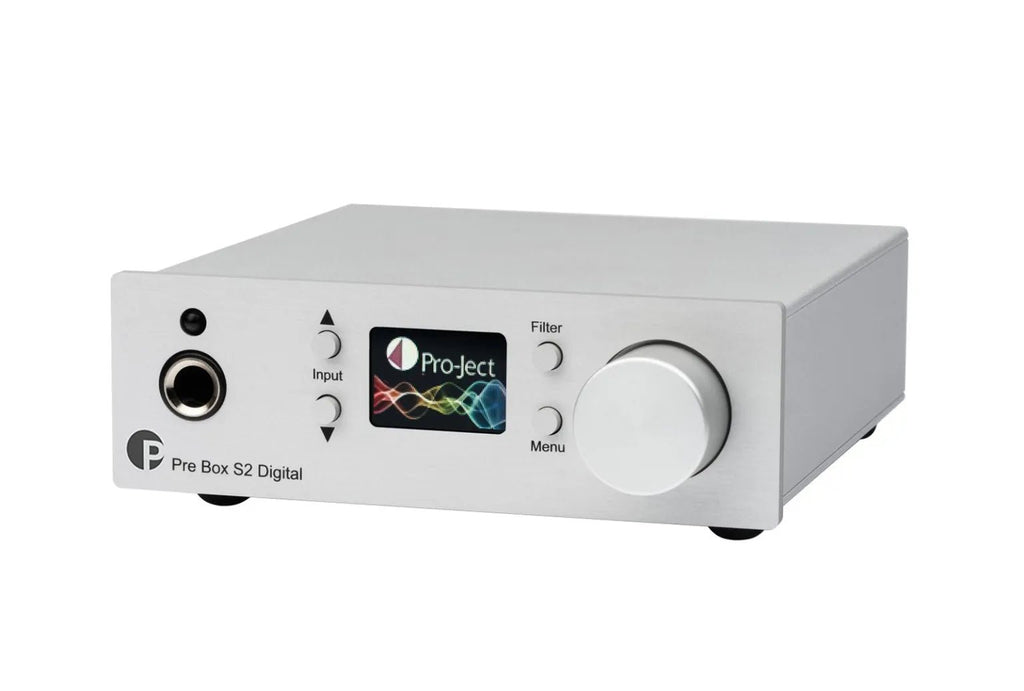

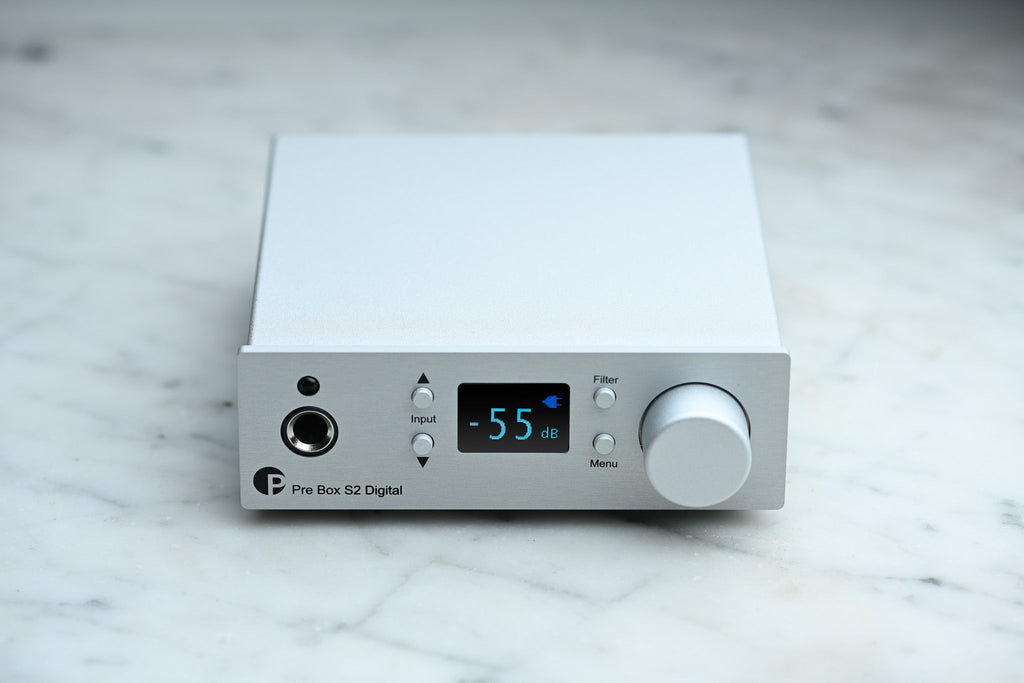

Pro-Ject Pre Box S2 Digital Edition 2023 DAC preamplifier
Compact front amplifier with digital inputs with MQA and DSD 512 support. Improved 2023 Edition
Improved 2023 version of the Pro-Ject classic
The Pre Box S2 Digital - since its release in 2017 - has quickly established itself as a standout in the DAC market, gaining a reputation among digital and computer audio enthusiasts for its remarkable ability to compete well above its price range.
This achievement can be attributed to a combination of factors, including a custom and proprietary clock design, meticulous PCB layout featuring separate power supplies, dual differential ESS DACs, and an exclusive proprietary digital filter designed to deliver pristine and transparent transient response. The Pre Box S2 Digital may seem small, but it is really the Ultimate design.
The chip crisis of 20/21 has hit the Pre Box S2 Digital particularly hard, given its Enduring demand. But during the downtime, we and original designer John Westlake seized the opportunity to implement key improvements and refine the design, thus rejuvenating the product almost exactly 5 years after its original introduction.

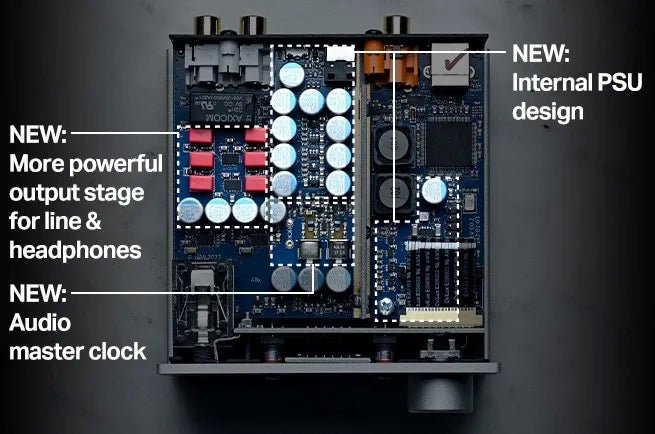

Edition 23 Improvements
New internal power supply design
The power supply units (PSUs) of clock, DACs, and analog output stages have undergone enhancements to offer increased isolation from PC USB power noise and achieve a wider/flatter output impedance across the entire audio bandwidth.
Redesigned master audio clocks
We have Redesigned and improved the discrete audio master clocks – this lowers the phase noise and further, enhances the already cutting-edge jitter performance.
New output stage with higher Class-A current
The new analogue output stage, based around the SABRE9603Q, has higher Class A operating current, for improved performance with low impedance headphones and long cable runs.
New headphone amplifier

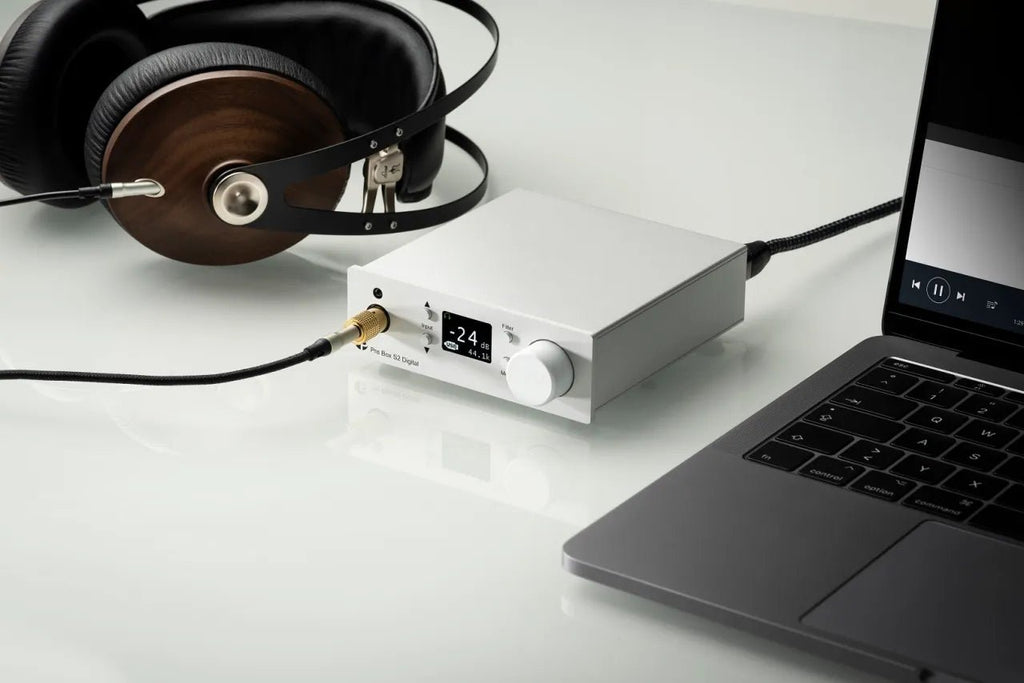

The entire design is now more energy efficient – a 12% reduction in PSU current, while also offering higher Class A analogue stage operating current resulting in lower distortion when used with low impedance headphones. Users with mobile devices or laptops on-the-go will also appreciate the lower power draw, and simultaneously enjoy more power for the energy that is being drawn. And for anyone finding themselves using low-impedance headphones or in-ears – whether in a mobile, home, or work environment: they will experience a noticeable boost in sound quality too.
Unbeatable value – handmade in Europe
Normally up to 70% of Hi-Fi production cost goes into the cabinet. By reducing the cabinet size and using the same Casework for entire product lines, Pro-Ject can shift the cost-relation to the benefit of technology involved. This allows us to invest in a higher quality PCB design. The Pre Box S2 Digital Edition 2023 is carefully designed and handmade in Europe. We aim to develop a technically flawless device in a housing that is only as big as necessary to save raw materials. Due to the Timeless design & rigid Aluminum casework, the Pre Box S2 Digital Edition 2023 is built for eternity.
CHARACTERISTICS
- Edition 23: powerful output stage for headphones
- Edition 23: analogue output stage - higher Class A current
- Edition 23: Redesigned discrete audio master clock
- Edition 23: internal power supply design
- Edition 23: less energy consumption - more power, higher efficiency - saves battery life for mobile devices
- Edition 23: Jitter even lower than 100 Femtoseconds!
- Dual mono high end ESS Saber ESS9038 dual DAC
- Organic polymer capacitors and thin film miniMELF resistors
- MQA hardware decoding
- DSD64, DSD128, DSD256 & DSD512 (DoP, DSD512 native)
- Up to 24bit/192kHz for optical & coax inputs
- 8 selectable digital filter characteristics
- 1 proprietary optimum transient digital filter
- Headphone output on the front (6.3mm)
- Synchronization of all internal oscillators

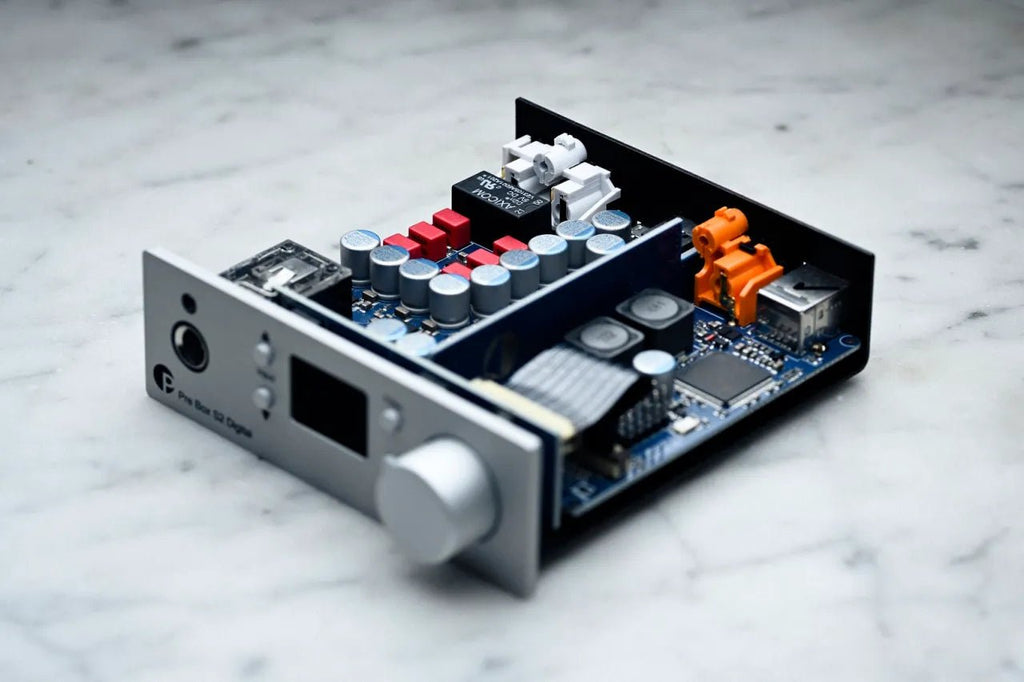

- Gold plated four layer PCB

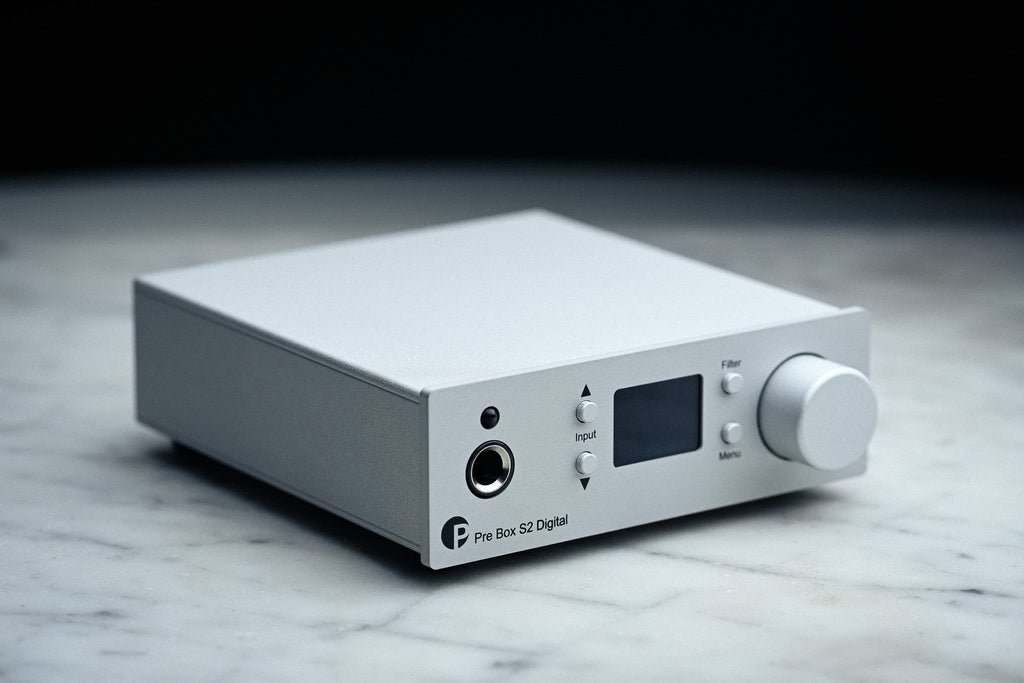

- Full alu/metal sandwich casing in silver or black
- A credit card-sized remote control is included in the delivery. Aluminum remote control Control It Pre Box S2 as an option
- Using the headphone jack closes the output jack.

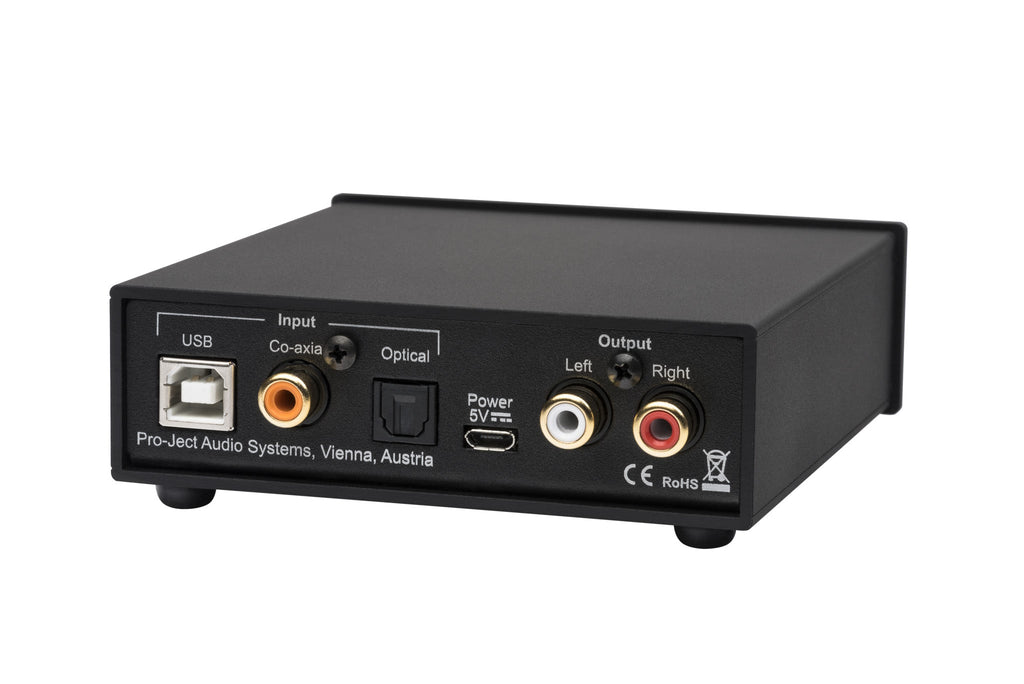

- Digital inputs: 1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink)
- D/A converter: 2x ESS9038Q2M 32-bit
- USB: up to DSD512 (DSD1024), PCM up to 32b/768kHz
- Optical: PCM up to 24b/192kHz
- Coaxial: PCM up to 24b/192kHz

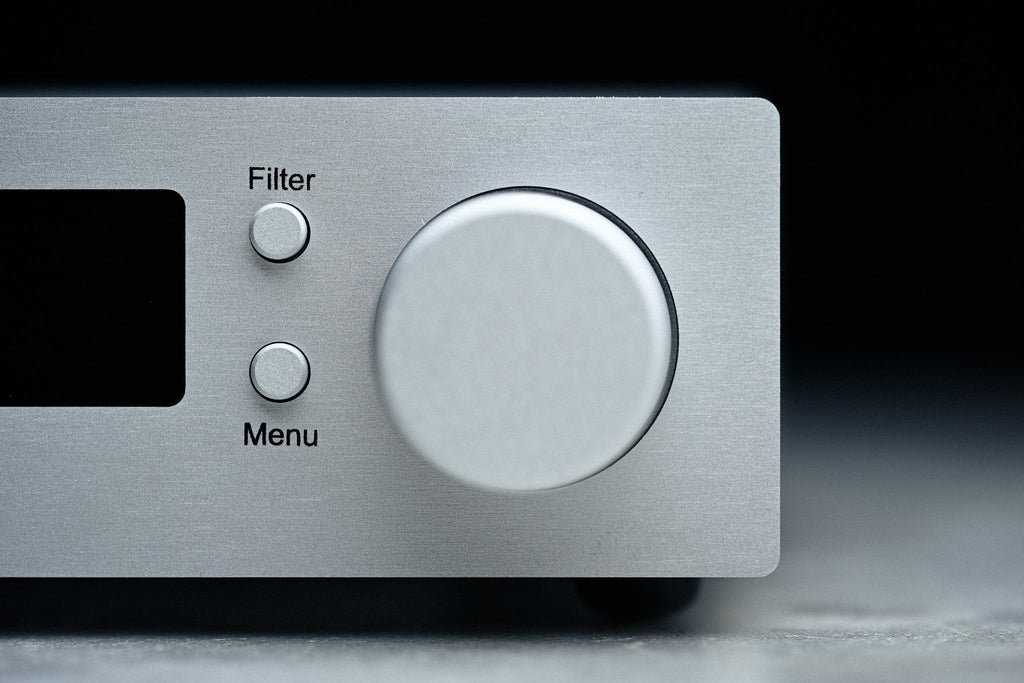

- Filter settings: 7 different selectable on front
- Frequency response: 20 Hz to 20 kHz
- Analogue outputs: 6.3mm Headphone (front), 1x Variable Out (RCA
- Output voltage: 2.05 Veff
- Minimal recommended headphone impedance: 8 Ohm
- Headphone output power: 6.6 mW / 600 Ohm; 100 mW / 32 Ohm
- THD: 0.0003% @ 0dB, 2V RMS, 1kHz
- Dynamic range: 124 dBA
- Outboard Power supply: 5V/1A DC (included)
- Dimensions: W x H x D 103 x 37 x 122 mm (including Knob and connectors)
- Weight: 366 g (without power supply)
