Description

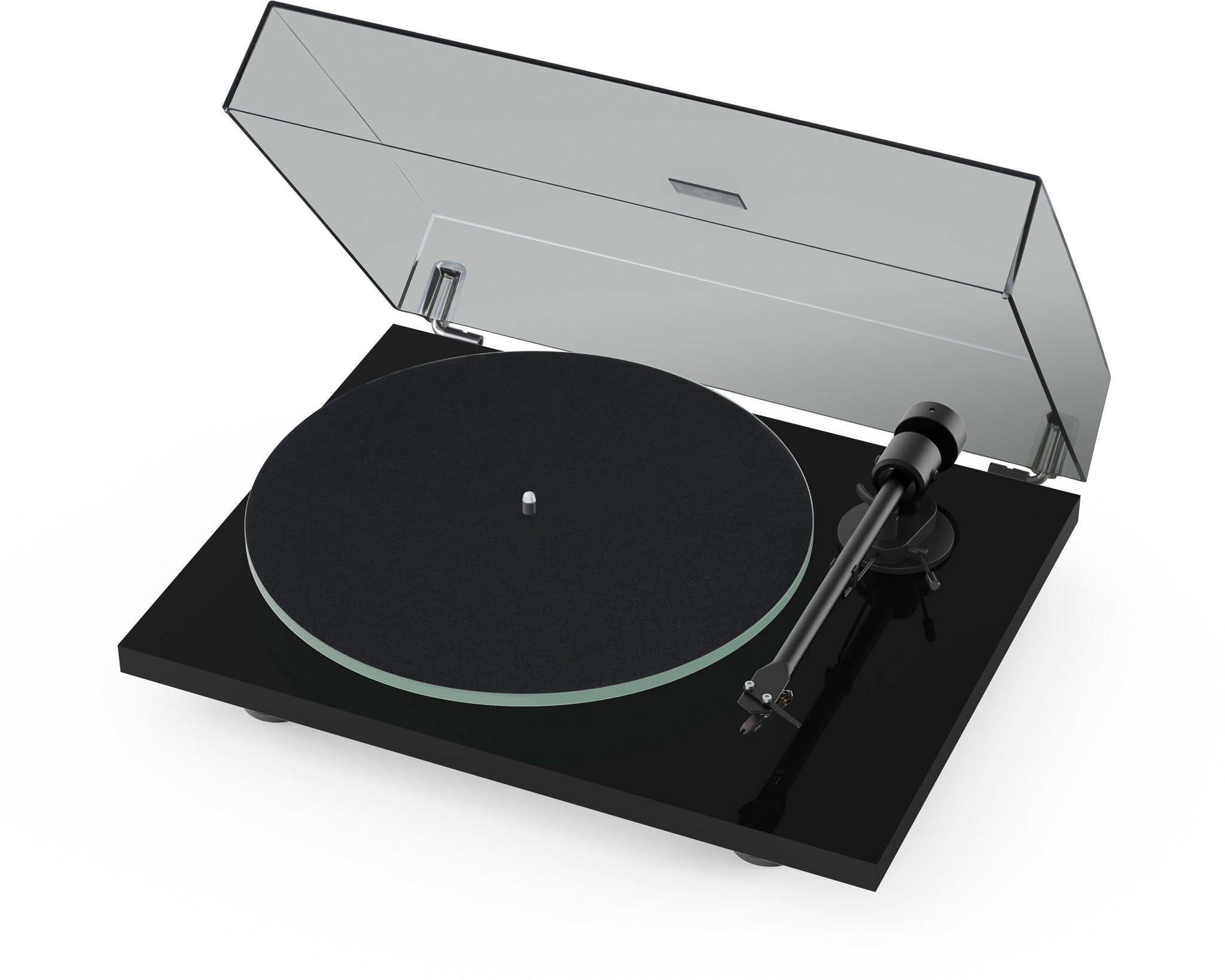

Pro-Ject T1 EVO Phono Turntable
The Pro-Ject T1 EVO Phono is a record player with electronic speed change and RIAA preamplifier. The best product of the year 2020-2021 EISA "Best Value Turntable". The T1 EVO Phono is a 2024 update of this great T1 SB player.
Pro-Ject T1 EVO Phono: A new generation turntable
The Pro-Ject T1 EVO Phono is an updated turntable from the T collection. In the new EVO version, the sound box is one quality class better, the Ortofon OM-10E and the RIAA preamplifier can now also be bypassed. The purpose of the T-series is to produce really high-quality sound on a limited budget. The instrument is carefully designed with minimal compromises from high-quality materials. The goal has been to produce a well-maintained record player that is able to play records warmly, but with distinction. In addition to the features of the T1 EVO basic model, the T1 EVO Phono offers an integrated turntable preamplifier for MM speakers.
DOWNLOAD THE PRODUCT DATASHEET HERE
MAIN FEATURES:
- Belt drive with precisely regulated electronic 33/45 rpm speed selector, manual
- Integrated turntable preamplifier, skippable
- Non-resonant coaster
- Heavy 8 mm thick, non-resonant plate made of ball-blown glass
- Heavy duty CNC machined frame construction: No gaps, no plastic
- Ortofon OM 10E MM sound box
- 8.6 inch aluminum precision machined tonearm
- Vibration-free and low-friction tonearm bearing
- Tone arm with integrated box mount
- Super-shielded, semi-symmetrical, low-capacitance turntable cables
- Vibration dampening turntable feet
- Stylish dust cover with adjustable hinges
- Available in piano black, matte white and walnut veneer
- European craftsmanship
Audiophile quality level in an even more affordable price range.
Most record player manufacturers use unregulated DC motors in their players, which have variable speed. In the T1 EVO Phono we use a proven, electronically controlled precision AC motor. In the T1 EVO Phono, the rotation speed is selected electronically by pressing a button (33/45 rpm). The result is a low-noise and stable traction system.

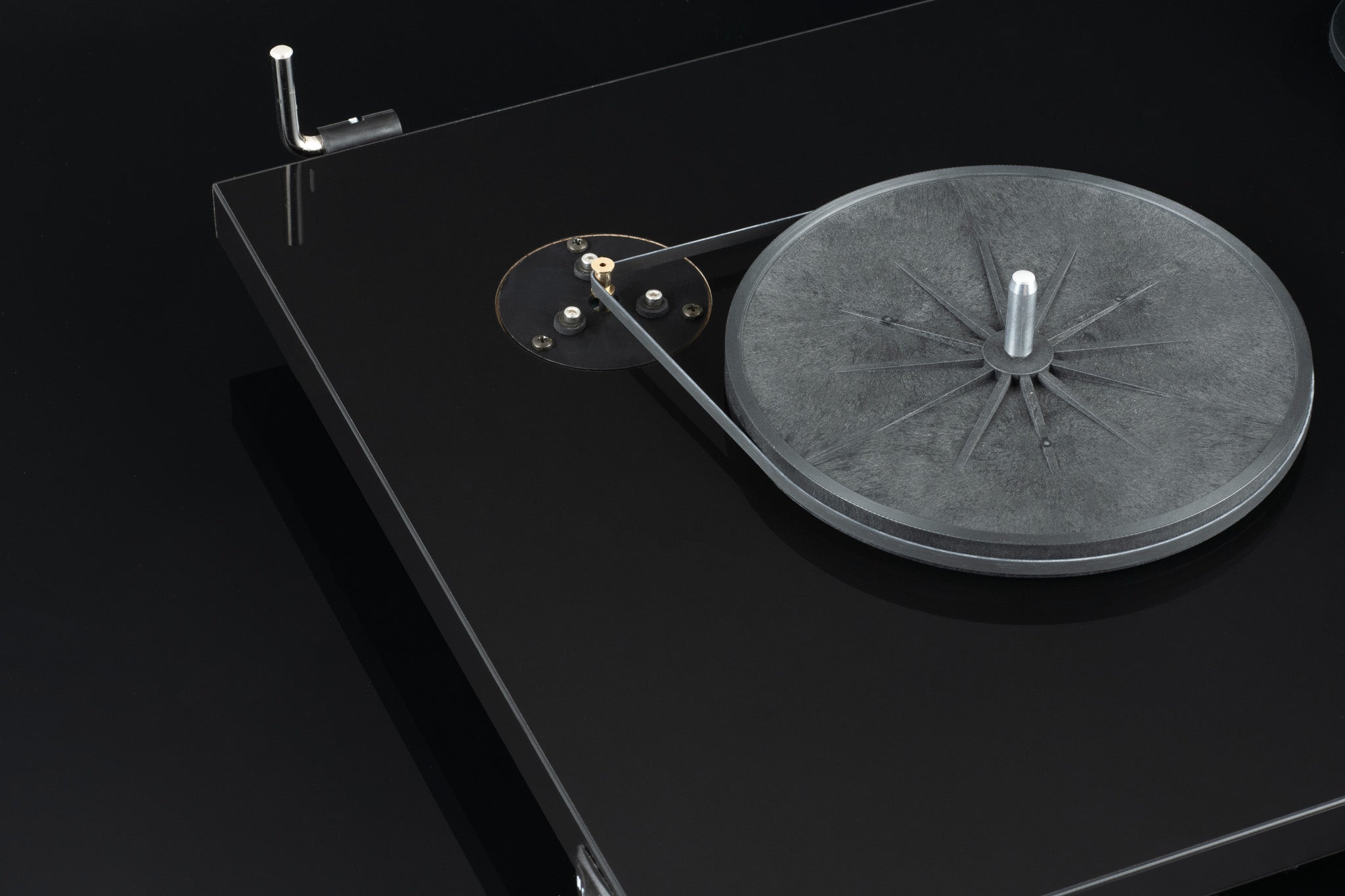

The belt drive of the T1 EVO turntables has been redesigned. The bearing of the precision-cast washer is ultra-precise. The bearing made of stainless steel and brass has a measurement accuracy of 0.001 mm. The selected drive system ensures a smoothly rotating and resonance-free operating environment for the tone arm and the sound box.

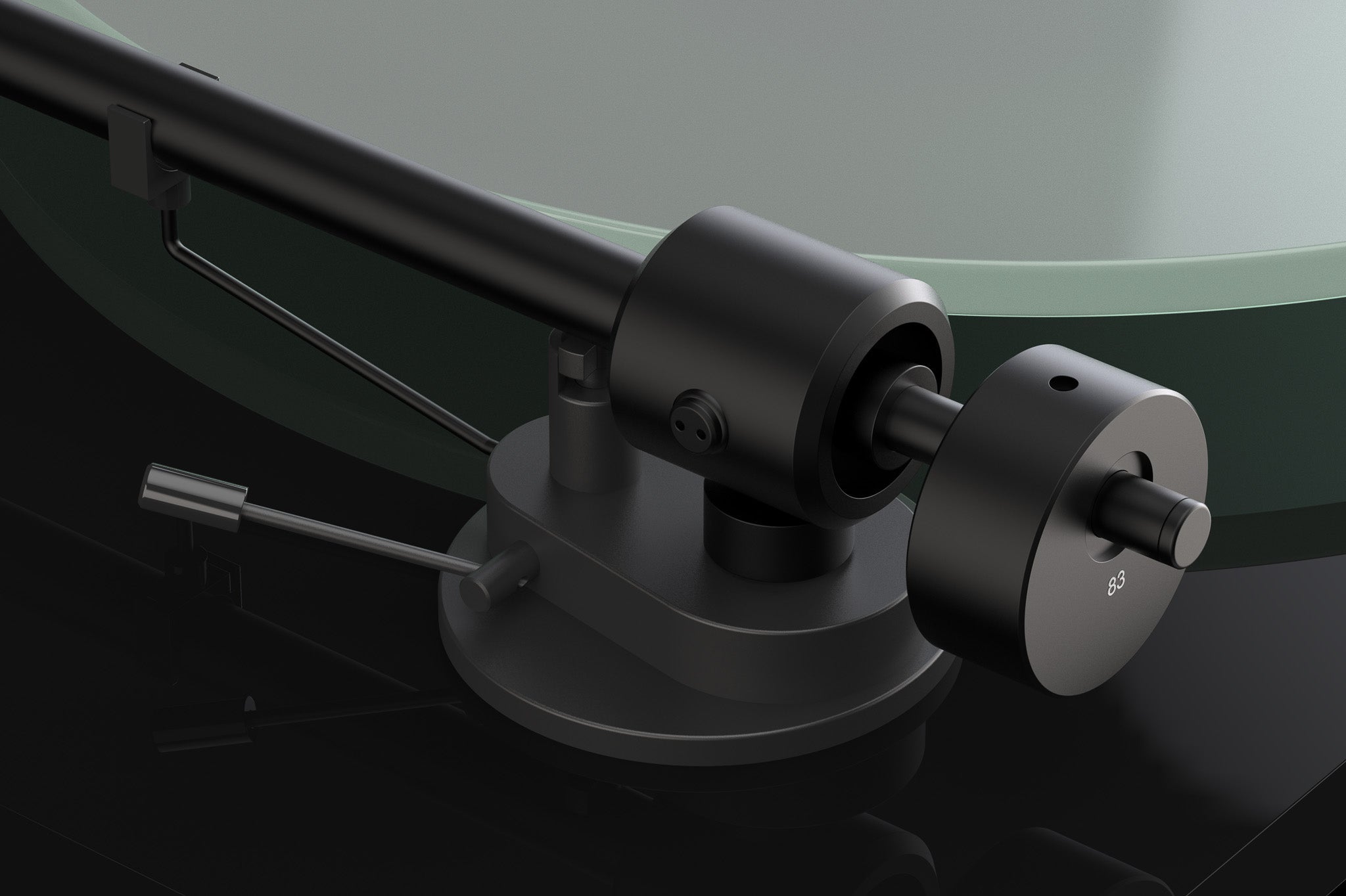

The tonearm construction of the T1 EVO collection is a new design based on previous Pro-Ject models. Its sleek 8.6-inch-long stem is made from a single, rigid piece of aluminum. The shaft bearing has low friction, but no backlash. The sound box slide integrated into the stem is rigidly constructed and does not produce its own vibrations in the same way as removable, screwed or glued sound box slides.

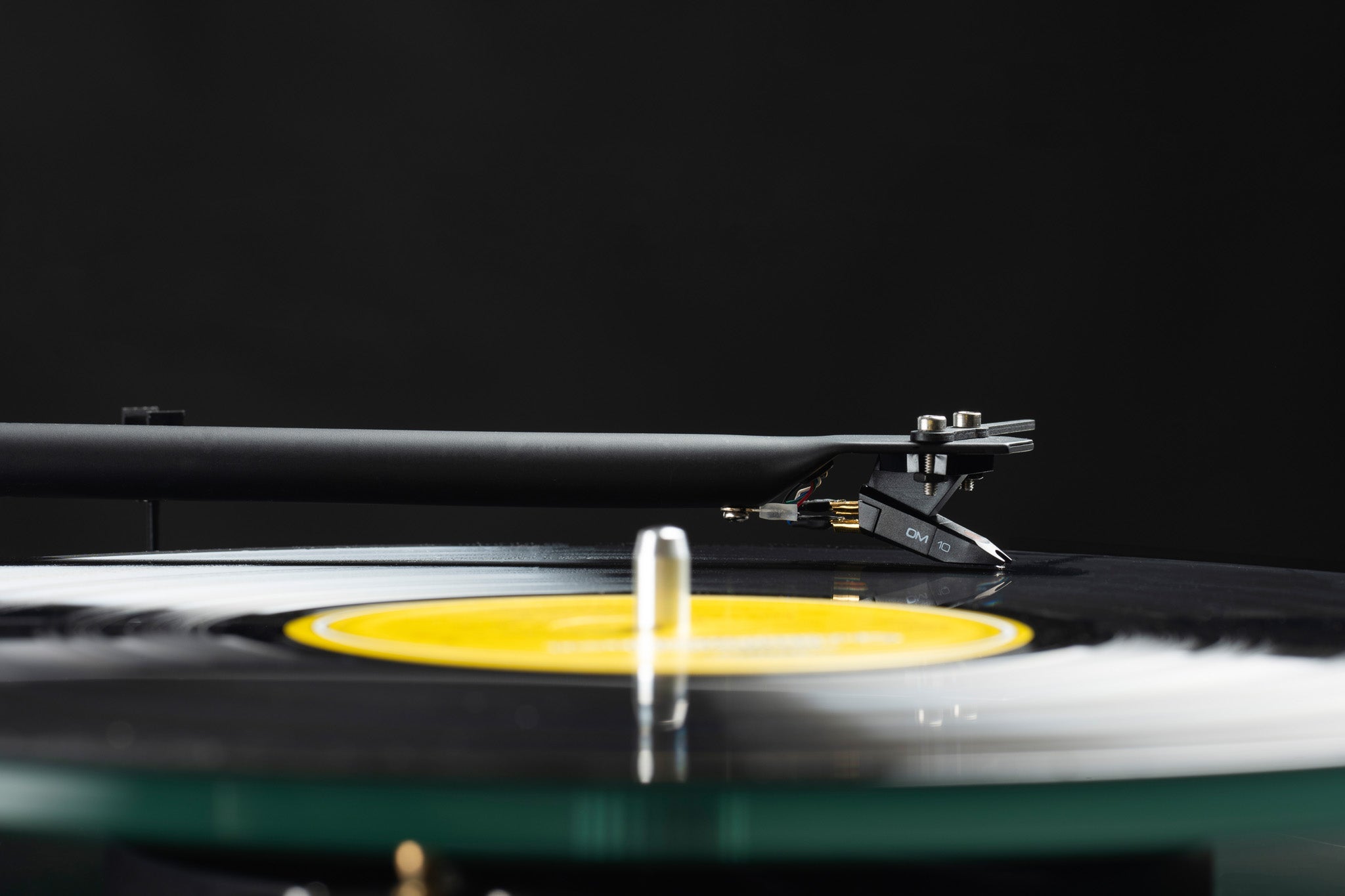

The T1 EVO Phono is delivered with an OM 10E moving magnet sound box manufactured by Ortofon. OM 10E is equipped with an elliptically ground diamond needle. There has been no saving in this matter either.
In addition, the instrument is equipped with a well-shielded, semi-symmetrical and low-capacitance intermediate wire. This is not a standard RCA cable, but the Connect It E designed by Pro-Ject for turntable use.
The T1 EVO Phono is a real miracle in its price range. This genuine hi-fi class record player, designed with decades of experience, is still manufactured in Europe. The T1 EVO Phono looks and sounds great!
Specifications:
- Speeds: 33 and 45 rpm (electronic speed selection)
- Traction method: Belt traction
- Max. speed deviation: 33: 0.7%. 45: 0.6%
- Shake and jitter: 33: 0.25%. 45: 0.23%
- Plate: Heavy 8 mm thick glass plate with felt mat
- Turntable bearing: Stainless steel/brass
- Interference distance: 65 dB
- Tonearm: Aluminum, length 8.6”
- Effective length of tonearm: 218.5 mm
- Overhang: 18.0 mm
- Effective mass of tonearm: 8.0 g
- Counterweight: 5 -10 g for the sound box mass (=standard box)
- Needle force adjustment range: 0-50 mN (adjusted to standard box 17.5 mN)

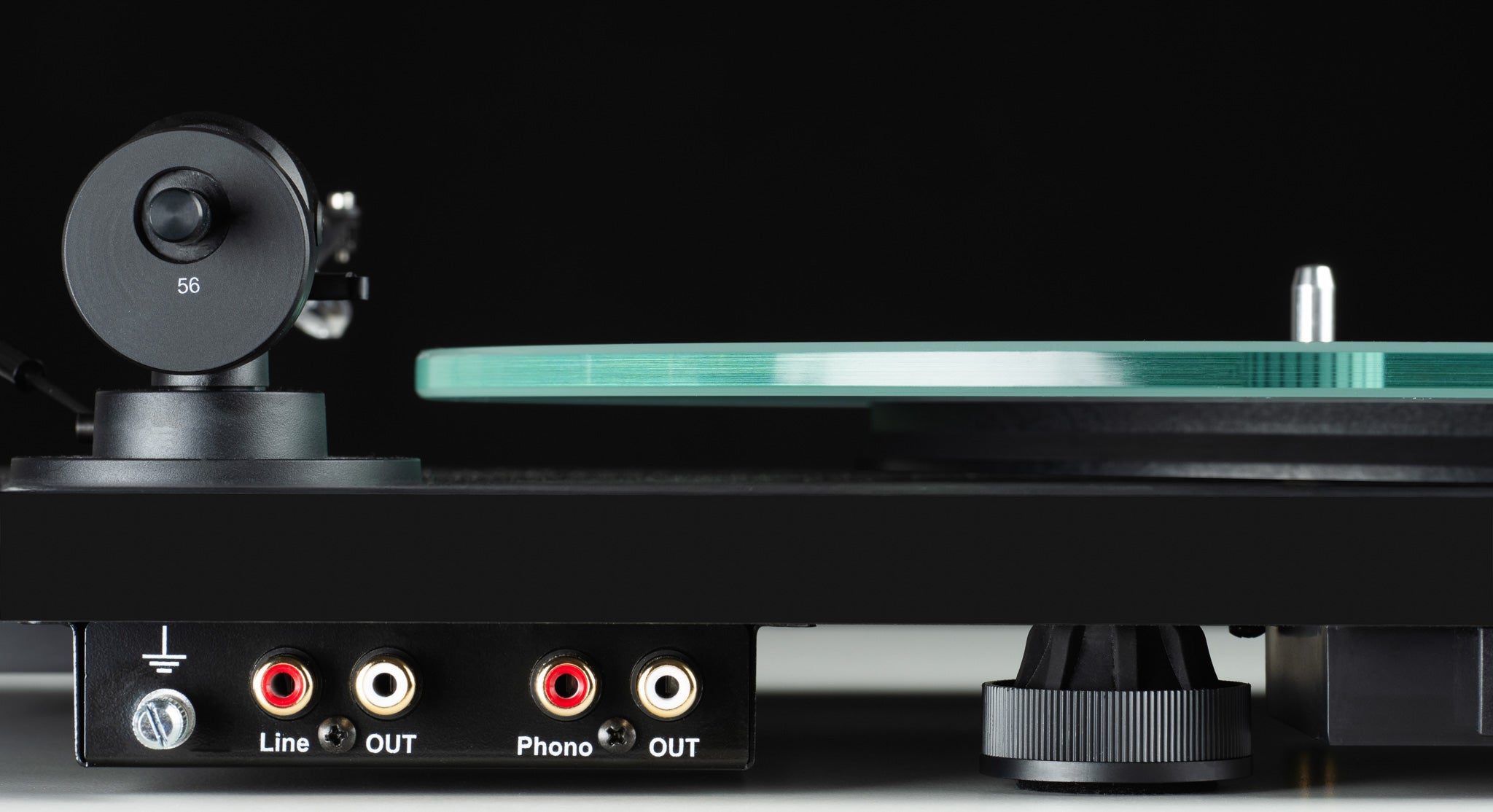

- Output connections: Phono RCA/Line RCA
- Standard accessories: Dust cover, felt mat, power supply, Por-Ject Connect It E cable
- Built-in power supply: 230, 50 Hz
- Power consumption: 4.5 W max
- External dimensions: 415x100x335 (WxHxD)
- Weight: 3.8 kg net
