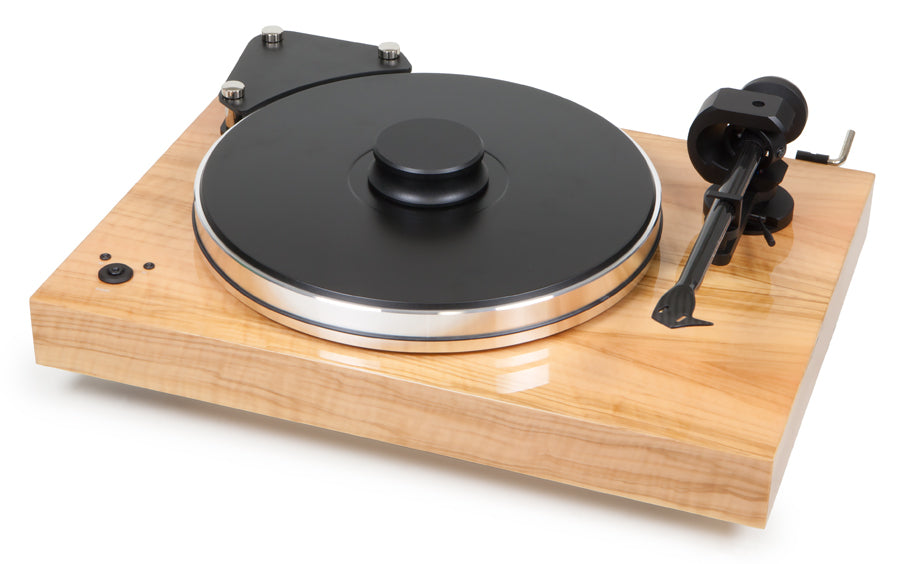

Pro-Ject Xtension 9 Evolution
High End record player, without sound box
Xtension 9 Evolution, the superior champion in its price category

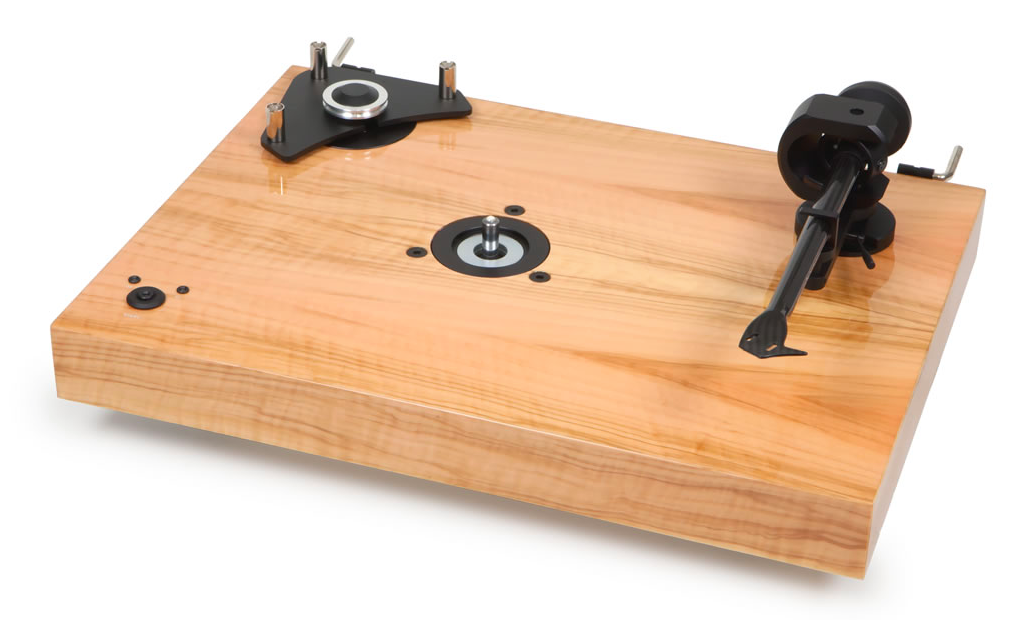

The Xtension 9 Evolution player's compact design reflects everything we've learned from making turntables for over 20 years. The frame of the Xtension 9 is made of metal-filled MDF board, thus creating a heavy and non-resonant structure.

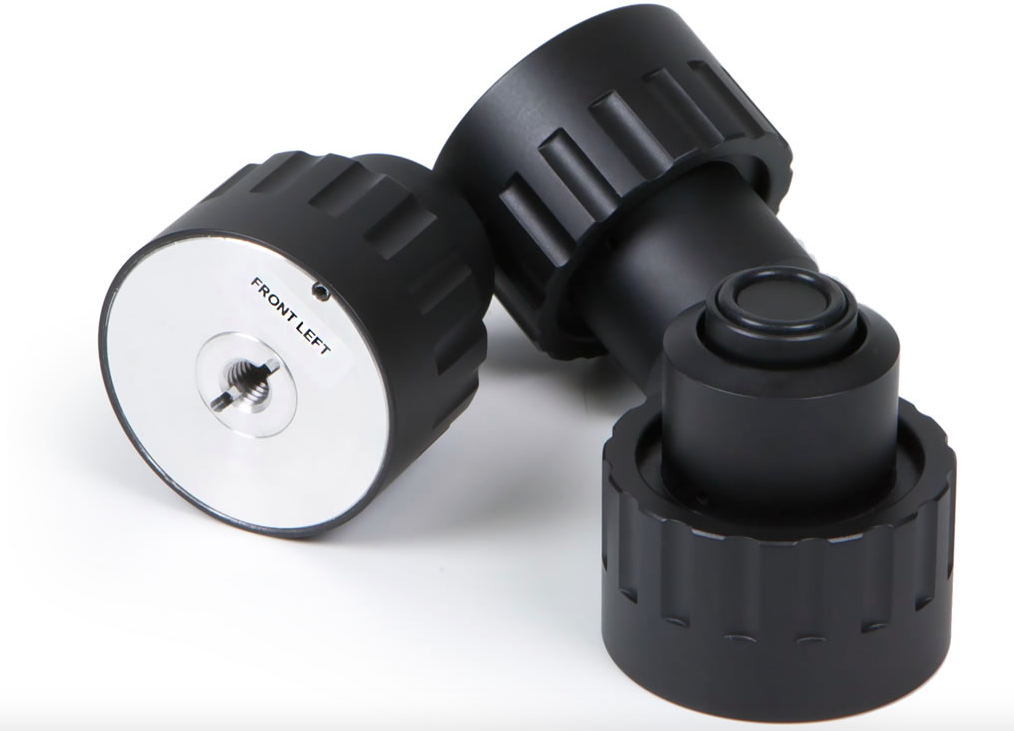

The magnetic feet, which isolate the frame from its base together with the 16kg weight, effectively eliminate mechanical feedback.

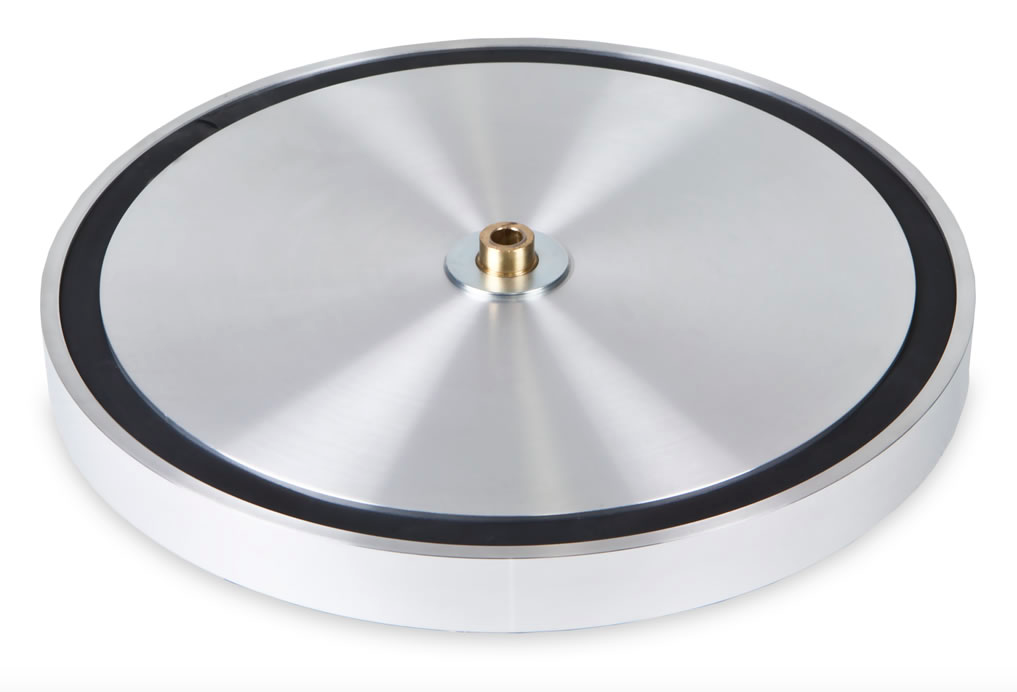

Instead of a simple metal plate, a layered structure is used; metal which is damped with TPE plastic. In addition, the plate is covered with vinyl obtained from recycled LP records, which is "baked" onto the surface of the plate (a separate record mat is not needed). Only after this is the plate perfectly balanced.

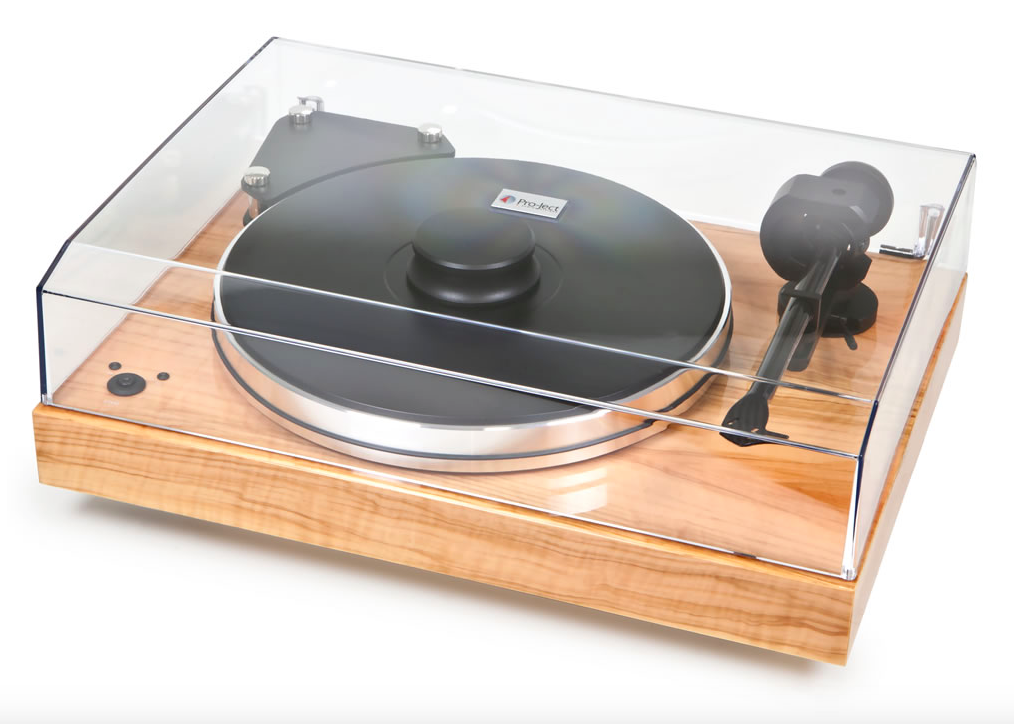

The end result is a resonance-free turntable that rotates extremely sensitively and silently thanks to the ceramic bearing and magnetic feet. The Pro-Ject Xtension 9 Evolution tonearm is a 9cc Evolution“, the dust cover is also standard equipment.
DOWNLOAD THE DATA MAGAZINE IN FINNISH HERE
FEATURES:
- Heavy 16 kg belt-driven record player
- Weighted magnetic suspension subframe
- Precision balanced multi-layer turntable
- Inverted magnetic supported ceramic bearing
- Heavy 800g record weight (Pro-Ject Record Puck)
- MDF frame with metal filling, low resonance and large mass
- Electronic speed selection 33/45 rpm
- Tonearm 9cc Evolution made of carbon fibers
- Inverted tonearm bearings (ABEC 7 quality class)

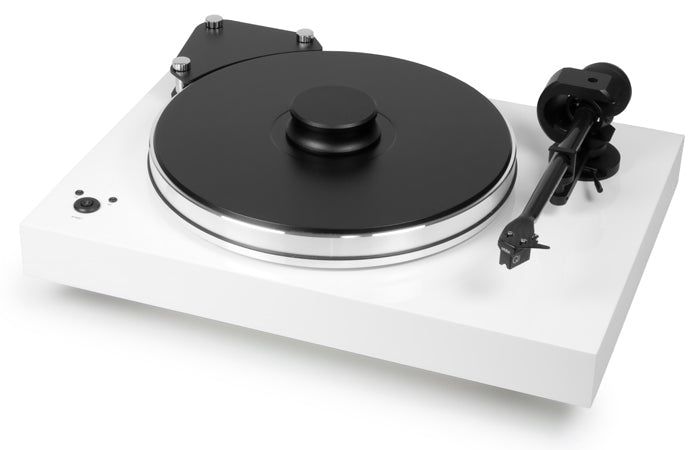

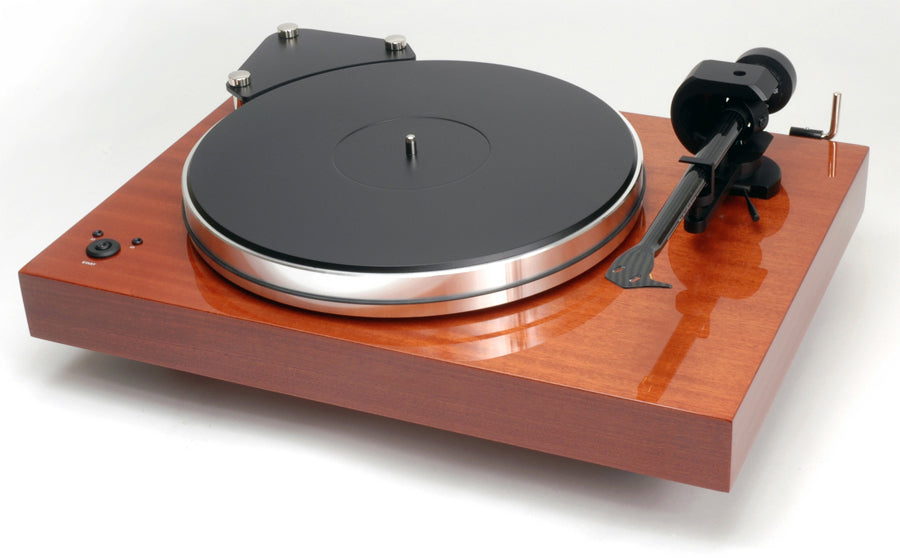

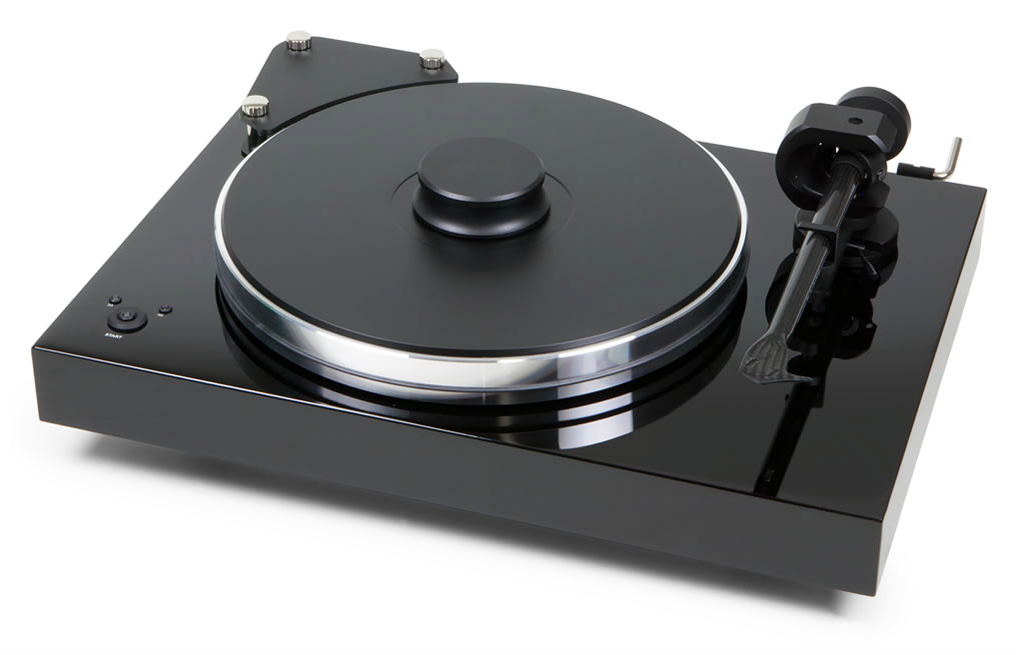

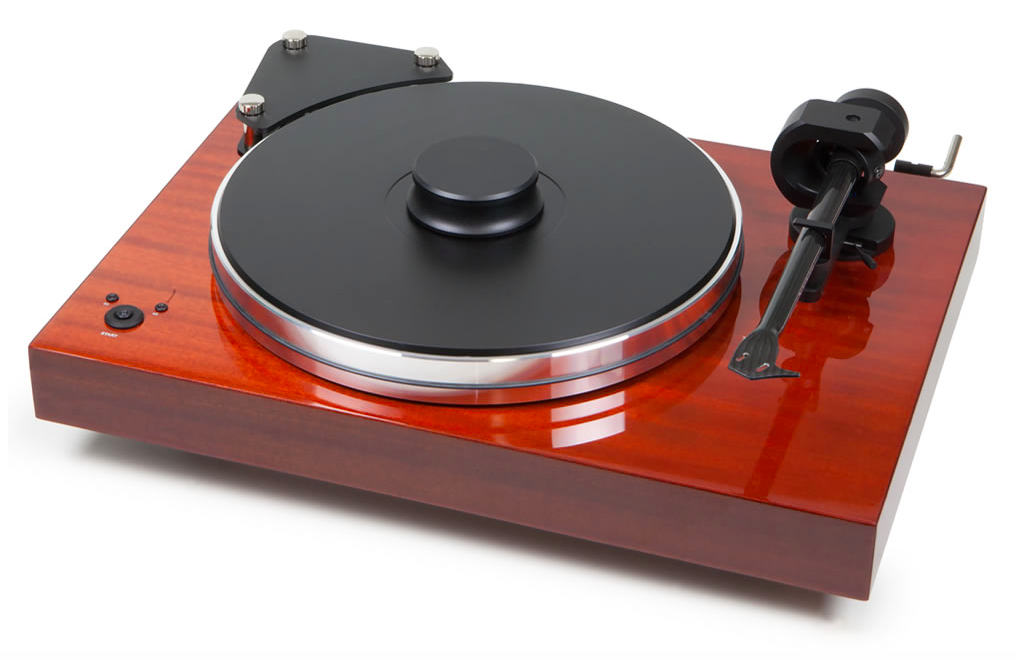

- 5 different color options; High Gloss piano black, olive, mahogany, white & red
XLR Option
Pro-Ject's Highend turntables can also be ordered with a balanced XLR cable, 5 pole connector>XLR connectors. When used together with balanced turntable preamplifiers (such as Phono Box S3, DS3, Tube, Box DS3,RS, RS2) the signal quality is the best possible.
NOTE: Both the program source and the amplifier must be equipped with balanced connectors. In this case, the protection against external interference and the signal quality remain as good as possible.
Specifications:
- Speeds 33 / 45 rpm (electrically selectable)
- There is a dust cover
- Pro-Ject tone arm wiring Connect it 5P-C
- Aluminum legs Magnetic & TPE damping
- Main bearing damping
- Maximum speed variation ±0.09%
- Maximum swing ±0.01%
- Rumble -71dB
- Turntable weight/diameter 5.4 kg/300mm
- Mass of plate weight 800gr
- Effective sound arm length / overhang 230mm / 18mm
- Effective tonearm mass 8.5g
- Tracking force 0-25mN
- Approved sound box weight 4 - 14g (4 different counterweights as standard)
- External power supply (primary/secondary) 220 - 240V/50Hz / 15V/1600mA DC
- Power consumption 4W (max.) / < 1 watt standby
- Dimensions WxHxD 465 x 185 x 3500 mm with the lid closed
- Weight 16kg
