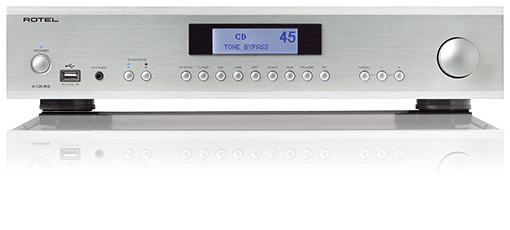

Rotel A12mk2
Integrated stereo amplifier with digital inputs
The A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimized circuits and a 32-bit DAC deliver spacious and open reproduction of the music.
The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers. Powered by Rotel's Oversized in-house manufactured Toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.
A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favorite sources. The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimized circuits preserving the integrity of the audio stream.
Slim and powerful the A12MKII delivers on Rotel's iconic brand heritage.
Technical information:
- MAXIMUM POWER OUTPUT 120W/Ch (4Ω)
- CONTINUOUS POWER OUTPUT60W/Ch (8Ω)
- TOTAL HARMONIC DISTORTION (THD)<0.018%
- FREQUENCY RESPONSE
- Line Level Inputs: 10Hz - 100kHz, 0±0.5dB
- Digital Inputs: 10Hz - 90kHz, 0±2dB
- Phono Input: 20Hz - 20kHz, 0±0.5dB
- S/N RATIO (IHF "A" Weighted)
- Line Level Inputs: 100dB
- Digital Inputs: 103dB
- Phono Input: 90dB
- DIMENSIONS (W × H × D) 430 × 93 × 345mm
- FRONT PANEL HEIGHT 80mm (3.15")
- POWER REQUIREMENTS 120V, 60Hz
- POWER CONSUMPTION 230W
- STANDBY POWER CONSUMPTION <0.5W
- NET WEIGHT 8.76kg (19.31lbs.)
- BTU RATING (4Ω, 1/8th power) 632 BTU/h
