Rotel DX-5 integrated amplifier
The Rotel DX-5 is a high-performance personal integrated audio amplifier packaged in a sleek, modern and elegant industrial design. Designed with passion and featuring a precision Class AB amplifier powered by Rotel's own high-current toroidal transformer, the Rotel DX-5 delivers 33 watts per channel into 4 ohms (25 watts into 8 ohms).
The high-end ESS ES9039Q2M DAC delivers accurate, high-quality audio reproduction across a wide range of audio frequencies. Supported connections and formats include PC-USB (32-bit/384kHz PCM, DSD 4x), coaxial/optical (24-bit/192kHz), aptX™ HD and AAC wireless Bluetooth, traditional RCA analog input, HDMI ARC and subwoofer output.

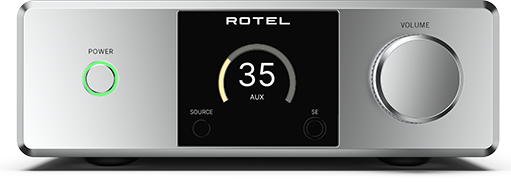

The DX-5 features a full-color TFT display, 1/4” (6.35 mm) headphone jack, and an intuitive remote control, making it the perfect choice for music lovers and home entertainment enthusiasts alike.
- HDMI Supports ARC (Audio Return Channel)
- Digital inputs SPDIF LPCM (up to 24-bit/192 kHz), PC-USB, USB Audio Class 2.0
– Supports up to 32-bit / 384 kHz*
– Supports DSD (up to 4x, 11.2 MHz) and DoP (up to 2x, 5.6 MHz)
(*Requires driver installation)
- Roon Tested Compatible with Roon streaming system
- Power output (FTC): 25 W/channel
- Maximum power (no FTC): 33 W / channel (1 kHz, 4 Ω)
- Continuous power (no FTC): 25 W/channel (1 kHz, 8 Ω)
- Total Harmonic Distortion (THD): < 0.03%
- Frequency response: 10 Hz – 100 kHz (0 ± 0.19 dB)
- Damping factor (20 Hz – 20 kHz, 8 Ω): 140
- Input sensitivity / impedance: 680 mV / 100k Ω
- Input overload: 4.2 V
- Signal-to-noise ratio (IHF "A" weighted): >100 dB
- Dimensions (W x H x D): 215 x 76 x 251 mm
- Front panel height: 70 mm (2 3/4")
- Power supply: 120 V, 60 Hz
- Power consumption: 80 W
- Standby power consumption: <0.5 W
- Weight: 4.1 kg (9.1 lbs)
- Heat output: 241 BTU/h
