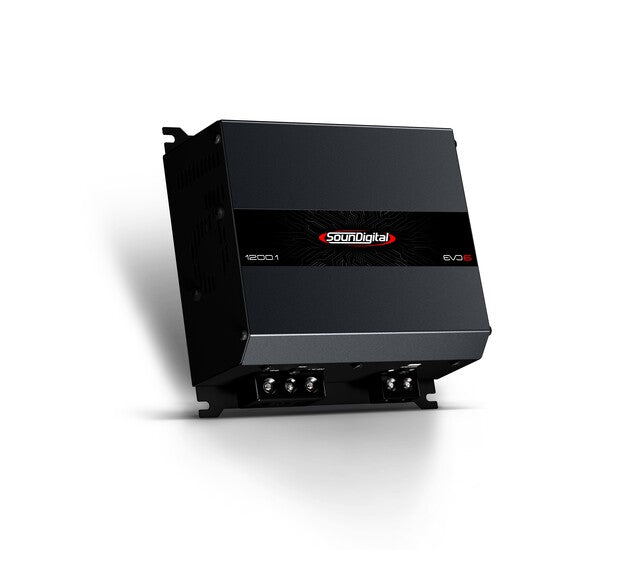

SounDigital 1200.1 EVO 6 - 1 Ohm

SounDigital 1200.1 EVO 6 - 1 Ohm

• 1-channel amplifier
• 1 Ohm model
• 1200W
• Very compact

Take your audio to the next level with the SounDigital EVO6 series amplifiers – compact size, lots of power and speaker-level input in one package!

Never before has such great power been achieved from such small dimensions. And at a very reasonable price!

All models have a damping factor of over 1000!

High power levels consume a lot of power, and in many cars, voltage drops during peak music and when playing loudly are a problem.

Soundigital's amplifiers take this practical situation into account so that the operating voltage of the amplifiers can be as low as 9 volts!

SounDigital is an amplifier manufacturer that operates in a very rare way these days,
ALL models are designed and manufactured in our own production facility in Brazil.

Specifications:
Power @ 4Ω: 1 X 532 WRMS
Power @ 2Ω: 1 X 800 WRMS
Power @ 1Ω: 1 X 1200 WRMS

Frequency Response (-3dB):

5Hz ~ 20kHz

Subsonic Filter:

5Hz~80Hz

Low Pass Filter 12dB / octave:

80Hz ~ 20kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V~16V

Signal-to-Noise Ratio:

93.7dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 54A
2Ω: 52A

Current Draw (Max):

1Ω: 108A
2Ω: 105A

Total Efficiency:

1Ω: 88%
2Ω: 91%

Damping Factor:

2000

Power Cable:

10mm² (5AWG)

Audio Output Cable:

1Ω: 2 x 2.5mm² (13 AWG)
2Ω: 2 x 2.5 mm² (13 AWG)

Recommended Fuse (Music):

60A

Recommended Battery:

60Ah

Width:

12.9 cm

Length:

14.7 cm

Height:

6.6 cm

Weight:

1.20 Kg.
