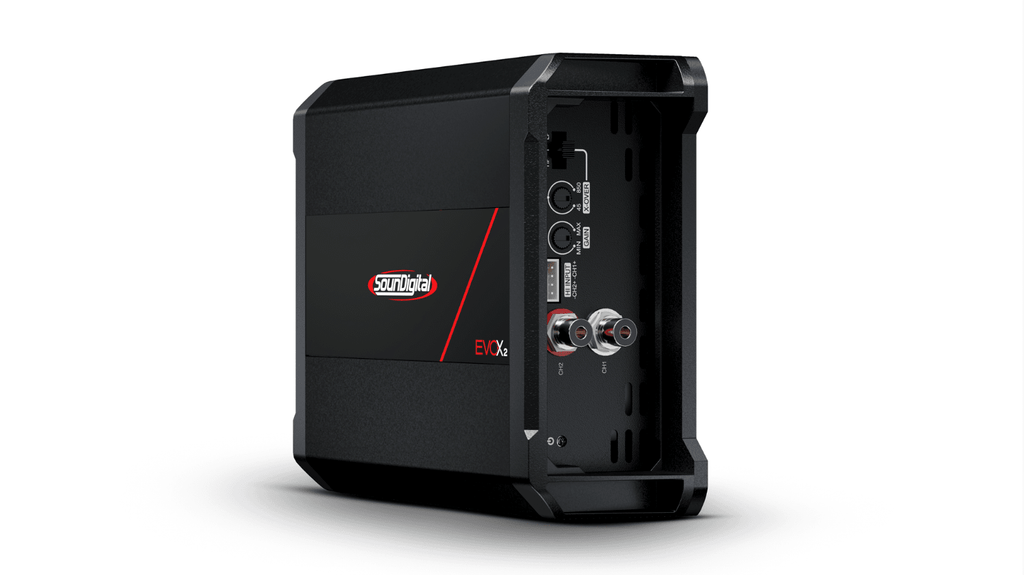

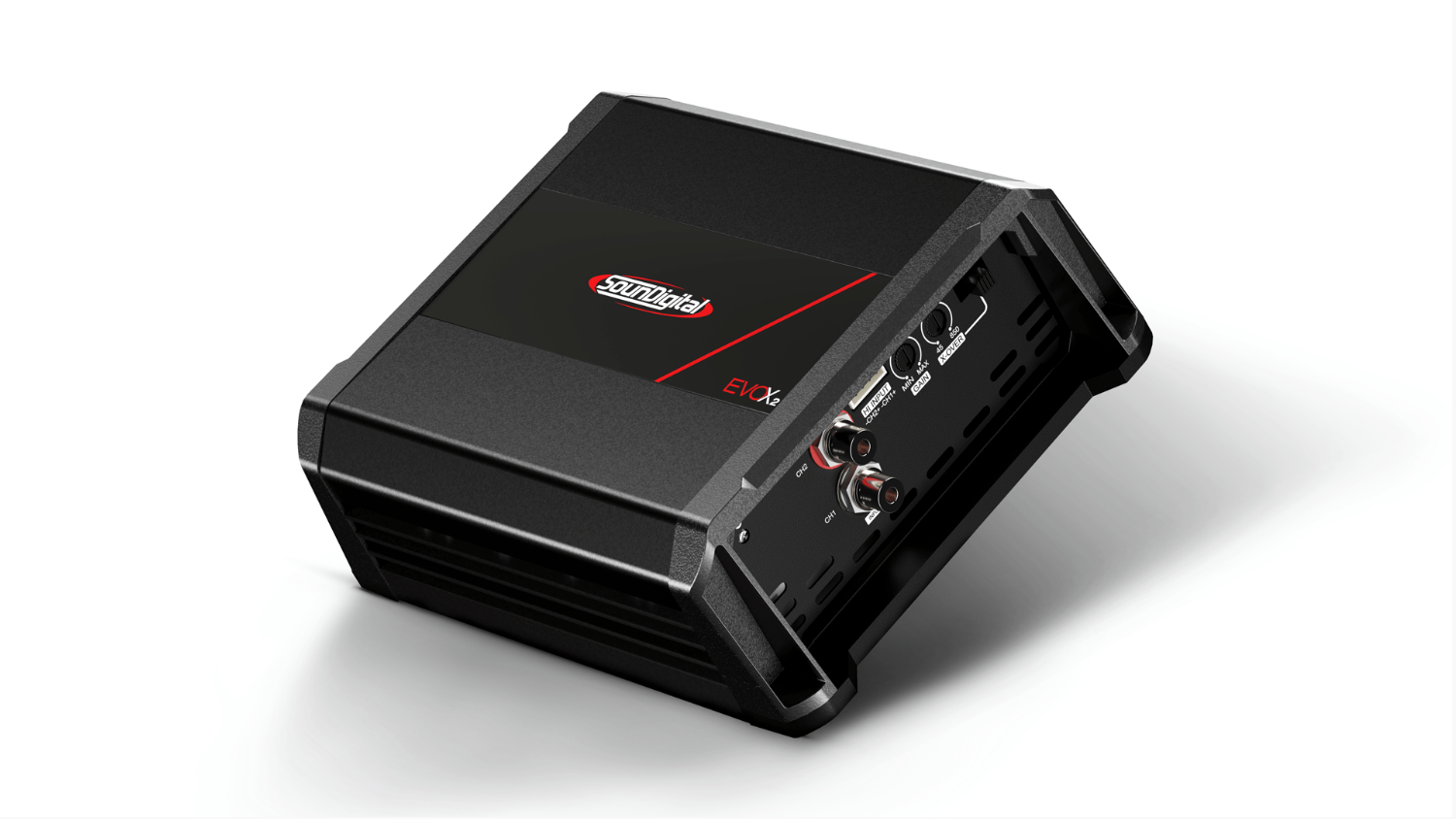

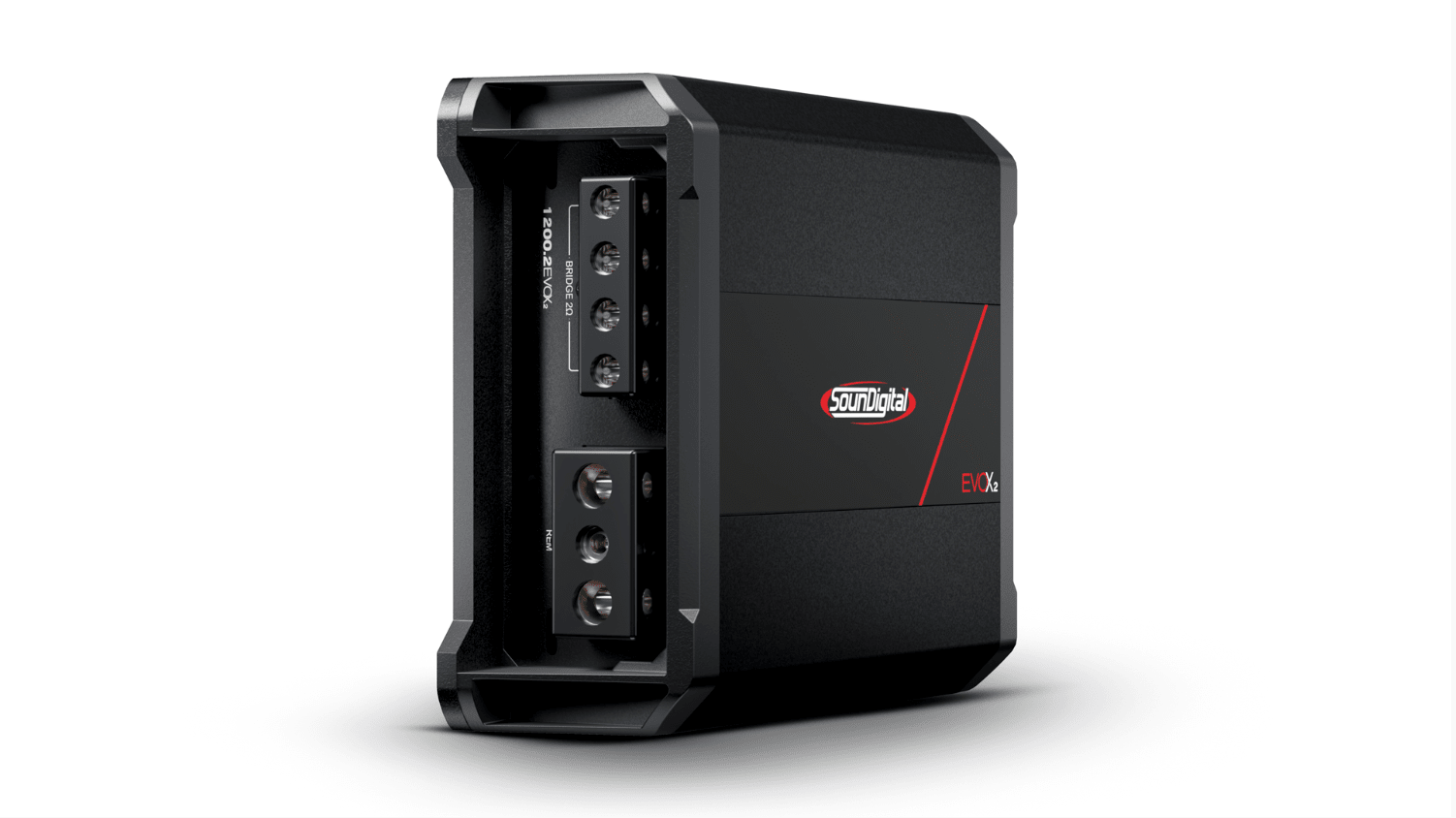

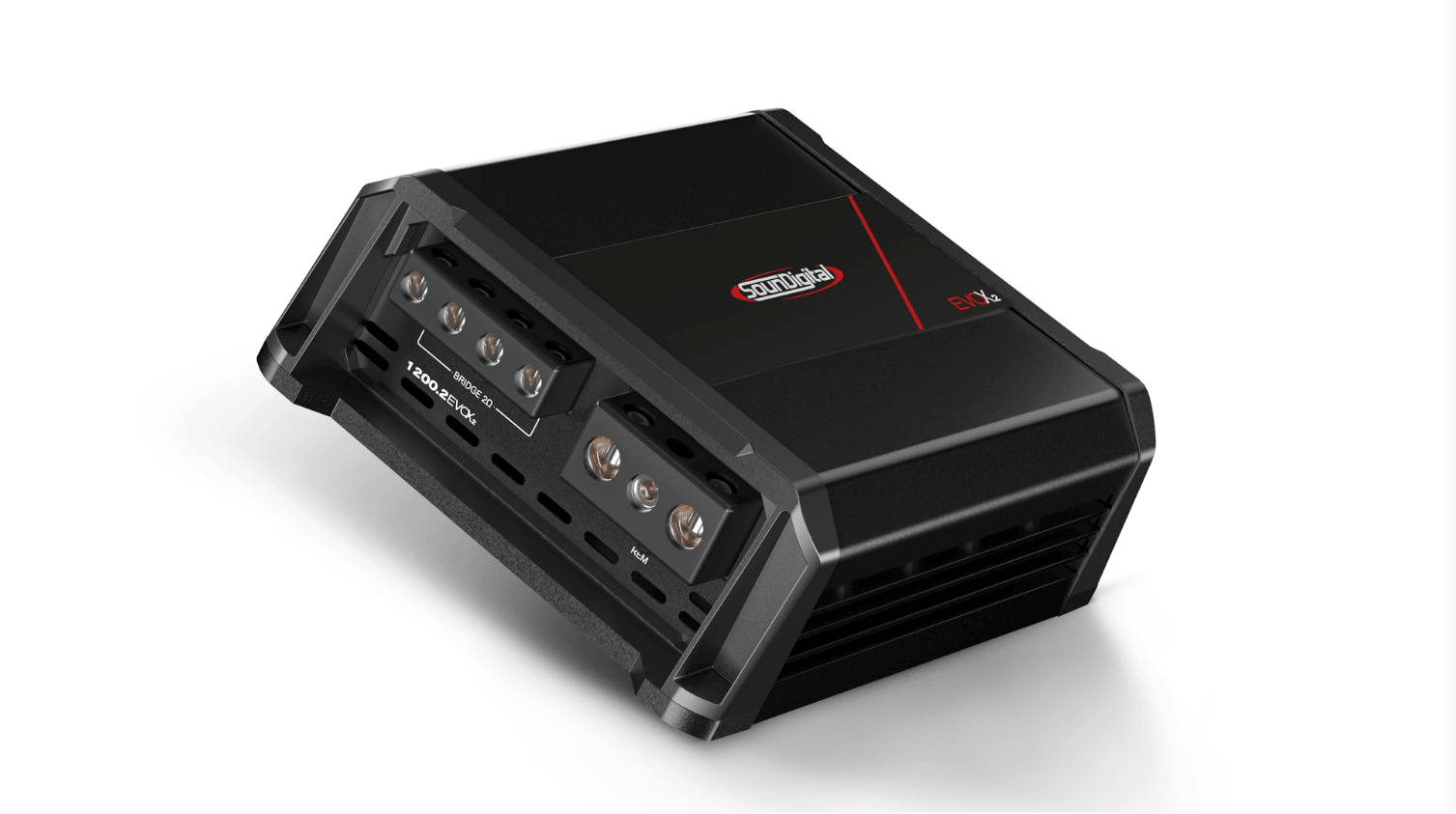

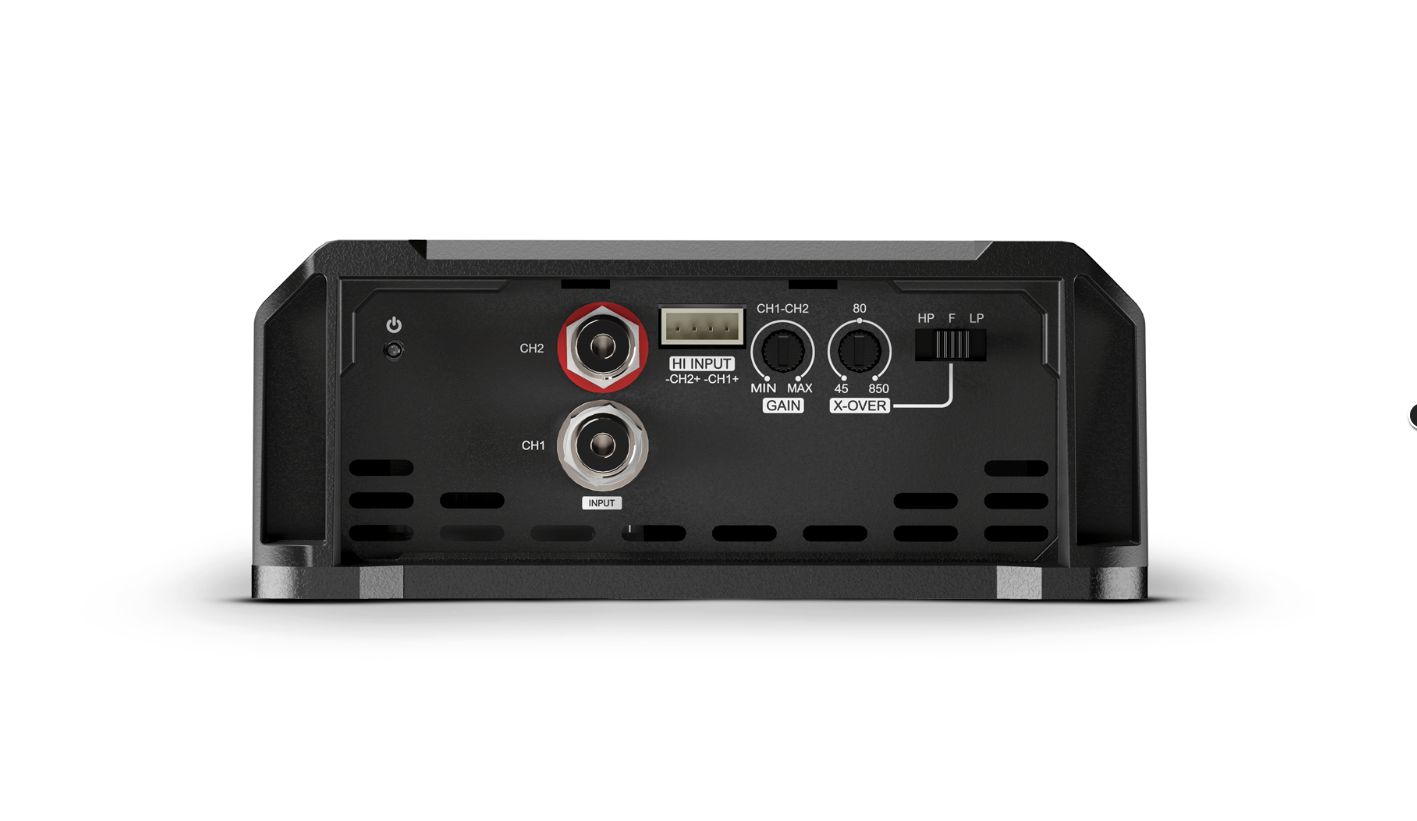

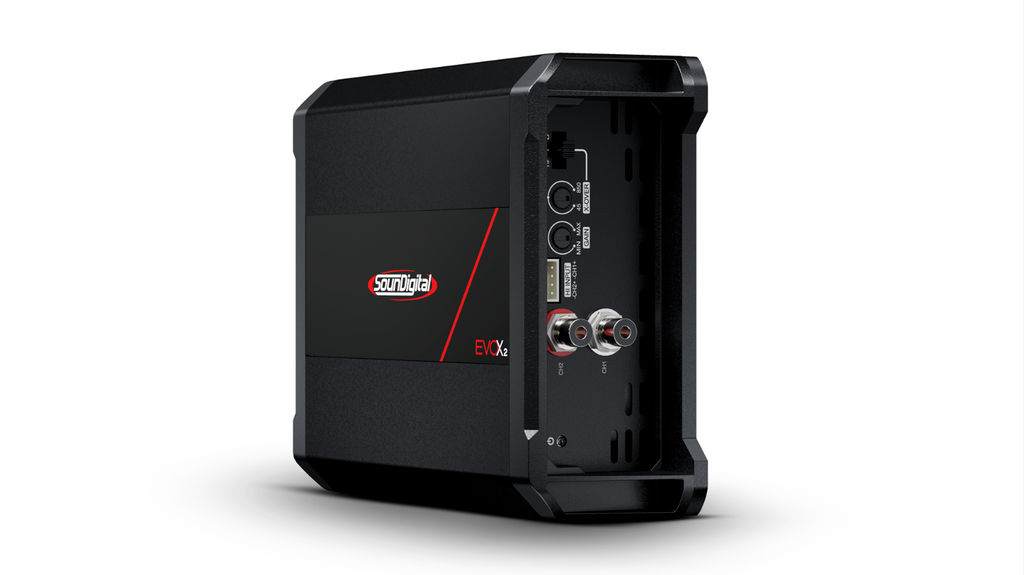

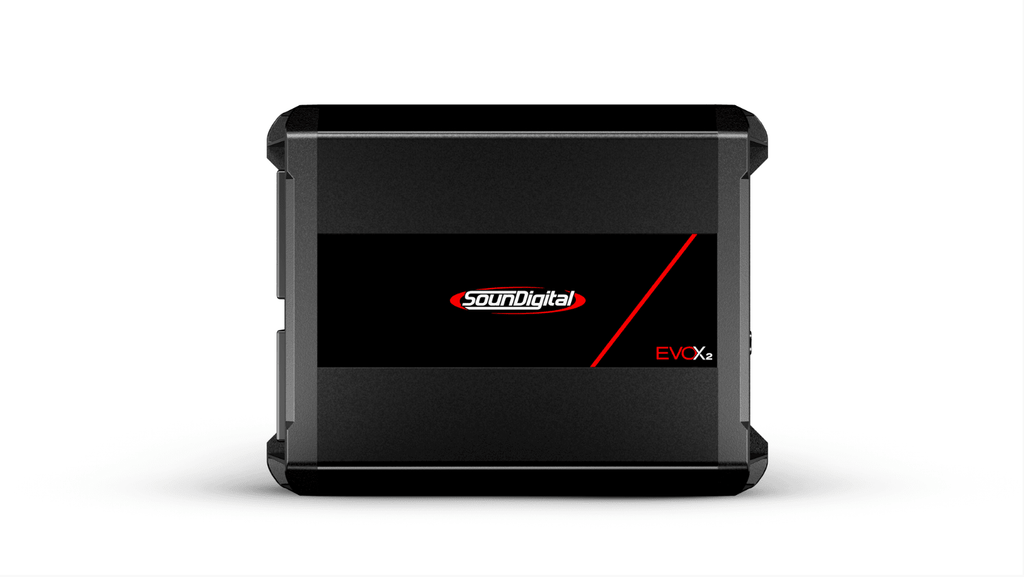

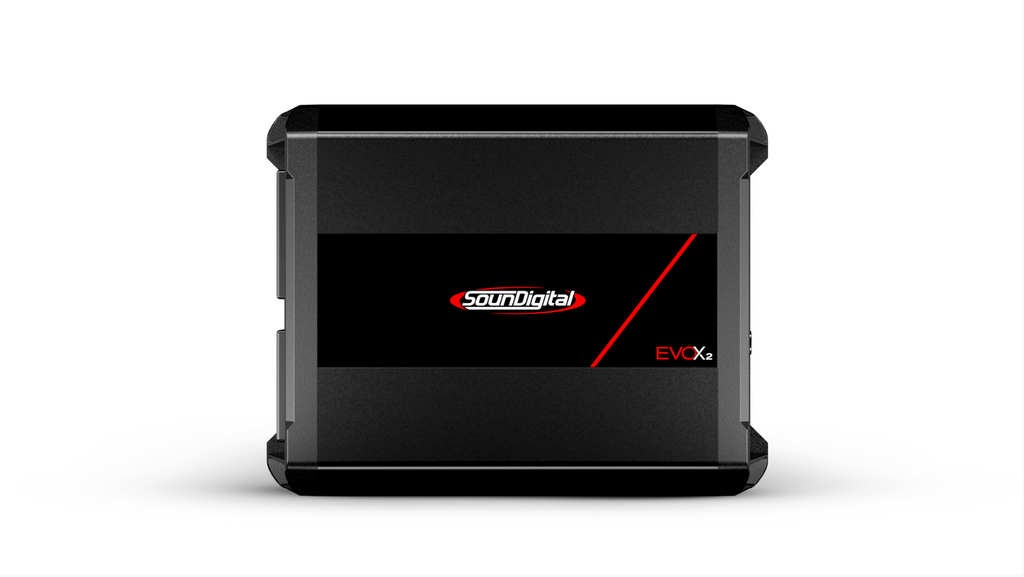

Soundigital 1200.2 EVOX2 - 2 ohm

Soundigital 1200.2 EVOX2 - 2 ohm

• 2-channel amplifier
• 2 Ohm model
• 2 x 660W or 1 x 1330W
• Revised circuit
• Better cooling

The EVO X2 Line brings the latest technology to a compact design and high-quality components. With groundbreaking technology
SounDigital brought something to car audio amplifiers that had not been explored before. Thermal coupling of the RTGP system
The unique RTGP system (heat recovery for power generation) guarantees SounDigital products both
higher thermal efficiency as well as durability and stability.

Specifications:
Power @ 12.6V @ 4Ω: 2 X 261 WRMS
Power @ 12.6V @ 2Ω: 2 X 396 WRMS
Power @ 12.6V @ 1Ω: 2 X 600 WRMS
Bridge Power @ 12.6V @ 4Ω: 1 X 792 WRMS
Bridge Power @ 12.6V @ 2Ω: 1 X 1200 WRMS
Power @ 14.4V @ 4Ω: 2 X 291 WRMS
Power @ 14.4V @ 2Ω: 2 X 442 WRMS
Power @ 14.4V @ 1Ω: 2 X 669 WRMS
Bridge Power @ 14.4V @ 4Ω: 1 X 883 WRMS
Bridge Power @ 14.4V @ 2Ω: 1 X 1338 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 57 A
Current Draw (Max): 115 A
Recommended Fuse (Music): 60 A
Total Efficiency: 83%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 91dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm

Do not connect the amplifier to less than the rated load!

Do not run your amp under rated impedance!.
