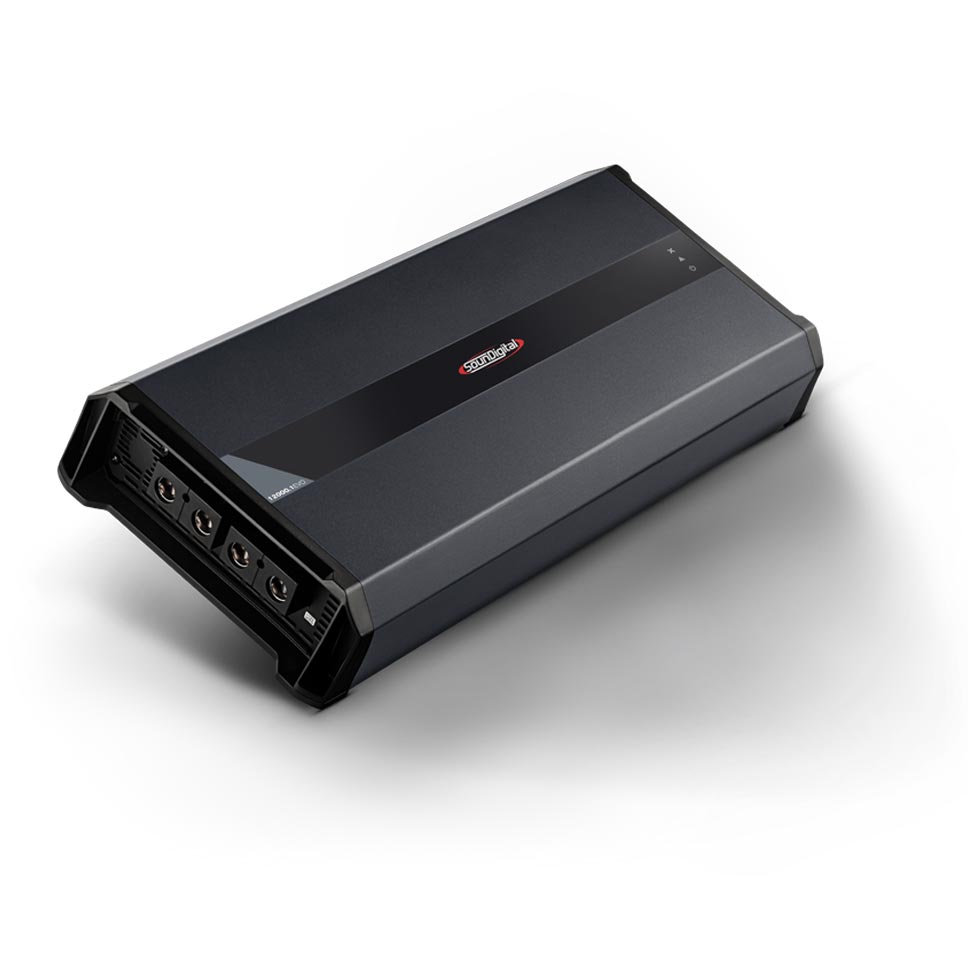

SounDigital 12000.1 EVO 4.0 - 1 Ohm

SounDigital 12000.1 EVO 4.0 - 1 Ohm

• 1-channel amplifier
• 13380W
• 1 Ohm model
• Your choice when you want to play LOUD!

The Soundigital Evolution series amplifiers change the concept of playing LOUD!
This amplifier brand has grown in a short time to become one of the largest manufacturers in Brazil.
And no wonder, because each amplifier is designed and manufactured in their own factory.
The design team includes many big names from the so-called Pancadao builders, these are cars that play music continuously at outdoor events for really long periods of time.
This hobby really puts a strain on amplifiers and no compromise in design is the solution.

Specifications:
Compatible with SD-RLC Remote level control.

POWER RATING
Power @ 1Ω: 1 X 12000W RMS
Power @ 2Ω: 1 X 7920W RMS
Power @ 4Ω: 1 X 5227W RMS

14.4V: @ 1Ω: 1 x 13380W RMS
14.4V: @ 2Ω: 1 x 8831W RMS

CROSSOVER
High Frequency: 5Hz - 80Hz
Low-pass filter: 50Hz - 6Khz

DIMENSIONS
L: 53cm
Width: 22.5cm
Height: 7.1cm

FREQUENCY
(-3dB): 5Hz – 6kHz
THD: 0.08%

Do not connect the amplifier to less than the rated load!

Do not run your amp under rated impedance!
