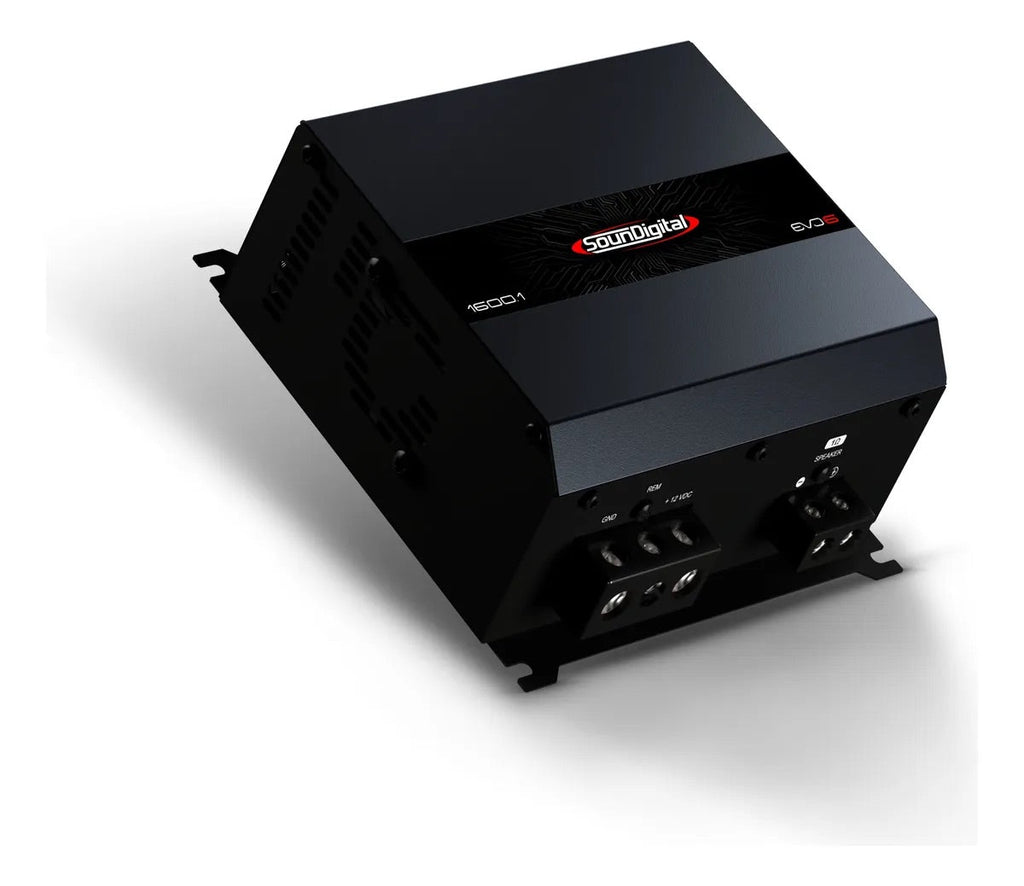

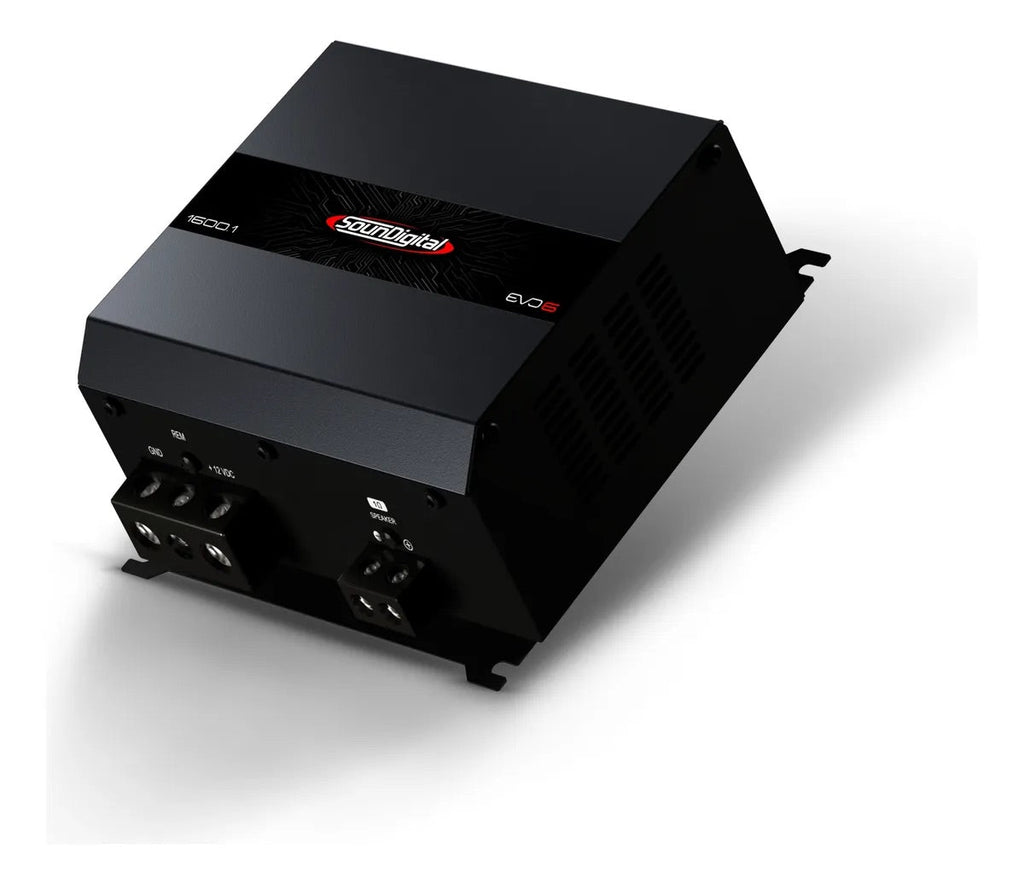

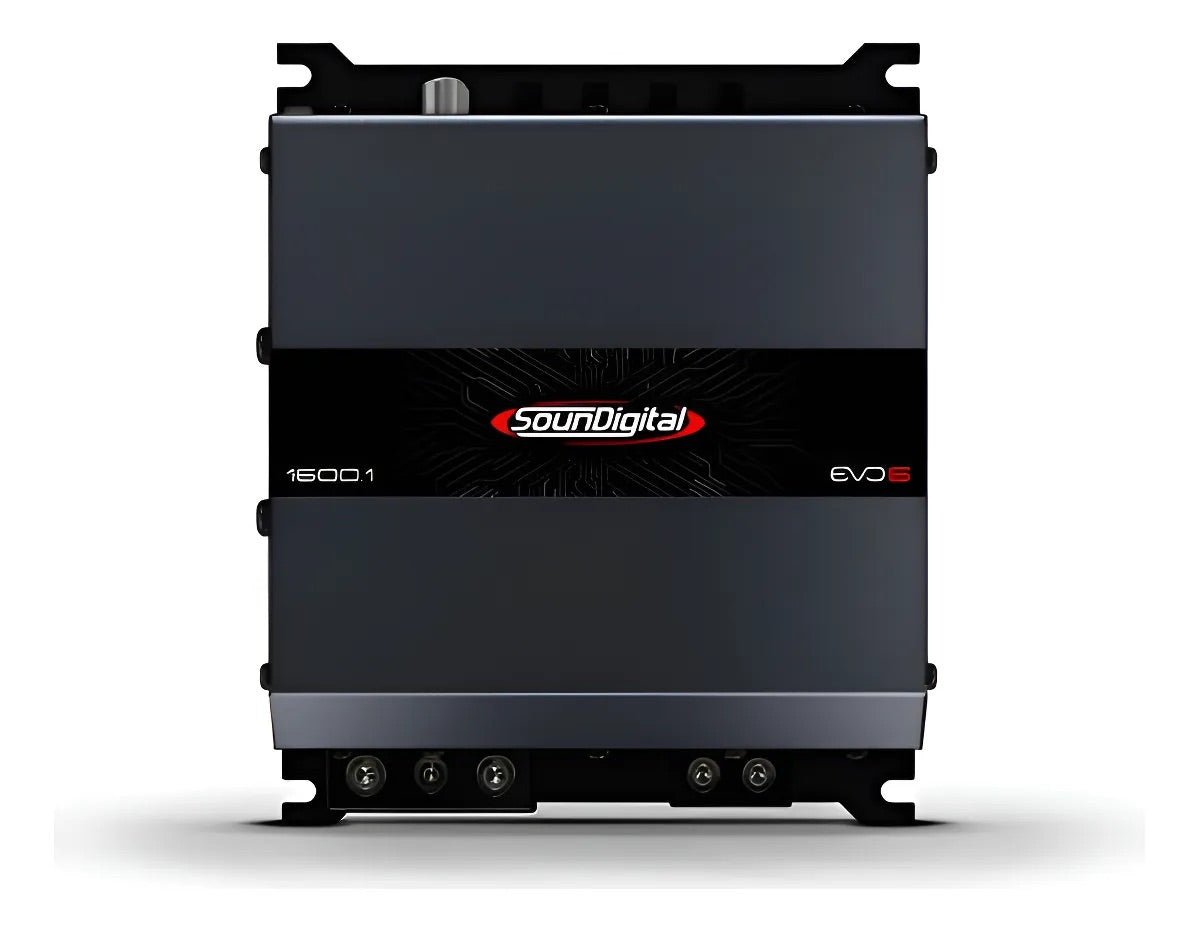

SounDigital 1600.1 EVO 6 - 1 Ohm

SounDigital 1600.1 EVO 6 - 1 Ohm

• 1-channel amplifier
• 1600W
• 1 Ohm model
• Small size

Take your audio to the next level with the SounDigital EVO6 series amplifiers – compact size and lots of power in the same package!

Never before has such great power been achieved from such small dimensions. And at a very reasonable price!

All EVO 6 models have a damping factor of over 1000!

High power levels consume a lot of power, and in many cars, voltage drops during peak music and when playing loudly are a problem.

Soundigital's amplifiers take this practical situation into account so that the operating voltage of the amplifiers can be as low as 9 volts!

SounDigital is an amplifier manufacturer that operates in a very rare way these days,
ALL models are designed and manufactured in our own production facility in Brazil.

Specifications:
Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz~80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V~16V

Signal-to-Noise Ratio:

1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 75A
2Ω: 71A
4Ω: 69.4A

Current Draw (Max):

1Ω: 149A
2Ω: 143A
4Ω: 138.8A

Total Efficiency:

1Ω: 85%
2Ω: 89%
4Ω: 91.5%

Damping Factor:

2000

Power Cable:

16mm² (5AWG)

Audio Output Cable:

2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

80A

Recommended Battery:

80Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.13 Kg.
