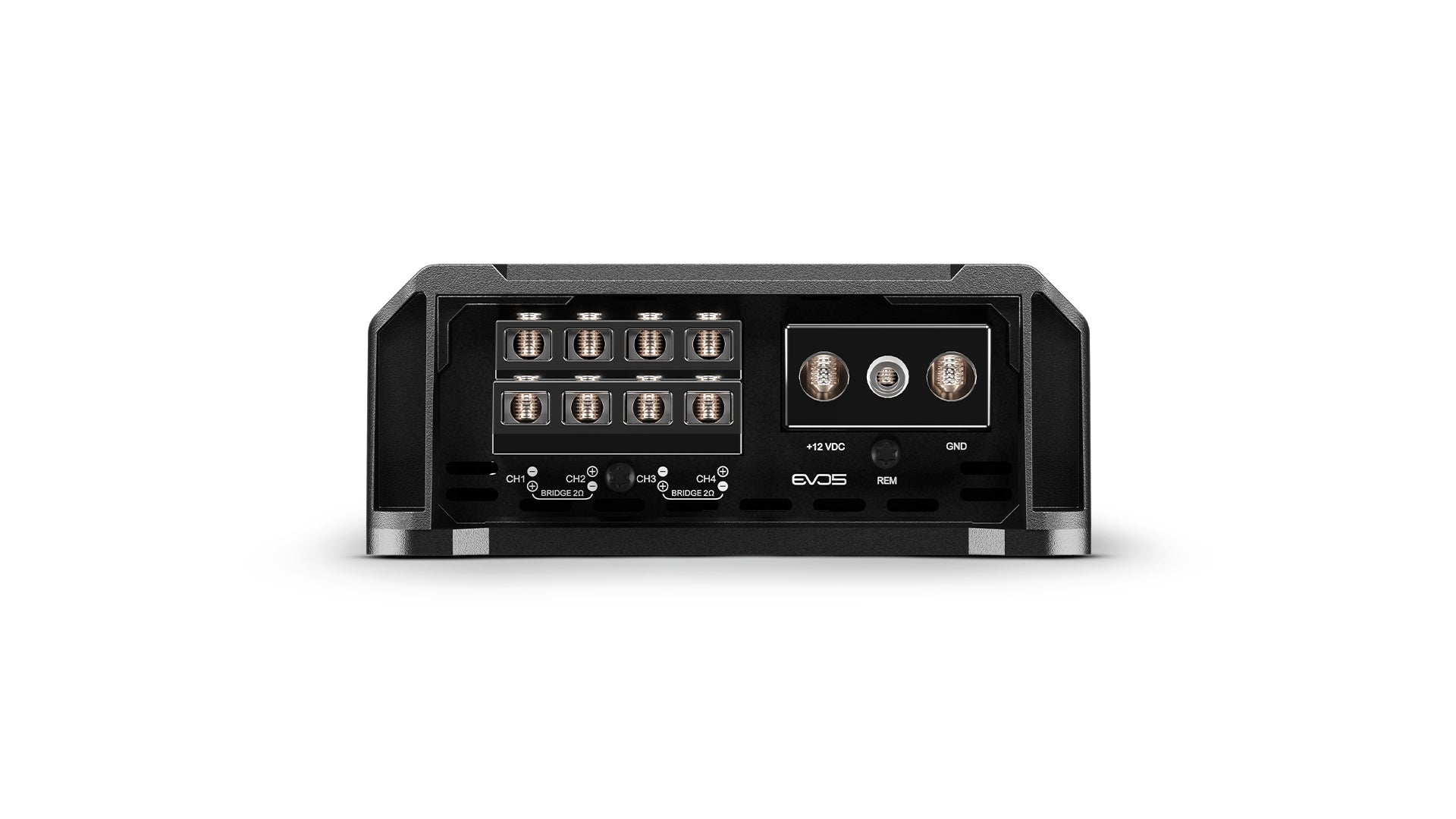

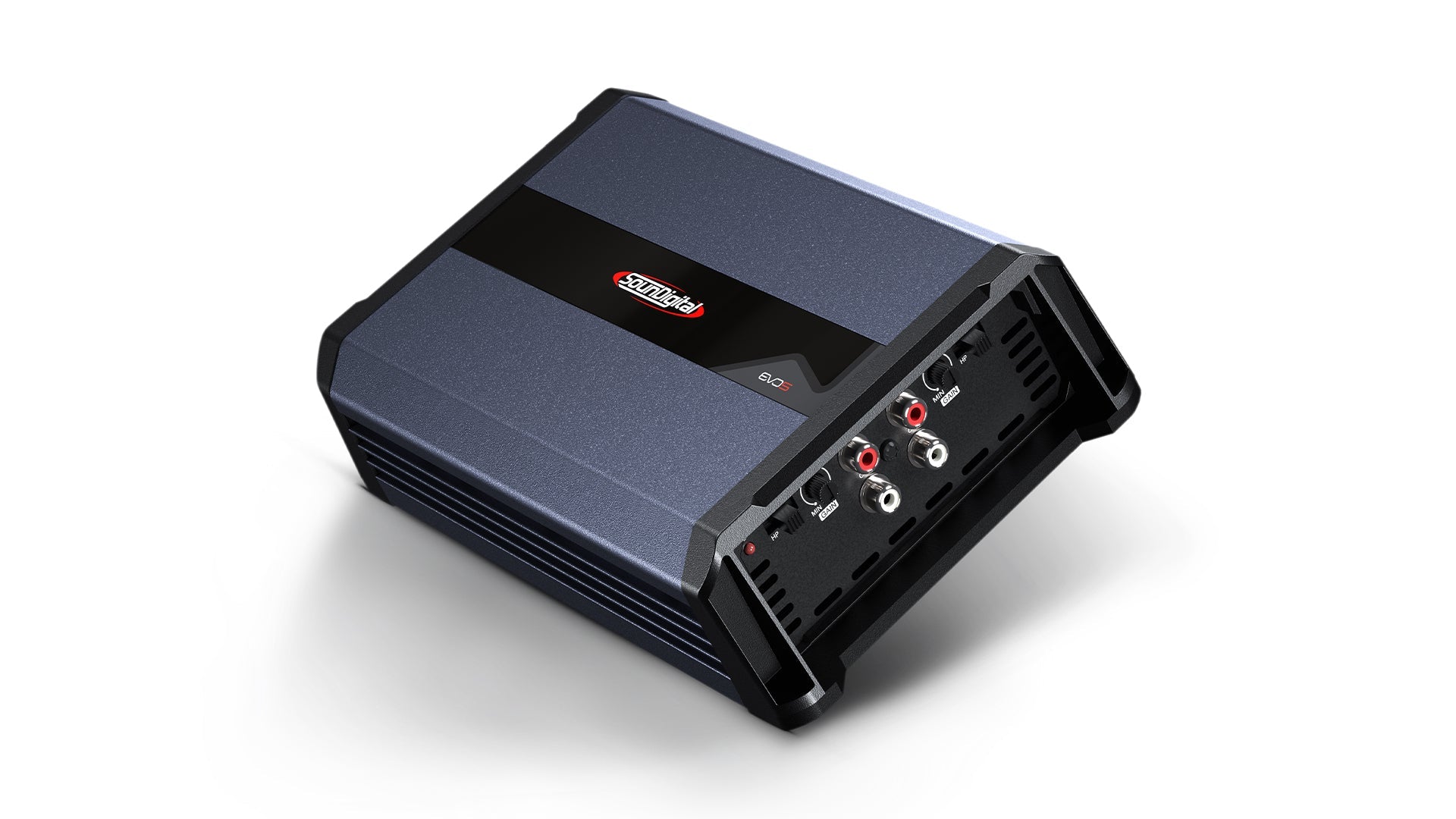

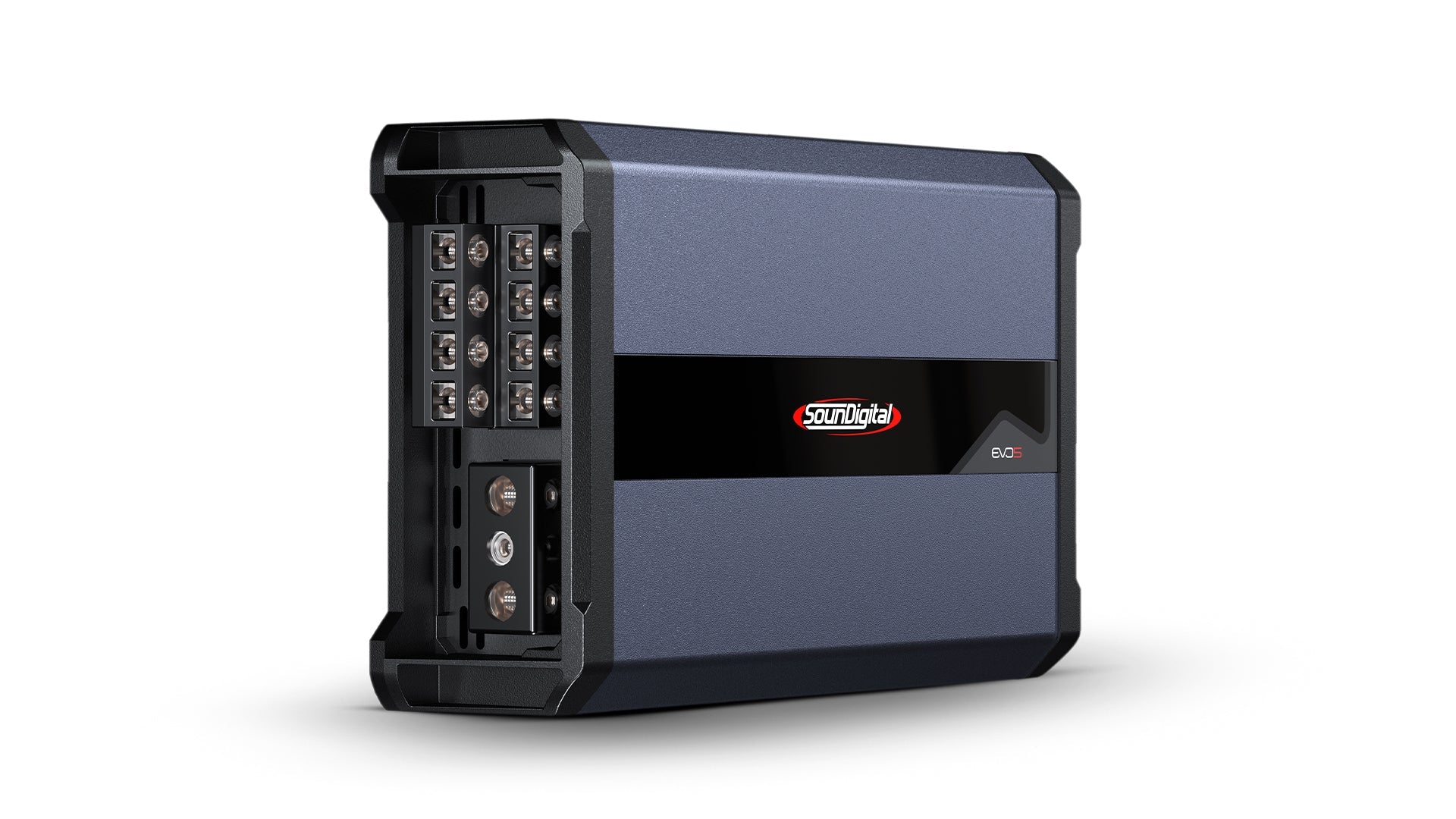

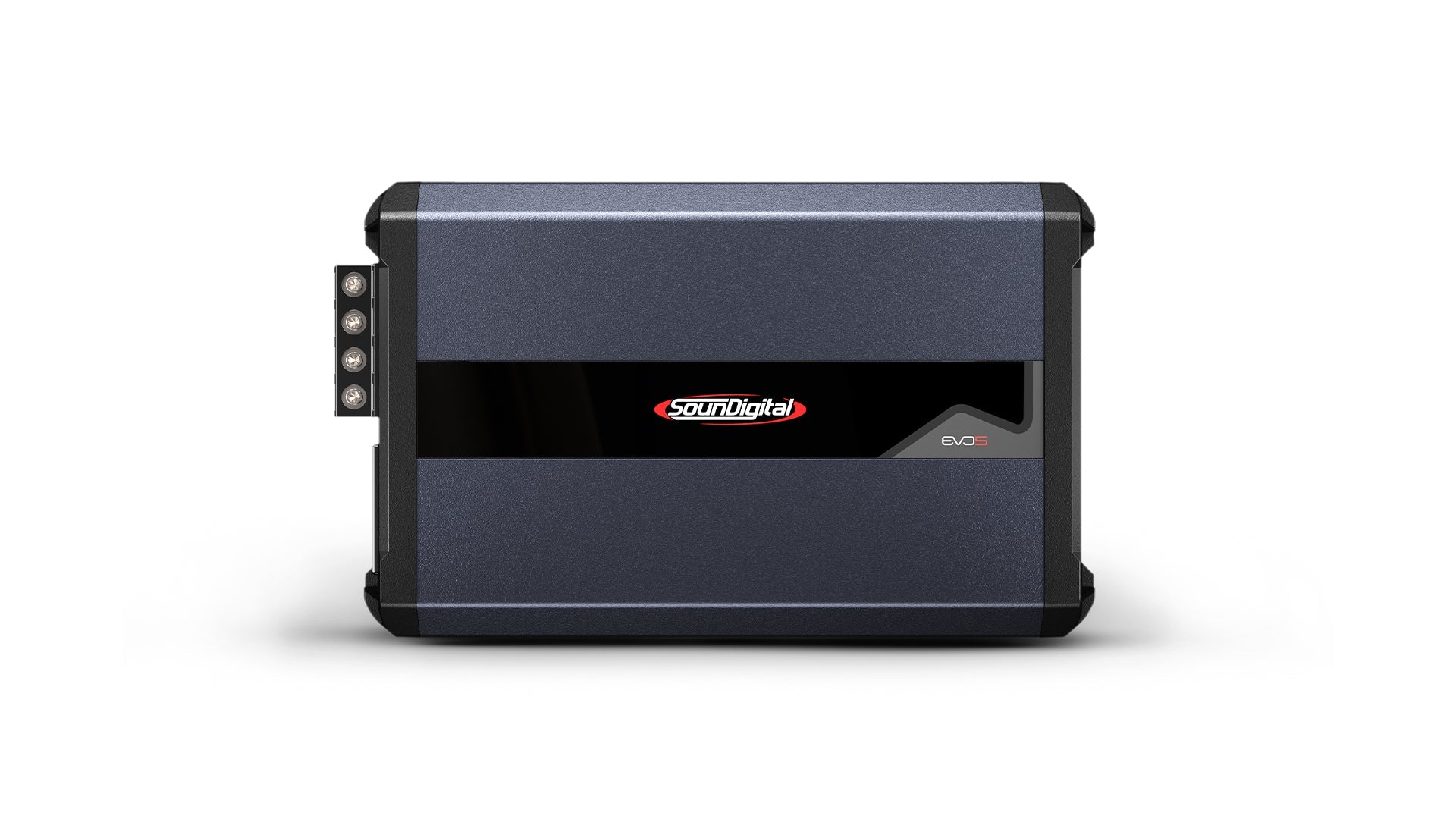

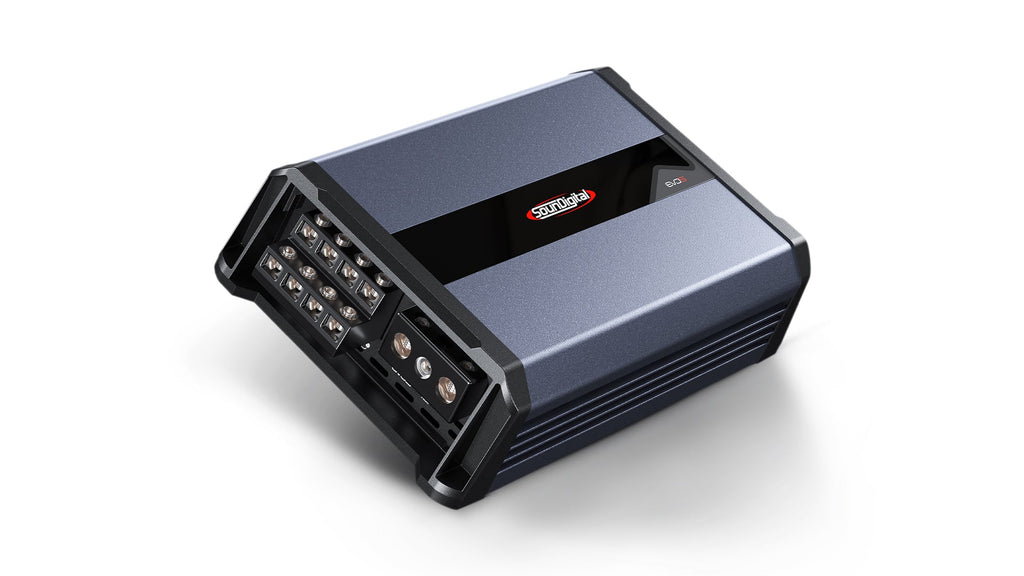

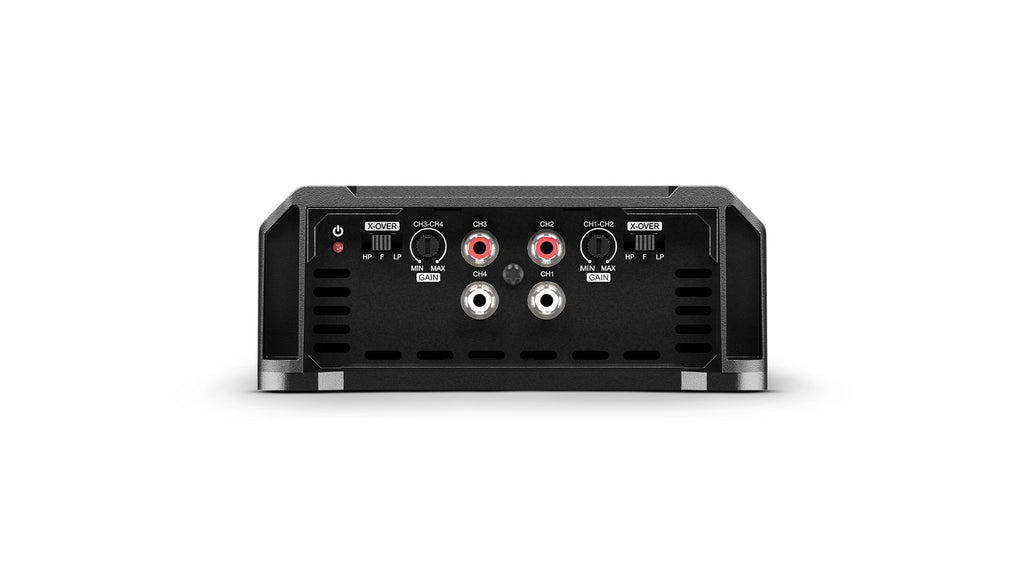

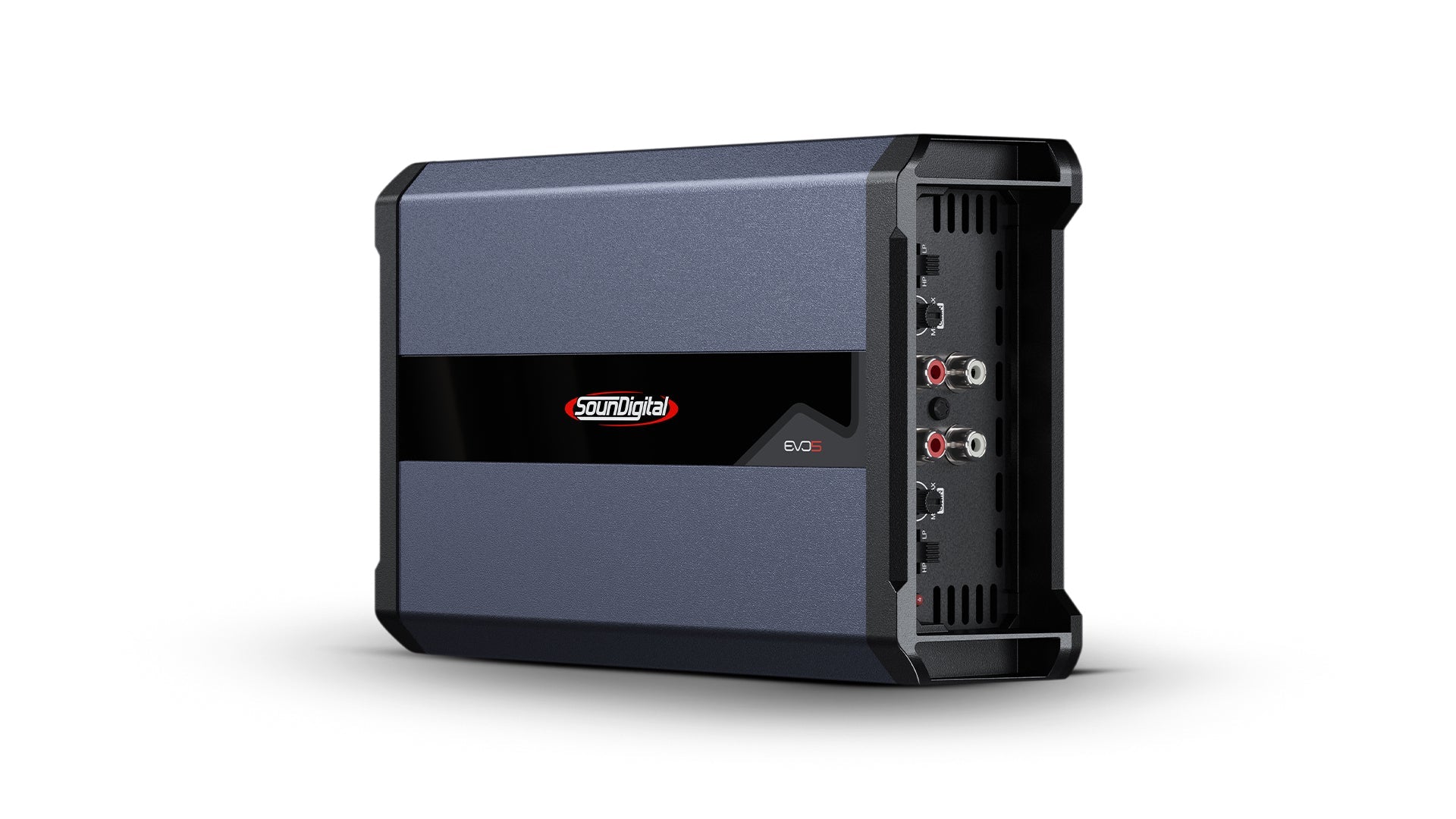

SounDigital 2000.4 EVO 5 - 4 ohm
The SounDigital SD2000.4 EVO 5 is a truly powerful full-range multi-channel digital amplifier with excellent efficiency.
The EVO 5 brings the latest technology to a compact design and high-quality components. With groundbreaking technology.
Soundigital EVO 5 series amplifiers change the concept of playing LOUD!
This amplifier brand has grown in a short time to become one of the largest manufacturers in Brazil.
And no wonder, because each amplifier is designed and manufactured in their own factory.
The design team includes several big names from the so-called Pancadao builders, these are cars that play music continuously at outdoor events for really long periods of time.
This hobby really puts amplifiers through the paces and no compromise in design is the solution.
Specifications:
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 500W RMS
Power @ 4Ω: 4 X 330W RMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 1000W RMS
Operating Voltage: 8V – 16V
Current Draw (Music): 91 A
Current Draw (Max): 182 A
Recommended Fuse (Music): 100 A
Total Efficiency: 87%
Damping Factor: 200
Frequency Response (-3dB): 10Hz – 22kHz
SNR: 90dB
Crossover HPF: 80Hz
Crossover LPF: 80Hz
Power cable size 21mm2
Speaker cable size 2 x 2mm2
Product Dimensions: 8.9 x 5.4 x 2.2 in
Product Dimensions: 22.7 x 13.6 x 5.5 cm
Do not connect the amplifier to less than the rated load!
