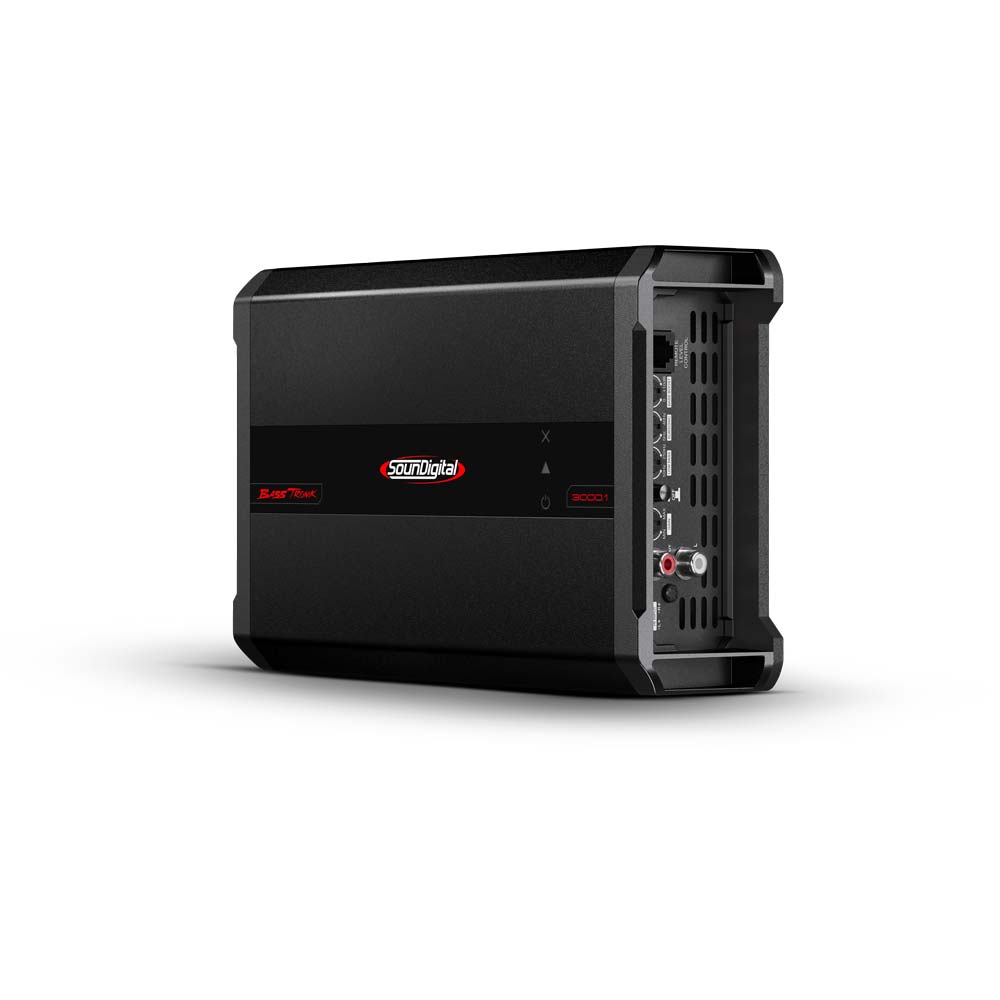

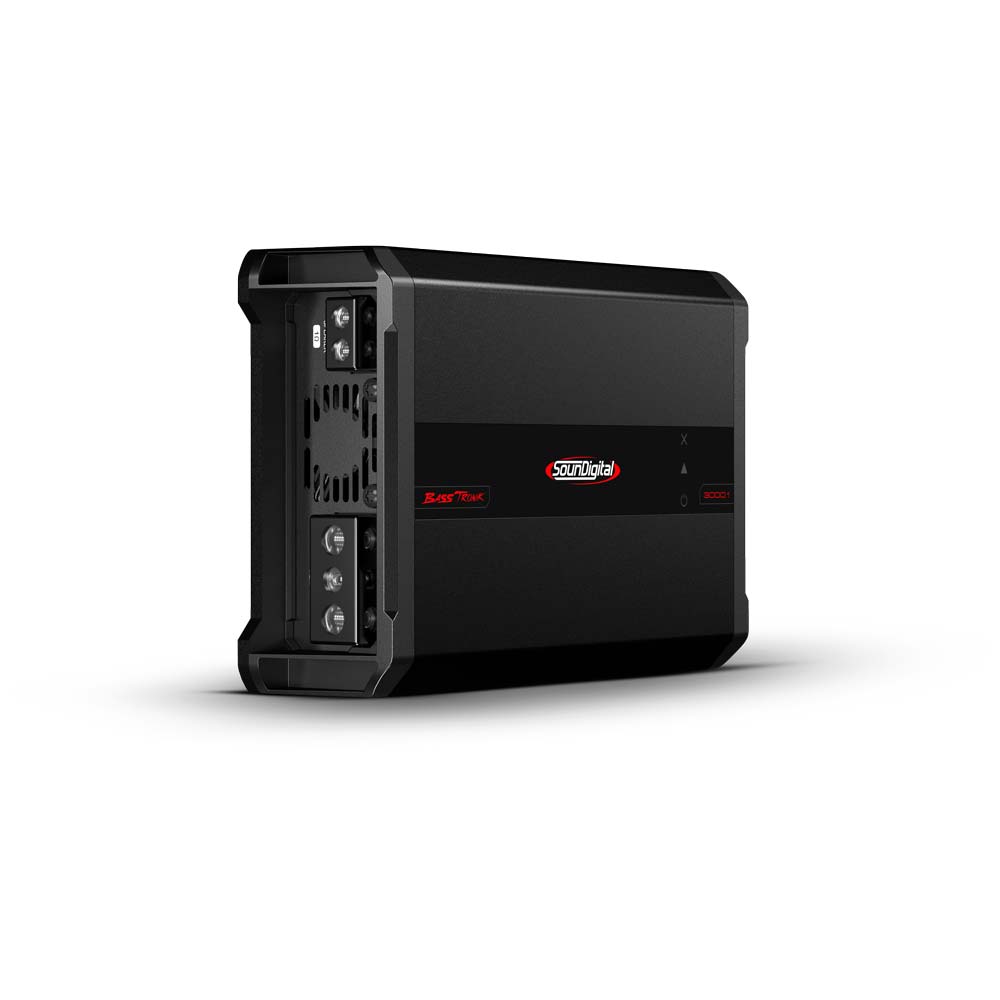

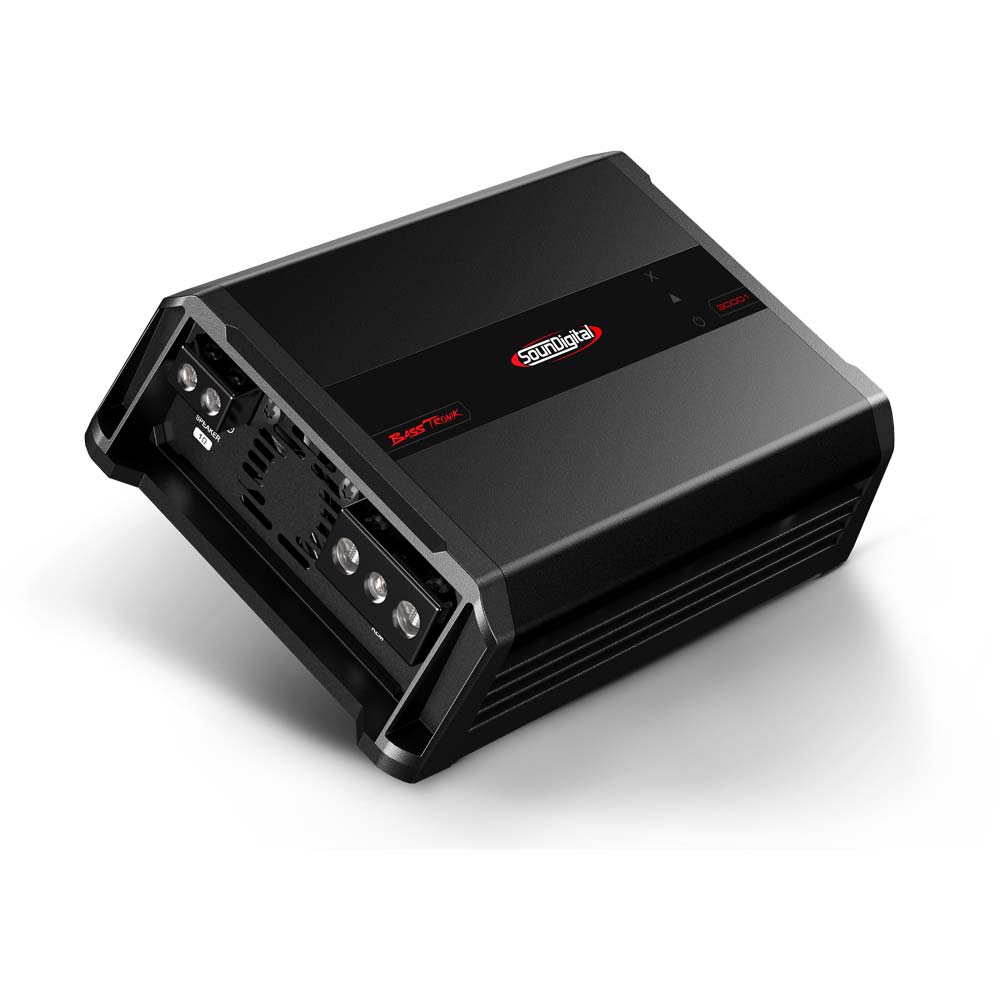

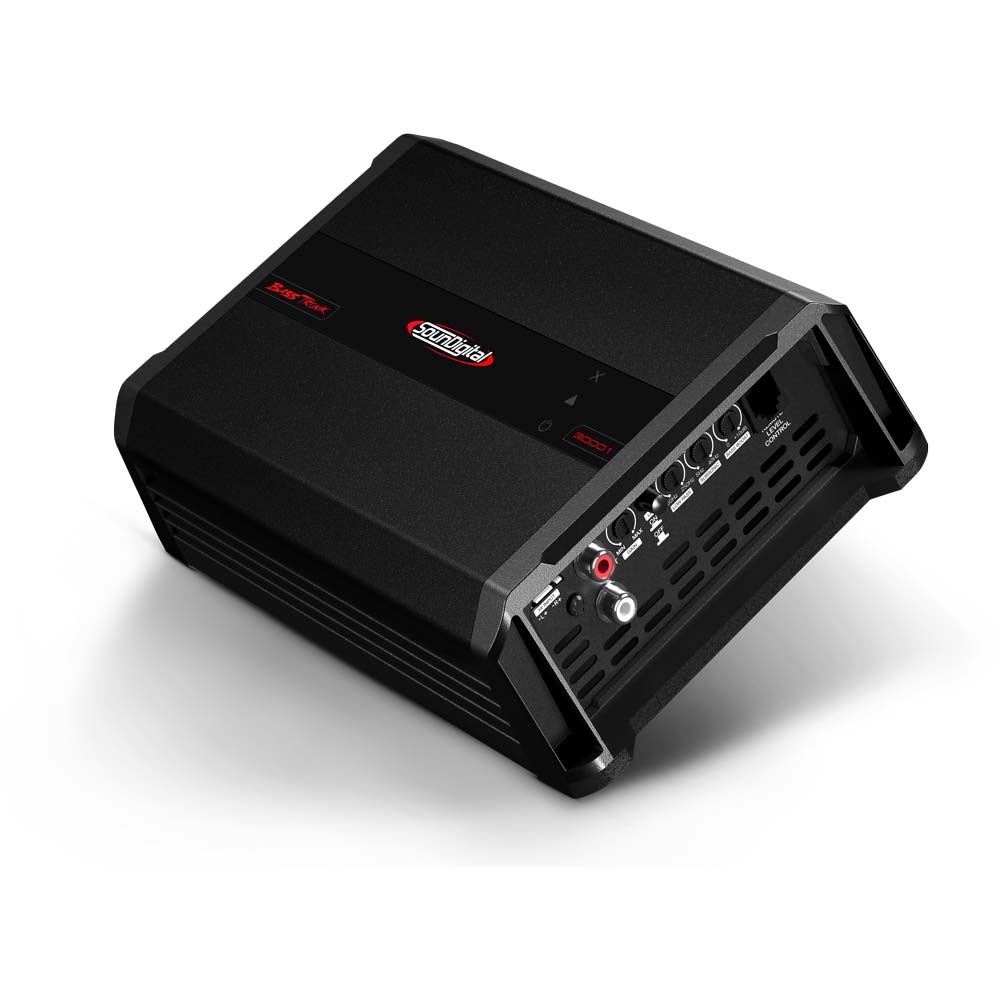

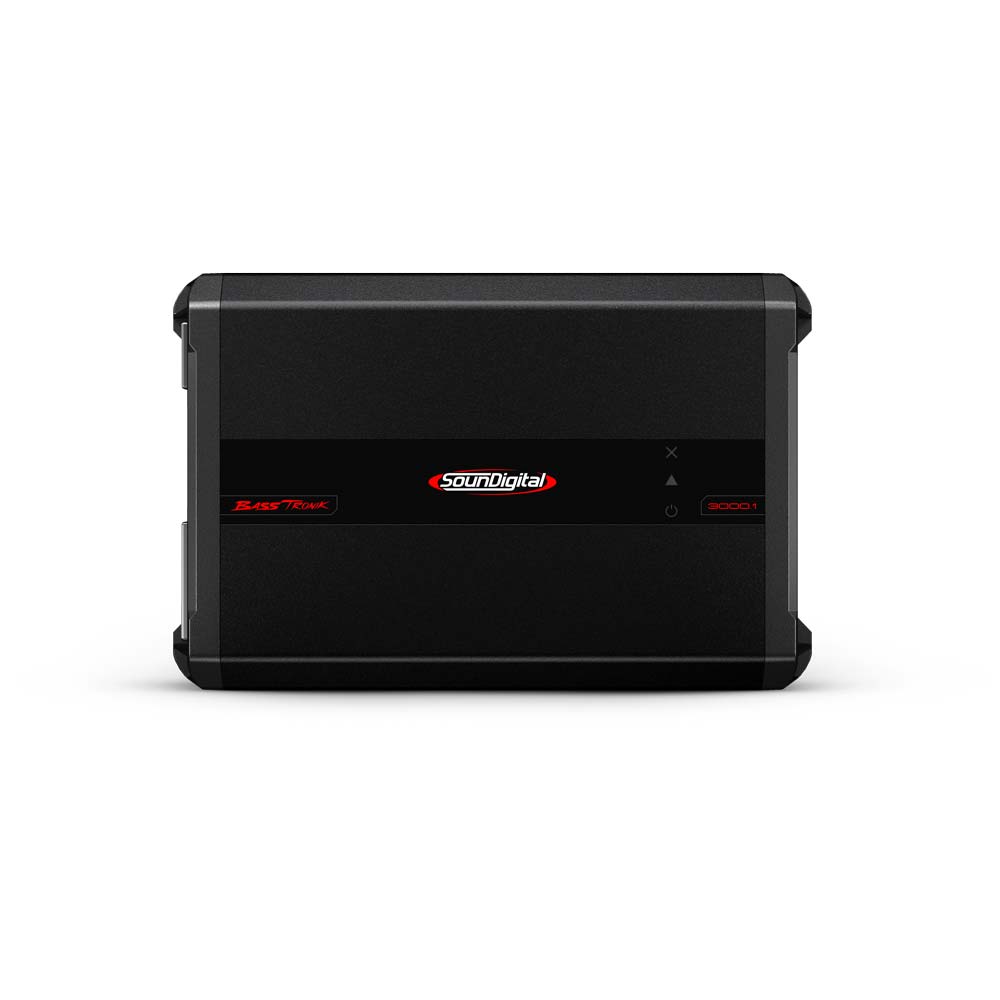

SounDigital 3000.1 BASSTRONIK - 2 Ohm

SounDigital 3000.1 BASSTRONIK - 2 Ohm

• 1-channel amplifier
• 3000W RMS!
• 2 Ohm model
• Speaker level input
• Damping coefficient over 2000!
• Very sturdy power side!
• For playing subwoofers / midbasses

The starting point for the design of SounDigital BASSTRONIK amplifiers has been how to create amplifiers with excellent efficiency and even more powerful performance while still maintaining reliability and good sound quality.

This new series is primarily designed to drive powerful subwoofers/midbasses, which is why SounDigital has upgraded the power side of the amplifiers to be the most powerful they have ever used in their amplifiers!

The power supply for these amplifiers is the most robust that SounDigital has ever used.

The BASSTRONIK series 1600.1 and 3000.1 amplifiers are full-range amplifiers. The low-pass filter can be switched off using the ″LP″ switch.

The BASSTRONIK series amplifiers are: compact in size and deliver a lot of power.

In addition to RCA connectors, the amplifiers also have a speaker-level input, as well as a connector for a wired level control (SounDigital RLC).

The damping coefficient of these models is an incredible over 2000!

High power levels consume a lot of power, and in many cars, voltage drops during peak music and when playing loudly are a problem.

Soundigital's amplifiers take this practical situation into account so that the operating voltage of the amplifiers can be as low as 10 volts!

SounDigital is an amplifier manufacturer that operates in a very rare way these days,
ALL models are designed and manufactured in our own production facility in Brazil.

Specifications:
Power @ 2Ω: 1 X 3000W RMS
Power @ 4Ω: 1 X 1900W RMS

Frequency Response (-3dB):
5Hz ~ 20kHz

Low Pass Filter:
50Hz ~ 250Hz

Subsonic:
5Hz~40Hz

Bass Boost:
0dB ~ 10dB @ 35Hz

Operating Voltage:
10V – 16V

SNR:
100dB

Input Sensitivity (RCA):
0.2V ~ 2V

Input Sensitivity (High Level input):
1.5V ~ 15V

Current Draw (Music):
151A

Current Draw (max):
302A

Total Efficiency:
79%

Damping Factor:
2000

Power cable size:
50mm²

Speaker cable size:
6mm²

Remote cable size:
1.5mm²

Recommended Fuse (Music):
160A

Recommended Battery:
160Ah

Width:
229mm / 9″

Length:
136.2mm / 5.4″

Height: 54.8mm / 2.2″
