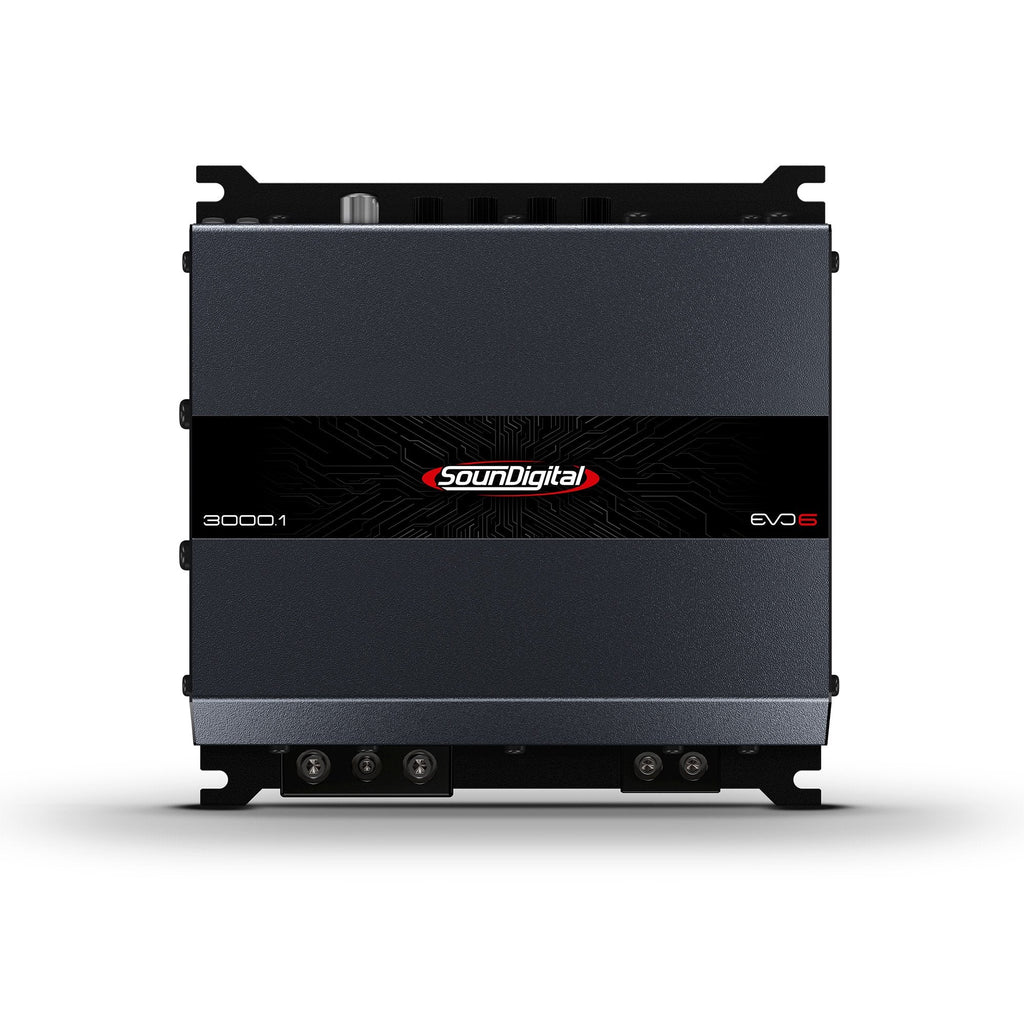

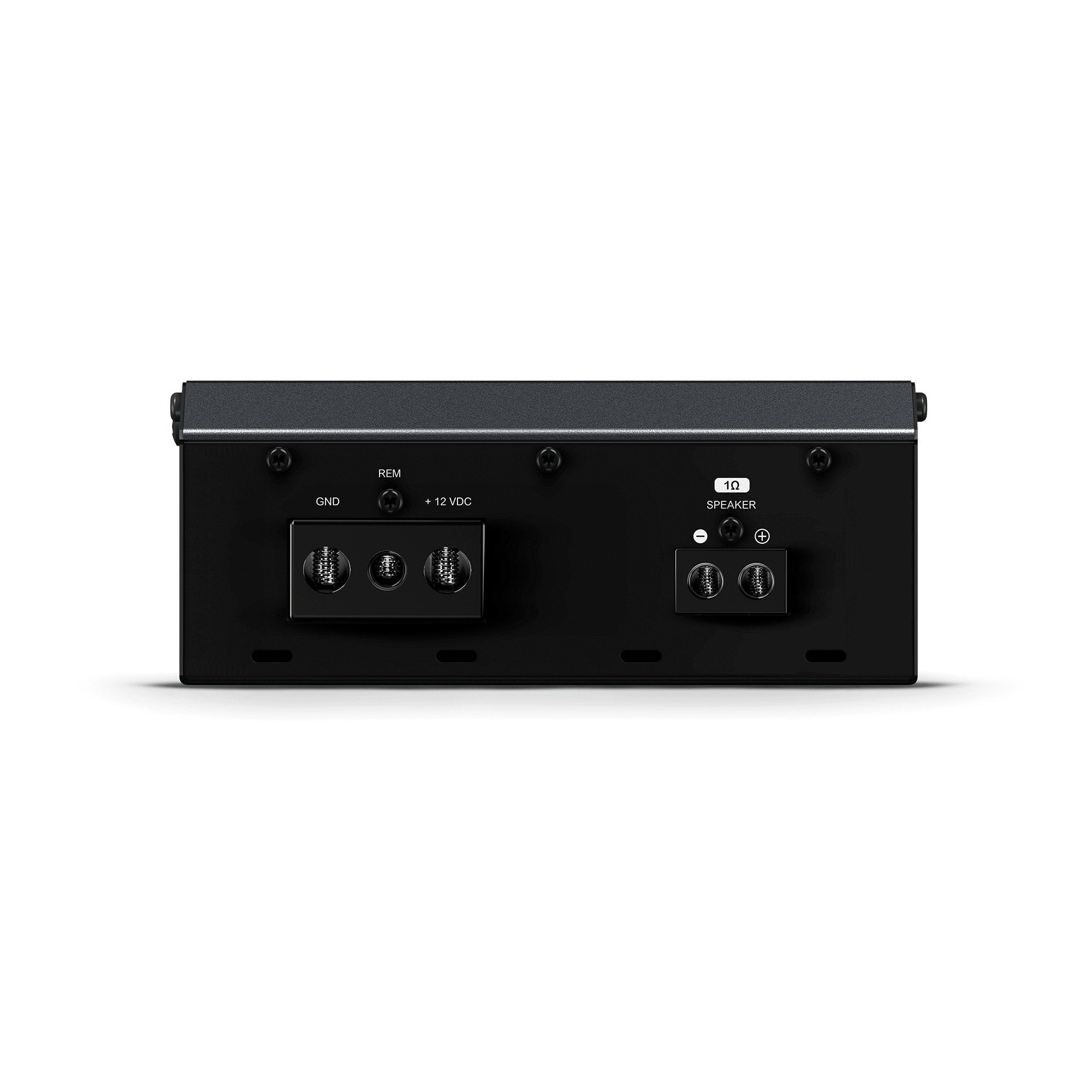

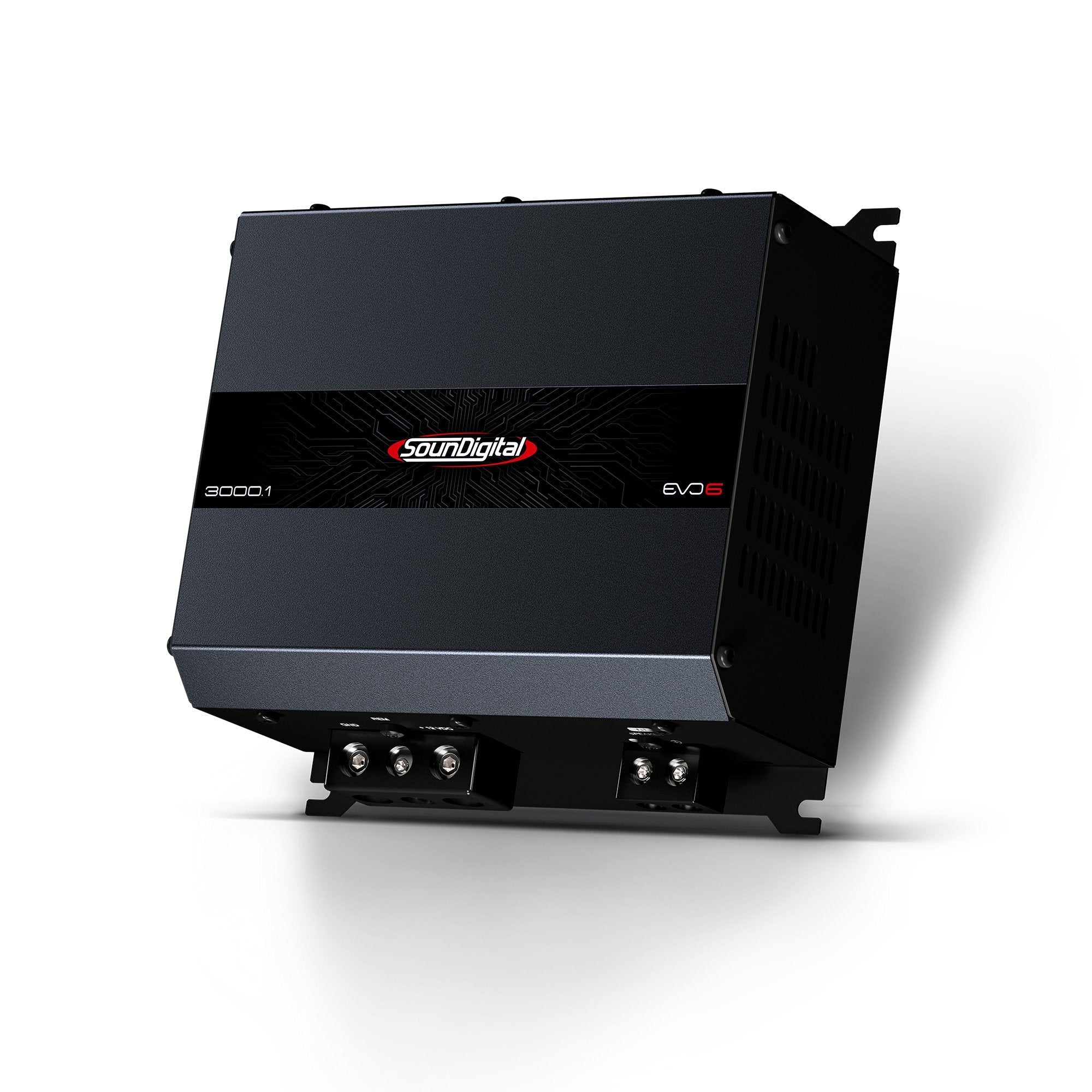

SounDigital 3000.1 EVO 6 - 4Ohm
Take your audio to the next level with the SounDigital EVO6 series amplifiers – compact size and lots of power in the same package!
Never before has such great power been achieved from such small dimensions. And at a very reasonable price!
The 3000.1 EVO 6 models have a damping factor of over 2000!
High power levels consume a lot of power, and in many cars, voltage drops during peak music and when playing loudly are a problem.
Soundigital's amplifiers take this practical situation into account so that the operating voltage of the amplifiers can be as low as 10 volts!
SounDigital operates in a very rare way as an amplifier manufacturer these days, ALL models are designed and manufactured in their own production facility in Brazil.
Power @ 4Ω: 1 x 3000W RMS
Frequency Response (-3dB): 5Hz ~ 20kHz
Low Pass Filter: 80Hz ~ 20kHz
Damping Factor: 2000
Bass Boost: 0dB ~ 12dB @ 50Hz
Operating Voltage: 10V – 16V
SNR: 90dB
Input Sensitivity: 0.2V ~ 2V
Current Draw (Music): 148A
Current Draw (max): 296A
Power Cable: 35mm² (2AWG)
Audio Output Cable: 6mm2
Recommended Fuse (Music): 150A
Recommended Battery: 150Ah
Width: 5.92 / 15.5 cm
Length: 5.80 / 14.7 cm
Height: 2.38 / 6.6 cm
Weight: 1.47 kg
