SounDigital 5000.1 BASSTRONIK - 2 Ohm

SounDigital 5000.1 BASSTRONIK - 2 Ohm

• 1-channel amplifier
• 5000W
• 1 Ohm model
• Speaker level input
• Damping coefficient over 2000!

The starting point for the design of SounDigital BASSTRONIK amplifiers has been how to create amplifiers with excellent efficiency and even more powerful performance while still maintaining reliability and good sound quality.

This new series is primarily designed to drive powerful subwoofers/midbasses, which is why SounDigital has upgraded the power side of the amplifiers to be the most powerful they have ever used in their amplifiers!

The power supply for these amplifiers is the most robust that SounDigital has ever used.

The BASSTRONIK series amplifiers are: compact in size and deliver a lot of power

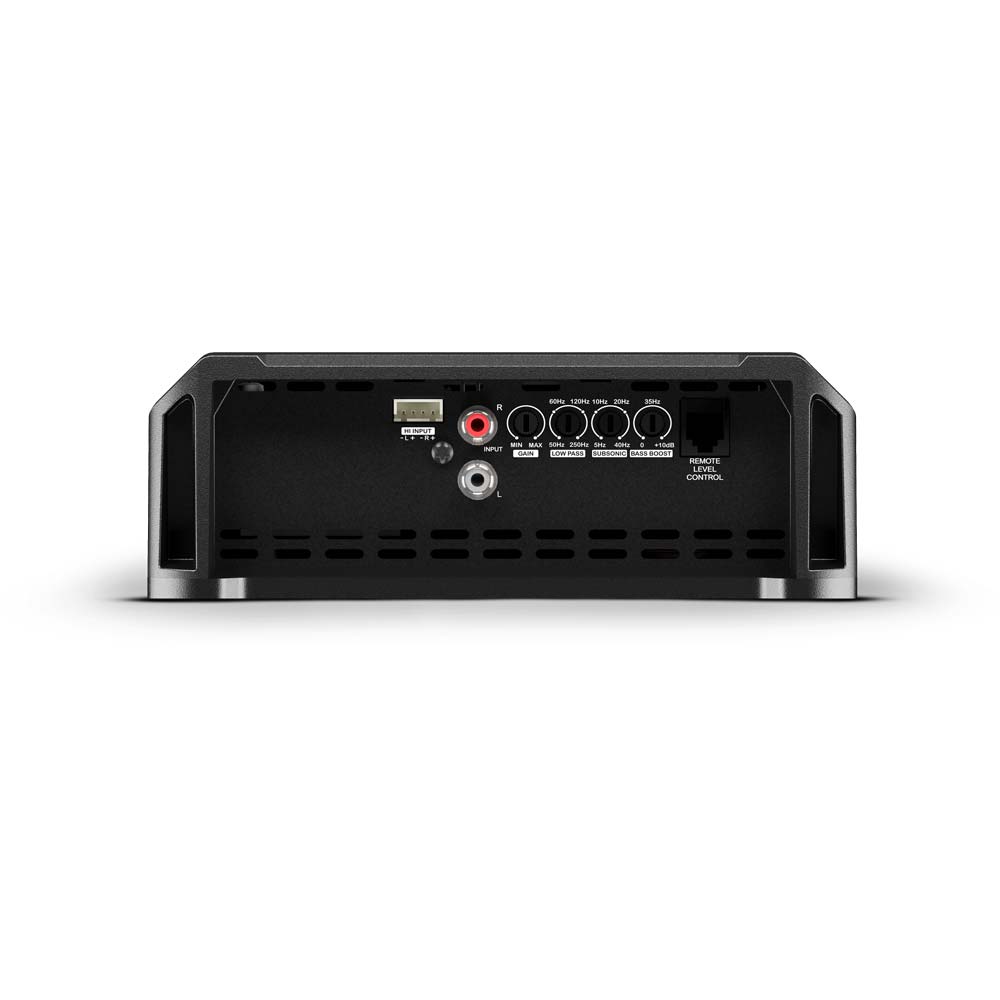

In addition to RCA connectors, the amplifiers also have a speaker-level input, as well as a connector for a wired level control (SounDigital RLC).

The damping coefficient of these models is an incredible over 2000!

High power levels consume a lot of power, and in many cars, voltage drops during peak music and when playing loudly are a problem.

Soundigital's amplifiers take this practical situation into account so that the operating voltage of the amplifiers can be as low as 10 volts!

SounDigital is an amplifier manufacturer that operates in a very rare way these days,
ALL models are designed and manufactured in our own production facility in Brazil.

Specifications:
Power @ 4Ω: 1 X 2100 WRMS
Power @ 2Ω: 1 X 3300 WRMS
Power @ 1Ω: 1 X 5000 WRMS

Frequency Response (-3dB):
5Hz ~ 250Hz

Subsonic Filter:
5Hz~40Hz

Low Pass Filter (12dB/octave):
50Hz ~ 250Hz

Bass Boost:
0dB ~ 10dB @ 30Hz

Operating Voltage:
10V~16V

Signal-to-Noise Ratio:
100dB

Input Sensitivity (RCA):
0.2V ~ 2V

Input Sensitivity (High Level input):
1.5V ~ 15V

Current Draw (Music):
248A

Current Draw (Max):
496A

Total Efficiency:
80%

Damping Factor:
2000

Power Cable size:
95mm²

Speaker Cable size:
10mm²

Remote Cable size:
1.5mm²

Recommended Fuse (Music):
250A

Recommended Battery:
250Ah

Width:
180.6 / 7.1 in

Length:
254mm / 9.9in

Height 63.2mm / 2.5 in
