Description

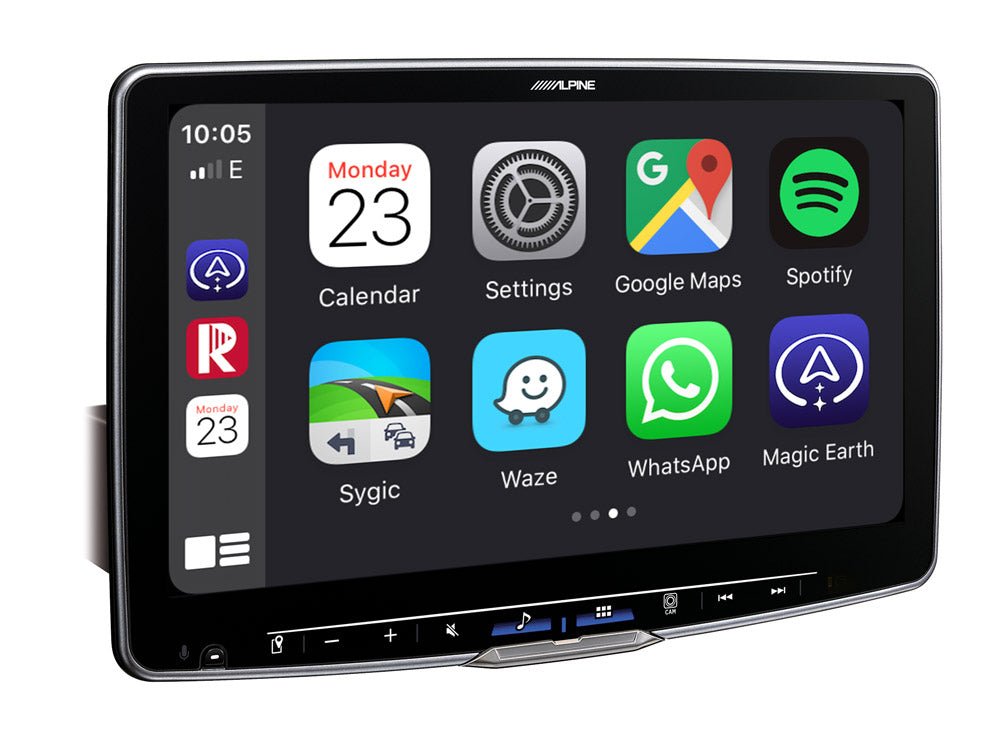

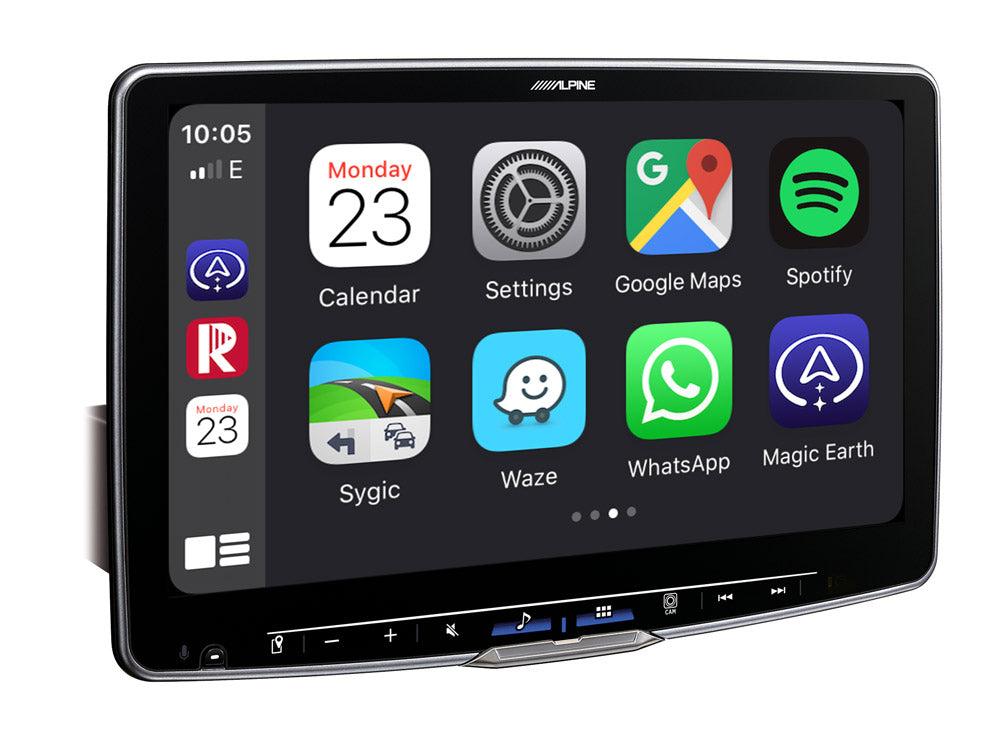

Stinger HEIGH10 (UN1810E) is a multimedia player with a 10″ touch screen that can be installed in a 2-DIN installation slot.
The large touch screen has a non-reflective surface and the information on the screen is easy to read in all lighting conditions.
Stinger HEIGH10 brings all today's multimedia features to your car. With Android Auto and Apple CarPlay, you can use Google Maps and Waze navigation, as well as various music streaming services such as Spotify, Apple Music and Tidal control directly from the player. The HEIGH10 is naturally also equipped with RDS and DAB+ tuners and enables the playback of music and video files via the USB connection.

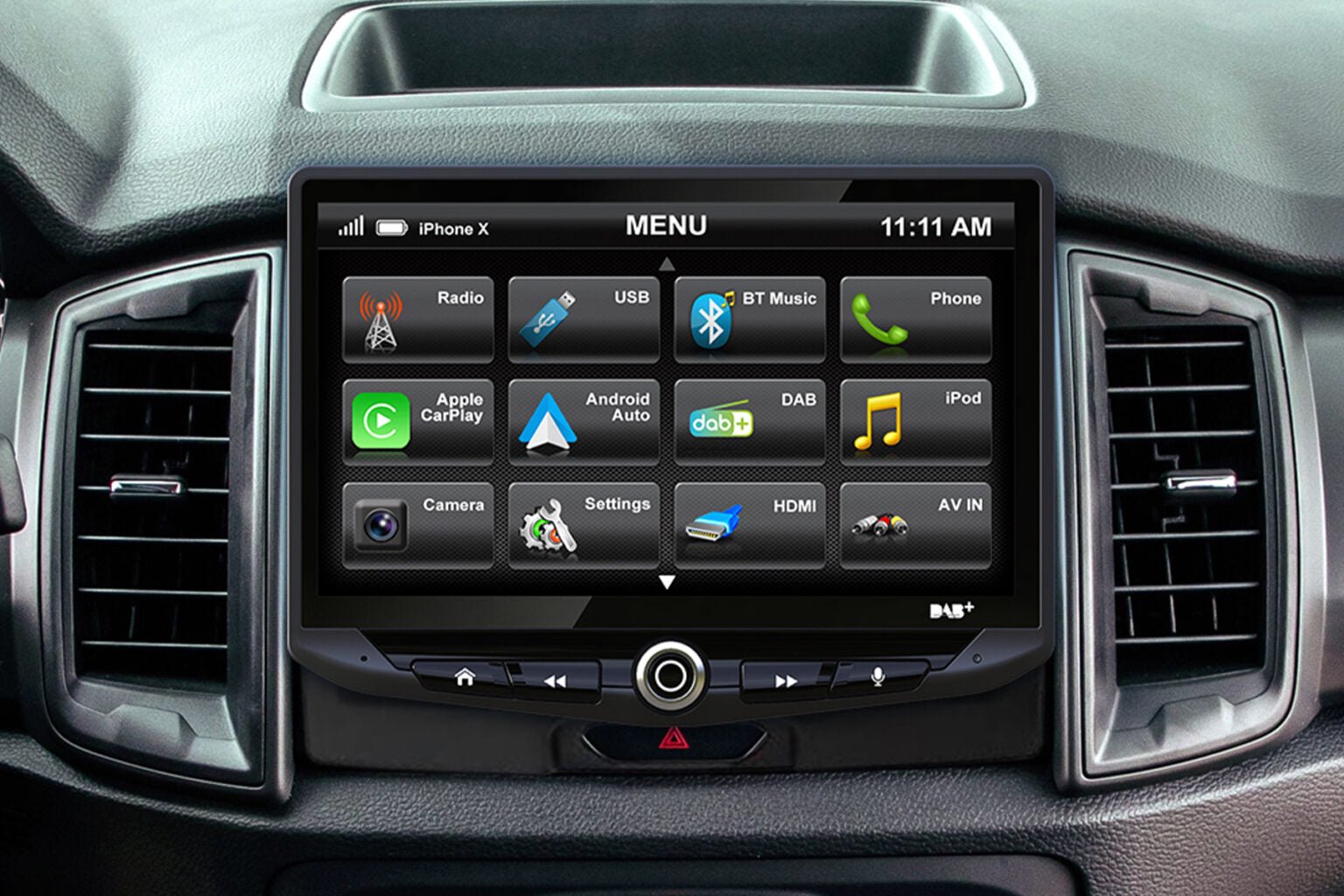

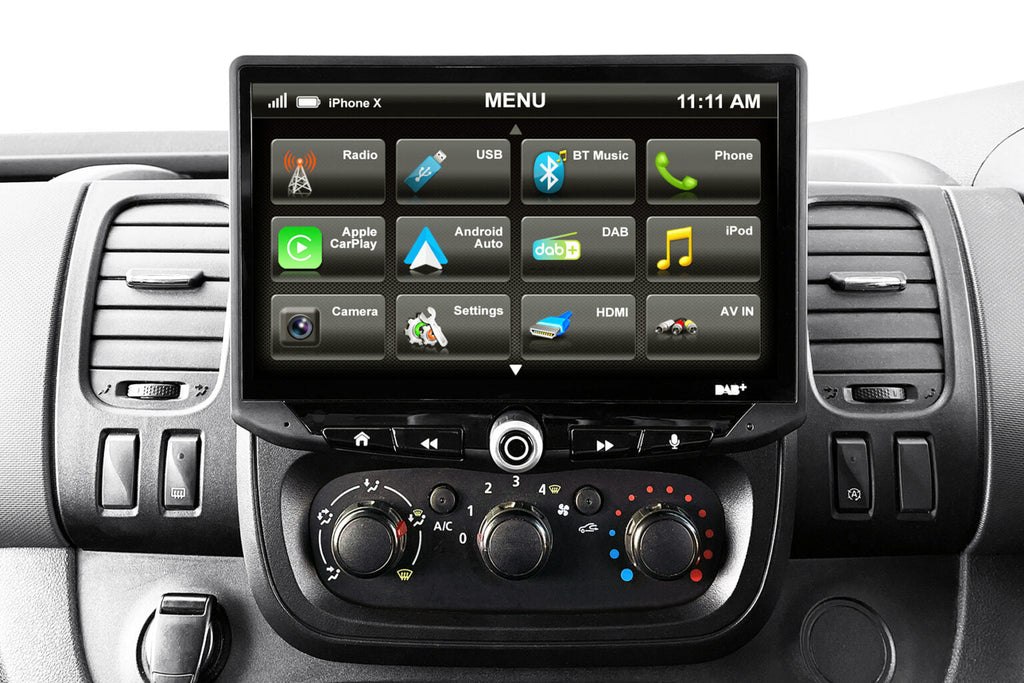

Easy to use
Stinger HEIGH10 has a simple user interface and the home menu allows you to access all the functions you want thanks to the large buttons. The player's menus are in English.

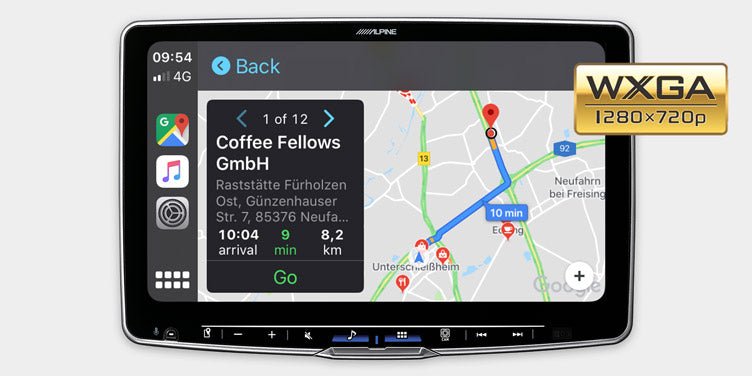

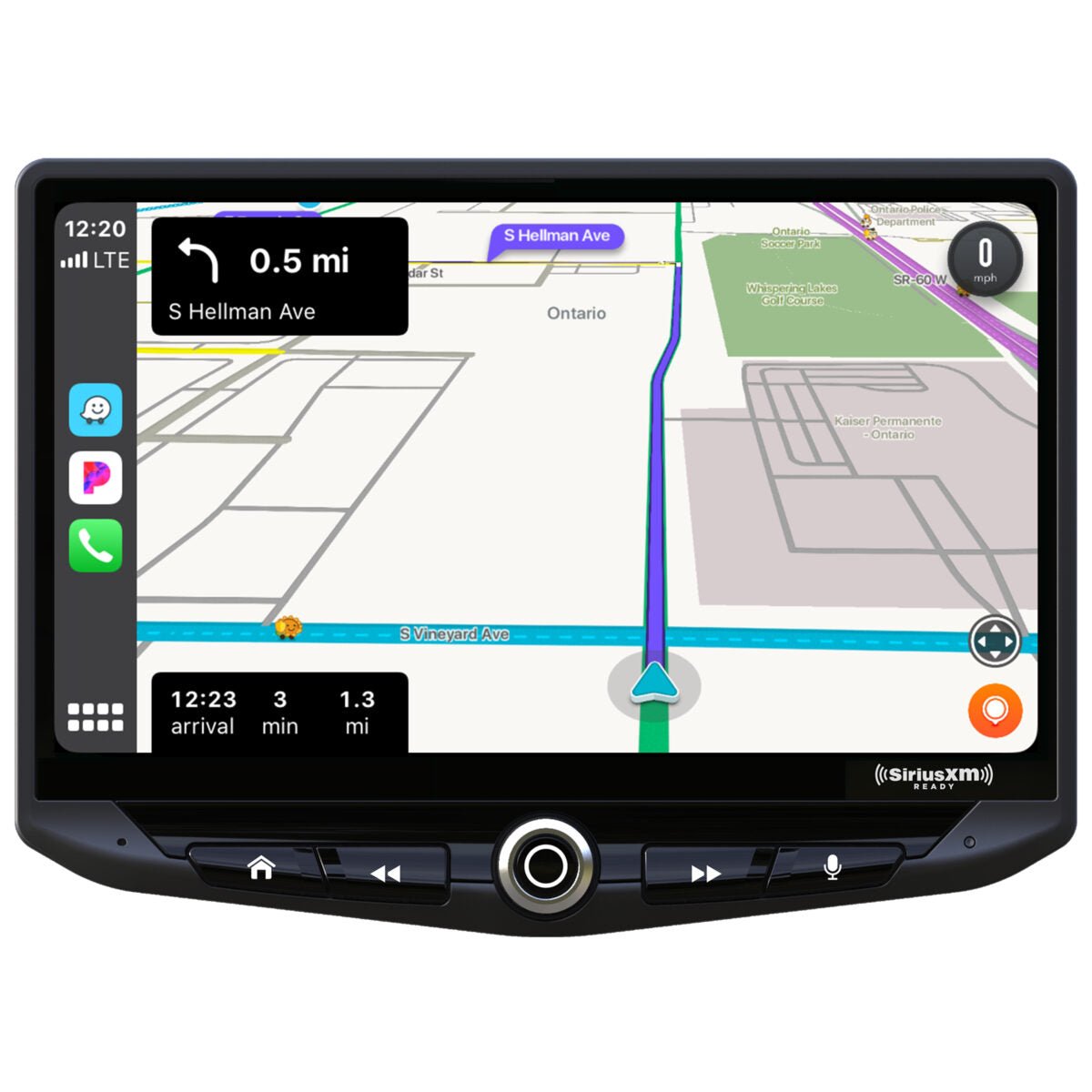

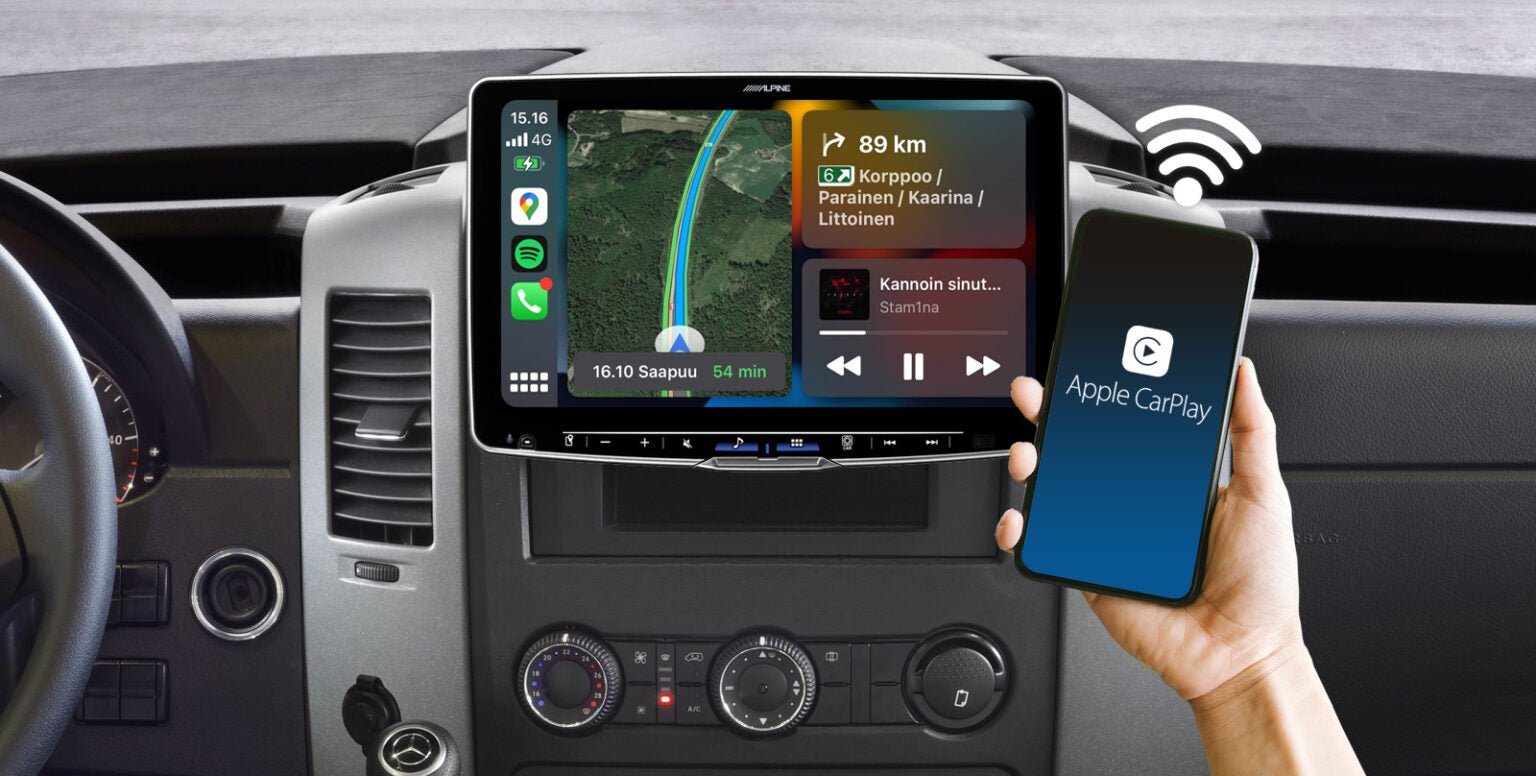

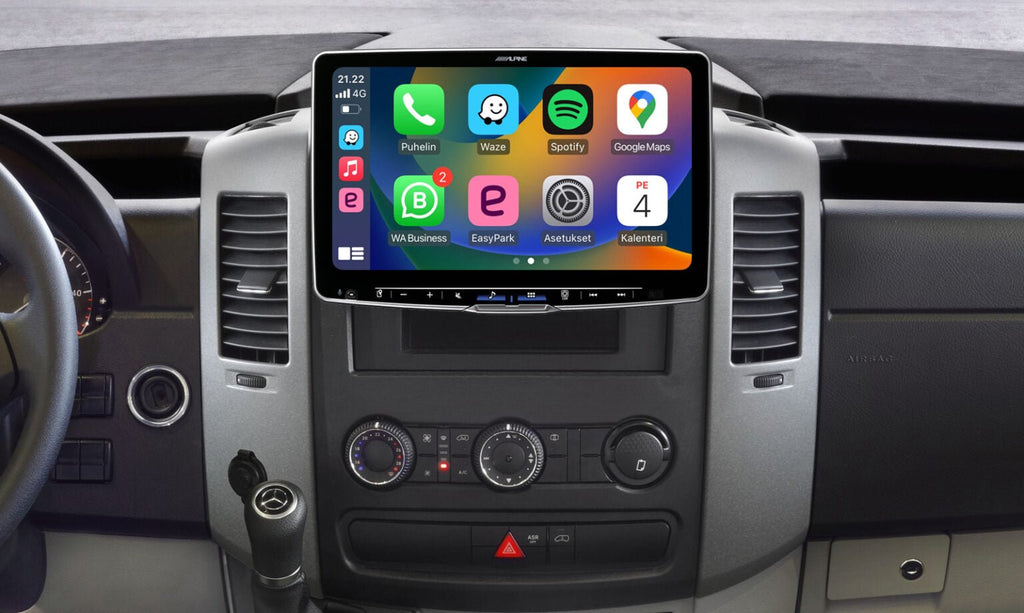

Apple CarPlay
Connect your iPhone to the Stinger with a Lightning cable and you can use all the features of Apple CarPlay. You can use Apple's navigation or other popular applications from the big screen. A large number of applications can also be used with Siri, so you can keep your eyes on the road. Apple CarPlay is available on iPhone 5 and newer phones.
The Apple CarPlay information page can be found here.

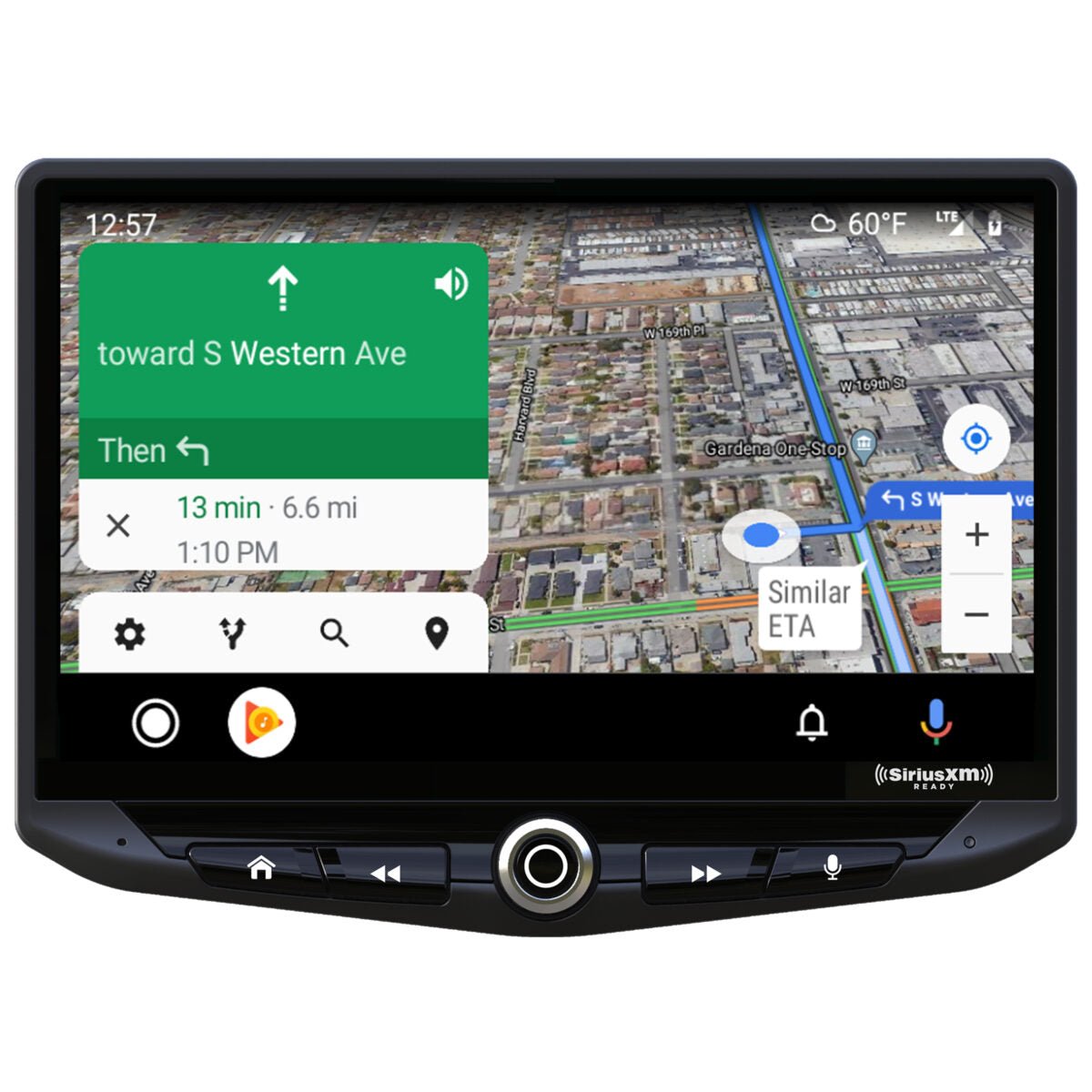

Android Auto
Android Auto offers a simple and clear user interface and brings the most important information to the player's screen when you connect the phone with a USB cable.
Google Maps, Spotify, Tidal and many other useful applications are at your disposal.

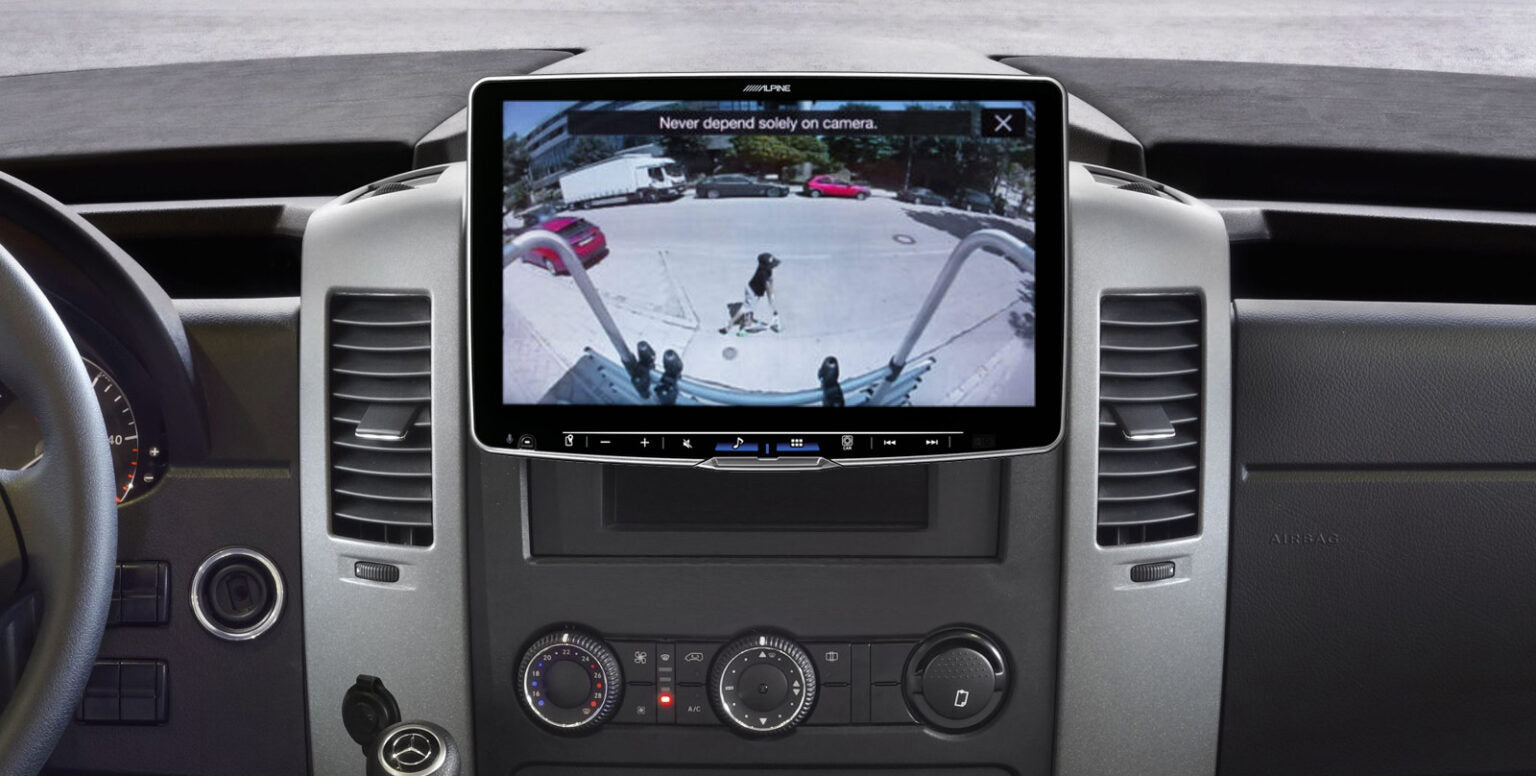

Connect up to four cameras
The Stinger HEIGH10 includes four camera inputs as standard. In addition to the traditional reversing camera, you can also connect front and side cameras to the player. The side cameras have their own trigger wires, to which by entering the plus from the turn signal, you get the image of the side camera on the screen and you can see, for example, the view of the blind spot when changing lanes.
Note: Stinger HEIGH10 also supports AHD (Analog High Definition) cameras with 720p resolution.
European radios
The Stinger UN1810E is specially made for the European market and, unlike the Yankee version, the player has an RDS radio and a digital DAB+ tuner.
Bluetooth music streaming
You can play music from your phone using Bluetooth. In addition to streaming music, the built-in bluetooth also supports hands-free calls.

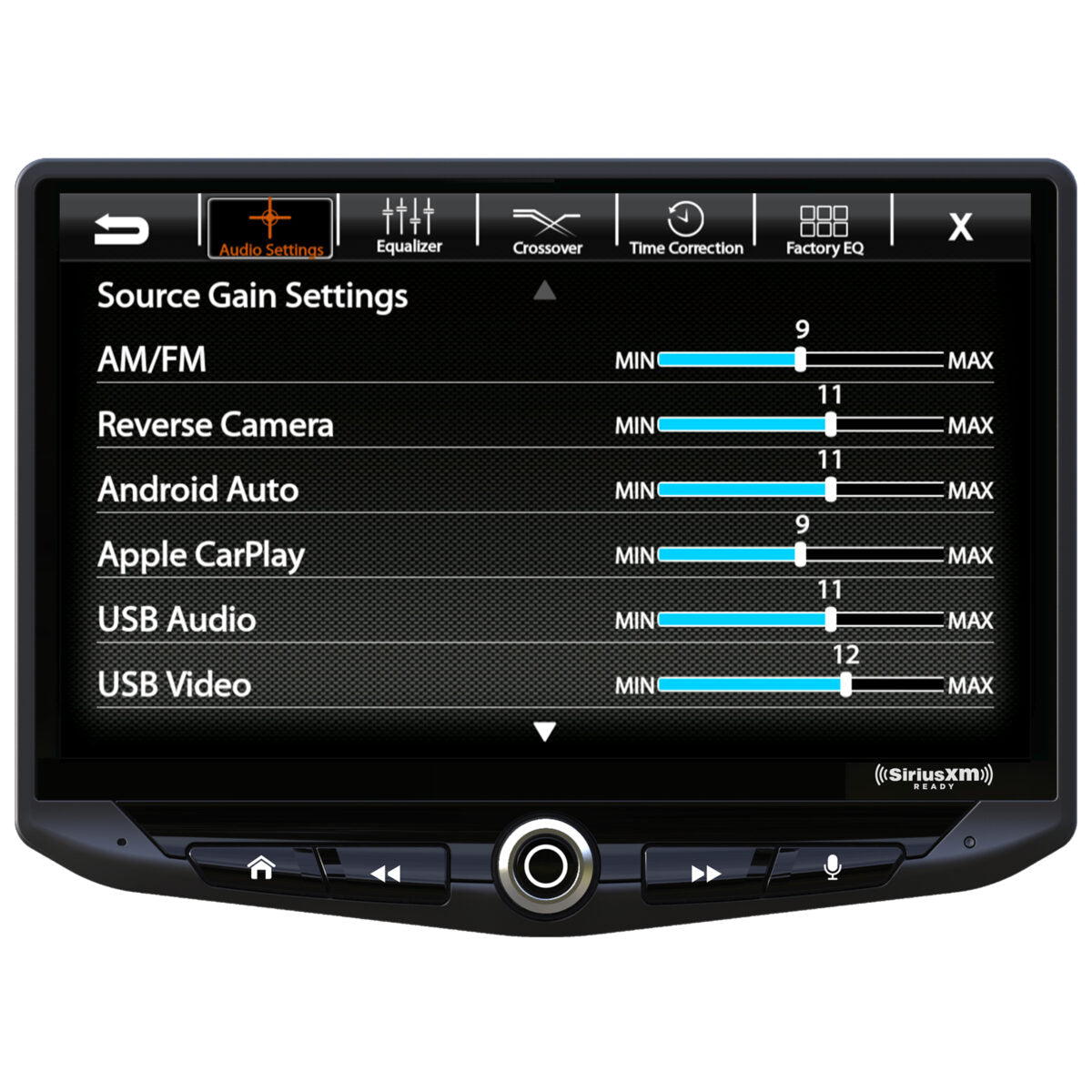

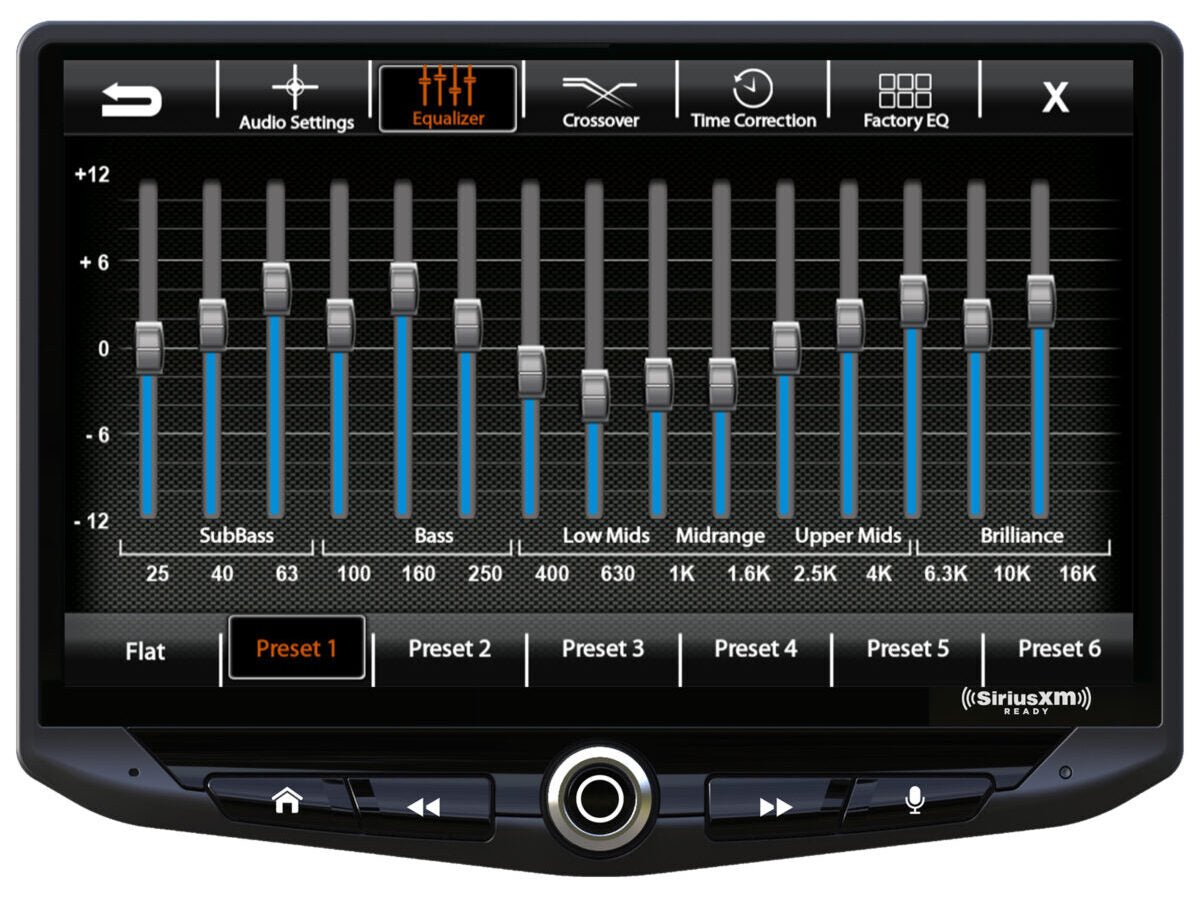

Equalizer and splitters
The Stinger HEIGH10 includes a 15-band graphic equalizer and separate crossover filters for the front, rear and subwoofer outputs. The crossover filters of the front and rear channels are high-pass filters, and there is a low-pass filter for the subwoofer output. The cut-off points of all filters can be selected to 25 / 40 / 63 / 80 / 100 / 160 / 250 hertz and pitches of 6 / 12 / 18dB per octave.
Time delay controls
The six-channel time-delay controls allow you to adjust the stereo image to suit. Like crossovers, there are also six storage locations for time delay adjustments.
Optical output and three pairs of line outputs
The Stinger also enables the digital signal to be sent to the amplifier/processor thanks to the Toslink output. In addition, the UN1810E also includes three pairs of four-volt RCA outputs.
Two USB connections
There are two USB inputs on the back of the player. When you connect your phone to the (upper) USB connector, you can access the functions of Android Auto / Apple CarPlay. The USB connection has a 1.5 amp output, so your phone charges at the same time.
You can play audio, video and image files from a USB stick (max 64Gb).
HDMI input
Through the HDMI input, you can bring image and sound to the player digitally. HDMI supports the most common resolutions (640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p).
For traffic safety reasons, the HDMI image can only be viewed when the car is stationary and the handbrake is engaged.

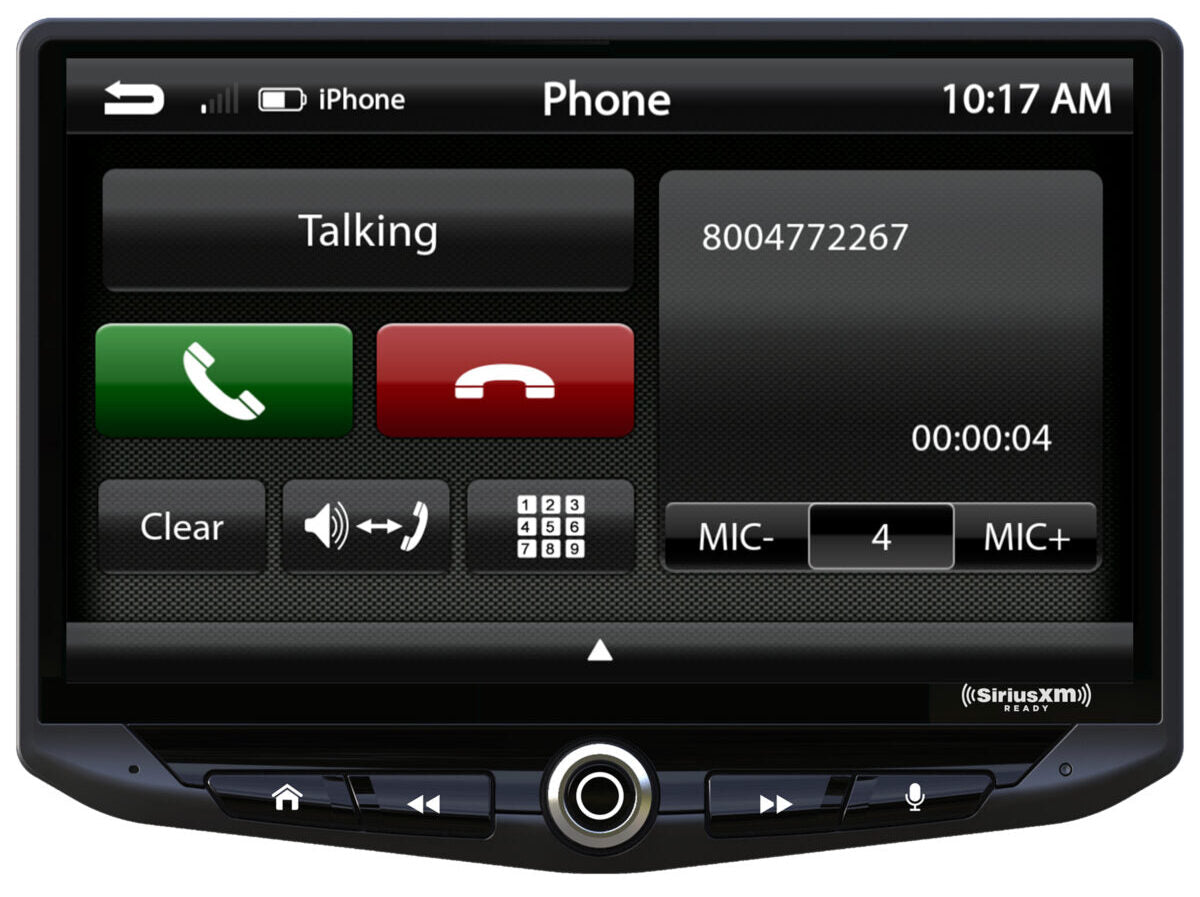

Handsfree calls
Stinger HEIGH10 not only supports music streaming but also hands-free calls. The front panel of the player has an integrated microphone and the player also comes with an external microphone. From the menus you can change which microphone is used and the sensitivity of the microphone can be adjusted.
Technical information:
- 10″ touch screen (1024 x 600)
- Apple CarPlay
- Android Auto
- DAB+ tuner
- RDS tuner
- 2 x USB (USB 2.0)
- Bluetooth handsfree
- Bluetooth audio streaming
- 4 x 16W amplifier
- 3pr line outputs (4 volts)
- Optical Toslink output
- 15-band graphic equalizer
- High-pass filters for the front and rear channels
- Low-pass filter in subwoofer output
- Subwoofer phase reversal
- Six channel time delay controls
- Supported audio formats: MP3, FLAC, AAC, M4A, WAV, OGG
- Supported video formats: MOV, MP4, AVI, MPG, MPEG, VOB, FLV
- Supported image formats: JPG, GIF, PNG, JPEG, BMP
- 4 camera connections (Reversing camera, front camera, side camera left, side camera right)
- The reversing camera input also supports audio
- HDMI input
- Aux In for picture and sound (RCA)
- Aux Out for picture (RCA)
- Steering wheel remote control input (Lead: CTMultilead/Clarion)
- Player menu languages: English, German, French, Spanish, Italian, Danish, Swedish, Norwegian (Apple CarPlay and Android Auto are in Finnish)
- English user and installation instructions

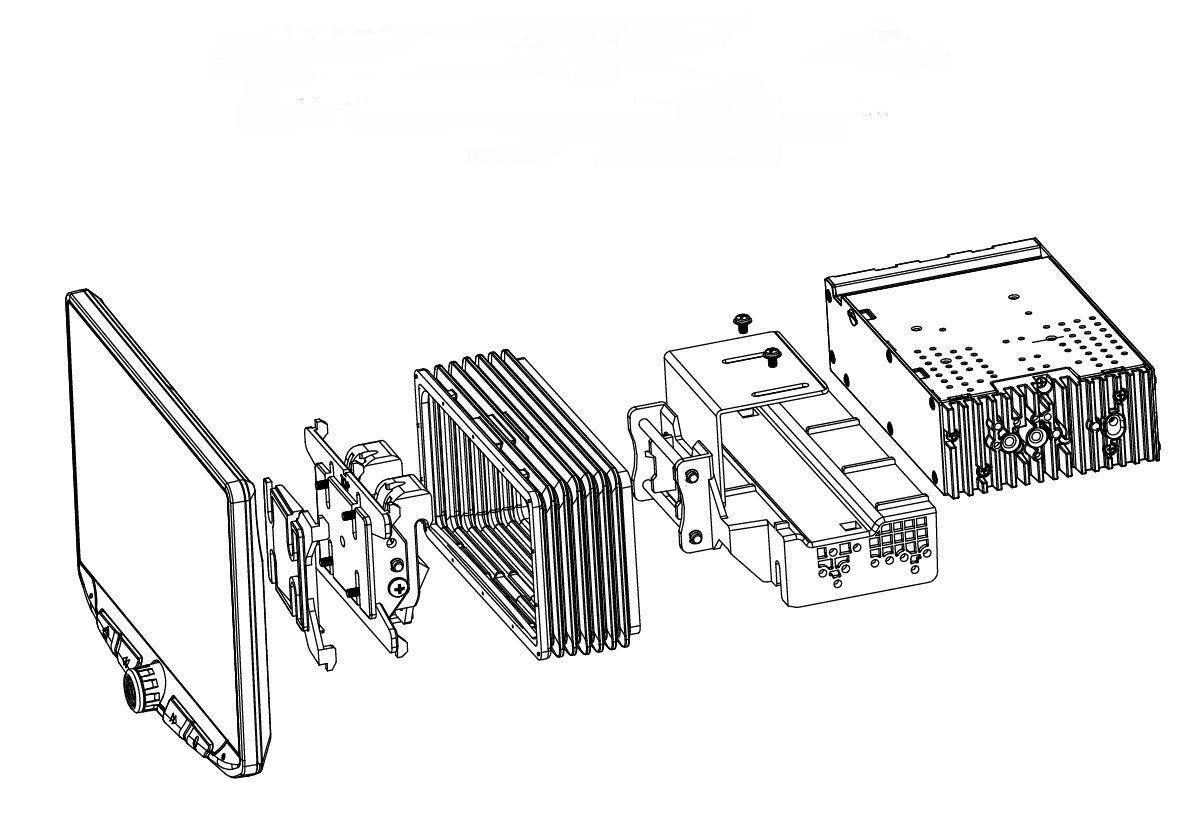

ATTENTION:

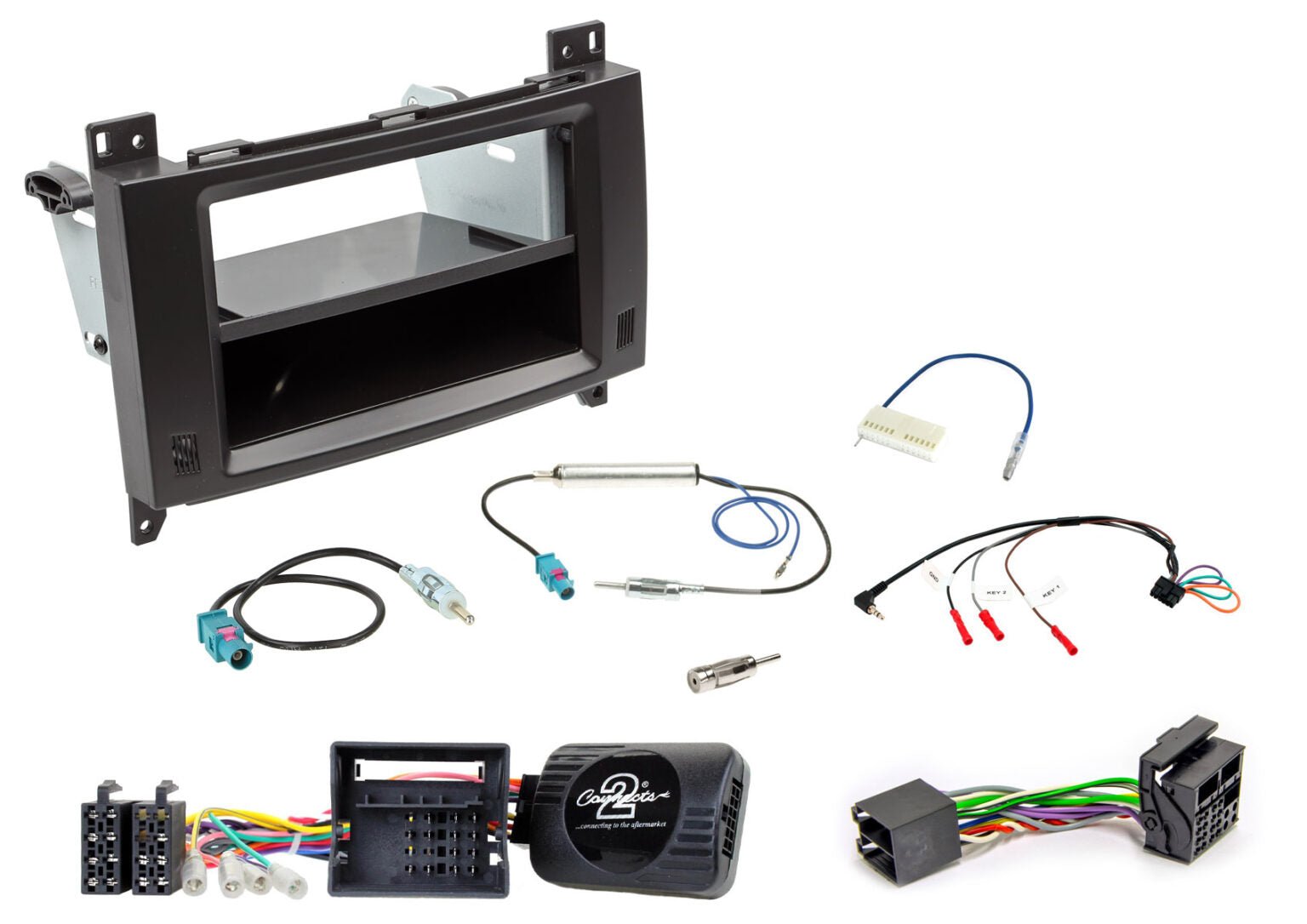

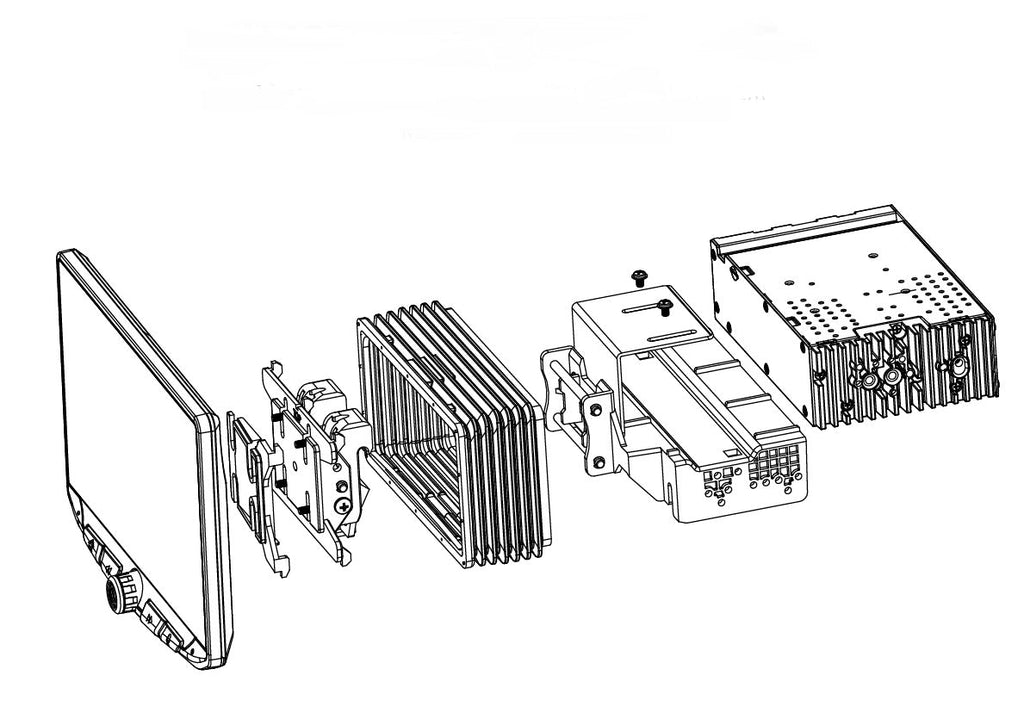

The player always requires either car-specific 2-DIN mounting accessories or, alternatively, a universal 2-DIN metal frame, if the car has a 2-DIN sized player slot ready.
